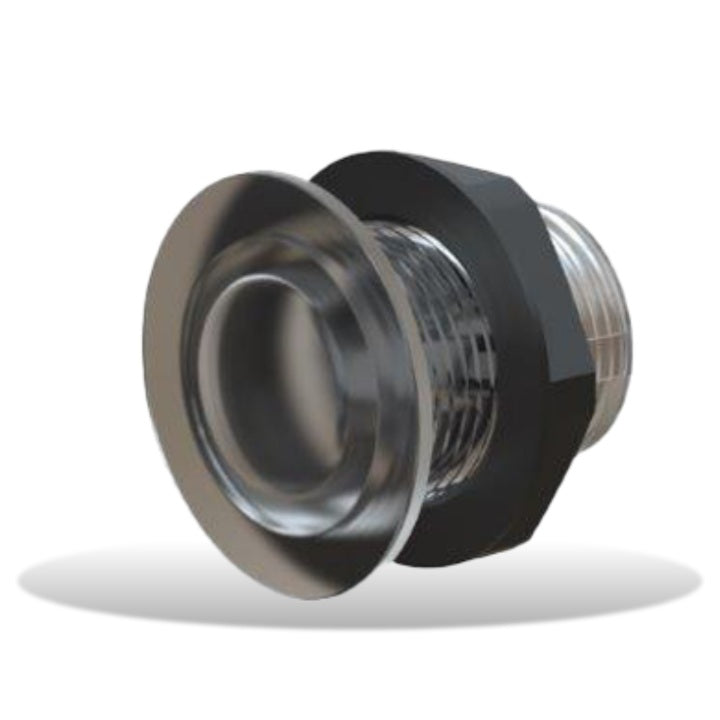

Lumishore Eclipse CL30 White Courtesy Light 12/24vDC

Lumishore Eclipse CL30 White Courtesy Light 12/24vDC

Model: CL30

ECLIPSE Courtesy Lights are great for illuminating walkways, stairwells, helm stations and other design elements of a boat. Available in single color white and two other color options.

Constructed of a durable clear acrylic body, completely water sealed and IP67 rated.

Measuring 33mm (1.3"") in diameter, ECLIPSE Courtesy Lights are small and discreet and easy to install (2 wire hookup), flush mountable and fit almost anywhere onboard.

Specifications

Color	White (5000 K)
LED Type	3 x 0.5W White LEDs
Customer Control Options	On/Off Switch or ECLIPSE Command Center
Electrical Installation	Simple 2 Wire Installation
Supply Voltage Range	12V DC Only (10 - 15V DC)
Max Current Draw (12V DC)	0.1A
Ingress Protection	IP67
Front Diamater (Bezel)	33mm (1.3"")
Depth	30.0mm (1.180")
Hole Diameter for fitting	25.4mm (1.0"")
Mechanical Installation	Panel Mount
Warranty	3 Years

SKU: NVN-1004418
MPN: 010-04469-00
UPC: 847772003569
