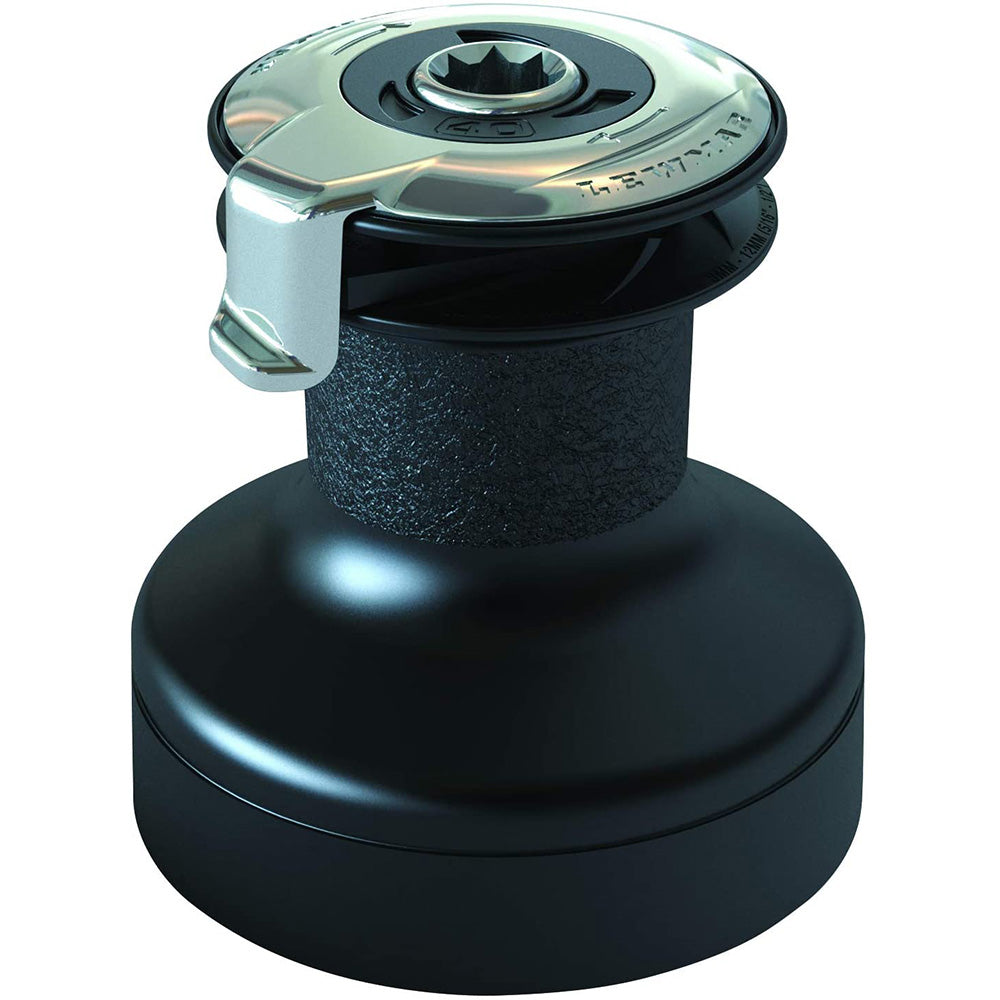

Lewmar 30ST EVO® Self Tailing Winch Alloy - Black
Lewmar 30ST EVO® Self Tailing Winch Alloy - Black — Product description
Upgrade your sailboat's deck hardware with the Lewmar 30ST EVO Self-Tailing Winch in sleek black alloy. This powerhouse combines cutting-edge engineering with sailor-tested reliability, making it a go-to choice for handling heavy loads effortlessly during tacks, gybes, or those intense upwind grinds. Whether you're racing offshore or cruising coastal waters, its intuitive design lets you focus on the helm while it grips lines with precision.
Standout Features That Make Sailing Smoother
The 30ST EVO builds on decades of Lewmar innovation, introducing user-centric touches that save time and frustration on the water. Forget fumbling with tools during maintenance—servicing is a breeze with a tool-free top cap and captive components. Clear direction arrows molded into the base guide your hand naturally, even in rough seas or low light, ensuring smooth cranking every time.
- Self-Tailing Jaws: V-shaped jaws conform perfectly to tapered braid or traditional three-strand rope, self-adjusting for secure holds without slippage.
- Alloy Construction: Hard-anodized black finish resists corrosion from saltwater spray and UV exposure, staying looking sharp season after season.
- Two-Speed Operation: Low gear for fast line retrieval, high gear for maximum power when tension peaks—seamless shift with minimal effort.
- Compact Footprint: Fits standard winch base patterns, ideal for retrofits on older boats without major modifications.
Performance Specs at a Glance
Engineered for mid-sized yachts and performance dinghies, this winch punches above its weight class. Here's what you need to know:
| Specification | Measurement |
|---|---|
| Drum Diameter | 2.91 inches |
| Base Diameter | 5.43 inches |
| Overall Height | 5.74 inches |
| Line Entry Angle | 2.72 inches |
| Recommended Line Size | 0.25 - 0.5 inches (6-12 mm) |
| Gear Ratios | 1st: 2:1 | 2nd: 4.2:1 |
| Power Ratios | 1st: 13.8:1 | 2nd: 29.2:1 |
| Safe Working Load (SWL) | 1510 lbs |
| Weight | 9.2 lbs |
These dimensions ensure compatibility with most cockpit layouts, while the robust SWL handles genoa sheets or spinnaker guys with confidence.
Why Sailors Swear by the 30ST EVO for Their Rigs
In a sea of winches, the EVO stands out for its balance of power, lightness, and low maintenance. The black alloy body not only looks aggressive but sheds heat better during prolonged use, keeping your hands comfortable. Compared to older models, the EVO's redesigned feeder arm leads lines in at the perfect angle, reducing chafe and improving tailing efficiency. Racers love the quick speed switch for split-second maneuvers, while cruisers appreciate the bombproof build that shrugs off years of abuse.
Easy Installation and Keep-It-Running Tips
Mounting is straightforward—bolt it to your deck using the pre-drilled base, matching most standard patterns. For best results, align the self-tailer jaws parallel to your sheet leads. Maintenance? Pop off the top cap without tools, rinse with fresh water after every sail, and grease the pawls annually. This keeps it spinning like new, extending its lifespan far beyond basic winches.
- Pro Tip: Pair with low-stretch Dyneema halyards for ultimate control.
- Upgrade Idea: Install two for symmetric spinnaker work on bigger boats.
Frequently Asked Questions
What types of lines is the Lewmar 30ST EVO winch designed for?
It handles lines from 0.25 to 0.5 inches (6-12 mm) in diameter, including polyester double braid, nylon three-strand, and modern tapered ropes. The self-tailing jaws grip securely without crushing.
Is this winch two-speed, and how does the gearing work?
Yes, it's a two-speed winch. First gear (2:1) offers fast line retrieval for easing sheets. Second gear (4.2:1) provides high power (29.2:1 ratio) for trimming under load—no handle slip needed.
What's the safe working load, and is it suitable for my 35-foot sailboat?
With a 1510 lbs SWL, it's perfect for primary winches on boats up to 40 feet, handling jib sheets, main halyards, or traveler controls with margin to spare.
How easy is maintenance on the EVO self-tailing winch?
Tool-free servicing is a highlight—no wrenches required to access jaws, pawls, or gears. Just lift the top cap, clean, and relube for peak performance.
Does the black alloy finish hold up in marine environments?
Absolutely. The hard-anodized aluminum alloy resists saltwater corrosion, fading, and wear better than chrome or standard finishes, ideal for offshore or tropical sailing.
Can I use this winch as a direct replacement for older Lewmar models?
Yes, the base diameter matches many Ocean series winches, making it a plug-and-play upgrade with improved ergonomics and durability.
How heavy is the Lewmar 30ST EVO winch?
At just 9.2 lbs, it's lightweight for its power, reducing topweight and easing handling during installs or swaps.
30ST EVO® Self Tailing Winch Alloy - Black
An evolution of the renowned Lewmar Ocean winch, the EVO® Self-Tailing Winch draws on a wealth of design and manufacturing experience to produce a state-of-the-art winch.
Features:
- Easy Servicing – no tools required
- User-friendly direction arrows
Technical Specifications:
- Drum Diameter - 2.91"
- Base Diameter - 5.43"
- Height - 5.74"
- Line entry - 2.72"
- Line size: - .25" - .5"
- Gear Ratio 1st Gear - 2:1
- Gear Ratio 2nd Gear - 4:2:1
- Power Ratio 1st Gear - 13.8:1
- Power Ratio 2nd Gear - 29:2:1
- SWL - 1510lbs
- Weight - 9.2lbs
In the Box:
- Winch
- Instruction manual
*Sold as an Individual
SKU: NVN-94236
MPN: 49530055
UPC: 743683020124
Technical specifications
| Brand | Lewmar |
| Model | Lewmar 30ST EVO® Self Tailing Winch Alloy - Black |
| SKU / MFR# | 94236 |
