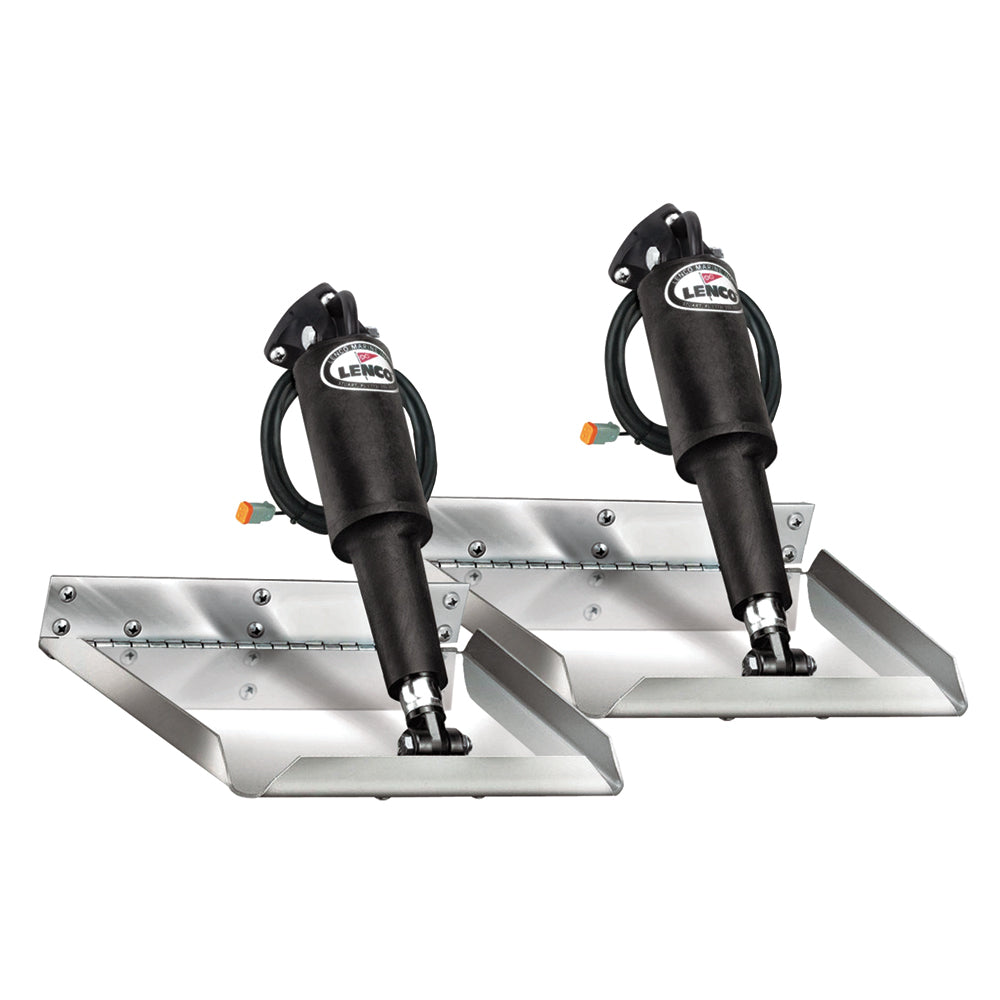

Lenco 12" x 9" Electro-Polished Edge Mount Trim Tab Kit

Electro-Polished Edge Mount Trim Tab Kit12-Gauge Blades / 12-Volt Actuators Trim tabs make the single most important difference in the way your boat rides and performs. They are optional on some boats but should be as standard as power trim and tilt. Lenco trim tabs make your boat ride smoother, drier, faster and with increased safety whether on a small skiff or a mega-yacht. Lenco's ballscrew design is more reliable, three times more powerful and features an instant response, which makes them very user friendly compared to typical hydraulics. We also like being oil-free and environmentally conscious. All the same features of the Edge Mount series with the additon of Electro-Polished blades. Electro-Polish adds a mirror finish and the ultimate corrosion protection. Actuator mounts at the trailing edge of these 12" blades giving them a 3" lower mounting height.Blades are constructed of Electro-Polished 12 gauge lase cut 304 stainless steel with 1" turned up edges and a 5 degree taper on both sides to the trailing edge & 1/8" diameter hinge pin. Upper and lower high impact corrosion proof mounting brackets with mechanical cable gland seal.

Lenco 15115101 Attributes

• Tab Size: 12 Inch Length X 9 Inch Width
• Material: Stainless Steel

Lenco 15115101 Features & Benefits

• Fast response electric actuators
• Fully submersible actuators
• Plug and Play waterproof connectors
• Switch Kit sold seperately
• Limited 3 year warranty

Lenco 15115101 Installation Instructions

• Trim_Tab_Manual_TCHDAT.pdf

Lenco 15115101 Technical Bulletins

• size_diagram_edge_mount_TCHDAT.pdf
• standard_performance_diagram_TCHDAT.pdf

12" x 9" Electro-Polished Edge Mount Trim Tab Kit
12 Volt

Fast response electric actuators for precise control. Fully submersible. All Plug & Play Deutsch connections. Electro-Polished blades are constructed of 12-gauge 304 stainless steel with 1" turned up edges and an 85x inside taper and 1/8" diameter stainless steel hinge pin. The actuators mount at the trailing edge of the blades, requiring 1/2" less transom height than the standard mount tabs.

Kits include:

• (2) 12-gauge stainless steel Electro-Polished blades

• (2) 15054-001 actuator with 6' leads and Deutsch connectors

• (2) 30133-103 20' actuator extension wiring harnesses

• (2) 15085-001 upper mounting brackets with gland seal

• (2) 50014-001 lower mounting brackets

• Lenco owner's/installation manual

• Stainless steel mounting hardware

Specifications:

• Boat Length:14' - 18'

• L" x W":12" x 9"

• Hinge Height:2"

• Minimun Transom Height:11"
