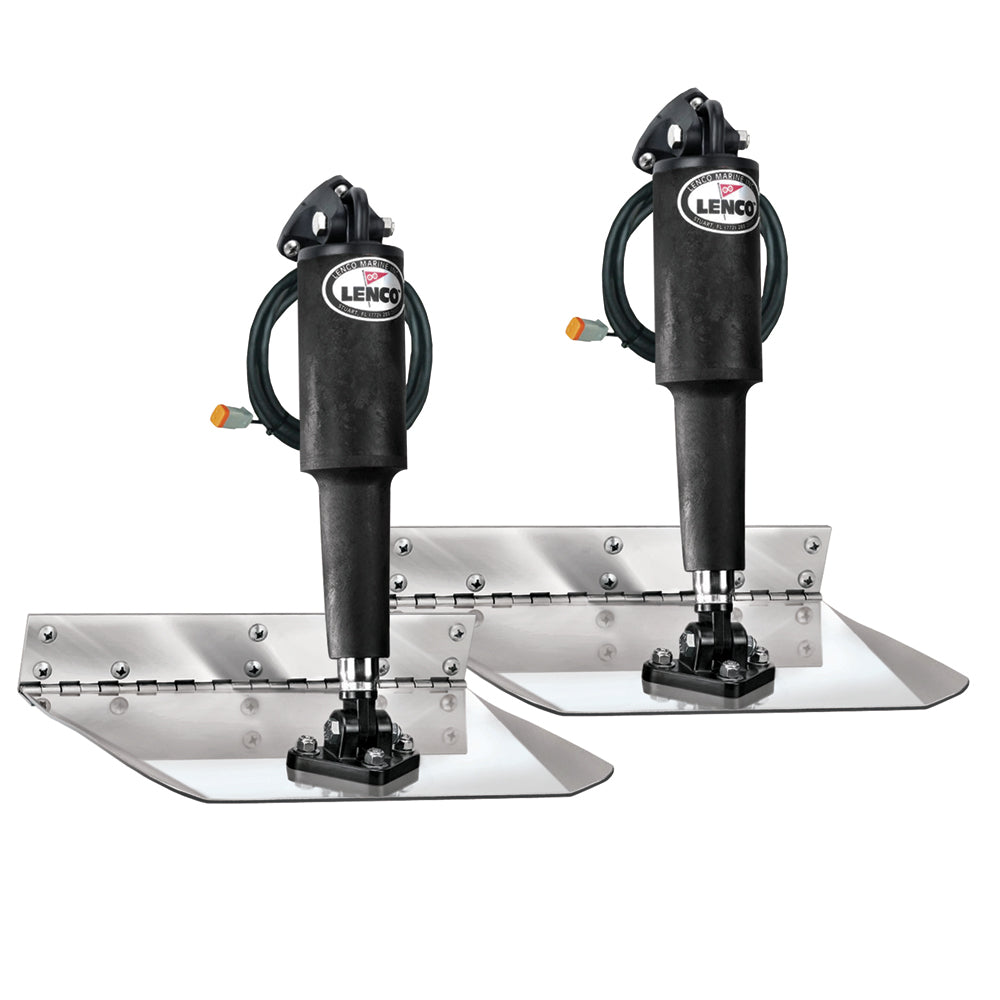

Lenco 9" x 12" Electro-Polished Standard Trim Tab Kit

9" x 12" Electro-Polished Standard Trim Tab Kit
12 Volt

Fast response electric actuators for precise control. Fully submersible. All Plug & Play Deutsch connections. Blades areconstructed of 12-gauge 304 Electro-Polished stainless steel with a 5/8" flared trailing edge & 1/8" diameter stainless steel hinge pin.

Kits include:

• (2) 12-gauge stainless steel Electro-Polished blades

• (2) 15054-001 actuator with 6' leads and Deutsch connectors

• (2) 30133-103 20' actuator extension wiring harnesses

• (2) 15085-001 upper mounting brackets with gland seal

• (2) 50014-001 lower mounting brackets

• Lenco owner's/installation manual

• Stainless steel mounting hardware

Specifications:

• Boat Length:16' - 25'

• L" x W":9" x 12"

• Hinge Height:2"

• Minimun Transom Height:14"

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

"All the same features of the Standard Mount series with the addition of Electro-Polished blades. Electro-Polish adds a mirror finish and the ultimate corrosion protection. Boat lengths 16 (4.9 m) to 30 (9.1 m). All the same features of the Standard Mount series with the addition of Electro-Polished blades. Electro-Polish adds a mirror finish and the ultimate corrosion protection. Boat lengths 16 (4.9 m) to 30 (9.1 m). Kit includes: (2) 12-gauge stainless steel Electro-Polished blades, (2) 15054-001 actuators with 6' (1.8 m) leads and Deutsch connectors, (2) 30133-103 actuator extension wiring harnesses - 20 (6.1 m) length, (2) 15085-001 upper mounting brackets with gland seal, (2) 50014-001 lower mounting brackets, Lenco owners\/installation manual and stainless steel mounting hardware. Switch kits sold separately."
SKU: NVN-56445
MPN: 15113-101
UPC: 874847006774
