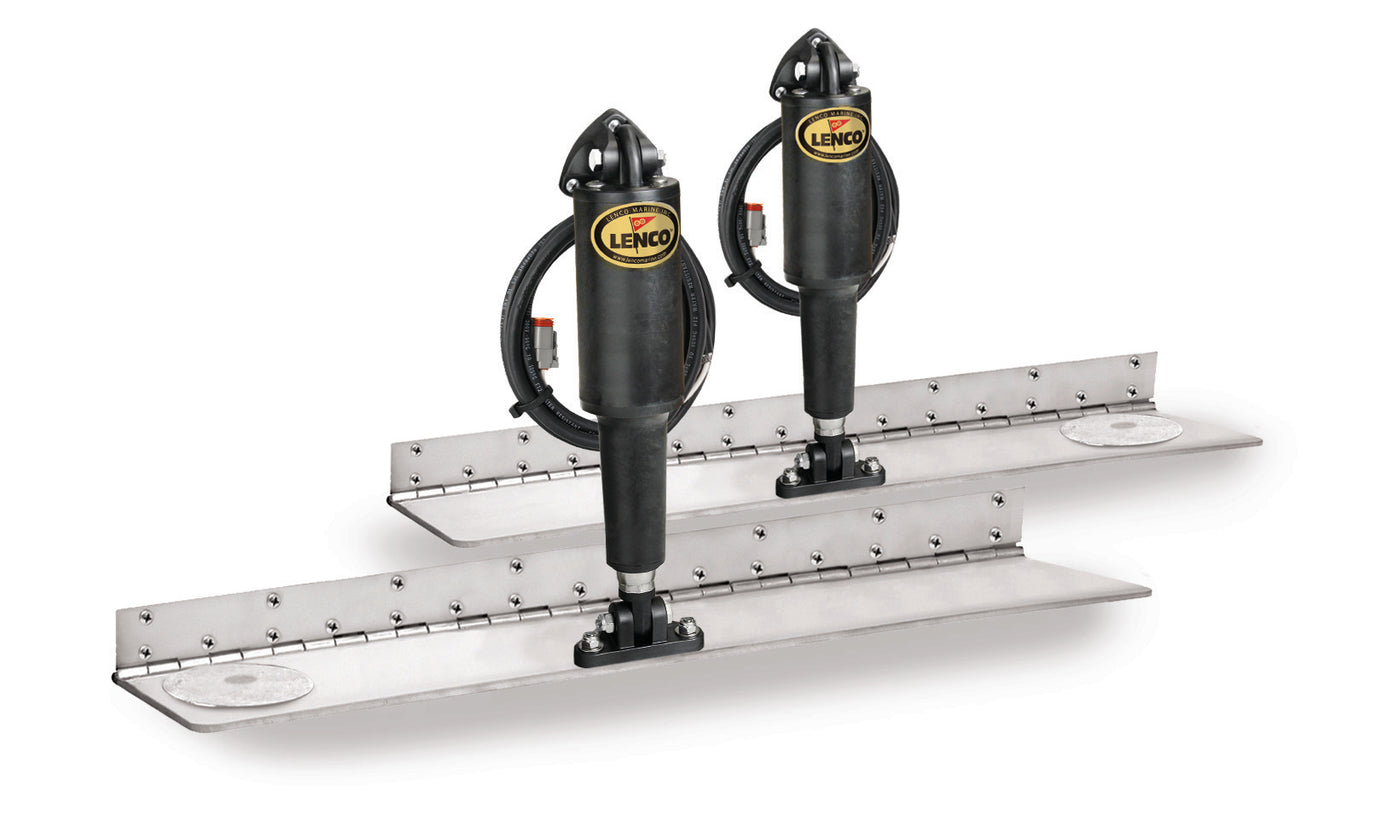

Lenco 4x18 Hybrid Trim Tab Kit 12V
Lenco 4x18 Hybrid Trim Tab Kit 12V — Product description
Lenco 4"" x 18"" Hybrid trim tabs, Standard Finish
Model: 15145-101Same powerful features and unique blade design as the single HP series with double the actuator support for larger, faster boats. Boat lengths 24’ (7.3 m) to 52’ (15.8 m). Blades are constructed of Electro-Polished 7 gauge (4.6 mm) laser cut 304 stainless steel, heavy duty hinge with 3/8" (9.5 mm) diameter hinge pin. Full transom back plate with mechanical strain-relief cable seals, welded on stainless steel upper & adjustable lower actuator mounting brackets, 3/8" (9.5 mm) stainless steel mounting bolts. 3.75" (9.5 cm) sacrificial anodes installed.
Note: Actuator extension harnesses not in kits, must be purchased separately (2 required)
Specifications| L"" X W"" | 4"" X 18"" |
| Boat Length | 30' - 44' |
What's in the Box:
- (2) NEW 7-gauge stainless steel blades with standard finish
- (2) Standard actuators with 6' (1.8 m) lead and Deutsch connectors
- (2) 15085-001 upper mounting brackets with gland seal
- (2) 50014-001 lower mounting brackets
- Stainless steel mounting hardware
SKU: NVN-1003027
MPN: 15145-101
UPC: 874847007696
Technical specifications
| Brand | Lenco Marine |
| Model | Lenco 4x18 Hybrid Trim Tab Kit 12V |
| SKU / MFR# | 1003027 |
