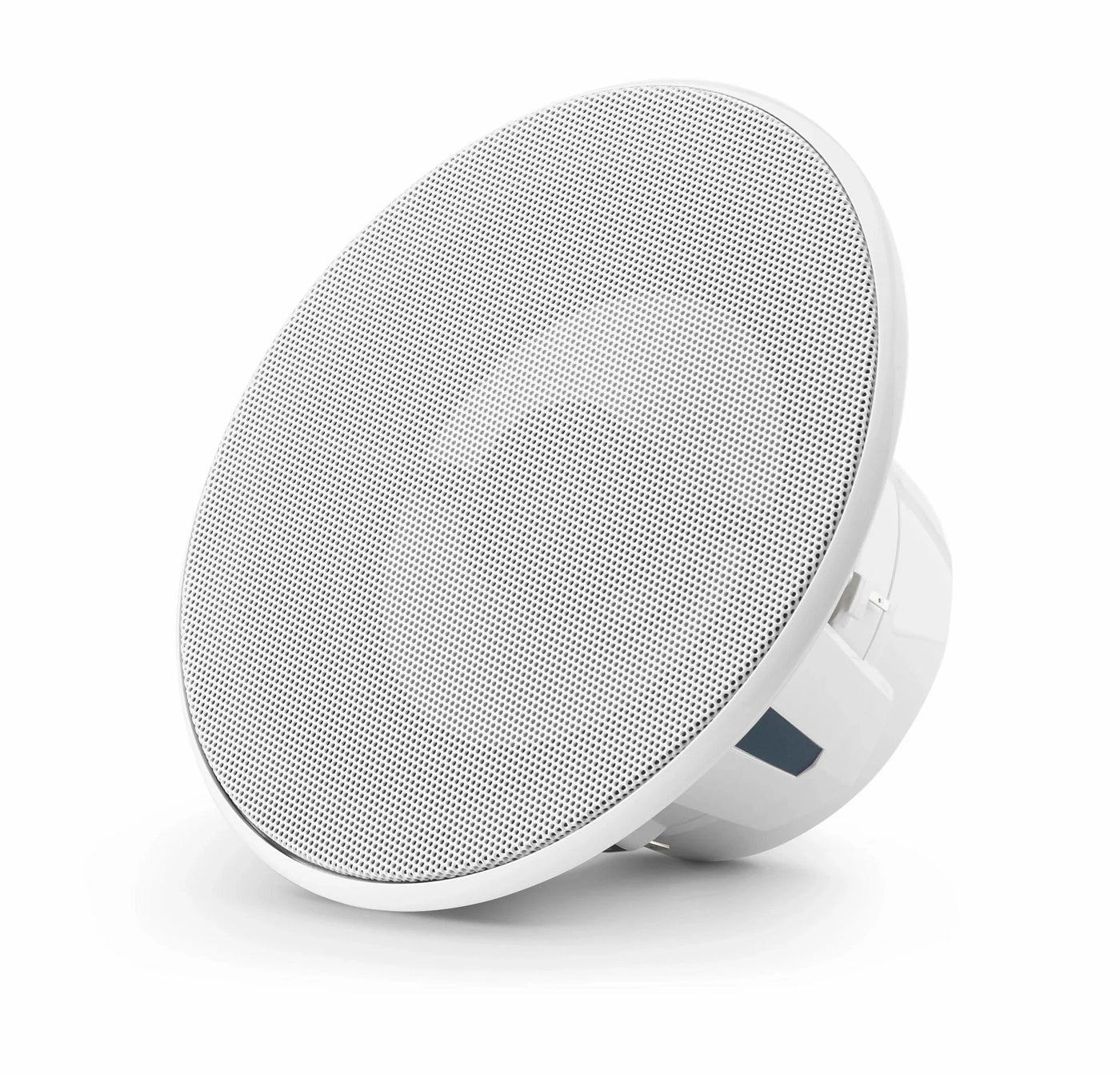

JL Audio M6 7.7in Coaxial Speakers White LUXe Grille Single Speaker
JL Audio M6 7.7in Coaxial Speakers White LUXe Grille Single Speaker — Product description
JL Audio M6 7.7in Coaxial Speakers White LUXe Grille Single Speaker
Model: M6-770X-L-GwGw-SingleM6 7.7-inch Marine Coaxial Speaker (100 W, 4 ohms) - White Trim Ring, White Luxe Grille
M6 Luxe speakers are purpose-built to deliver top-flight audio performance and durability in luxury marine installations. Each model is outfitted with a low-profile mounting bezel with integrated tweeter bridge and a fine mesh grille for minimal protrusion into cabin space. The result is a discreet visual appearance able to blend in with the finest vessel surroundings.
The oversized 7.7-inch design of the M6-770X coaxial results in increased efficiency (more output for a given amount of power). Combine that advantage with long excursion and excellent power handling and you have a speaker system truly capable of playing loud and clear in a powerboat at speed.
A 1-inch pure silk dome tweeter, specially treated to withstand the marine environment, handles the high-frequency duties. You will appreciate the clean, articulate high-frequency response of the M6 dome tweeter, especially at higher volume levels.
A multi-order, true 2-way passive crossover is concealed within the woofer chassis, shielded from vibration and corrosion. Also included, is an automatic tweeter protection circuit to minimize the possibility of tweeter failure.
Although M6-770X Coaxial Systems can be used with as little as 40 W per channel, for best audio performance we recommend amplifiers capable of between 40-200 W of continuous power per channel.
Production of all M6 loudspeakers takes place in JL Audio’s Miramar, Florida factory, using global components and materials.
Sold individually.
USA Limited Warranty: Two (2) years from the original date of purchase
Specifications| General Specifications | |
| Continuous Power Handling (RMS) | 100 W |
| Recommended Amplifier Power (RMS) | 40 - 200 W / Ch. |
| System Efficiency | 91.0 dB @ 1 W / 1 m |
| System Nominal Impedance | 4 ohms |
| System Frequency Response | 45 Hz - 25 KHz ± 3 dB |
| Coaxial Physical Specifications | 9.13 in / 232 mm |
| Bolt Hole Circle Diameter Frame Outer Diameter | 8.18 in / 208 mm |
| Frontal Grille Protrusion | 0.38 in. / 10 mm |
| Mounting Hole Diameter | 7.50 in / 191 mm |
| Mounting Depth | 4.26 in. / 108 mm |
SKU: NVN-1003829
MPN: 010-03506-00
UPC: 699440937177
