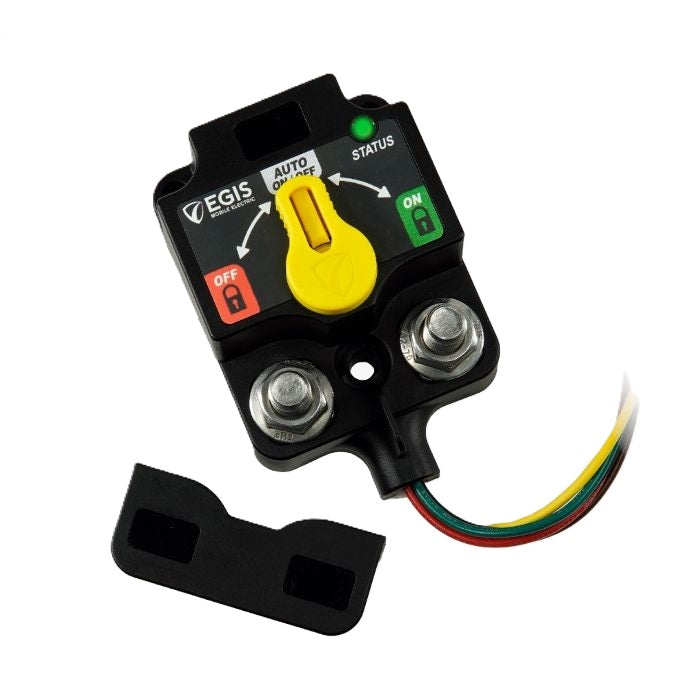

EGIS XD Single Remote Battery Switch with Knob Tinned Wires

EGIS XD Single - Remote Battery Switch w/Knob - Tinned Wires, Bulk Pack

Model: 8710-1500

• LED STATUS DISPLAY: Easy to see front facing LED indicator provides visual device status, remote LED replicates local on-device LED
• 3-POSITION MANUAL OVERRIDE: Force each individual relay Open or Closed and optionally leave knob in either position to lock relay in either condition.
• 40 CIRCUIT LABEL SHEET INCLUDED: Convenient recesses for included weatherproof label set makes circuit and relay identification easy. Blank labels for custom applications.
• PROTECTIVE COVER INCLUDED: Protects terminal studs and cable terminal edges from inadvertent shorts to each other or ground.
• STAINLESS HARDWARE: Corrosion is no issue with quality stainless steel studs and self locking flanged nuts.
• PROGRAMMABLE: Via dip switches located under protective cover. An easy to use configuration guide on reverse make custom settings a breeze to configure for a wide variety of applications.
• SMALLER FOOTPRINT: XD Relays offers high Amp rating in a smaller package than competitive solutions, reducing install space requirements to a minimum.
• INTEGRATED VENT: High quality Gortex vent regulates internal device pressure to eliminate moisture entry across seals and ensure long product life in harsh environments.

Bullet-proof Construction: Sealed to IP67/IP6K9K, high temperature electronics and materials allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware.

Intuitive Manual Control option simplifies operation and awareness of state of manual override and whether the device is being left in a locked off or locked on state (not available on competitive solutions)

Simple Programmability via simple dip switches allows each individual relay function significant flexibility for OEMs and installers.

Plug & Play Compatible with Legacy Competitor Products: Single, dual and triple relays options available with DTM/ATM connectors pin for pin compatible with ML Series Bi-stable Relays.

90-95% Less Off-State Current: Compared to competitive products and system solutions that require multiple devices for similar functionality

Specifications

Total continous current (amps)	500
Max cranking current (amps)	1500
Mechanical switching life	1,000,000 cycles
Voltage range	8-36vDC
Off-state current draw	1.3mA
State change current	5A @ 12vDC 3A @ 24vDC

SKU: NVN-1004244
MPN: 8710-1500
UPC: 850035199992
