Jabsco

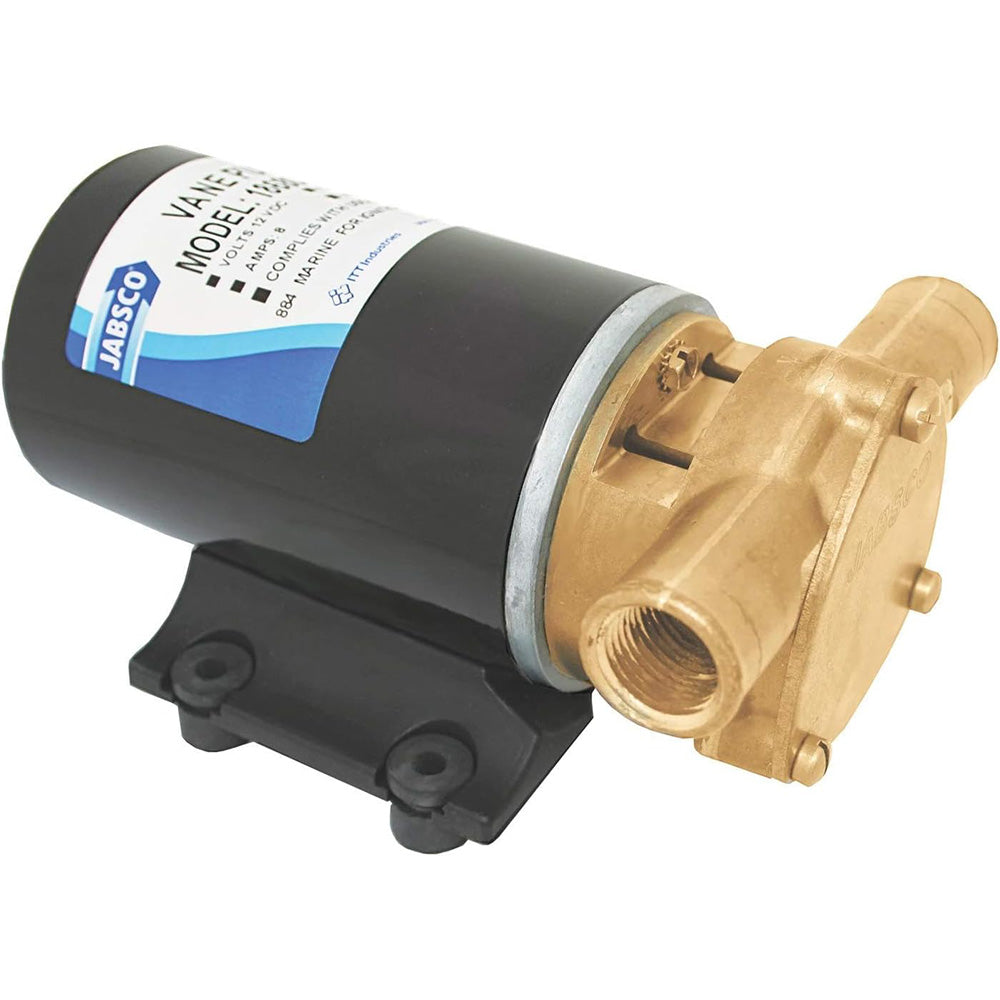

Jabsco Light Duty Diesel Transfer Vane Pump - 24V
SKU: 109370 · UPC: 671880532204 · MPN: 18680-0940
★★★★★
4.7 · 0 reviews
Authorized dealer33% off
$358.09
$539.99Save $181.90
or 4 payments of $89.52 with Affirm
Out of stock
Free shipping
Orders $500 or more
Free returns
Within 30 days
Same day shipping
Order before 3 PM (EST)
Ask anything
We're here to help
$358.09
02 · Overview
Jabsco Light Duty Diesel Transfer Vane Pump - 24V — Product description
Light Duty Diesel Transfer Vane Pump - 24V
Features:
- The pump head may be mounted at 90° increments on the motor to allow mounting as needed
- Meets USCG 183.410 & ISO8846 Marine (Ignition Protection)
Specifications:
- Body Materials: Bronze
- Rotor: Plastic - Liquid Crystal Polymer
- Vanes: Plastic - Polyphenylene Sulfide
- Seal - Nitrile Lip Seal
- Shaft Material: Stainless Steel
- Port Type: 1/2" NPT Female or 1" (25mm) Hose barb
- Voltage: 12 or 24VDC
- Motor Type: Intermittent duty permanent magnet type
- Duty Cycle: 30 minutes at 10ft (3m) at 86°F (30°C)
- Weight: 2.5 (kg) 5 1/2 (lb)
SKU: NVN-109370
MPN: 18680-0940
UPC: 671880532204
