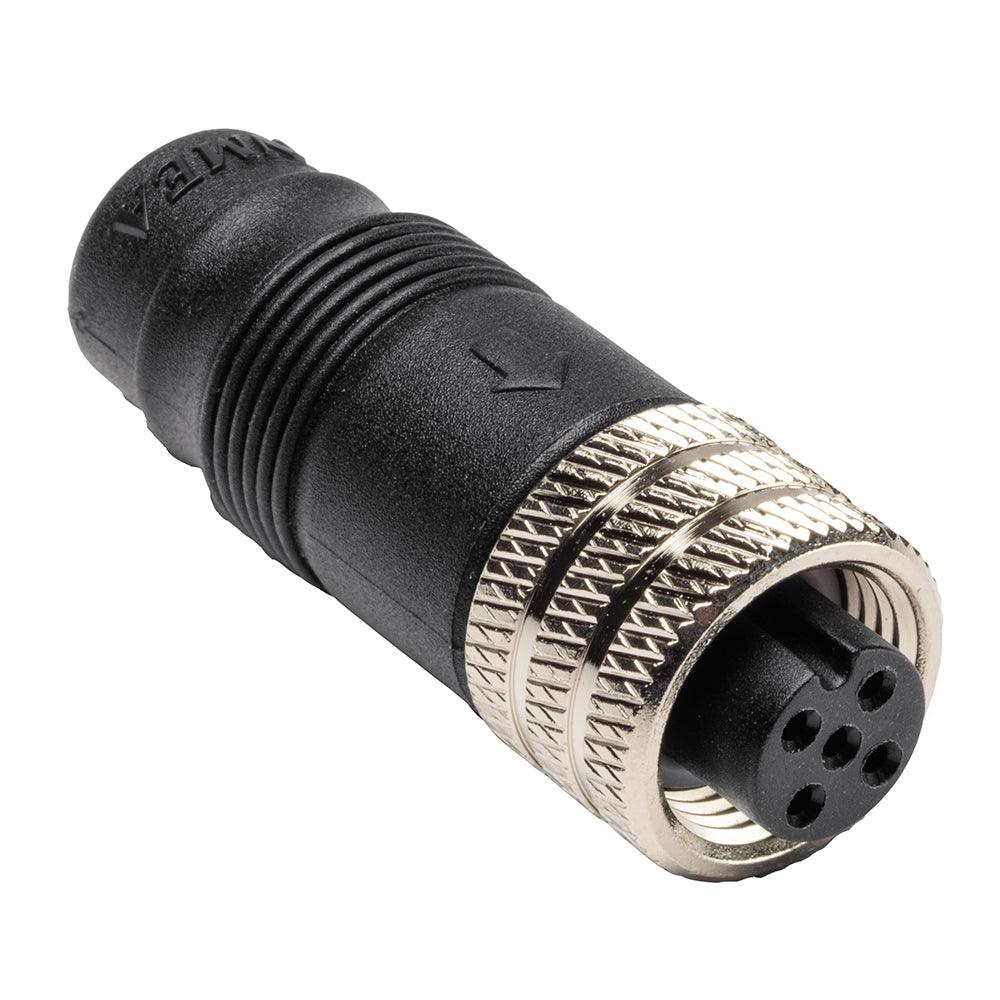

Humminbird NMEA 2000 Terminator - Female
Humminbird NMEA 2000 Terminator - Female — Product description
Ensure your marine electronics network runs flawlessly with the Humminbird NMEA 2000 Female Terminator. Designed specifically for boaters and anglers who demand reliable connectivity, this essential component caps off your NMEA 2000 backbone, preventing signal issues that can disrupt data sharing between your fishfinder, GPS, autopilot, and other devices.
Understanding the Role of NMEA 2000 Terminators in Marine Networking
NMEA 2000 is the gold standard for onboard communication in modern boating setups. It creates a single-drop bus where all your electronics—from sonar units to engine monitors—exchange real-time data seamlessly. However, without proper termination at both ends of the network, electrical noise and reflections can corrupt signals, leading to intermittent dropouts or complete failures during critical moments on the water.
The female terminator pairs perfectly with a male counterpart to bookend your backbone. Think of it as the guardrails for your data highway: it absorbs stray signals, maintains impedance at 120 ohms, and keeps your system stable even in rough seas or high-vibration environments.
Streamlined Features for Everyday Boaters
- Single Female Terminator Included: Ready to deploy at one end of your network drop cable or backbone.
- Robust Build Quality: Engineered to withstand saltwater exposure, UV rays, and constant marine conditions.
- Plug-and-Play Design: Micro-C female connector twists securely onto standard NMEA 2000 T-connectors or drop cables—no tools or soldering required.
- Peace of Mind Coverage: Backed by a manufacturer warranty to protect your investment.
Unlike makeshift solutions or generic cables, this Humminbird terminator integrates flawlessly with certified NMEA 2000 gear, ensuring compliance with industry standards for peak performance.
Step-by-Step Installation Tips for Optimal Results
Setting up your NMEA 2000 network doesn't have to be intimidating. Here's a quick guide tailored for Humminbird users:
- Plan your backbone: Run the main cable along your boat's gunwales, powering it with a 12V supply and drop "T"s to each device.
- Position terminators: Place the female terminator at the highest-power end (often near the power tee), and the male at the opposite end.
- Connect securely: Align the pins, twist the collar until it clicks, and zip-tie for strain relief.
- Test the network: Power up and use your Humminbird unit's diagnostics to verify all nodes are recognized—no errors means success!
Pro tip: Always install terminators before adding devices to avoid troubleshooting headaches later. In longer runs over 30 meters, consider adding in-line power isolators for extra stability.
Why Choose Humminbird for Your NMEA 2000 Essentials?
Humminbird's reputation in fishfinding extends to their networking accessories, where precision meets durability. This terminator enhances setups with SOLIX, HELIX, or ONIX series units, enabling shared waypoints, sonar overlays, and engine data without compatibility glitches. Boaters report fewer network faults after proper termination, translating to more time fishing and less time fixing.
Boosting Reliability: Real-World Benefits
Investing in quality termination minimizes downtime, which is crucial during tournaments or offshore trips. Stable networks mean accurate heading data for your autopilot, live well temps on your multifunction display, and synchronized charts across devices. It's a small piece that delivers big returns in system uptime and user confidence.
Frequently Asked Questions
Do I need both male and female NMEA 2000 terminators?
Yes, every NMEA 2000 network requires exactly one male and one female terminator—one at each end of the backbone—to maintain signal integrity and prevent reflections.
Where should I install the female terminator on my Humminbird network?
Conventionally, place the female terminator at the end nearest the power insertion point or the device drawing the most current, but the key is one at each physical end.
Is this terminator compatible with non-Humminbird devices?
Absolutely—it's a standard Micro-C female NMEA 2000 terminator, working with any certified brand like Lowrance, Garmin, or Simrad.
What happens if I forget to install terminators?
Without terminators, you'll likely experience data errors, slow response times, or devices dropping offline, especially under load or in electrically noisy environments.
Can I use this terminator in saltwater environments?
Yes, it's built for marine use with corrosion-resistant materials, but always apply dielectric grease to connections for added protection against moisture.
How do I troubleshoot a faulty NMEA 2000 network?
Check terminator seating first, then verify power at 12-15V, inspect cables for damage, and use your MFD's network scan tool to identify missing nodes.
Does this include any cables or T-connectors?
No, this is a standalone female terminator. Pair it with standard NMEA 2000 T-connectors and backbone/drop cables for a complete setup.
NMEA 2000 Terminator - Female
This NMEA 2000 terminator allows for proper termination of an NMEA 2000 network. The couplers connect to the corresponding T-connectors for a simple installation.
Features:
- Includes (1) female NMEA 2000 terminator
- Please note that installation of a NMEA 2000 network requires (1) male and (1) female terminator.
- 1-Year Limited Warranty
NMEA 2000 terminator-the female NMEA 2000 terminator can be used for the correct termination of the NMEA 2000 network. The coupler is connected to the corresponding T-connector for simple installation. Features: including (1) female...
SKU: NVN-85791
MPN: 760035-1
UPC: 00082324056031
