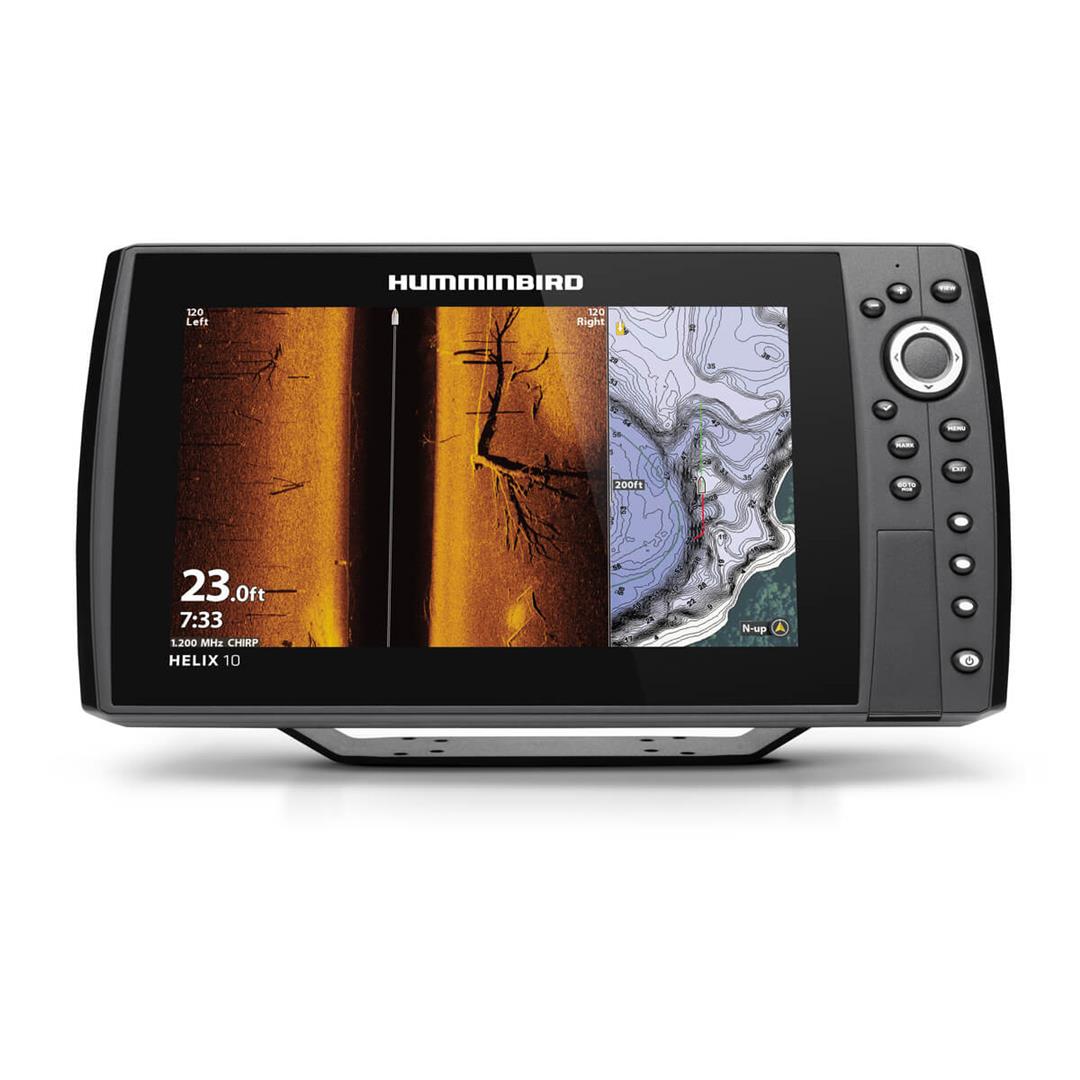

Humminbird HELIX 10® MEGA SI+ GPS G4N

Unlock Crystal-Clear Waters with Advanced Sonar Technology

Imagine gliding across your favorite lake, spotting fish hugging structure from over 200 feet away, and mapping new hotspots in real-time. That's the power packed into this fish finder, designed for serious anglers who demand precision and performance. With its expansive 10.1-inch high-resolution display, every detail—from subtle bottom contours to schools of baitfish—pops into view, helping you make smarter casts and land bigger catches.

Whether you're chasing bass in shallow bays or walleye in deep drop-offs, the enhanced imaging capabilities transform guesswork into targeted strategy. Anglers report filling limits faster thanks to the live-action views that reveal fish behavior as it happens, letting you adjust trolling speeds or jigging rhythms on the fly.

Superior Imaging: See More Fish and Structure Than Ever

The standout MEGA Side Imaging+ sweeps 200 feet to each side of your boat, delivering 20% sharper details and extended range compared to standard versions. Picture scanning submerged timber, rock piles, or weed edges with photo-like clarity—perfect for pinpointing ambush points where trophy fish lurk.

• MEGA Down Imaging+: Probes up to 200 feet straight down, uncovering fish suspended over open water or hugging the bottom with unmatched resolution.
• Dual Spectrum CHIRP Sonar: Switch between wide coverage for scouting vast areas and narrow focus for dissecting tight spots, revealing precise fish arches and bottom hardness.

Pro tip: In murky water, rely on the high-frequency CHIRP to cut through sediment, exposing hidden cribs or humps that hold crappie and perch during spawn.

Precision Navigation and Real-Time Mapping

Built-in GPS tracks your position with pinpoint accuracy, while the detailed Humminbird Basemap covers over 10,000 inland lakes and coastal U.S. waters. Spot hazards, marinas, and depth changes effortlessly, building confidence on unfamiliar waters.

• Store up to 2,750 waypoints to mark honey holes, saving hours of trial-and-error searching.
• AutoChart Live lets you generate custom contour maps, vegetation overlays, and hardness readings as you motor along—ideal for dialing in presentations on changing lakes.

Enhance your setup with compatible premium charts for even richer data, turning every outing into a mapping mission that pays dividends on return trips.

Seamless Connectivity for a Smarter Fishing System

Go beyond standalone use with robust networking options that integrate effortlessly into your rig. High-speed Ethernet supports multiple units and add-ons like precision trolling motors or radar for all-weather awareness.

• Bluetooth pairs with anchors and downriggers for wireless control from the screen.
• Wi-Fi and NMEA 2000 pull in boat data, weather feeds, and engine stats for a holistic dashboard.
• One-Boat Network compatibility unlocks synchronized features across brands, like spot-lock on brush piles or automated rigging depths.

Anglers love how this setup simplifies multi-species trips, coordinating sonar views with motor controls for hands-free efficiency.

Built Tough for Real-World Fishing Adventures

Rugged keypad controls shine in wet, gloved hands, ensuring reliable operation during rough chops or predawn launches. Fully waterproof construction laughs off splashes and spray, while the compact dimensions fit neatly on any console.

Backed by a two-year warranty, it's engineered for seasons of abuse—from ice fishing huts to saltwater pursuits—without skipping a beat. MicroSD storage keeps your data safe and expandable for endless charting.

What's in the Box: Ready-to-Mount Essentials

• Control head with vibrant 10.1-inch display
• Transom-mount transducer and hardware
• Gimbal bracket for secure installation
• Power cable for quick setup

Everything you need arrives prepped for transom mounting, getting you on the water fast with minimal tools.

Frequently Asked Questions

What makes the MEGA Imaging+ superior for finding fish?

It provides 20% more detail and up to 60% greater range or depth, scanning 200 feet sideways or downward to reveal structure and fish with stunning clarity, even in low-light conditions.

How does AutoChart Live help during a fishing trip?

It creates custom maps in real-time, capturing depth, vegetation, and bottom hardness as you drive, with 8 hours of onboard storage expandable via SD cards for personalized lake intel.

Is this fish finder compatible with other boating electronics?

Yes, it supports Ethernet, Bluetooth, Wi-Fi, and NMEA 2000 for networking with trolling motors, anchors, radar, and more, enabling a unified One-Boat system.

What's the display like for viewing in bright sunlight?

The 10.1-inch LCD boasts 1024x600 resolution, delivering sharp, sunlight-readable images that make split-screen sonar, maps, and imaging easy to interpret on the water.

Can I use it for saltwater or ice fishing?

Absolutely—its waterproof build and versatile sonar handle freshwater lakes, coastal bays, and even ice setups, with basemaps covering key U.S. regions.

How many waypoints can it store?

Up to 2,750 waypoints, plus routes and tracks, all savable to MicroSD for backup and sharing with fellow anglers.

Does it include GPS and navigation features?

Internal GPS pairs with Humminbird Basemap for 10,000+ lakes and coastal charts, highlighting contours, hazards, and points of interest for safe, effective navigation.

The HELIX 10 CHIRP MSI+ GPS G4N features a 10.1 Inch display, MEGA Side Imaging+, MEGA Down Imaging+, Dual Spectrum CHIRP Sonar and internal GPS with Humminbird Basemap. As with all HELIX G4N models, this HELIX 10 standard features such as AutoChart Live, Wi-Fi and NMEA 2000 (R), in addition to Bluetooth (R) and Ethernet networking for compatibility with the One-Boat Network ™ family of products from Humminbird, Minn Kota and Cannon.

Humminbird 4114201 Attributes

• Display Size: 10.1 Inch LCD
• Display Resolution: 1024 X 600 Pixels
• Overall Dimensions: 13.44 Inch Length X 7-1/2 Inch Height X 4.2 Inch Depth
• Sonar Compatibility: Dual Spectrum CHIRP Sonar
• With Built-In GPS: Yes
• Used To: Use To Find Fish And Identify Buoys/ Day Markers/ Hazards/ Marinas/ Contours/ Depth Markers
• Interface: Keypad
• Waterproof: Yes
• Point Of Interest: 2750 Waypoints
• SD Card Storage: Micro SD Card

Humminbird 4114201 Features & Benefits

• MEGA Live Delivers The Clarity And Detail Of MEGA Imaging In Live-Action, Allowing Anglers To See Fish And Structure In Real-Time
• MEGA Side And Down Imaging+ Extends Out To 200 Feet On Either Side, Plus 20 Percent More Detail Than MEGA Side And Down Imaging
• CHIRP Stands For “Compressed High Intensity Radar Pulse”: By Covering A Wide Range Of Frequencies, CHIRP Produces More Accurate, More Detailed Returns Of Fish, Structure And The Bottom
• Dual Spectrum CHIRP Sonar: By Covering A Wide Range Of Frequencies, CHIRP Produces More Accurate, More Detailed Returns Of Fish, Structure And The Bottom
• Precision GPS Provides An Accurate Position Fix, Meaning More Accurate Waypoints And Boat Positioning For Better Fishing
• Humminbird Basemap: Based On Freshwater Data From LakeMaster And NOAA, These Maps Provide A Clear View Of Underwater Terrain
• Map The Water As You Drive The Boat And Keep The Data Stored On Your Fish Finder Or Import It Into The AutoChart PC Program
• LakeMaster Lake Maps Features Unrivaled, Easy-To-Read Contours, Highlighted Depth Ranges, Scrollable Lake Lists And More
• SmartStrike Cards Combine High Definition LakeMaster Lake Map Data And Extensive Search Algorithms To Help You Pattern And Locate Fish At Any Time Of The Year
• Limited 2 Year Warranty

Humminbird 4114201 Installation Instructions

• HUM_productmanual_HELIX_OPSTART_532403E.pdf
• HUM_productmanual_IG_HLX_9-10-12_532405.pdf
• HUM_productmanual_IG_XM_Fixed_532508.pdf
• HUM_productmanual_OPS_HELIX_SRS_532509E.pdf

Humminbird 4114201 Warranties

• Humminbird 2-Year Limited Warranty.pdf

Humminbird 4114201 Technical Bulletins

• HUM_productmanual_Transducer_RG_532651E.pdf

HELIX 10® MEGA SI+ GPS G4N

The HELIX 10 CHIRP MSI+ GPS G4N features a 10.1" display, MEGA Side Imaging+, MEGA Down Imaging+, Dual Spectrum CHIRP Sonar and internal GPS with Humminbird Basemap. As with all HELIX G4N models, this HELIX 10 includes standard features such as AutoChart Live, Wi-Fi and NMEA 2000®, in addition to Bluetooth® and Ethernet networking for compatibility with the One-Boat Network™ family of products from Humminbird, Minn Kota and Cannon.

Features:

• Keypad control: Master HELIX at the touch of a button. Access the preloaded views from the user-friendly menu system, operated by soft key controls that allow you to reliably operate your fish finder in any condition.
• MEGA Side Imaging+: See the world below like never before with a crystal-clear Side Imaging viewing out to 200 feet on either side of your boat. You'll unlock more fish and structure with 20% more detail and 60% more range capability than MEGA Side Imaging sonar.
• MEGA Down Imaging+: Get unprecedented underwater clarity with Down Imaging coverage down to 200 feet below your boat. You'll unlock more fish and structure with 20% more detail and 60% more depth capability than MEGA Down Imaging sonar.
• Dual Spectrum CHIRP sonar: Before you cast, know what's down there thanks to highly-detailed fish arches and a clear view of fish-holding structure and the bottom. Powered by our proprietary, Low-Q CHIRP transducer, Dual Spectrum offers two ways to search; Wide Mode for maximum coverage and Narrow Mode for focusing on the slightest detail.
• Internal GPS and Humminbird Basemap: Our enhanced basemap provides you with a clear view of underwater terrain and surrounding points of interest so you can fish and navigate with total confidence. Identify buoys, day markers, hazards, marinas, contours, depth markers and much, much more. Includes charts of more than 10,000 lakes, plus coastal coverage for the continental U.S.
• Premium Chart Compatible: Humminbird provides the most complete offering of premium chart options to anglers everywhere. Get a complete view of the world below with optional charts from Humminbird's LakeMaster® and CoastMaster™ products, as well as your choice of compatible Navionics® charts.
• AutoChart Live: Create real-time maps of your fishing spots, with access to patented Humminbird® LakeMaster® features. Map depth contours, bottom hardness and vegetation as you drive your boat.  Comes standard with eight (8) hours of built-in recording time and is compatible with AutoChart Zero Line SD cards for virtually-endless AutoChart Live mapping capacity.
• One-Boat Network Compatible: Many Humminbird models seamlessly integrate and communicate with Minn Kota and Cannon products to unlock more features and capabilities for anglers everywhere. Make the more of your time on the water with the exclusive boat control and fish-catching features of the One-Boat Network.
• Ethernet Networking: High-speed Ethernet allows you to build a powerful, professional-grade fishing system. Easily connect multiple fish finders, or upgrade to add-on technologies like Minn Kota i-Pilot Link and Humminbird CHIRP Radar.
• Bluetooth: Take control right from the screen of your Humminbird with wireless communication to compatible Talon and Raptor shallow water anchors, as well as Cannon Optimum downriggers. Additional features include wireless software updates from the Humminbird FishSmart App and display of smart phone notifications on your Humminbird.
• NMEA 2000 networking built-in: Connect an accessory NMEA 2000 network to your control head for even more information; from boat performance to weather and water conditions, make sense of it all with NMEA 2000 networking.
• Includes control head, transom mount transducer and mounting hardware, power cable, gimbal mounting bracket.
• 2-Year Limited Warranty

Humminbird HELIX Fishfinder is an ideal companion for any fishing expedition with its easy-to-understand design and comprehensive performance. Reliable softkey controls allow access to a user-friendly operating system. Dual Spectrum CHIRP can easily switch from a widescreen mode for viewing all content to a more precise narrowscreen mode to enhance a single area of ​​interest. The HELIX uses both MEGA Down Imaging + and MEGA Side Imaging + to achieve unprecedented underwater clarity. The coverage extends to 200 feet below the bottom of the ship and 200 feet to the side of the ship. Unlock more fish, more structures and more fishing features than ever before. The 10-inch high-definition display Dual Spectrum CHIRP sonar with 1024x600 pixel resolution can clearly display the fixed structure of fish and fish, and can easily switch between wide or narrow observation modes. MEGA Down Imaging + and MEGA Side Imaging + increase unprecedented underwater clarity, and the coverage area has been expanded by 200 feet. The Low-Q CHIRP transducer AutoChart Live creates a real-time fishing spot map at 200 feet below and to the side of the boat, including depth, bottom hardness and vegetation. Record up to 8 hours of route information. The built-in GPS and Humminbird base map can display underwater terrain and surrounding points of interest. Compatible with advanced charting options, such as LakeMaster, CoastMaster and Navionics high-speed Ethernet and NMEA 2000 networks that support Bluetooth. Seamless network integrated with other products of Humminbird, Minn Kota and Cannon, including mounting hardware, power cord and gimbal mounting bracket
SKU: NVN-85754
MPN: 411420-1
UPC: 082324055034
