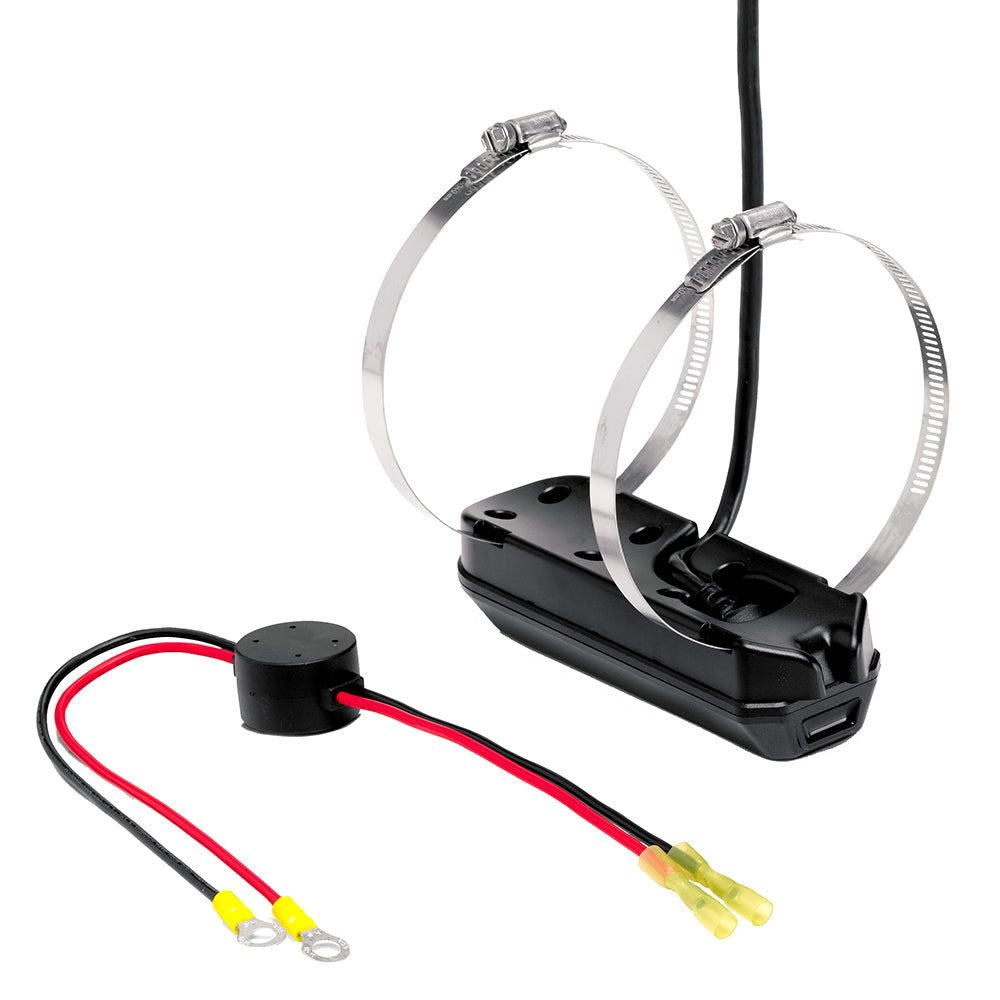

Humminbird XTM-14-HW-MDI-T MEGA DI+ Dual Spectrum CHIRP Trolling Motor Transducer w/Temp f/SOLIX™
Humminbird XTM-14-HW-MDI-T MEGA DI+ Dual Spectrum CHIRP Trolling Motor Transducer w/Temp f/SOLIX™ — Product description
Upgrade your fishing setup with the advanced imaging capabilities of a high-performance trolling motor transducer designed for precision and clarity on the water. This unit delivers exceptional down imaging and sonar performance, helping anglers spot structure, fish, and bottom details with stunning resolution. Perfect for serious fishermen using premium fishfinders, it combines rugged durability with cutting-edge technology to elevate your sonar game.
Superior Imaging and Sonar Performance
Experience the difference with MEGA Down Imaging+ that provides photo-like views of the underwater world. Operating at high frequencies including 455 kHz (up to 400 feet), 800 kHz (up to 125 feet), and MEGA DI+ at 1.2 MHz (up to 200 feet), it reveals hidden details traditional sonar misses. Paired with Dual Spectrum CHIRP 2D sonar covering 150-220 kHz full range—narrow band at 180-240 kHz and wide at 140-200 kHz—it reaches depths up to 1200 feet, offering versatile coverage for various water conditions.
- Crystal-clear MEGA Down Imaging+ for structure and fish ID
- Dual Spectrum CHIRP for detailed 2D sonar with adjustable beam widths
- Built-in temperature sensor for real-time water temp monitoring
- Rugged composite housing withstands tough marine environments
Built for Trolling Motors
Mounts seamlessly on popular trolling motors, providing stable, forward-positioned scanning without obstructing your path. Includes all necessary trolling motor mounting hardware and a generous cable length for clean installations. The 14-pin connector ensures plug-and-play compatibility with select high-end units.
Seamless Integration and Real-World Benefits
Engineered to maximize the potential of advanced fishfinder systems, this transducer unlocks full MEGA Imaging and CHIRP features. Anglers report sharper fish arches, better bottom separation, and easier navigation through weed beds or rocky terrain. The integrated temp sensor helps track thermoclines, key for targeting species like walleye or bass in stratified waters.
Why It Stands Out
- Enhanced target separation in murky or deep water
- Reduces guesswork during structure fishing
- Low-profile design minimizes drag and interference
- Supports year-round use from shallow bays to offshore depths
In practical terms, switching to this transducer can transform vague sonar returns into actionable intel, saving time and boosting catch rates on tournament days or casual outings.
Effortless Setup for Optimal Results
Installation is straightforward with included hardware: secure the transducer to your trolling motor shaft, route the cable away from interference sources, and connect the 14-pin plug. Position it parallel to the bottom for best down imaging—avoid air pockets or prop wash. Pro tip: Use zip ties and cable clips for a tidy deck, and test in shallow water to fine-tune sensitivity.
Regular maintenance like cleaning the face and checking mounts ensures peak performance season after season.
Frequently Asked Questions
What frequencies does this trolling motor transducer support?
It supports Dual Spectrum CHIRP from 150-220 kHz (full), with narrow 180-240 kHz and wide 140-200 kHz bands, plus MEGA Down Imaging+ at 455 kHz, 800 kHz, and 1.2 MHz for detailed imaging.
What is the maximum depth capability?
Dual Spectrum CHIRP reaches up to 1200 feet, while MEGA DI+ provides high-res imaging to 200 feet, 800 kHz to 125 feet, and 455 kHz to 400 feet.
Does it include a temperature sensor?
Yes, it features a built-in temperature sensor for monitoring water conditions alongside sonar data.
What type of mount is required?
It's specifically designed for trolling motor mounting, with hardware included for easy attachment to motor shafts.
How long is the cable?
The cable measures approximately 20 feet, providing ample length for routing to your display unit.
Is it compatible with all fishfinder models?
It's optimized for select advanced models, delivering maximum capabilities where supported, via a 14-pin connector.
What makes MEGA Down Imaging+ better than standard DI?
MEGA DI+ uses higher frequencies (1.2 MHz) for finer resolution, showing smaller details like individual fish tails or baitfish schools up close.
Trolling Motor Mount, MEGA Down Imaging+ 800kHz/455k kHz and 1.2 MegaHertz and Dual Spectrum CHIRP 2D Sonar with a CHIRP range of 150 to 220kHz. Features built-in temperature sensor.
Humminbird 7102911 Attributes
- Mounting Location: Trolling Motor Mount
- Number Of Pins: 14 Pin
- Depth: 1200 Feet
- Frequency Range: 150/ 220 kHz Full Dual Spectrum CHIRP Frequency, 455/ 800 kHz, 1.2 MHz Operating Frequency
- Cable Length: 15 Feet
Humminbird 7102911 Features & Benefits
- Compatible With: All APEX Models, All SOLIX Models To The Maximum Capability Of The Transducer
- Dual Spectrum CHIRP Frequencies: Full: 150 To 220 Kilohertz, Narrow: 180 To 240 Kilohertz, Wide: 140 To 200 Kilohertz
- Dual Spectrum CHIRP Max Depth: 1200 Feet
- Features Built-In Temperature Sensor
- Limited 1 Year Warranty
Humminbird 7102911 Installation Instructions
- 532552-3_B MEGA Imaging Transducer Installation Guide.pdf
- 532565-2_A Choke Cable Installation Guide.pdf
Humminbird 7102911 Warranties
Humminbird 7102911 Technical Bulletins
XTM-14-HW-MDI-T MEGA DI+ Dual Spectrum CHIRP Trolling Motor Transducer with Temp for SOLIX™
MEGA Down Imaging+ Trolling Motor Transducer supports MEGA Imaging/800kHz/455kHz and Dual Spectrum CHIRP 2D Sonar with a CHIRP range of 150-220kHz. Includes built-in temperature sensor, rugged composite design, trolling motor mounting hardware and 20’ cable.
Features:
- This accessory is compatible with the following Humminbird products: SOLIX 10 CHIRP MEGA DI+ GPS G2, SOLIX 12 CHIRP MEGA DI+ GPS G2, SOLIX 15 CHIRP MEGA DI+ GPS G2.
- Dual Spectrum CHIRP Frequencies: Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz
- Dual Spectrum CHIRP Max Depth: 1200ft (365m)
- MEGA Down Imaging Frequencies - Max Depth: 455kHz: 440-500 kHz - 400ft (122m), 800kHz: 790-850 kHz - 125ft (38m), MEGA DI+: 1075-1150 kHz - 200ft (61m)
WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
It supports Mega Down Imaging + and Dual Spectrum Chirp 2D sonar technology. The rugged composite design transducer uses a dual spectrum, allowing users to obtain clear and clear images.
SKU: NVN-73656
MPN: 710291-1
UPC: 082324053214
Technical specifications
| Brand | Humminbird |
| Model | Humminbird XTM-14-HW-MDI-T MEGA DI+ Dual Spectrum CHIRP Trolling Motor Transducer w/Temp f/SOLIX™ |
| SKU / MFR# | 73656 |
