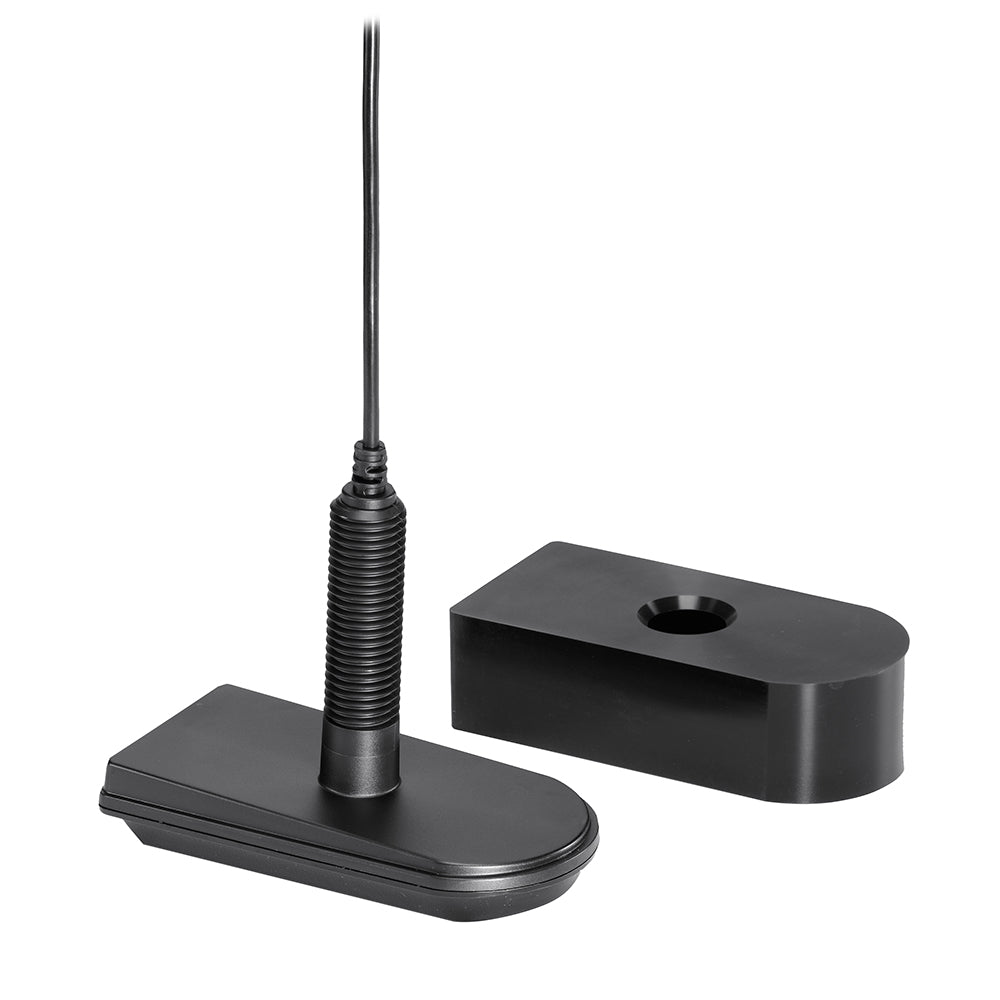

Humminbird XPTH 9 20 MSI T MEGA Plastic Thru-Hull Transducer

Discover Superior Underwater Imaging with the XPTH 9 20 MSI T MEGA Thru-Hull Transducer

Upgrade your fishing setup with this advanced plastic thru-hull transducer designed specifically for Humminbird Helix series units supporting MEGA technology. Engineered for boats that demand reliable performance at higher speeds, this 7-pin model delivers exceptional clarity in Side Imaging, Down Imaging, and traditional sonar views. Whether you're chasing trophy fish offshore or mapping structure in deep water, its robust construction ensures consistent results even in rough conditions.

Crafted from durable plastic with a 1-inch shaft diameter, the transducer measures 7.34 inches long by 3 inches wide, making it suitable for most hull types. The built-in temperature sensor provides real-time water data, complementing your sonar readings for smarter decisions on the water.

Key Specifications and Performance Capabilities

This transducer supports a versatile range of frequencies and beam angles to match various fishing scenarios:

• Frequencies: 83/200 kHz for DualBeam PLUS sonar, plus 455/800 kHz and 1.2 MHz for MEGA Side and Down Imaging.
• Beam Angles: 20°, 60°, 86°, and 55° coverage for wide-area scanning and precise targeting.
• Cable Length: 30 feet for flexible routing through your vessel.
• Mounting: Thru-hull installation for streamlined performance without drag.

These specs enable detailed imaging up to impressive depths, revealing fish-holding structures, bait schools, and bottom contours with MEGA-level resolution that's sharper than standard sonar.

Why Choose This Thru-Hull Transducer for Your Boat?

Unlike transom-mounted options that falter in choppy water or at planing speeds, thru-hull designs like this one maintain solid bottom lock and vivid imaging. Anglers report spotting fish and wrecks in ways that transform their outings—think hyper-detailed Side Imaging that paints a 360-degree picture of your surroundings.

Built for the harshest marine environments, it's backed by Humminbird's commitment to quality, including U.S. manufacturing standards. The integrated temp probe helps track thermoclines, vital for targeting species like walleye or stripers in stratified waters.

• Exceptional MEGA SI/DI for structure scanning.
• DualBeam PLUS for versatile 2D sonar coverage.
• Minimized interference from hull slapping or prop wash.
• Easy integration with compatible Helix displays.

Installation Insights for Optimal Results

Thru-hull mounting requires careful hull preparation—dead-rise angle matching is key for perpendicular water flow. Position it forward of the prop and keel line to avoid turbulence. Use marine sealant around the thru-hull fitting for a watertight seal, and route the 30-foot cable away from electrical noise sources. Professional installers often recommend fairing blocks for angled hulls to enhance signal quality.

Once installed, calibrate your Helix unit's settings for MEGA frequencies to unlock full potential. Regular hull cleaning prevents marine growth from degrading performance.

Real-World Applications and Pro Tips

Perfect for bass boats, center consoles, or offshore rigs, this transducer shines in Great Lakes trolling or coastal wreck fishing. Pair it with high-wattage Helix models for extended range—MEGA Down Imaging excels at picking apart brush piles or rock reefs.

Pro tip: In shallow water, toggle to 455 kHz for finer detail; switch to 800 kHz or 1.2 MHz in deeper zones for penetration without losing separation. Always cross-reference with GPS contours for the complete picture.
