Humminbird XP-14-20-T In Hull f/ION & ONIX 200/83kHz
Humminbird XP-14-20-T In Hull f/ION & ONIX 200/83kHz — Product description
Discover the Power of Seamless Underwater Detection

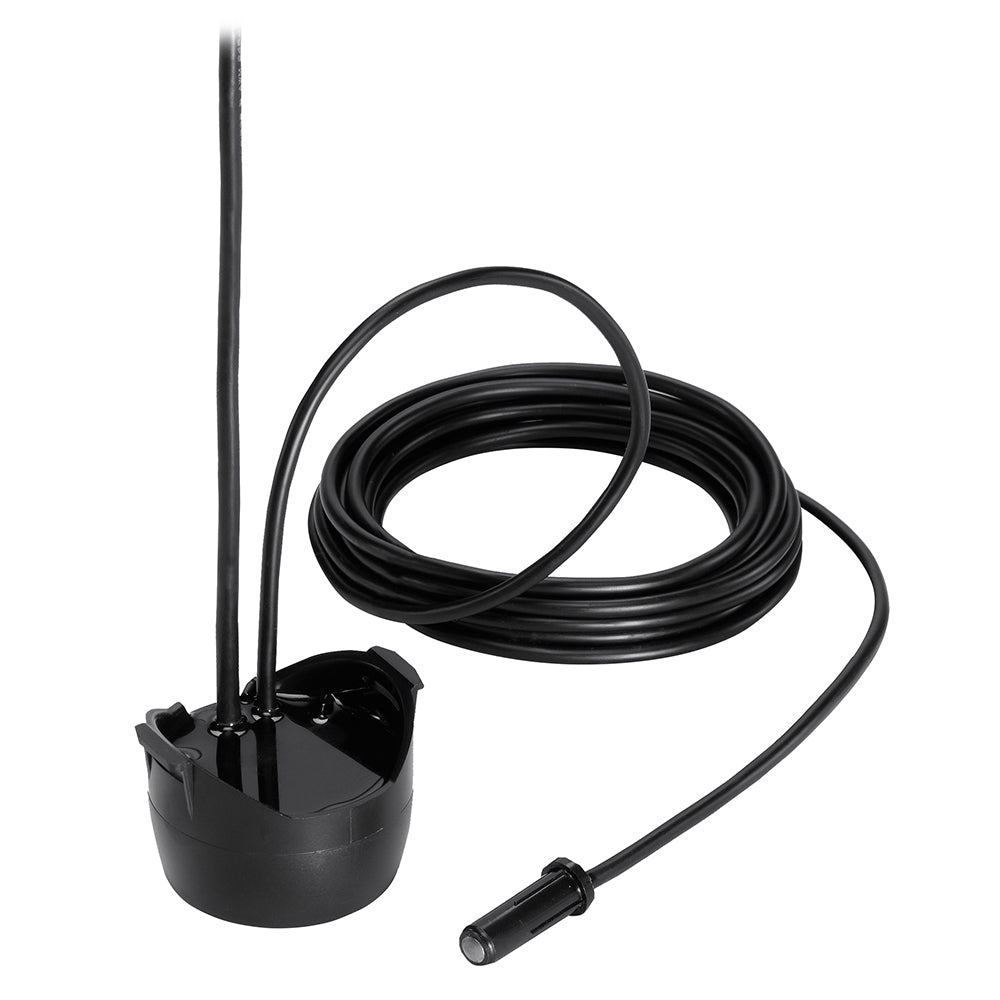

Imagine gliding across the water without compromising your boat's sleek lines or drilling into the hull. The Humminbird XP-14-20-T in-hull transducer brings that vision to life, delivering crystal-clear sonar readings from inside your fiberglass hull. Tailored for serious anglers using ION and ONIX series fishfinders, this dual-beam powerhouse combines wide-area scanning with pinpoint precision, helping you locate fish, structure, and depth changes effortlessly.
Unlike traditional transom-mounted options that can drag in the water or get damaged by debris, this in-hull design sits protected within the hull, maintaining peak performance even in rough conditions. It's the go-to choice for center console boats, pontoons, or any vessel where aesthetics and durability matter most.
Engineered for Superior Performance
Crafted with marine-grade materials, the XP-14-20-T withstands the toughest saltwater and freshwater environments. Its dual-frequency setup—83 kHz for broad coverage and 200 kHz for detailed imaging—paired with 60° and 20° beam angles, ensures you never miss a thing below the surface.
- Hull-Mount Design: Installs cleanly inside single-layer fiberglass hulls using epoxy, preserving your boat's exterior.
- Dual Beam Frequencies: 83/200 kHz for versatile scanning, from shallow bays to deep offshore waters.
- Beam Angles: 60° wide for searching large areas, 20° narrow for targeting specific spots.
- 14-Pin Connector: Plug-and-play compatibility with your ION or ONIX unit.
- Integrated Temp Sensor: Monitors water temperature via a dedicated pigtail for better fishing insights.
- 15-Foot Cable: Ample length for flexible routing inside your boat.
Built in the USA with a focus on reliability, it's ready for years of abuse from waves, spray, and constant vibration.
Why Anglers Swear by In-Hull Transducers
In-hull transducers like the XP-14-20-T elevate your fishing game by minimizing interference and maximizing signal quality. The protected mounting reduces air bubbles and turbulence that plague external transducers, resulting in sharper images of baitfish schools, weed edges, and drop-offs.
Perfect for tournament pros or weekend warriors, it supports high-speed boating without losing bottom lock. Pair it with your ION or ONIX display for features like Side Imaging or Down Imaging when compatible, turning your boat into a fish-finding machine. Plus, the added water temp probe helps track thermoclines where big fish hang out.
"Switched to in-hull after constant transom issues—readings are night and day better, especially at trolling speeds."
Real users report fewer false echoes and consistent performance across hull speeds up to 30 knots, making it ideal for bass boats, walleye rigs, or offshore cruisers.
Perfect Fit for Your Setup
Designed specifically for Humminbird's ION and ONIX series with 14-pin ports, this transducer slots right into your existing electronics ecosystem. It's optimized for high-power units that demand robust signal strength, ensuring full compatibility with advanced sonar modes.
Before installing, confirm your hull is solid fiberglass without coring, metal, or wood layers—air pockets can distort readings. Most planing hulls work great, but test signal quality post-install to fine-tune.
Pro Tips for Flawless Installation
Getting it right the first time means more time fishing and less troubleshooting. Start by selecting a flat hull section forward of the propeller, away from strakes or through-hulls. Sand the area smooth, dry-fit the transducer, then secure with slow-cure two-part epoxy.
- Clean and prep the hull interior thoroughly—no wax, grease, or moisture.
- Fill any voids with epoxy putty for bubble-free mounting.
- Route the 15-foot cable neatly, avoiding heat sources or sharp edges.
- Calibrate on the water: Adjust gain and sensitivity while running at various speeds.
Common pitfalls? Rushing the cure time or mounting too far aft. Patience pays off with reliable, drag-free operation.
Keep It Performing Like New
Simple upkeep extends this transducer's life: Rinse with fresh water after saltwater use, inspect the cable for wear annually, and check epoxy bonds for cracks. Avoid antifouling paints directly on the face—they can dampen signals. In storage, keep it dry and disconnected.
Frequently Asked Questions
What boats can use the Humminbird XP-14-20-T in-hull transducer?
It's suited for single-layer fiberglass hulls on planing boats like bass boats, center consoles, and pontoons. Avoid cored, metal, or wooden hulls as they interfere with sonar signals.
Does it include a temperature sensor?
Yes, it comes with a dedicated temperature probe pigtail, allowing your ION or ONIX unit to display real-time water temps alongside sonar data.
What's the difference between the 83 kHz and 200 kHz frequencies?
83 kHz offers a wider 60° beam for broad coverage in deeper water, while 200 kHz provides a narrower 20° beam for high-detail views in shallower areas—switch as needed for your conditions.
Can I install it myself?
Absolutely, with basic tools and epoxy. Key is a clean, flat surface and full cure time. Many boaters do it in a weekend for a professional result.
Will it work at high speeds?
Yes, the in-hull position minimizes aeration, maintaining solid bottom tracking up to planing speeds around 30 knots.
Is it compatible with other Humminbird models?
Primarily for ION and ONIX series with 14-pin connectors. Check your unit's specs for dual-beam support at these frequencies.
How do I troubleshoot weak signals?
Verify hull integrity, recheck epoxy fill, and adjust unit settings. Test in calm water first to isolate issues.
Humminbird has built its reputation by designing and manufacturing top quality, thoroughly reliable marine equipment. Your Humminbird is designed for trouble-free use in even the harshest marine environment. We encourage you to read this manual carefully in order to get the full benefit from all the features and applications of your Humminbird product.
Humminbird 7102481 Attributes
- Mounting Location: Hull Mount
- Number Of Pins: 14 Pin
- Frequency Range: 200/ 83 kHz Dual Beam Frequency
- Supported Angle: 20/ 60 Dual Beam Angle
- Cable Length: 15 Feet
Humminbird 7102481 Features & Benefits
- Fishfinder For Humminbird Is Equipped With A High-Quality Transducer
- Designing And Manufacturing Top Quality, Thoroughly Reliable Marine Equipment
- Designed For Trouble-Free Use In Even The Harshest Marine Environment
- Made In USA
- Limited 1 Year Warranty
Humminbird 7102481 Installation Instructions
Humminbird 7102481 Warranties
Humminbird 7102481 Technical Bulletins
- 532651-1EN_A Transducer Resource Guide.pdf
- 530509-8_A Inside Mounted Transducer Installation Guide.pdf
- 532651-1EN_A Transducer Resource Guide.pdf
In-Hull Transducer
f/ONIX - 200/83kHz
Mount to inside of most single-layer fiberglass hulls using slow-cure epoxy.
(Cored fiberglass, metal or wood hulls not acceptable. Hull must be free of trapped air and voids.)
WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Inboard sensor f/onix-use slow curing epoxy to install 200/83khz into the interior of most single-layer fiberglass hulls Core fiberglass, metal or wood hulls are not accepted. The hull...
SKU: NVN-49934
MPN: 710248-1
UPC: 082324038785
