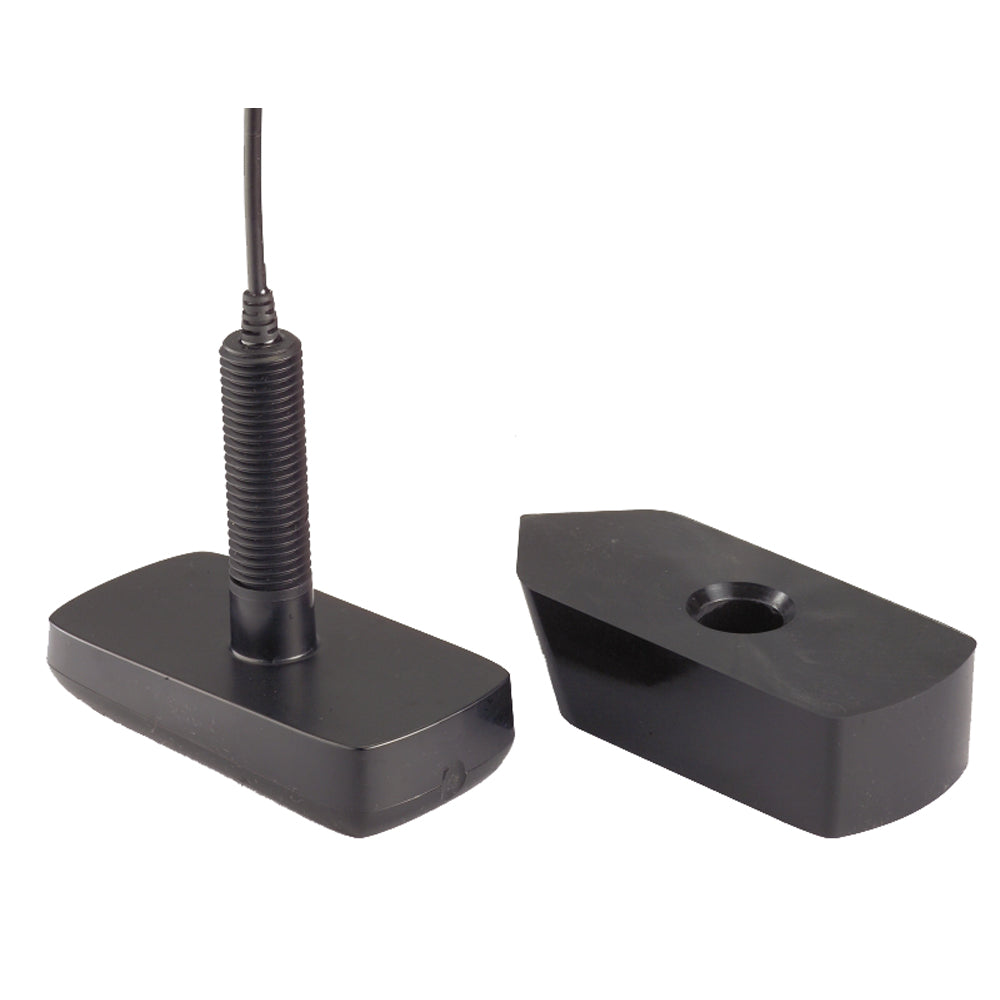

Humminbird XPTH 9 DI T Plastic Thru-Hull Down Imaging Transducer
Humminbird XPTH 9 DI T Plastic Thru-Hull Down Imaging Transducer — Product description
Upgrade your boating experience with the Humminbird XPTH 9 DI T, a reliable plastic thru-hull transducer designed specifically for anglers who demand crystal-clear underwater visuals without breaking the bank. Unlike heavier bronze models, this lightweight option thrives on thinner hulls like those found on aluminum boats, delivering exceptional Down Imaging and DualBeam PLUS sonar performance right through the hull.
Why Choose the XPTH 9 DI T for Your Setup?
This transducer stands out as an economical choice for serious fishers navigating lakes, rivers, or coastal waters. Its plastic construction reduces weight and installation complexity on non-trailered vessels, ensuring you capture detailed bottom contours, structure, and fish-holding spots with ease. Imagine spotting submerged weed lines or drop-offs in real-time, giving you the edge during tournaments or casual outings.
Key to its appeal is the integrated temperature sensor, which pairs sonar data with water temp readings for better baitfish location strategies. Professionals often recommend it for setups where durability meets affordability, but always opt for expert installation to maximize performance and avoid hull damage.
Advanced Sonar Capabilities Explained
- Down Imaging at 455/800 kHz: Provides photo-like images of the underwater world below your boat, revealing fish hiding in cover or along structure with stunning detail—perfect for jigging or structure fishing.
- DualBeam PLUS (200/455 kHz): Offers wide coverage with 75°/45° beams at 200 kHz for broad searches, narrowing to 25°/16° at 455 kHz for precise targeting, ensuring no fish goes unnoticed.
- Built-in Temperature Sensor: Tracks surface water changes to help predict fish movement patterns based on thermoclines.
- 30-Foot Cable: Gives flexibility for routing through your boat's console without signal loss.
Ideal Applications and Boat Types
Best suited for deadrise hulls under 20 degrees on aluminum or fiberglass boats that stay docked or moored. It's a game-changer for kayak anglers scaling up or bass boat owners seeking thru-hull clarity without the premium price tag. Avoid trailering to prevent vibration wear, and pair it with compatible Humminbird units for seamless integration—covering models from compact 300-series to powerhouse 1100-series combos.
Users rave about its ability to cut through murky water, providing reliable readings even in challenging conditions like heavy currents or stained lakes. For those upgrading from transom-mounts, the thru-hull design eliminates drag and air bubbles, delivering consistent sonar returns at all speeds.
Installation Insights for Optimal Results
Position the transducer parallel to the waterline, forward of the prop for minimal interference. Use marine sealant around the hull hole for a watertight fit, and test at various speeds post-install to fine-tune your display settings. This setup minimizes dead zones and maximizes coverage, turning your fish finder into a precision tool.
Frequently Asked Questions
What hull materials work best with the Humminbird XPTH 9 DI T?
It's optimized for thinner hulls like aluminum or lighter fiberglass. Avoid thicker bronze-compatible hulls or high-speed planing designs.
Does this transducer support Down Imaging on all Humminbird models?
Yes, it's compatible with select DI-enabled units like 300-series, 500-series, and 900-series combos that feature Down Imaging processing.
Can I use the XPTH 9 DI T on a trailered boat?
Not recommended due to road vibrations that can loosen the mount or damage the plastic housing over time.
How does DualBeam PLUS improve fish finding?
It combines wide-area scanning at lower frequencies with narrow, detailed beams, allowing quick location followed by precise inspection of targets.
What's the benefit of the built-in temperature sensor?
It overlays water temperature data on your sonar screen, helping identify thermal breaks where baitfish and predators congregate.
Is professional installation necessary?
Strongly advised to ensure proper hull penetration, sealing, and alignment for peak performance and warranty coverage.
What cable length is included?
A 30-foot cable provides ample reach for most console installations without needing extensions.
Equip your vessel with the XPTH 9 DI T and transform how you read the water—sharper images, smarter strategies, and more fish in the livewell.
Plastic Thru-Hull Transducer
Economic alternative to bronze transducer. Mounts on thinner hulls such as aluminum.
Not recommended for trailered boats. Professional installation recommended.
Dual Beam
200/455kHz + Down Imaging 455/800kHz
Features:
- Down Imaging®
- DualBeam PLUS™
- 75°/45°
- 455/800 kHz (DI)
- 25°/16°
- 200/455 kHz
- Built-in temperature
- 30' cable
For Use With:
- 345c DI
- 346c DI
- 385ci DI
- 386ci DI
- 561 DI
- 570 DI
- 571 HD DI
- 581i HD DI
- 587ci HD DI
- 596c HD DI
- 597ci HD DI Combo
- 788ci HD DI Combo
- 858c DI
- 858c HD DI
- 958c DI
- 958c HD DI
- 1158c DI
"Humminbird XPTH 9 DI T plastic thru-hull transducer is an economic alternative to bronze transducer. Mounts on thinner hulls such as aluminum. Not recommended for trailered boats, and professional installation recommended. 30-foot cable and hardware included.Humminbird XPTH 9 DI T Plasitc Thru Hull Transducer w\/tempThis item is brand new, unopened and sealed in its original factory box."
SKU: NVN-46199
MPN: 710243-1
UPC: 082324037955
Technical specifications
| Brand | Humminbird |
| Model | Humminbird XPTH 9 DI T Plastic Thru-Hull Down Imaging Transducer |
| SKU / MFR# | 46199 |
