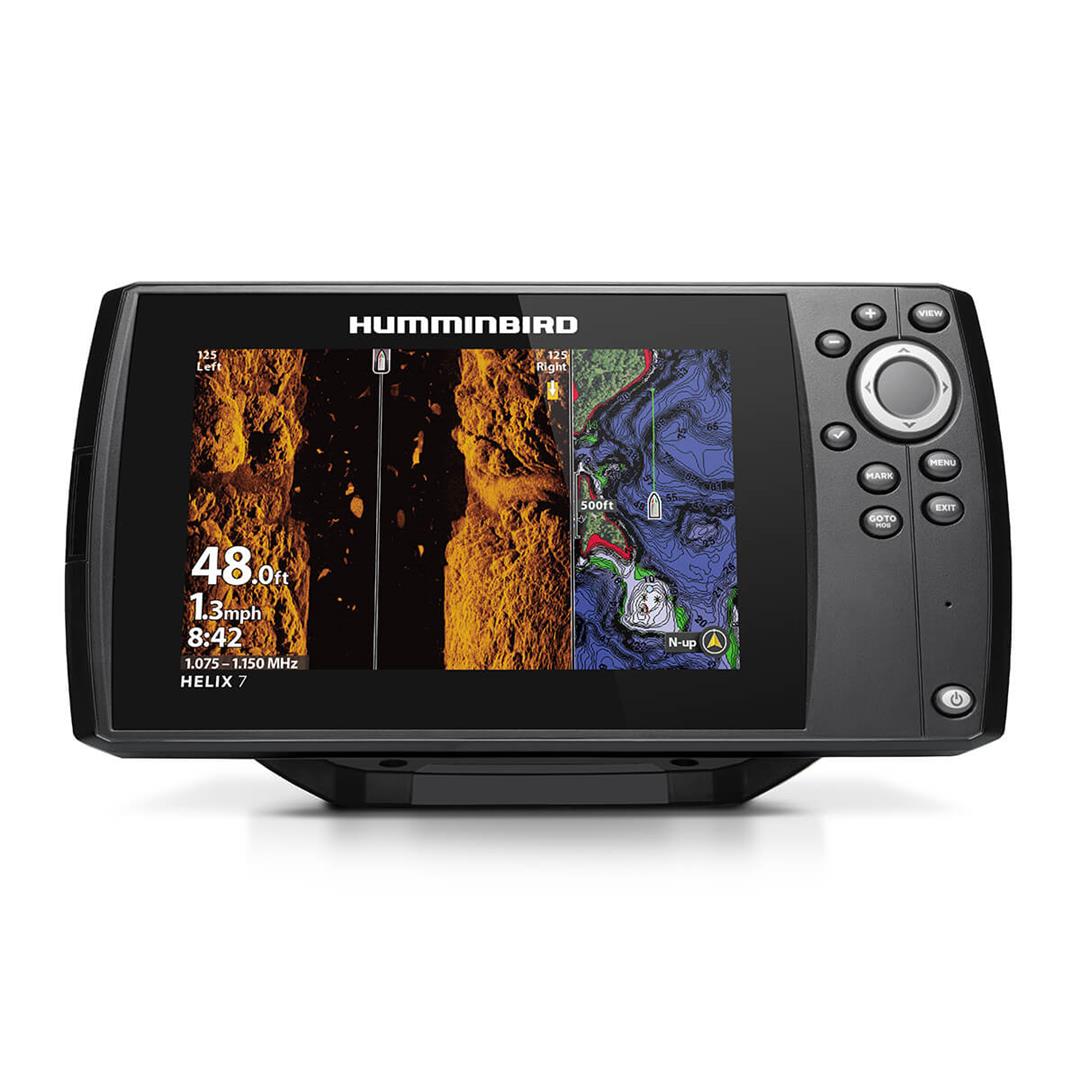

Humminbird HELIX 7 CHIRP SI GPS G4 Fishfinder - Professional Marine Electronics

Transform your fishing experience with the Humminbird HELIX 7 CHIRP SI GPS G4 - the ultimate fishfinder that combines advanced CHIRP sonar technology with precision GPS mapping. This professional-grade marine electronics unit delivers unmatched underwater clarity through its revolutionary Side Imaging and Down Imaging capabilities, making it the perfect choice for serious anglers who demand performance and reliability.

Advanced CHIRP Sonar Technology for Superior Fish Detection

The HELIX 7 CHIRP SI GPS G4 features cutting-edge CHIRP (Compressed High Intensity Radar Pulse) technology that revolutionizes underwater imaging. Unlike traditional sonar systems, CHIRP covers a wide range of frequencies simultaneously, producing dramatically more accurate and detailed returns of fish, structure, and bottom composition. The Dual Spectrum CHIRP sonar offers two distinct search modes: Wide Mode for maximum coverage area and Narrow Mode for focusing on the finest underwater details.

Comprehensive Imaging Capabilities

• CHIRP Side Imaging: Extends your underwater vision up to 800 feet side-to-side (455 kHz) or 250 feet (800 kHz), revealing fish-holding structure and cover that traditional sonar misses
• CHIRP Down Imaging: Provides crystal-clear views directly beneath your boat with depths up to 400 feet (455 kHz) or 125 feet (800 kHz)
• Dual Spectrum CHIRP 2D Sonar: Delivers highly detailed fish arches and bottom structure visualization with multiple frequency support (50/83/200/455/800 kHz)
• Temperature Sensing: Built-in water temperature monitoring with alarm capabilities and graphing functions

High-Definition 7-Inch Display with Intuitive Controls

The large 7-inch high-definition LCD display (1024 x 600 pixels) ensures optimal visibility in all lighting conditions. The keypad control system features user-friendly softkey controls that provide reliable operation even in challenging marine environments. Pre-loaded split-screen view options allow you to monitor multiple sonar frequencies simultaneously, ensuring you never miss a fish.

Professional-Grade Construction

• Marine-Rated Durability: IPX7 waterproof construction withstands harsh marine conditions
• Gimbal Mounting System: Secure, adjustable mounting for optimal viewing angles
• Efficient Power Management: 10.8-20 VDC power input with 800 mA draw for extended operation
• Compact Footprint: Measures 10.54" W x 5.8" H x 3.68" D for versatile installation options

Integrated GPS and Advanced Mapping Features

The built-in precision GPS receiver provides accurate positioning for superior waypoint marking and boat tracking. The enhanced Humminbird Basemap includes detailed coverage of over 10,000 lakes plus comprehensive coastal charts for the continental United States, featuring depth contours, hazard markers, marinas, and navigation aids.

AutoChart Live Real-Time Mapping

Create personalized fishing maps in real-time with AutoChart Live technology. This innovative feature maps depth contours, bottom hardness, and vegetation coverage as you navigate, storing up to 8 hours of mapping data internally. Expand your mapping capacity with compatible AutoChart Zero Line SD cards for virtually unlimited chart creation.

Premium Chart Compatibility

• LakeMaster Charts: Access to detailed freshwater mapping with highlighted depth ranges and scrollable lake lists
• CoastMaster Charts: Comprehensive coastal navigation and fishing data
• Navionics Gold/HotMaps: Compatible with industry-leading marine charting systems
• Navionics Platinum+: Advanced chart features and real-time updates

Complete Installation Package

Your HELIX 7 CHIRP SI GPS G4 includes everything needed for professional installation:

• HELIX 7 control head unit
• XNT-9-HW-SI-T transom-mount transducer with Side Imaging and Down Imaging capabilities
• Marine-grade power cable with integrated fuse protection
• Adjustable gimbal mounting bracket
• Complete mounting hardware kit
• Comprehensive installation and operation manuals

Technical Specifications

Professional Installation and Warranty

The HELIX 7 CHIRP SI GPS G4 is designed for straightforward installation by marine electronics professionals or experienced DIY installers. Complete installation guides and technical support ensure proper setup for optimal performance. Humminbird backs this professional fishfinder with a comprehensive 2-year limited warranty, providing peace of mind for your marine electronics investment.

Frequently Asked Questions

What makes CHIRP sonar superior to traditional fishfinders?

CHIRP technology transmits a continuous sweep of frequencies rather than single-frequency pulses, providing up to 5 times greater detail and target separation. This results in clearer fish arches, better bottom definition, and improved ability to distinguish between fish and structure.

Can I use this fishfinder in both freshwater and saltwater?

Yes, the HELIX 7 CHIRP SI GPS G4 is designed for versatile use in all water types. The included XNT-9-HW-SI-T transducer is suitable for both freshwater and saltwater applications, with appropriate transducer cleaning and maintenance.

What's the difference between Side Imaging and Down Imaging?

Side Imaging provides a wide underwater view to the left and right of your boat (up to 800 feet total), ideal for locating fish-holding structure and cover. Down Imaging offers a detailed view directly beneath your boat, perfect for identifying individual fish and bottom composition.

Is the unit compatible with Minn Kota trolling motors?

Yes, the HELIX 7 CHIRP SI GPS G4 features Minn Kota US2 sonar compatibility, allowing seamless integration with compatible Minn Kota trolling motors for enhanced fish-finding capabilities.

How do I expand the mapping capabilities?

You can expand mapping through premium chart options like LakeMaster and Navionics, or use AutoChart Zero Line SD cards for unlimited AutoChart Live mapping. The unit also supports sonar recording and screen snapshot features for data analysis.

Why Choose the Humminbird HELIX 7 CHIRP SI GPS G4?

This advanced fishfinder represents the perfect balance of professional performance and user-friendly operation. Whether you're a tournament angler seeking competitive advantages or a recreational boater wanting to improve your fishing success, the HELIX 7 CHIRP SI GPS G4 delivers the advanced sonar technology and GPS capabilities needed to locate and catch more fish. Its comprehensive feature set, reliable construction, and extensive compatibility make it an essential addition to any serious fishing boat's electronics package.

The HELIX 7 CHIRP SI GPS G4 fish finder features CHIRP Side Imaging, CHIRP Down Imaging, Dual Spectrum CHIRP Sonar, AutoChart Live, Internal GPS and Humminbird Basemap built-in. An upgraded high-definition 7 Inch display will give you the best view of the many pre-loaded split screen view options so that you'll never miss a fish.

Humminbird 4115901 Attributes

• Display Size: 7 Inch LCD
• Display Resolution: 1024 X 600 Pixels
• Overall Dimensions: 10-1/2 Inch Length X 5.8 Inch Height X 3.68 Inch Depth
• Sonar Compatibility: Dual Spectrum CHIRP Sonar
• With Built-In GPS: Yes
• Used To: Use To Find Fish And Identify Buoys/ Day Markers/ Hazards/ Marinas/ Contours/ Depth Markers
• Interface: Keypad
• Waterproof: Yes
• Point Of Interest: 2750 Waypoints
• SD Card Storage: Micro SD Card

Humminbird 4115901 Features & Benefits

• MEGA Live Delivers The Clarity And Detail Of MEGA Imaging In Live-Action, Allowing Anglers To See Fish And Structure In Real-Time
• MEGA Side And Down Imaging+ Extends Out To 200 Feet On Either Side, Plus 20 Percent More Detail Than MEGA Side And Down Imaging
• CHIRP Stands For “Compressed High Intensity Radar Pulse”: By Covering A Wide Range Of Frequencies, CHIRP Produces More Accurate, More Detailed Returns Of Fish, Structure And The Bottom
• Dual Spectrum CHIRP Sonar: By Covering A Wide Range Of Frequencies, CHIRP Produces More Accurate, More Detailed Returns Of Fish, Structure And The Bottom
• Precision GPS Provides An Accurate Position Fix, Meaning More Accurate Waypoints And Boat Positioning For Better Fishing
• Humminbird Basemap: Based On Freshwater Data From LakeMaster And NOAA, These Maps Provide A Clear View Of Underwater Terrain
• Map The Water As You Drive The Boat And Keep The Data Stored On Your Fish Finder Or Import It Into The AutoChart PC Program
• LakeMaster Lake Maps Features Unrivaled, Easy-To-Read Contours, Highlighted Depth Ranges, Scrollable Lake Lists And More
• SmartStrike Cards Combine High Definition LakeMaster Lake Map Data And Extensive Search Algorithms To Help You Pattern And Locate Fish At Any Time Of The Year
• Limited 2 Year Warranty

Humminbird 4115901 Installation Instructions

• 532312-5_A HELIX 5-7 Control Head Installation Guide.pdf
• 532314-4_A XNT KU P Transom Transducer Installation Guide.pdf
• 532509-5EN_B HELIX Series Operations Manual.pdf
• 532403-4EN_B HELIX Series Quick Reference Guide.pdf

Humminbird 4115901 Warranties

• Humminbird 1-Year Limited Warranty.pdf

HELIX 7 CHIRP SI GPS G4

The HELIX 7 CHIRP SI GPS G4 fishfinder features CHIRP Side Imaging, CHIRP Down Imaging, Dual Spectrum CHIRP Sonar, AutoChart Live, Internal GPS, and Humminbird Basemap built-in. An upgraded high-definition 7" display will give you the best view of the many pre-loaded split screen view options so that you'll never miss a fish.

Features:

• Keypad control: Master HELIX at the touch of a button. Access the pre-loaded views from the user-friendly menu system, operated by softkey controls that allow you to reliably operate your fish finder in any conditions.
• CHIRP Side Imaging: Filter out noise and clutter for a clearer view of the world below and out to each side of your boat. CHIRP Digital Sonar processing of Side Imaging sonar means that you'll see fish and structure to the left and right of your boat, so you can spend less time searching and more time catching.
• CHIRP Down Imaging: Filter out noise and clutter for a clear view beneath your boat. CHIRP Digital Sonar processing of Down Imaging sonar means that you'll see great detail to make finding the fish simple and easy.
• Dual Spectrum CHIRP sonar: Before you cast, know what's down there thanks to highly detailed fish arches and a clear view of the fish-holding structure and the bottom. Powered by our proprietary, Low-Q CHIRP transducer, Dual Spectrum CHIRP 2D sonar offers two ways to search; Wide Mode for maximum coverage and Narrow Mode for focusing on the slightest detail.
• Internal GPS and Humminbird Basemap: Our enhanced base map provides you with a clear view of underwater terrain and surrounding points of interest so you can fish and navigate with total confidence. Identify buoys, day markers, hazards, marinas, contours, depth markers, and much, much more. Includes charts of more than 10,000 lakes, plus coastal coverage for the continental U.S.
• Premium Chart Compatible: Humminbird provides the most complete offering of premium chart options to anglers everywhere. Get a complete view of the world below with optional charts from Humminbird's LakeMaster® and CoastMaster™ products, as well as your choice of compatible Navionics® charts.
• AutoChart Live: Create real-time maps of your fishing spots, with access to patented Humminbird® LakeMaster® features. Map depth contours, bottom hardness, and vegetation as you drive your boat. Comes standard with eight (8) hours of built-in recording time and is compatible with AutoChart Zero Line SD cards for virtually endless AutoChart Live mapping capacity.
• Includes control head, transom-mount transducer, power cable, gimbal mounting bracket, and mounting hardware.
• 1-Year Limited Warranty

Specifications:

• Display Size - Diagonal: 7"
• Display Pixel Matrix: 1024H x 600V
• Sonar-Standard: Dual Spectrum CHIRP, CHIRP Down Imaging, CHIRP Side Imaging
• Sonar-Coverage: 20°, 42°, 60° & (2) 86° @ -10dB
• Sonar-Optional: 53 kHz, 50/Low Airmar CHIRP
• CHIRP - Frequencies Supported: 83/200 (75-155/130-250 kHz), Full Mode (150-220 kHz), Narrow Mode (180-240 kHz), Wide Mode (140-200 kHz)
• Sonar-Frequencies Supported: 50/83/200/455/800 kHz
• Depth-Sonar: 1,200 ft (standard transducer), 3,500 ft (optional 50 kHz

SKU: NVN-90083
MPN: 411590-1
UPC: 00082324056123
