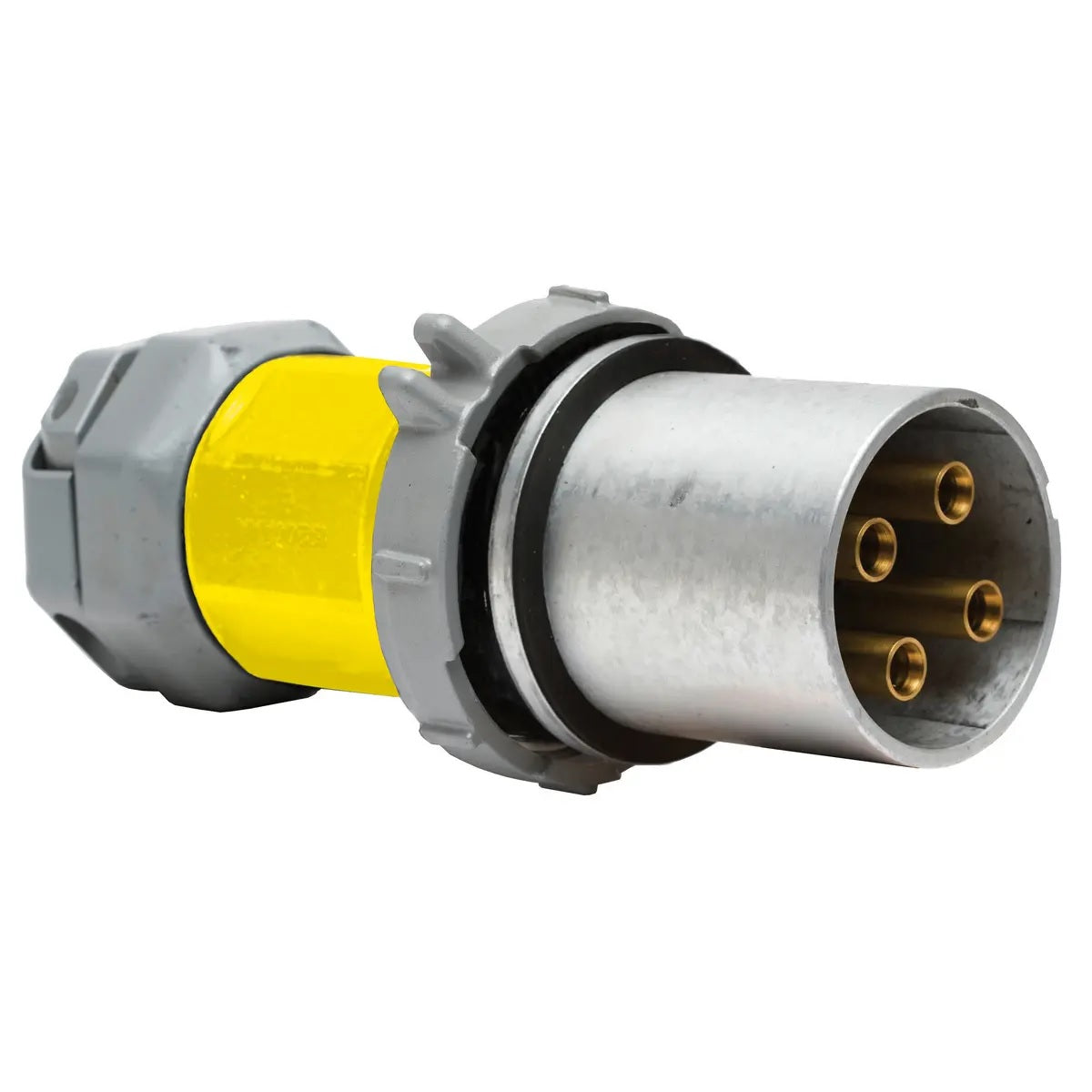

Hubbell M5200PS1 200A Male Plug 600V 4 Pole 5 Wire
Hubbell M5200PS1 200A Male Plug 600V 4 Pole 5 Wire — Product description
Power up your vessel with confidence using the Hubbell M5200PS1, a rugged 200A male plug engineered for the demanding marine environment. As part of Hubbell's pioneering 200A Ship-to-Shore system—the first UL-listed marine-ized solution of its kind—this plug delivers reliable, high-capacity power transfer from dock to boat. Built to withstand saltwater spray, constant moisture, and heavy use, it ensures seamless shore power connections for yachts, commercial vessels, and liveaboards seeking uninterrupted electrical performance.
Exceptional Durability for Marine Conditions
The M5200PS1 stands out with its NEMA 4X rating, providing superior protection against water ingress, corrosion, and environmental hazards common in marinas. Crafted from copper-free aluminum with a tough electrostatically applied epoxy/polyester finish, it resists galvanic corrosion while maintaining a sleek gray/yellow aesthetic that blends with marine hardware.
- Accommodates cord sizes from #1 AWG to 250 MCM (max conductor diameter 0.653 inches) for versatile installations.
- Nickel-plated Tellurium copper pin and sleeve contacts offer outstanding heat dissipation and corrosion resistance, ensuring long-term conductivity even in humid, salty air.
- Integrated locking ring creates a watertight seal at the plug-to-receptacle interface, preventing moisture from compromising connections.
Why Marine Professionals Trust Hubbell M5200PS1
Beyond specs, this plug prioritizes safety and convenience. Its watertight design eliminates worries about rain, washdowns, or accidental submersion, reducing downtime and maintenance costs. The ergonomic locking mechanism allows quick, secure mating with compatible inlets, saving time during docking. Fully interchangeable with UL 1686-listed devices like those from trusted brands in industrial enclosures, it integrates effortlessly into existing setups when following provided guidelines.
For boat owners, this means peace of mind: no flickering lights, no tripped breakers, just stable 600V, 4-pole, 5-wire power for air conditioning, appliances, and heavy loads. Marinas appreciate its robustness, cutting replacement frequency and enhancing safety compliance.
Technical Highlights
| Specification | Details |
|---|---|
| Amperage | 200A |
| Voltage | 600V |
| Poles/Wires | 4 Pole, 5 Wire |
| Enclosure Rating | NEMA 4X |
| Cord Range | #1 AWG - 250 MCM |
| Material | Copper-free aluminum body; Nickel-plated Tellurium copper contacts |
Seamless System Integration
Pair the M5200PS1 with Hubbell's complementary marine components for a complete shore power solution. It mates perfectly with inlets like the M5200BS1R, dockside receptacles such as M5200RS1, and connectors including M5200CS1R. Back boxes like MB2003W or MB2004W provide flexible mounting options with adjustable 15-degree angles and NPT hubs, ideal for custom dock or vessel setups.
Whether extending power via adapters or building a full pedestal system, this plug ensures watertight, reliable performance across the board.
Ideal Applications
- Yacht clubs and private docks for high-demand vessels.
- Commercial marinas handling large boats with multiple circuits.
- Liveaboard setups requiring consistent, high-amperage shore power.
- Repair yards for temporary high-power connections.
Users rave about its ease of use—one-handed operation and visible seal confirmation make it a favorite among crew members and solo boaters alike.
Frequently Asked Questions
What makes the Hubbell M5200PS1 suitable for marine use?
Its NEMA 4X rating, copper-free aluminum construction with epoxy/polyester finish, and nickel-plated contacts provide exceptional water resistance, corrosion protection, and durability in saltwater environments.
What cord sizes does the M5200PS1 accept?
It handles cords from #1 AWG to 250 MCM, with a maximum conductor diameter of 0.653 inches, offering flexibility for various marine power cables.
Is the M5200PS1 compatible with other brands?
Yes, it's fully interchangeable with UL 1686-configured devices from brands like Crouse-Hinds Arktite or Appleton Powertite when installed per instructions.
How does the locking ring work on this plug?
The locking ring secures the plug to the receptacle or inlet, forming a watertight seal that prevents water entry during connection, even in wet conditions.
What voltage and amperage rating does it support?
Rated for 200A at 600V, 4-pole 5-wire configuration, perfect for high-demand marine shore power applications.
Can this plug be used with Hubbell back boxes?
While primarily a plug, it integrates into systems with back boxes like MB2003W or MB2004W for inlets and receptacles, enabling angled installations.
Why choose Hubbell over standard industrial plugs for boats?
Hubbell's marine-ized design exceeds standard plugs with UL listing, superior materials, and proven performance in harsh, wet marine settings.
Hubbell was the first to offer a marine-ized UL listed 100 AMP Ship-To-Shore system and now, they are the first to offer a marine-ized, UL listed 200 AMP ship-to-shore system.
Hubbell's 200 AMP Ship-To-Shore System is:
- NEMA 4X rated for superior water resistance.
- Made of copper-free aluminum with an electrostatically applied epoxy/polyester finish.
- Accepts a cord range of #1 AWG ? 250 MCM.
- Pin and sleeves are made of nickel-plated Tellurium copper for superior corrosion and heat resistance.
And fully interchangeable with UL 1686 configured and listed devices such as Crouse-Hinds® Arktite® or Appleton® Powertite® (when installed in
accordance with instructions furnished with device)
M5200BS1R
Gray metallic watertight shore power inlet with wingnut-secured lid for water tightness when not in use
M5200CS1R
Gray/yellow metallic watertight connector body with locking ring to make inlet/connector body interface watertight. Cord range is #1 AWG-250 MCM (0.653 max. conductor diameter)
M5200PS1
Gray/yellow metallic watertight plug with locking ring to make plug/receptacle interface watertight. Cord grip range is #1 AWG-250 MCM (0.653 max. conductor diameter)
M5200RS1
Gray metallic, watertight dockside receptacle with wing nut-secured lid for water tightness when not in use.
M5200CS1
Gray/yellow metallic watertight connector body with wing nut-secured lid for water tightness when not in use. For making plug/connector body interface on extension cords or adapter.
MB2003W
Gray metallic Back Box for inlets and receptacles has 15° angle section which can be installed in any of 4 positions, 2.0 in. N.P.T. hub.
MB2004W
Gray metallic Back Box for inlets and receptacles has 15° angle section which can be installed in any of 4 positions, 2.5 in. N.P.T. hub.
SKU: NVN-1002609
MPN: M5200PS1
UPC: 783585161815
Technical specifications
| Brand | Hubbell Marine |
| Model | Hubbell M5200PS1 200A Male Plug 600V 4 Pole 5 Wire |
| SKU / MFR# | 1002609 |
