Hubbell HBL64CM54 Adapter 2 30A Female Ends - 50A 250
Hubbell HBL64CM54 Adapter 2 30A Female Ends - 50A 250 — Product description

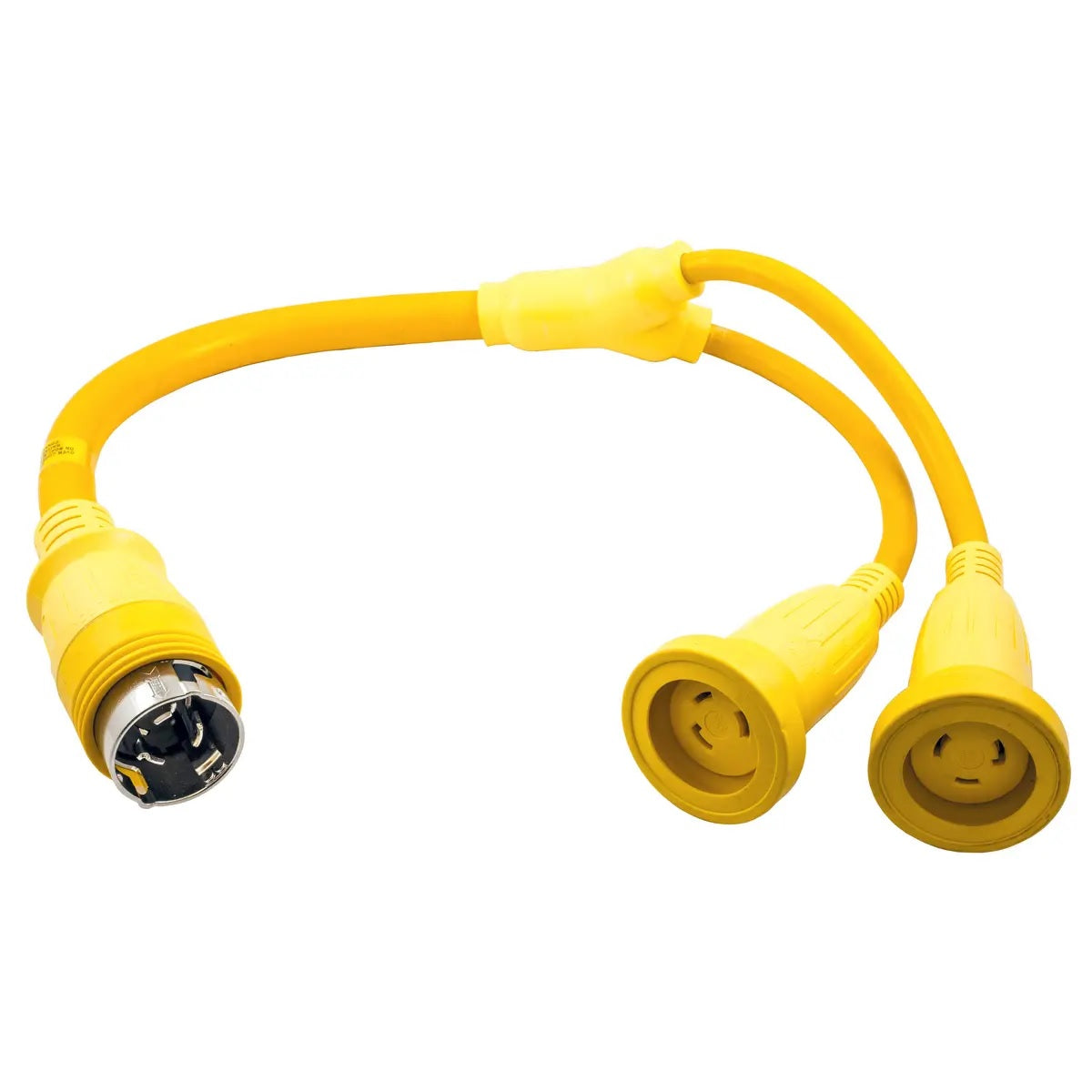

Powering your vessel at a 50A marina slip shouldn't mean upgrading your entire shore power setup. This rugged marine "Y" adapter bridges the gap effortlessly, splitting a single 50A 125/250V locking male connection into two reliable 30A 125V locking female outlets. Crafted for boaters who demand durability against saltwater spray, UV exposure, and constant docking demands, it keeps your onboard systems humming without interruption.
Whether you're running air conditioning, charging batteries, or powering appliances on a weekend cruise, this adapter delivers stable electricity flow. Its twist-lock design ensures a secure grip that won't wiggle loose in rough seas, while the bright yellow hue makes it impossible to miss on deck.
Why Boaters Rely on This Adapter
- Versatile Power Splitting: Connect two 30A shore power cords to one 50A pedestal, maximizing your marina access without hassle.
- Marine-Tough Build: Composite material shrugs off corrosion, impacts, and harsh weather—ideal for coastal adventures.
- Weatherproof Performance: IP55-rated connectors seal out moisture, rain, and splashes, keeping connections dry even during sudden squalls.
- Extreme Temperature Resilience: Handles up to 75°C continuously and down to -40°C (without impact), from tropical getaways to winter storage.
- Safety-First Design: Fully insulated body with 4-pole, 4-wire grounding prevents shocks and ensures clean power delivery to sensitive electronics.
- Visible and Secure: Eye-catching yellow color aids quick identification; NEMA twist-lock plugs (L5-30R females and 50A male) lock in place for vibration resistance.
Simple Setup for Seamless Shore Power
Getting connected is straightforward—no tools required. Plug the 50A 125/250V twist-lock male end into your marina pedestal. Then, attach your two 30A 125V shore power cords to the female L5-30R ends. Twist to lock, and you're powered up. Pro tip: Always match cord lengths to avoid voltage drops, and inspect for wear before each trip.
Common Scenarios
- Upgrade-Friendly: Stuck with 30A cords but docking at 50A slips? This adapter lets you tap full power without buying new gear.
- Multi-Boat Docks: Share a pedestal with a buddy's vessel during regattas or rallies.
- Extended Stays: Run higher loads like dual AC units or inverters by balancing across both 30A legs.
Pro Maintenance Tips
Keep it performing like new: Rinse with fresh water after saltwater exposure, dry thoroughly, and store coiled loosely. Check seals and pins seasonally for nicks or debris. Avoid overloading—stick to combined 50A limits.
Detailed Specifications at a Glance
- Adapter Type
- Molded "Y" configuration
- Connections
- 2x 30A 125V Locking Female (L5-30R) to 1x 50A 125/250V Locking Male
- Material
- Corrosion-resistant composite
- Insulation
- Insulated body for superior protection
- Color
- High-visibility yellow
- Environmental Rating
- IP55 moisture resistance (connectors)
- Temperature Range
- Max continuous: 75°C; Min: -40°C (no impact)
- Grounding
- 4-Pole, 4-Wire
Frequently Asked Questions
Hubbell Adapter, Marine Adapter, Molded ""Y"", 2) 30A 125V Locking Female L5-30R to 50A 125/250V Locking Male, 4-Pole 4- Wire Grounding, Yellow
Model: HBL64CM54Specifications
| Application | ""Y"" Adapter |
| Color | Yellow |
| Insulation | Insulated Body |
| Item Type | Adapters |
| Material | Composite |
| Number Of Pins | Male- 50A 125/250V Twist-Lock® |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Operating Temperature | Max Continuous- 75 Degrees C, Minimum- -40 Without Impact |
| Performance | Environmental - Moisture Resistance - IP55 Suitability (Connectors) |
| Receptacle Type | |
SKU: NVN-1002605
MPN: HBL64CM54
UPC: 783585808772
Technical specifications
| Brand | Hubbell Marine |
| Model | Hubbell HBL64CM54 Adapter 2 30A Female Ends - 50A 250 |
| SKU / MFR# | 1002605 |
