Hubbell YQ100 Plus Y Adapter 100A 125/250 - 2 50A 125/250
Hubbell YQ100 Plus Y Adapter 100A 125/250 - 2 50A 125/250 — Product description

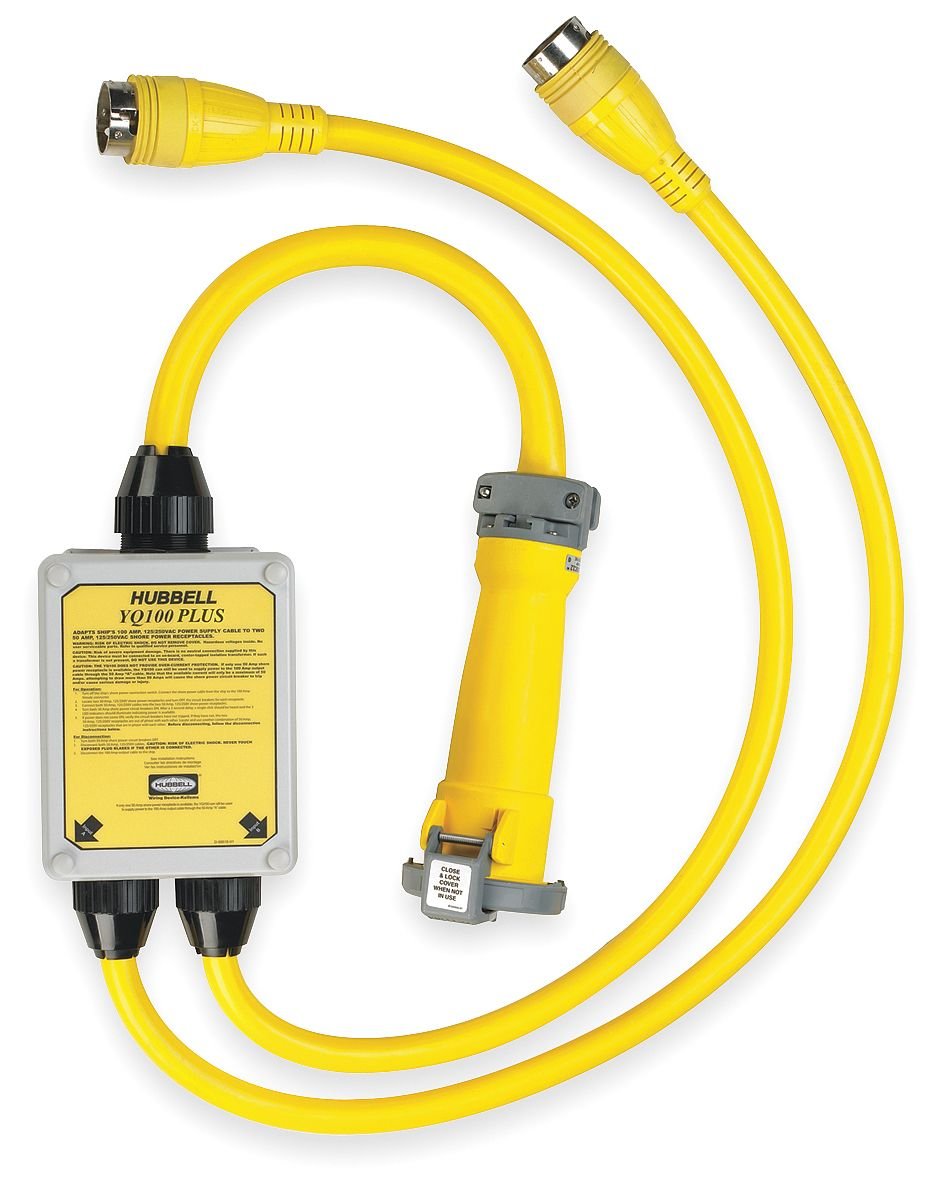

Hubbell YQ100PLUS Smart-Y Adapter - Dual 50A to 100A Shore Power Conversion
Maximize your vessel's shore power options with the Hubbell YQ100PLUS Smart-Y Adapter. This intelligent adapter safely powers 100A, 125/250V vessels from two 50A dockside receptacles or operates as a single 50A adapter. Featuring fully molded Hubbell plugs, environmental sealing, and smart indicator lights, this compact solution provides flexible shore power connectivity with built-in safety monitoring.
Intelligent Shore Power Adaptation
- Dual 50A to 100A Conversion: Powers 100A vessels from two 50A shore receptacles
- Single 50A Operation: Functions as adapter for single 50A connections
- Smart Safety Monitoring: Indicator lights verify polarity and safe operation
- Fully Molded Plugs: Professional-grade Hubbell connectors
- Environmental Sealing: Protection against rain, humidity, and fog
Technical Specifications
| Model Number | YQ100PLUS |
| Input Configuration | Dual 50A, 125/250V AC |
| Output Configuration | 100A, 125/250V AC |
| Single Mode | 50A, 125/250V AC |
| Plug Type | Fully Molded Hubbell |
| Connector Type | Full Feature Hubbell |
| Safety Features | Indicator Lights, Logic Sensing |
| Environmental Rating | Sealed Against Weather |
⚠️ Critical Installation Requirement
IMPORTANT: This adapter MUST be connected to an onboard center-tapped isolation transformer or shore power converter. DO NOT use this adapter without proper isolation equipment. Failure to comply can result in dangerous electrical conditions.
Intelligent Safety Logic System
The YQ100PLUS incorporates advanced logic sensing that continuously monitors electrical conditions and connection status. The system verifies that both plugs are fully engaged, confirms correct dockside polarity, and ensures proper phase relationships between dual receptacles before allowing power transfer.
Versatile Dual-Mode Functionality
The adapter's "A" leg design enables connection to a single 50A, 125/250V receptacle for standard adapter operation, or dual 50A receptacles for 100A vessel power. This flexibility accommodates various marina configurations and power requirements without requiring multiple adapters.
Advanced Safety Monitoring Features
- Full Engagement Detection: Ensures both plugs are completely connected
- Polarity Verification: Confirms correct hot and neutral wiring
- Phase Matching: Verifies proper phase relationships between receptacles
- Visual Indicators: LED lights confirm safe operation status
Professional Construction Quality
Featuring fully molded Hubbell plugs and connectors, the YQ100PLUS eliminates potential failure points common in assembled adapters. Cord clamps prevent terminal strain, while the environmentally sealed enclosure provides protection against marine weather conditions.
Marine Power Applications
- High-Demand Vessels: Powers boats requiring 100A shore connections
- Marina Flexibility: Adapts to marinas with only 50A service
- Backup Power Options: Provides redundancy for critical electrical systems
- Charter Operations: Enables operation at various marina configurations
Frequently Asked Questions
Why is an isolation transformer required?
How does the single 50A mode work?
What do the indicator lights show?
Can I use this without an isolation transformer?
Hubbell YQ100Plus Smart-Y
Model: YQ-100Plus- Safely powers a 100A, 125/250V AC boat from two 50A, 125/250V AC receptacles at dockside - or - from a single 50A, 125/250V AC receptacle acting as a single adapter.
- Fully molded Hubbell Plugs
- 50A Plugs connect to 50A shore power
- Environmentally sealed against rain, humidity and fog
- Indicator lights indicate correct polarity and safe operation
- Smaller, lighter-weight enclosure
- "A" leg for accessing a single 50A, 125/250V receptacle
- Cord clamps helps to prevent strain on terminals
- Full feature Hubbell Connector
********IMOPORTANT*****THIS ADAPTER MUST BE CONNECTED TO AN ONBOARD, CENTER-TAPPED ISOLATION TRANSFORMER OR SHORE POWER CONECTOR. DO NOT USE THIS ADAPTER IF SUCH A TRANSFORMER OR CONVERTER IS NOT AVAILABLE.*********
Hubbell Marine Smart Y Adapter with fully molded Hubbell plugs and connectors. The wire clamp helps prevent deformation of the terminal. The 100 amp connector body is paired with the marine cable kit. . The indicator light indicates correct polarity and safe operation. The 50 amp plug is connected to a 50A shore power supply. A smaller and lighter chassis. "A"-shaped legs, used to connect to a single 50-amp 125/250 volt outlet. The sealing buttonhole prevents moisture from entering. The internal logic senses: Both plugs are fully engaged (ie, one plug is not shaken while the other plug is plugged in)-OR-The "A"-shaped leg plug is engaged and can be connected to a single 50 amp, 125/250 volt socket. The polarity of the socket on the docking station is correct (ie, no live and neutral wires). The phases of these two sockets are correct.
Hubbell Marine Smart Y adapter with fully formed Hubbell plug and connector. The wire clamp helps prevent deformation of the terminal. The 100 amp connector body is paired with the marine cable kit. . The indicator light indicates correct polarity and safe operation. The 50 amp plug is connected to a 50A shore power supply. Smaller and lighter chassis. "A" shaped legs, used to connect to a single 50-amp 125/250 volt socket. Seal the buttonhole to prevent moisture from entering. Internal logic sensing: Both plugs are fully engaged (ie, one plug is not shaken when inserted into the other plug)-OR-The "A"-shaped leg plug is engaged and can be connected to a single 50 amp, 125 amp/250 volt socket. The polarity of the socket on the docking station is correct (that is, there is no live and neutral wires). The phases of these two sockets are correct.
SKU: NVN-1000674
MPN: YQ100PLUS
UPC: 783585093802
Technical specifications
| Brand | Hubbell Marine |
| Model | Hubbell YQ100 Plus Y Adapter 100A 125/250 - 2 50A 125/250 |
| SKU / MFR# | 1000674 |
