Hubbell M5100C9 100A 3φ 120/208V Female Connector - Extension Cord & Adapter Solution

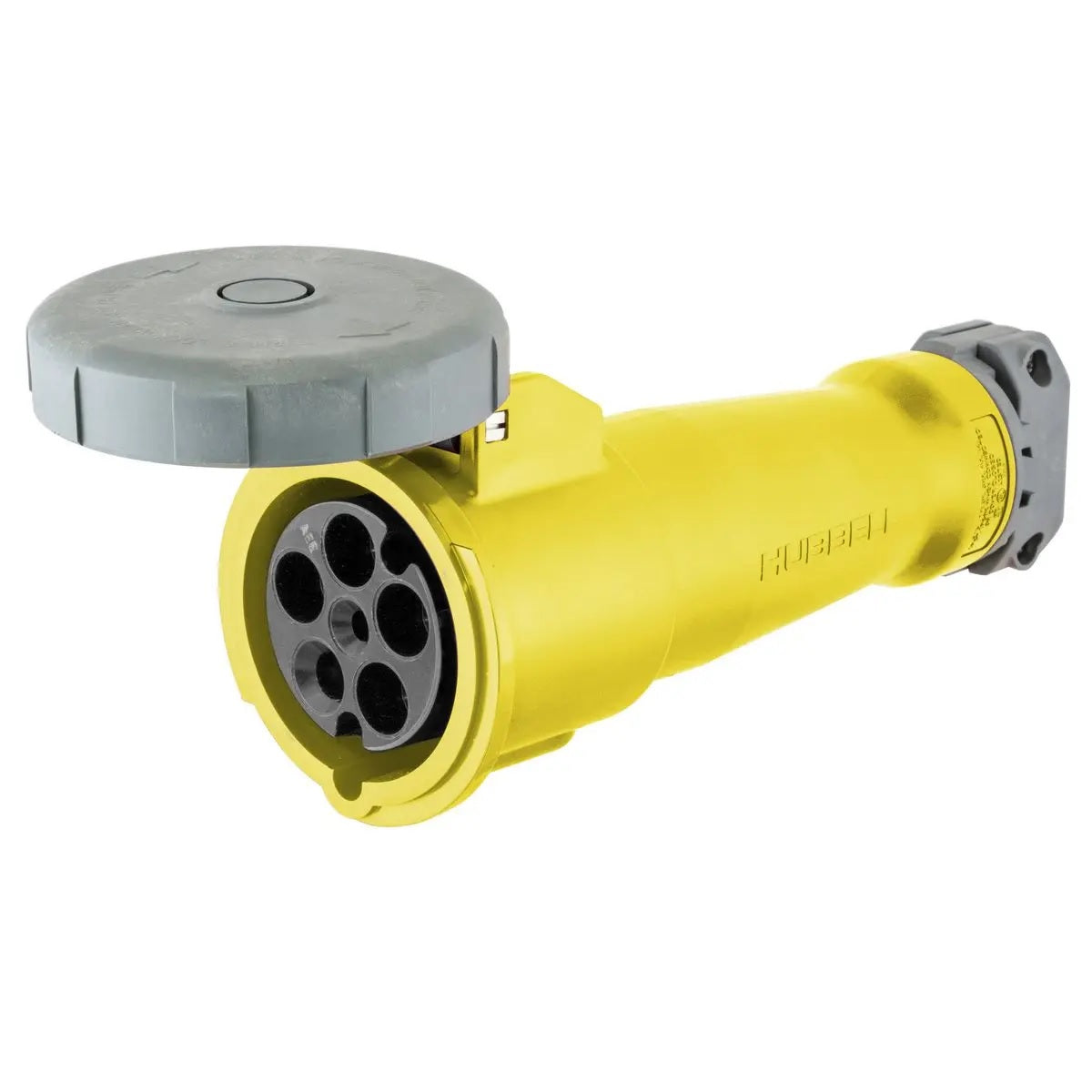

Create reliable three-phase shore power extensions with the Hubbell M5100C9 100A Female Connector Body. Engineered for marine extension cords and adapter assemblies, this connector features Hubbell's renowned Zytel® super tough nylon construction with watertight sealing capabilities. Perfect for custom marine electrical configurations requiring three-phase 120/208V power distribution.
Extension Cord & Adapter Connectivity
- 100 Amp Three-Phase: Handles demanding electrical loads in extension configurations
- 120/208V Wye System: 4-pole, 5-wire three-phase grounding configuration
- Extension Cord Design: Specifically for plug-to-connector interfaces
- Zytel® Construction: Super tough nylon provides exceptional durability
- Flexible Cable Range: 1.00" to 1.94" cord grip accommodation
Technical Specifications
| Model Number | M5100C9 |
| Current Rating | 100 Amperes |
| Voltage Rating | 3-Phase Wye 120/208V AC |
| Configuration | 4-Pole, 5-Wire Grounding |
| Cord Grip Range | 1.00" to 1.94" (25.4-49.3mm) |
| Housing Material | Yellow Zytel® Nylon |
| Protection Rating | IP67 Watertight |
| Terminal Type | Pressure Screw Terminals |
Marine Extension Applications
- Shore Power Extensions: Extend three-phase connections between vessels and docks
- Voltage Adapters: Create custom adapters for different power systems
- Temporary Connections: Flexible power solutions for marine maintenance
- Equipment Cords: Custom cables for three-phase marine equipment
Zytel® Super Tough Construction
The M5100C9 features Hubbell's proven Zytel® super tough nylon housing that provides superior resistance to impact, chemicals, and UV degradation. The yellow color coding ensures immediate identification as a three-phase connector, preventing dangerous cross-connections with single-phase systems. Special keying design enables quick and easy alignment with mating devices.
Marine-Grade Sealing System
Engineered with gasketed locking rings and IP67 watertight capabilities, the M5100C9 maintains electrical integrity in harsh marine environments. Neoprene cord grips are provided in scaled sizes to accommodate various cable dimensions, ensuring a reliable watertight seal at the cable entrance point.
Important Compatibility Information
Note: The M5100C9 is designed for plug-to-connector interfaces on extension cords and adapters. It cannot be mated directly to shore power inlets. For shore power inlet connections, use the M5100C9R model instead.
Marine Safety Standards
- UL Listed: Certified for marine three-phase electrical applications
- CSA Certified: Meets Canadian Standards Association requirements
- Corrosion Resistant: Stainless steel screws and marine-grade materials
- ABYC Compatible: Designed to marine electrical code standards
Professional Assembly Features
The M5100C9 simplifies custom cable assembly with pressure terminal connections that provide reliable electrical contact. Catalog numbers and ratings are clearly marked for easy identification, while the special keying system ensures proper mating alignment. All hardware features corrosion-resistant stainless steel construction for marine longevity.
Frequently Asked Questions
Can this connector be used with shore power inlets?
What cable sizes does the cord grip accommodate?
Why is yellow color coding important?
Is professional installation required?
Hubbell Marine was the first to offer 100 amp marine grade devices that are considered second to none.
Hubbell developed the standard for 100 amp Pin and Sleeve devices with the National Electric Code and the American Boat and Yacht Council.
Only Hubbell offers 3, 4 and 5 wire 100 amp cable sets for your shore power requirements.
Cable sets manufactured in factory controlled conditions using specially compounded cable to accommodate a full 100 amp.
100 Amp pin and Rugged, watertight, sleeve devices. UL listed, AB02029 YC compliant, corrosion resistant.
100 Ampere, 125/250 Volt 3 Pole 4 Wire Ship-to-Shore Devices
M4100B12R
Gray nylon shore power inlet has gasketed, spring-loaded cover which closes automatically when not in use and is watertight when securely fastened. Mounting holes are 4.88 in. (123.8) on centers and rear portion has 3.94 in. (100.0) diameter. Mounting screws and gasket included.
M4100C12R
Yellow Zytel® super tough nylon watertight connector body has gasketed locking ring to make inlet/connector interface watertight. Cord grip range is 1.00?1.94 in. (25.4?49.3). Note: This device mates with shore power inlet only.
M4100P12
Yellow Zytel® super tough nylon watertight plug has gasketed locking ring to make plug/receptacle interface watertight. Cord grip range is 1.00?1.94 in. (25.4?49.3).
M4100R12
Gray nylon dockside receptacle has gasketed, spring-loaded cover. Closes automatically when not in use and is watertight when securely fastened. Mounting holes are 4.88 in. (123.8) on centers. Mounting screws and gasket included.
M4100C12
Yellow Zytel® super tough nylon watertight connector body for mating plug to connector interface on extension cords or adapters. Cord grip range
is 1.00?1.94 in. (25.4?49.3). Note: It cannot be mated to the shore power inlet.
100 Ampere, 3 Y 120/208 Volt and 3 Y 277/480 Volt 4 Pole 5 Wire Ship-to-Shore Devices
M5100B9R
Gray nylon shore power inlet has gasketed, spring-loaded cover which closes automatically when not in use and is watertight when securely fastened. Mounting holes are 4.88 in. (123.8) on centers and rear portion has 3.94 in. (100.0) diameter. Mounting screws and gasket included.
M5100C9R
Yellow Zytel® super tough nylon watertight connector body has gasketed locking ring to make inlet/connector interface watertight. Cord grip range is 1.00?1.94 in. (25.4?49.3). Note: This device mates with shore power inlet only.
BB1001W
15° angle cast aluminum back box has corrosion resistant gray finish and top hub with 1 in. N.P.T. 100A receptacles can be mounted directly to it.
BB100N
15° angle non-metallic back box, made of high-grade engineered thermoplastic Valox® to resist chemicals, abuse and U.V. rays. Has integral grounding plate, 1 in. N.P.T. hub size and 120 cu. in. capacity (hub is not included - Raco part number 1706 is recommended).
M5100P9
Yellow Zytel® super tough nylon watertight plug has gasketed locking ring to make plug/receptacle interface watertight. Cord grip range is 1.00?1.94 in. (25.4?49.3).
M5100R9
Gray nylon dockside receptacle has gasketed, spring-loaded cover. Closes automatically when not in use and is watertight when securely fastened. Mounting holes are 4.88 in. (123.8) on centers. Mounting screws and gasket included.
M5100C9
Yellow Zytel® super tough nylon watertight connector body for making plug to connector interface on extension cords or adapters. Cord grip range is 1.00?1.94 in. (25.4?49.3). Note: It cannot be mated to the shore power inlet.
Hubbell Zytel's super tough nylon waterproof connector body is used to insert the plug into the connector interface on an extension cord or adapter. The clamp range is 1.00-1.94 inches. Cannot be paired with shore power outlets. . . Special keying makes the correct alignment of paired devices quick and easy. . . All screws are corrosion-resistant stainless steel. Two screw pressure terminals provide reliable termination. The super tough nylon shell provides higher security and resistance to abuse. The equipment is marked with a catalog number and rating for easy identification. Neoprene is provided in scaled sizes and can be used for various cable sizes. They ensure a highly reliable watertight seal at the equipment cable entrance. IP67 applicability. UL certification and CSA certification. Available in yellow.
Hubbell Zytel's ultra-tough nylon waterproof connector body is used to insert the plug into the connector interface of an extension cord or adapter. The clamping range is 1.00-1.94 inches. Cannot be paired with shore power outlets. . . Special keying makes the correct alignment of paired devices fast and easy. . . All screws are corrosion-resistant stainless steel. Two screw pressure terminals provide reliable termination. The super tough nylon shell provides higher security and resistance to abuse. The equipment is marked with a catalog number and rating for easy identification. Chloroprene rubber provides sizes in proportion and can be used for various cable sizes. They ensure a highly reliable watertight seal at the equipment cable entrance. IP67 applicability. UL certification and CSA certification. yellow.
SKU: NVN-1000659
MPN: M5100C9
UPC: 783585510026
Technical specifications
| Brand | Hubbell Marine |
| Model | Hubbell M5100C9 100A 30Y 120/208V Female Connector |
| SKU / MFR# | 1000659 |
