Hubbell M5100C7 100A 480V Female Connector Body
Hubbell M5100C7 100A 480V Female Connector Body — Product description
Hubbell M5100C7 100A 480V Female Connector Body - Heavy-Duty Marine Electrical

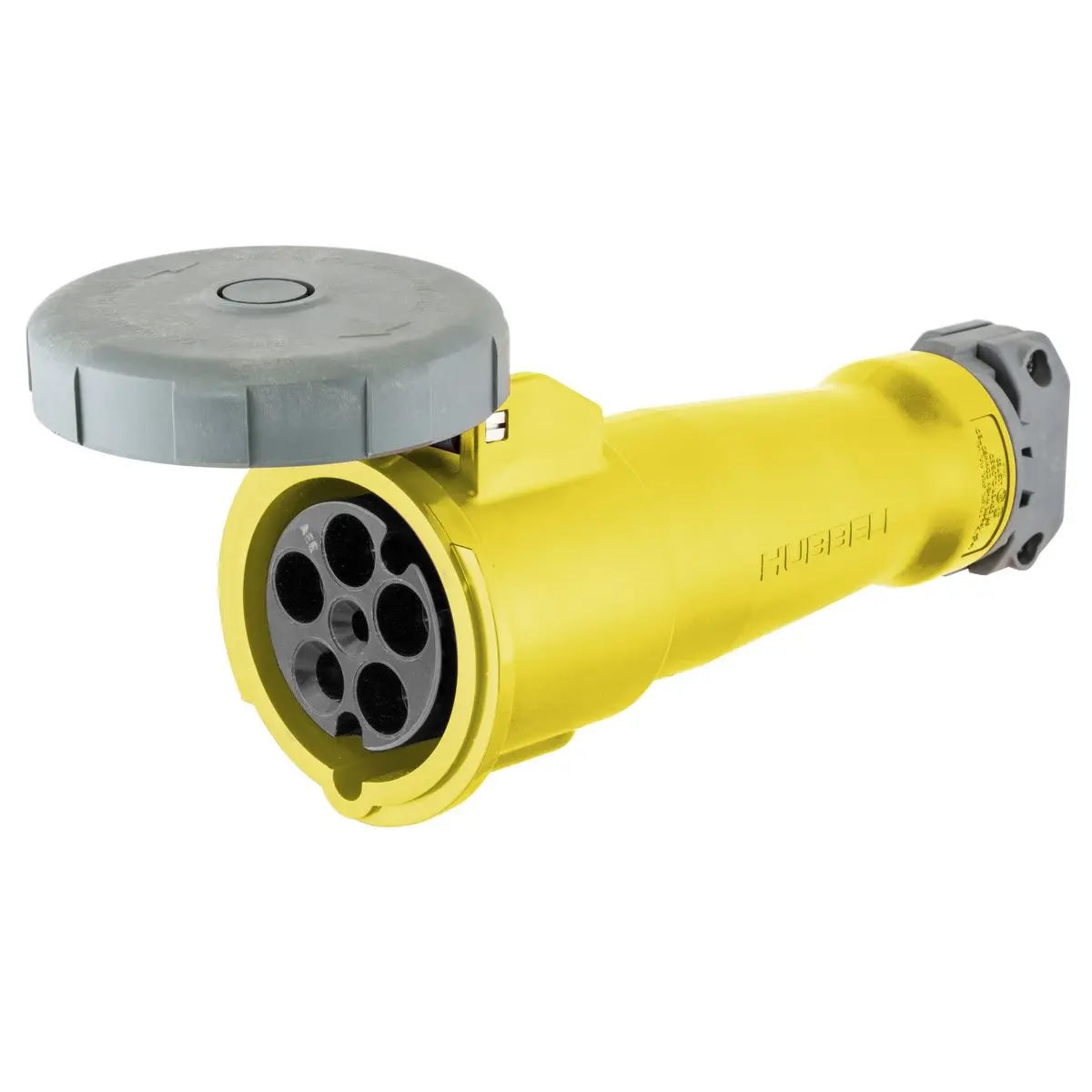

Complete high-voltage marine electrical connections with the Hubbell M5100C7 100A 480V Female Connector Body. Engineered for demanding commercial marine applications, this heavy-duty connector features insulated non-metallic housing with color-coded identification and self-closing gasketed cover. Essential for superyachts and commercial vessels requiring reliable 480V three-phase power connections.
High-Voltage Marine Connector Solution
- 100 Amp High-Voltage: Handles demanding 480V three-phase electrical loads
- Female Connector Body: Mates with M5100P7 male plugs for complete connections
- Self-Closing Cover: Gasketed protection automatically seals when disconnected
- Color-Coded Housing: Yellow identification prevents dangerous cross-connections
- Marine-Grade Insulation: Non-metallic housing designed for saltwater environments
Technical Specifications
| Model Number | M5100C7 |
| Current Rating | 100 Amperes |
| Voltage Rating | 3-Phase Wye 277/480V AC |
| Configuration | 4-Pole, 5-Wire Grounding |
| Number of Poles | 4 |
| Conductor Range | #4 AWG to #2 AWG |
| Temperature Rating | 75°C Max, -40°C Min |
| Housing Material | Yellow Non-Metallic |
| Mating Component | M5100P7 Plug |
Commercial Marine Applications
- Superyacht Shore Power: High-voltage connections for luxury vessel systems
- Commercial Vessel Power: Charter boats and working vessel electrical systems
- Marine Industrial: Shipyard and maintenance facility power distribution
- Offshore Platforms: High-voltage connections for specialized marine equipment
Advanced Safety Features
The M5100C7 incorporates multiple safety features designed for high-voltage marine applications. The insulated non-metallic housing eliminates grounding concerns, while the color-coded yellow identification prevents accidental connection to incompatible voltage systems. The self-closing gasketed cover provides immediate protection against moisture and contaminants when disconnected.
Electrical Connection Details
Terminal screw connections accommodate heavy-gauge marine conductors from #4 AWG to #2 AWG, providing secure electrical contact for continuous 100-amp operation. The 5-wire grounding configuration includes dedicated equipment grounding for enhanced safety in marine environments. Temperature ratings accommodate both tropical and cold climate operations.
IEC Pin and Sleeve Technology
Built to Hubbell's industry-leading IEC pin and sleeve standards, the M5100C7 ensures reliable electrical connections in demanding marine environments. This proven technology prevents accidental disconnection while maintaining consistent electrical contact even under vessel movement and vibration conditions.
Marine Industry Compliance
- UL Listed: Certified for high-voltage marine electrical applications
- Heavy-Duty Rated: Designed for continuous commercial marine operation
- IEC Standards: Compliant with international pin and sleeve specifications
- Marine Grade: Engineered specifically for saltwater environments
Professional Installation Guidelines
High-voltage marine connectors require installation by certified marine electricians with experience in 480V systems. Proper grounding, appropriate overcurrent protection, and compliance with marine electrical codes are essential for safe operation. The connector body must be properly secured and all connections torqued to specification.
Frequently Asked Questions
What plug does this connector mate with?
Why is color coding important for marine connectors?
What conductor sizes are supported?
How does the self-closing cover work?
Hubbell M5100C 5-Wire 100 Amp 480 Volt Female Connector Body
Model: M5100C7- Insulated non-metallic housing
- Self-closing gasketed cover
- Color coded housings for easy identification
Heavy Duty Products, IEC Pin and Sleeve Devices, Marine Grade, Female, Connector Body, 100A 3-Phase Wye 277/480V AC, 4-Pole 5-Wire Grounding, Terminal Screws, Yellow
Specifications| Number Of Poles | 4 |
| Temperature Rating | Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact. |
| Amperage Rating | 100 |
| Current Rating | 100 |
| Voltage Rating | Three Phase Y 277 VAC Three Phase Y 480 VAC |
| ConductorRange | #4AWG to #2AWG |
| Number Of Wires | 5 |
| NumberOfConductors | 5-Wire Grounding |
| Mates with | M5100P7 |
"Hubbell Zytel super tough nylon watertight connector body for making plug to connector interface on extension cords or adapters. Cord grip range is 1.00-1.94\". It cannot be mated to the shore power inlet. The gasketed locking ring engages the mating device and when rotated and locked makes the interlace between the devices watertight. High impact thermoset contact carrier is arcing and heat resistant. Special keying makes proper alignment of mating devices quick and easy. The terminals are clearly identified with large markings for easy recognition. Massive external cable grips protect the wiring from conductor movement which can cause strain on the terminals. All screws are stainless steel for corrosion resistance. Two screw pressure terminals provide reliable terminations. Supertough nylon housing provides increased safety and abuse resistance. The device is marked with its catalog number and rating for easy identification. Neoprene glands are provided in graduated sizes for use with varying cable sizes. They assure a highly reliable watertight seal at the cable entry to the device. IP67 suitability. UL listed and CSA certified. Available in yellow color."
SKU: NVN-1000658
MPN: M5100C7
UPC: 783585510095
Technical specifications
| Brand | Hubbell Marine |
| Model | Hubbell M5100C7 100A 480V Female Connector Body |
| SKU / MFR# | 1000658 |
Set product metafields under specs.* to populate this table.
