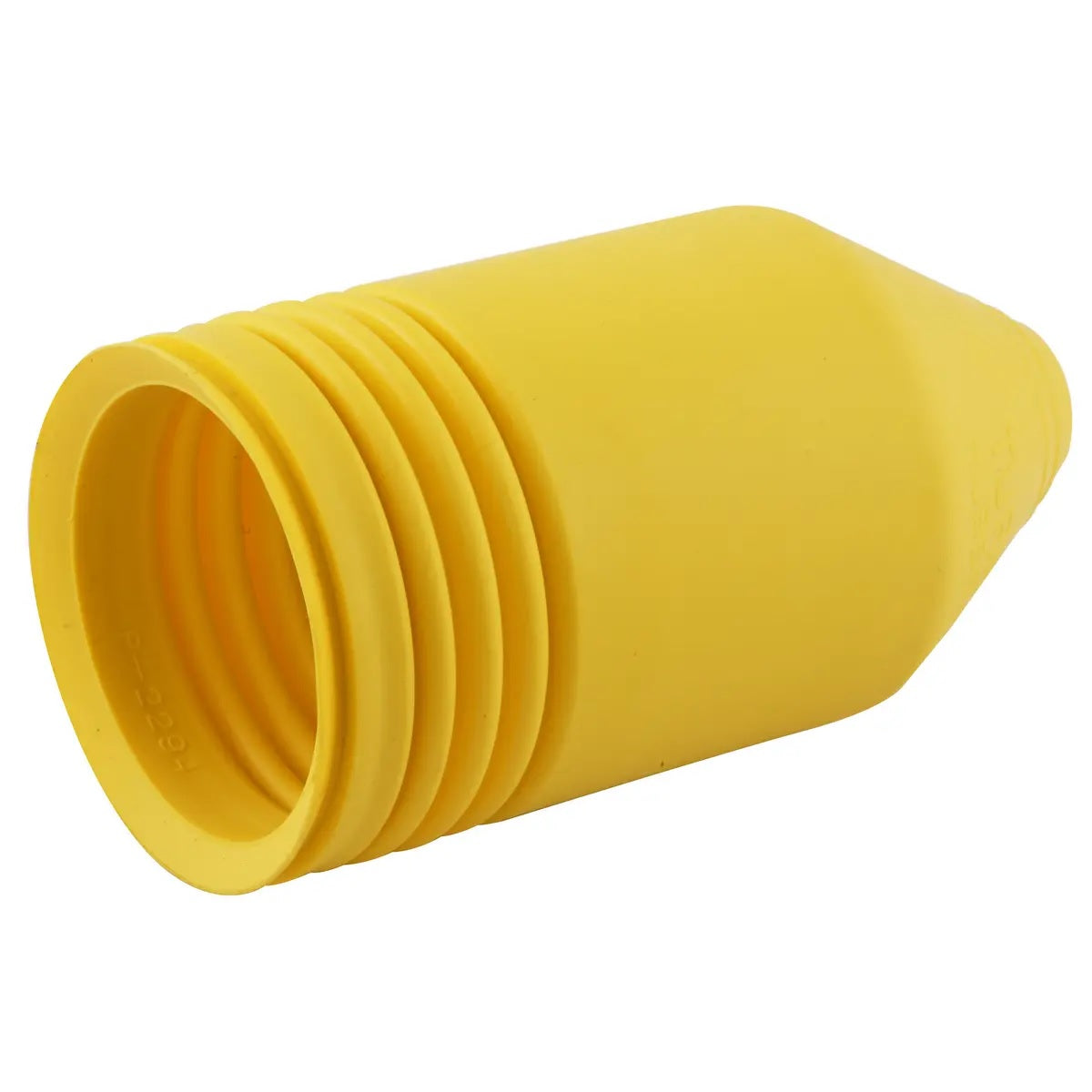

Hubbell HBL77CM16 Marine Short Boot for 50A Twist-Lock Devices - High-Visibility Yellow

Protect your 50A marine electrical connections with the Hubbell HBL77CM16 Short Boot, engineered for compact weatherproofing of 50A twist-lock devices in space-constrained marine applications. This IP55-rated yellow elastomeric boot provides essential environmental protection with minimal profile, delivering reliable performance where full-length boots cannot be accommodated.

Compact 50A Protection Solution

• Short Boot Design: Compact profile for space-limited marine electrical installations
• 50 Ampere Rating: Full high-current capacity in reduced footprint
• IP55 Environmental Protection: Dust and water jet resistance for marine conditions
• High-Visibility Yellow: Enhanced safety identification and marine standard color
• Elastomeric Construction: Flexible materials accommodate movement and thermal cycling
• Device Mounting: Direct attachment to compatible 50A twist-lock devices

Space-Efficient Marine Engineering

• Molded Construction: Single-piece design eliminates assembly joints and potential failure points
• 50A Twist-Lock Compatibility: Engineered for standard marine 50A electrical devices
• Marine-Grade Materials: Elastomeric compounds withstand saltwater and UV exposure
• Minimal Profile: Provides protection without interfering with adjacent equipment
• Professional Appearance: Clean integration with marine electrical installations
• Temperature Stability: Maintains performance across marine environmental ranges

Technical Specifications

Model Number:	HBL77CM16
UPC Code:	783585808826
Current Rating:	50 Amperes
Boot Configuration:	Short Boot for Plug
Device Compatibility:	50A Twist-Lock® Devices
Construction:	Molded Elastomeric
Color:	High-Visibility Yellow
Material:	Marine-Grade Elastomer
IP Rating:	IP55 (Dust & Water Jet Protection)
Application:	50A Twist-Lock® Marine Devices
Mounting Type:	Device Mounted
Profile:	Compact Short Boot Design
Environmental Rating:	Marine Moisture Resistance

Space-Critical Marine Applications

Ideal for compact marine electrical installations:

• Dense electrical panel configurations requiring minimal clearance
• Marine service boxes with space limitations
• Retrofit applications where long boots won't fit
• Multi-connector installations requiring compact protection
• Engine compartment electrical connections with space constraints
• Portable marine equipment 50A connections
• Temporary marine electrical installations

IP55 Environmental Protection

Engineered protection for marine environments:

• Dust Ingress Protection: Prevents harmful dust and particle contamination
• Water Jet Resistance: Withstands water jets from any direction
• Marine Weather Defense: Protection against rain, spray, and splash
• Saltwater Compatibility: Materials resist saltwater corrosion and degradation
• Environmental Longevity: Consistent performance throughout service life

Short Boot Design Advantages

Compact configuration provides:

• Space Efficiency: Minimal footprint in constrained installations
• Equipment Clearance: Allows close proximity to adjacent marine equipment
• Installation Flexibility: Accommodates tight spaces where long boots cannot fit
• Maintenance Access: Easier access for service and inspection
• Cost Effectiveness: Efficient protection solution for space-limited applications

50A High-Current Performance

Full electrical capacity in compact design:

• Complete Current Rating: No compromise in 50A electrical performance
• Heat Management: Adequate ventilation despite compact size
• Electrical Integrity: Maintains connection quality and reliability
• Safety Compliance: Meets marine electrical safety requirements
• Professional Standards: Suitable for certified marine electrical installations

Elastomeric Material Benefits

Advanced material engineering provides:

• Flexibility: Accommodates connector movement and thermal expansion
• Chemical Resistance: Withstands marine fuels, oils, and cleaning chemicals
• UV Stability: Resists degradation from sun exposure
• Temperature Performance: Maintains properties across marine temperature ranges
• Mechanical Durability: Resists cracking and fatigue from vibration

Professional Installation Guidelines

Optimal performance requires:

• Verification of compatibility with specific 50A twist-lock devices
• Proper mounting to ensure complete environmental seal
• Adequate clearance verification for surrounding equipment
• Regular inspection for elastomer condition and protection integrity
• Compliance with ABYC E-11 marine electrical standards

Marine Environmental Durability

Engineered for extended marine service:

• Saltwater and chemical corrosion resistance
• UV degradation protection with yellow pigmentation
• Temperature cycling durability
• Mechanical shock and vibration tolerance
• Ozone and marine atmospheric resistance

Frequently Asked Questions

When should I choose a short boot over a long boot?

Short boots are ideal for space-constrained installations, dense panel configurations, or applications where clearance to adjacent equipment is limited.

Does the short design compromise environmental protection?

No, the IP55 rating provides excellent environmental protection. While coverage is reduced compared to long boots, protection of critical connection points is maintained.

What 50A devices are compatible with this boot?

This boot is designed for standard 50A twist-lock marine devices. Verify specific device compatibility to ensure proper fit and environmental protection.

How does IP55 protection compare to IP56?

IP55 provides excellent protection against dust and water jets suitable for most marine applications. IP56 offers slightly higher water jet protection for more severe exposure conditions.

Can this boot be used in engine compartments?

Yes, the elastomeric construction and temperature rating make it suitable for marine engine compartment applications where space is limited.

What maintenance is required for short boots?

Regular visual inspection for elastomer condition, cleaning after saltwater exposure, and verification that the boot maintains proper sealing around the device.

Hubbell HBL77CM16 Twist-Lock®, Device Boot, 50A, Yellow

Model: HBL77CM16

Locking Devices, Twist-Lock®, Accessories, Device Boot, 50A, Yellow

Specifications

Application	Short Boot for Plug
Color	Yellow
Construction	Molded
Item Type	50A Twist-Lock® Devices
Material	Elastomer / Elastomeric
Material - Mounting Hardware	Mounts on Device
Performance	Environmental - Moisture Resistance - IP55 Suitability

This product is very suitable for use in all marine applications. It will meet the needs of leisure boat lovers and ambitious yacht owners. Get this excellent product for...
SKU: NVN-1000649
MPN: HBL77CM16
UPC: 783585808826
