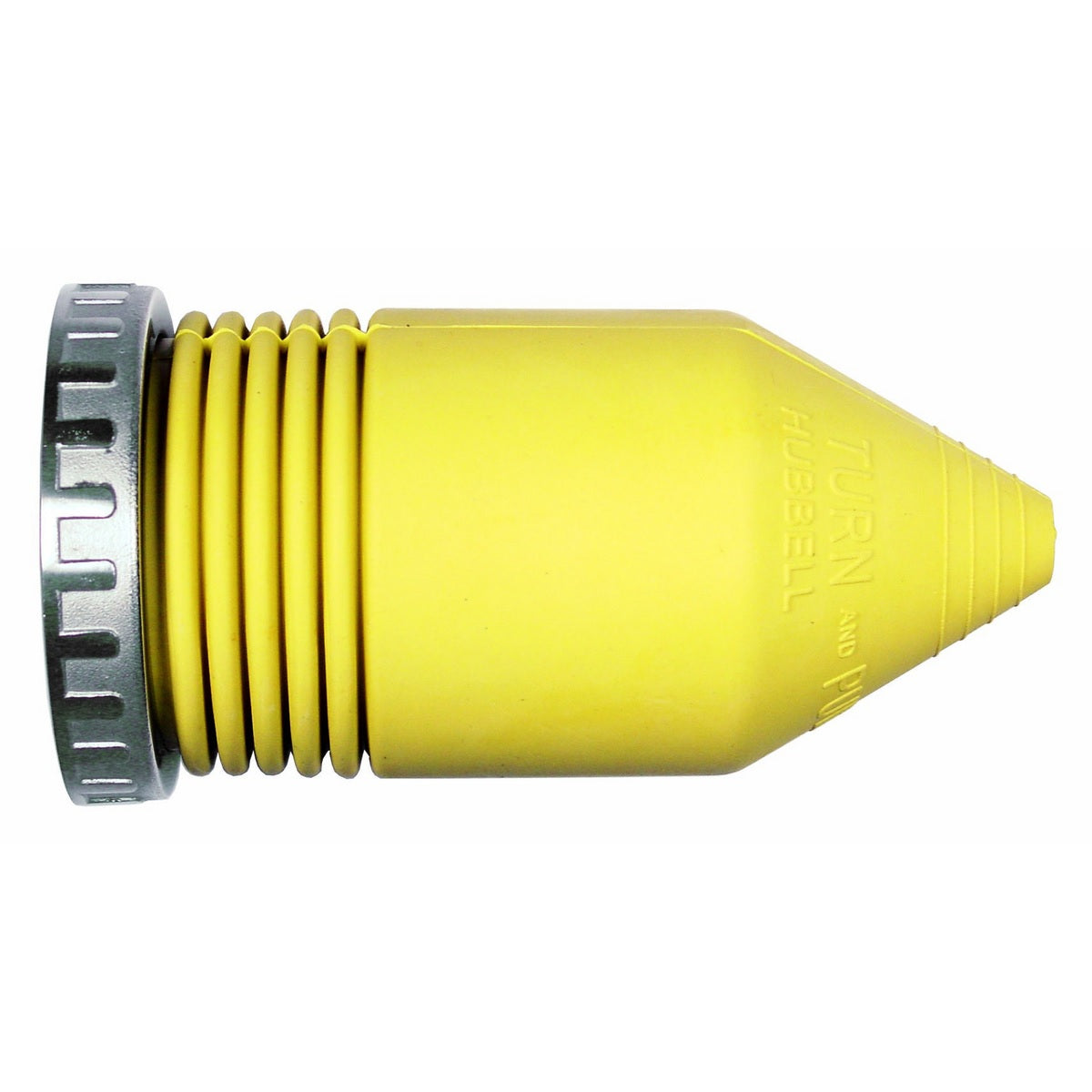

Hubbell HBL77CM15 Marine Device Boot for 50A 63CM60 Connector - Heavy-Duty Protection

Maximize your 50A marine electrical system's reliability with the Hubbell HBL77CM15 Heavy-Duty Device Boot, engineered specifically for 63CM60 50A connectors. This premium elastomeric boot provides IP56-rated environmental protection with a secure locking ring mechanism, delivering the robust weatherproofing that high-current marine electrical applications demand.

50A Heavy-Duty Protection

• 50 Ampere Rating: Engineered for high-current marine electrical systems
• IP56 Environmental Protection: Superior resistance to powerful water jets and dust
• Elastomeric Construction: Advanced materials for marine durability and flexibility
• Locking Ring Security: Mechanical attachment prevents accidental disconnection
• Long Boot Design: Extended coverage for maximum environmental protection
• Molded Construction: Single-piece design eliminates potential failure points

Advanced Marine Engineering

• 63CM60 Compatibility: Precision-engineered fit for Hubbell 50A marine connectors
• Twist-Lock Application: Designed for 50A twist-lock device protection
• Marine-Grade Materials: Withstands saltwater, UV, and extreme temperature conditions
• Moisture Resistance: IP56 rating ensures protection against marine environmental challenges
• Professional Appearance: Black color provides professional marine installation aesthetics
• Device Mounting: Secure attachment directly to compatible connectors

Technical Specifications

Model Number:	HBL77CM15
UPC Code:	783585040752
Current Rating:	50 Amperes
Boot Type:	Long Boot for Connector
Compatible Device:	63CM60 50A Connector
Construction:	Molded Elastomeric
Color:	Black
Material:	Marine-Grade Elastomer
IP Rating:	IP56 (Dust Tight & Water Jet Resistant)
Application:	50A Twist-Lock® Devices
Mounting Type:	Device Mounted with Locking Ring
Configuration:	Long Boot Design
Device Type:	Twist-Lock® Marine Connector Boot

IP56 Superior Environmental Protection

The IP56 rating provides comprehensive marine protection:

• Complete Dust Protection: Dust-tight seal prevents harmful particle ingress
• Powerful Water Jet Resistance: Withstands high-pressure water from any direction
• Marine Weather Protection: Superior defense against rain, spray, and storm conditions
• Saltwater Resistance: Engineered for direct saltwater exposure
• Heavy Sea Conditions: Maintains integrity in rough marine environments

High-Current Marine Applications

Essential for demanding 50A marine electrical systems:

• Large yacht and superyacht 50A shore power connections
• Commercial vessel high-current electrical feeds
• Marina power distribution systems above 30A
• Marine service facility 50A connections
• Industrial marine applications requiring heavy-duty protection
• Shipyard electrical connection weatherproofing
• High-capacity marine equipment power connections

Elastomeric Material Advantages

Advanced elastomeric construction provides:

• Flexibility: Accommodates connector movement and thermal expansion
• Durability: Resists cracking, UV degradation, and chemical exposure
• Temperature Stability: Maintains performance across marine temperature ranges
• Chemical Resistance: Withstands marine fuels, oils, and cleaning chemicals
• Long Service Life: Extended operational life in harsh marine conditions

Locking Ring Security System

The integrated locking ring provides:

• Secure Attachment: Mechanical connection prevents boot displacement
• Vibration Resistance: Maintains position under marine mechanical stresses
• Positive Sealing: Consistent compression ensures weatherproof integrity
• Professional Installation: Reliable mounting system for permanent installations
• Maintenance Access: Removable for connector inspection and service

Long Boot Design Benefits

Extended coverage provides:

• Maximum Protection: Comprehensive coverage of connector and cable junction
• Environmental Isolation: Protects critical electrical connections from exposure
• Cable Strain Relief: Reduces mechanical stress on electrical connections
• Water Shedding: Design directs water away from electrical components
• Professional Appearance: Clean, finished look for marine installations

50A System Integration

Critical component for 50A marine electrical systems requiring:

• Professional marine electrician installation
• Compatibility verification with 63CM60 connectors
• Proper overcurrent protection and grounding
• ABYC E-11 compliance for marine electrical standards
• Regular inspection for environmental integrity

Marine Environmental Durability

Engineered for extended marine service life:

• Saltwater and chemical corrosion resistance
• UV stabilization prevents degradation
• Temperature cycling durability
• Mechanical shock and vibration tolerance
• Ozone and marine atmospheric resistance

Frequently Asked Questions

Is this boot compatible with all 50A marine connectors?

No, this boot is specifically designed for Hubbell 63CM60 50A connectors. Verify compatibility before installation to ensure proper fit and environmental protection.

What does IP56 protection mean for marine applications?

IP56 provides complete dust protection and resistance to powerful water jets, making it suitable for harsh marine environments with heavy spray and weather exposure.

How does the locking ring mechanism work?

The locking ring creates a mechanical attachment to the connector body, ensuring the boot remains securely positioned and maintains consistent compression for weatherproof sealing.

Can this boot be used on underwater connections?

While IP56-rated for excellent water protection, this boot is designed for above-waterline applications. It's not intended for submersible use.

How often should the boot be inspected?

Inspect annually or after severe weather events for cracks, degradation, or seal integrity. Replace if any damage is detected to maintain environmental protection.

What maintenance is required for optimal performance?

Periodic cleaning with fresh water, visual inspection for damage, and verification that the locking ring maintains proper compression. Replace if elastomeric material shows signs of deterioration.

Hubbell Locking Devices, Twist-Lock®, Accessories, Device Boot, 50A, Yellow

Model: HBL77CM15

Locking Devices, Twist-Lock®, Accessories, Device Boot, 50A, Yellow

With Locking Ring

Specifications

Application	Long Boot for Connector
Color	Black
Construction	Molded
Item Type	50A Twist-Lock® Devices
Material	Elastomer
Material - Mounting Hardware	Mounts on Device
OEM Brand Name	Hubbell Wiring Device-Kellems
Performance	Environmental - Moisture Resistance - IP56 Suitability

Sold as a unit of measurement: when the main body of the EAFor connector is used with shore power outlets. The stainless steel threaded sealing ring makes the connection watertight. Yellow.
SKU: NVN-1000647
MPN: HBL77CM15
UPC: 783585040752
