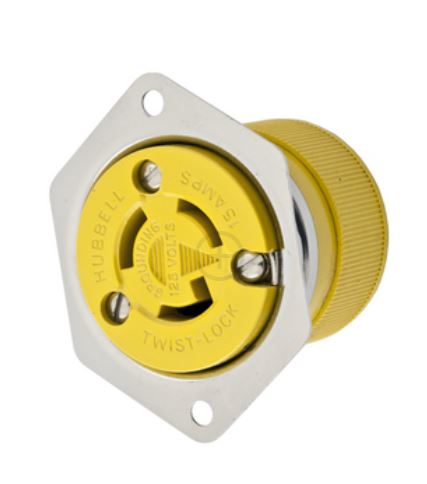

Hubbell HBL47CM15 15A 125V Locking Flanged Outlet
Hubbell HBL47CM15 15A 125V Locking Flanged Outlet — Product description
Discover the Reliability of Hubbell's Marine-Grade Locking Receptacle
Engineered for demanding environments like marinas, boatyards, and coastal installations, this Hubbell duplex locking receptacle combines rugged durability with secure twist-lock performance. Its bright yellow nylon housing stands out for safety and quick identification, while the corrosion-resistant construction ensures long-term reliability even in salty air or humid conditions. Whether powering boat chargers, dockside tools, or RV hookups, this 15A 125V device prevents accidental unplugging, reducing downtime and hazards.
Unlike standard outlets, the L5-15R configuration locks plugs firmly in place, ideal for vibration-prone settings. The duplex design means two independent outlets in one compact unit, doubling your connectivity without extra space. UL and CSA approvals confirm it meets stringent safety standards for peace of mind.
Key Features That Set It Apart
- Twist-Lock Security: NEMA L5-15R design grips plugs tightly, resisting pulls and vibrations common in marine or industrial use.
- Corrosion-Resistant Build: Nylon body and plated contacts defy rust and chemicals, perfect for wet or salty atmospheres.
- Duplex Configuration: Two receptacles side-by-side for versatile power distribution in tight spaces.
- Compact and Lightweight: Measures just 3.28 x 1.7 x 1.17 inches and weighs only 4 oz, making installation straightforward.
- Yellow Color Coding: Enhances visibility in low-light or cluttered areas, aiding quick connections.
- 1-Phase, 2-Pole, 3-Wire Grounding: Safe and compliant for 125V applications up to 15 amps.
Why This Receptacle Excels in Harsh Conditions
In marine settings, ordinary outlets fail fast due to moisture and corrosion. This Hubbell model uses advanced materials like fiberglass-reinforced nylon, which flexes without cracking and maintains integrity over years of exposure. The flanged design allows flush mounting into panels or boxes, creating a professional, snag-free surface.
Users appreciate its reliability for high-stakes tasks—think keeping bilge pumps running or charging batteries without interruption. Compared to non-locking duplexes, it slashes the risk of power loss from jostled cords. For DIY boat owners or facility managers, it's a smart upgrade that pays off in reduced maintenance and enhanced safety.
Ideal Applications
- Marina docks and slips
- Boat repair shops and storage
- RV parks and campgrounds
- Industrial washdown areas
- Construction sites with temporary power needs
Technical Specifications at a Glance
| Specification | Details |
|---|---|
| NEMA Configuration | L5-15R |
| Current Rating | 15 Amps |
| Voltage | 125V |
| Poles/Wires | 2 Pole, 3 Wire |
| Color | Yellow |
| Dimensions (H x W x D) | 3.28 in x 1.7 in x 1.17 in |
| Weight | 4 oz |
| Approvals | UL, CSA |
| Corrosion Resistant | Yes |
Installation Tips for Optimal Performance
Proper setup maximizes this receptacle's lifespan. Always turn off power at the breaker before wiring. Use 14 AWG wire for 15A circuits, connecting hot to brass terminals, neutral to silver, and ground to green. Torque screws to spec (typically 12-14 in-lbs) to avoid loose connections. Mount in a NEMA 1 or 3R enclosure if outdoors, as it's not watertight. Test with a locking plug to confirm twist-lock engages smoothly.
Pro tip: Pair with Hubbell's matching plugs for a complete, color-coded system that simplifies inventory and matching.
Frequently Asked Questions
What is the NEMA configuration of this Hubbell receptacle?
It features the L5-15R twist-lock configuration, designed for secure 15A 125V connections.
Is this receptacle suitable for marine environments?
Yes, its corrosion-resistant nylon construction makes it ideal for marinas, docks, and boatyards.
Does it provide watertight protection?
No, it's not watertight, so use it in protected locations or enclosures for wet areas.
What wire size should I use for installation?
For 15A service, use 14 AWG conductors, ensuring proper grounding.
Can this duplex receptacle be used for RV power?
Absolutely, the locking mechanism and duplex outlets make it great for RV parks and stable power delivery.
What approvals does it carry?
It holds UL and CSA certifications for safety and performance.
Is it isolated ground?
No, it uses standard grounding for general-purpose applications.
Hubbell HBL47CM00 15A 125V Duplex Locking Receptacle
Model: HBL47CM00HUBBELL HBL47CM00 DPLX RCPT-NMA L5-15R
Specifications| Item Category | Plugs and Receptacles |
| Subcategory | Twist Lock |
| NEMA Configuration | L5-15R |
| Current Rating | 15 Amps |
| No. of Poles | 2 |
| No. of Wires | 3 |
| Color | Yellow |
| Phase | 1 |
| Connection Type | Duplex Receptacle |
| Watertight | No |
| Corrosion Resistant | Yes |
| Isolated Ground | No |
| Approvals | UL;CSA |
| H x W x D | 3.28 in x 1.7 in x 1.17 in |
| Gross Weight | 4 oz |
Hubbell HBL47CM00 15A 125V dual-phase locking socket Model: HBL47CM00HUBBELL HBL47CM00 DPLX RCPT-NMA L5-15R specification item category plug and socket subcategory twist lock NEMA configuration L5-15R rated current 15 ampere Polish...
SKU: NVN-1000625
MPN: HBL47CM15
