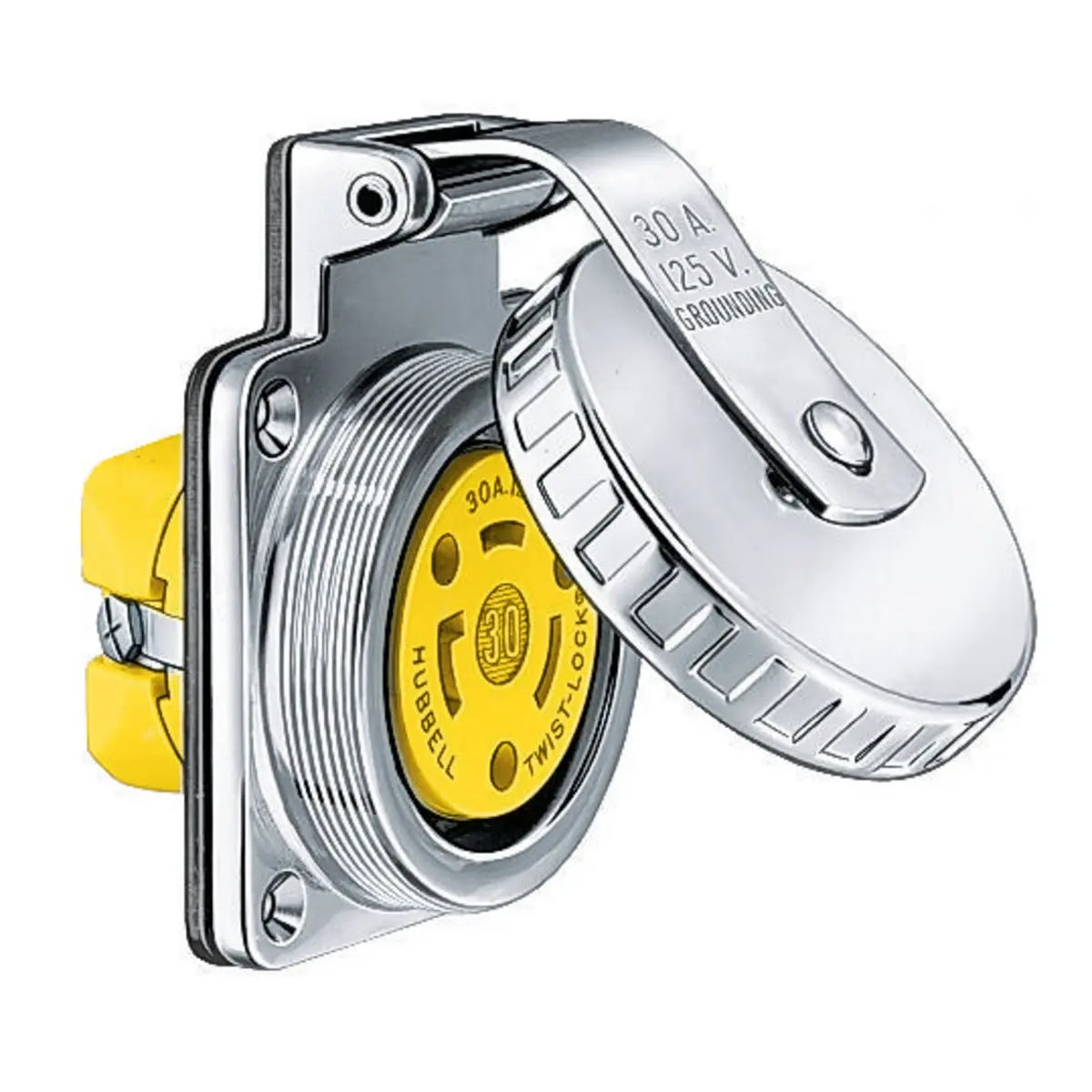

Hubbell HBL303SSO Traditional Round Stainless Steel Shore Power Outlet - 30A
The Hubbell HBL303SSO delivers premium marine shore power connectivity through traditional round stainless steel construction. Featuring a self-closing gasketed cover and watertight design, this 30-ampere outlet provides reliable, weather-resistant power connections for demanding marine dock installations and marina electrical systems.
Key Marine Benefits
- Stainless Steel Durability: Corrosion-resistant 316-grade stainless steel construction withstands harsh saltwater environments
- Watertight Protection: Self-closing gasketed cover provides IP56 rating for heavy seas and water power jetting
- Traditional Design: Classic round outlet design complements traditional yacht and dock styling
- Complete Installation Kit: Includes mounting screws and gasket for immediate installation
- Standard Mounting: 2-3/8" center-to-center holes match industry-standard patterns
Technical Specifications
| Current Rating: | 30 Amperes |
| Voltage Rating: | 125V AC |
| Configuration: | Twist-Lock |
| Construction: | 316 Stainless Steel |
| Cover Type: | Self-Closing Gasketed |
| Protection Rating: | IP56 - Heavy Seas Resistant |
| Mounting Centers: | 2-3/8" (60.3mm) |
| Design Style: | Traditional Round |
| Installation Hardware: | Screws and Gasket Included |
| Finish: | Marine-Grade Stainless Steel |
Marine Applications
- Premium yacht and mega-yacht dock installations
- Traditional marina and harbor electrical systems
- High-end marine facility shore power pedestals
- Classic boat restoration and period-correct installations
- Coastal dock systems requiring maximum corrosion resistance
Superior Stainless Steel Construction
Marine-Grade Materials: The HBL303SSO utilizes 316-grade stainless steel construction, providing exceptional resistance to chloride corrosion from saltwater exposure. This premium material maintains its appearance and structural integrity even in the harshest marine environments.
Traditional Aesthetics: The classic round design offers timeless appeal that complements traditional yacht styling and heritage marina installations. The polished stainless steel finish provides an elegant appearance that maintains its luster with minimal maintenance.
Corrosion Resistance: Stainless steel construction eliminates galvanic corrosion concerns and provides superior longevity compared to painted or coated alternatives. The material is immune to rust and maintains structural integrity throughout decades of marine service.
Advanced Weather Protection
IP56 Rating: The self-closing gasketed cover provides IP56 protection, meaning the outlet can withstand heavy seas and high-pressure water jetting without compromising electrical integrity. This exceeds the protection levels of many marine electrical components.
Self-Closing Design: The spring-loaded cover automatically closes when not in use, ensuring consistent weather protection even if operators forget to manually close the cover. This feature is critical for maintaining waterproof integrity in marine environments.
Gasket Sealing System: The integrated gasket creates a watertight seal when the cover is properly secured. The gasket material is selected for marine durability and maintains sealing effectiveness across temperature extremes and UV exposure.
Installation and Compatibility
Standard Mounting Pattern: The 2-3/8" center-to-center mounting holes match industry-standard patterns, facilitating easy installation in existing dock boxes or new construction projects.
Complete Hardware Package: Each outlet includes all necessary mounting hardware and gaskets, ensuring proper installation and immediate weather protection.
Professional Integration: The nickel-plated brass adapter plate allows mounting in FS (shallow) or FD (deep) marine-grade weatherproof dockside boxes, providing flexibility for various installation requirements.
ABYC Compliance and Safety
When properly installed as part of a complete shore power system, the HBL303SSO supports ABYC E-11 compliance requirements. The twist-lock design provides positive retention that prevents dangerous disconnections under load.
The stainless steel construction provides excellent grounding continuity when properly bonded to dock electrical systems, supporting safe operation and electrical code compliance.
Maintenance and Service Life
Low Maintenance: Stainless steel construction requires minimal maintenance beyond periodic cleaning and gasket inspection. The material won't rust, corrode, or require protective coatings.
Long Service Life: Premium materials and construction ensure decades of reliable service in marine environments. The outlet is designed to withstand constant exposure to salt spray, UV radiation, and temperature extremes.
Gasket Replacement: Periodic gasket inspection and replacement as needed maintains watertight integrity. The gasket design facilitates easy replacement without specialized tools.
Frequently Asked Questions
Q: How does stainless steel construction benefit marine installations?
A: Stainless steel provides superior corrosion resistance, eliminates galvanic corrosion concerns, maintains structural integrity in saltwater environments, and offers excellent longevity without protective coatings.
Q: What does IP56 rating mean for marine applications?
A: IP56 rating means the outlet is dust-tight and can withstand powerful water jets from any direction, making it suitable for heavy seas and high-pressure washdown operations common at marinas.
Q: Is this outlet compatible with standard 30A shore power plugs?
A: Yes, the twist-lock design accepts standard L5-30P plugs. However, it's not compatible with Marinco-specific hardware - use Hubbell-compatible components for proper fit and function.
Q: Can the cover be manually secured for extra protection?
A: Yes, the cover can be screwed down for maximum watertight protection during severe weather or when the outlet won't be used for extended periods.
Q: What maintenance is required for the stainless steel housing?
A: Regular cleaning with mild soap and fresh water maintains appearance. Periodically inspect the gasket for wear and ensure the self-closing mechanism operates smoothly.
Q: Does this outlet fit standard marina dock box openings?
A: Yes, the 2-3/8" mounting centers match standard industry patterns. The nickel-plated adapter plate allows installation in both shallow and deep marine-grade dock boxes.
Q: How does the self-closing cover mechanism work?
A: The spring-loaded cover automatically closes when released, ensuring consistent weather protection. The mechanism is designed for thousands of cycles and marine environmental conditions.
Q: Is professional installation recommended?
A: Yes, proper installation by qualified marine electricians ensures code compliance, proper grounding, and integration with existing dock electrical systems for safety and reliability.
