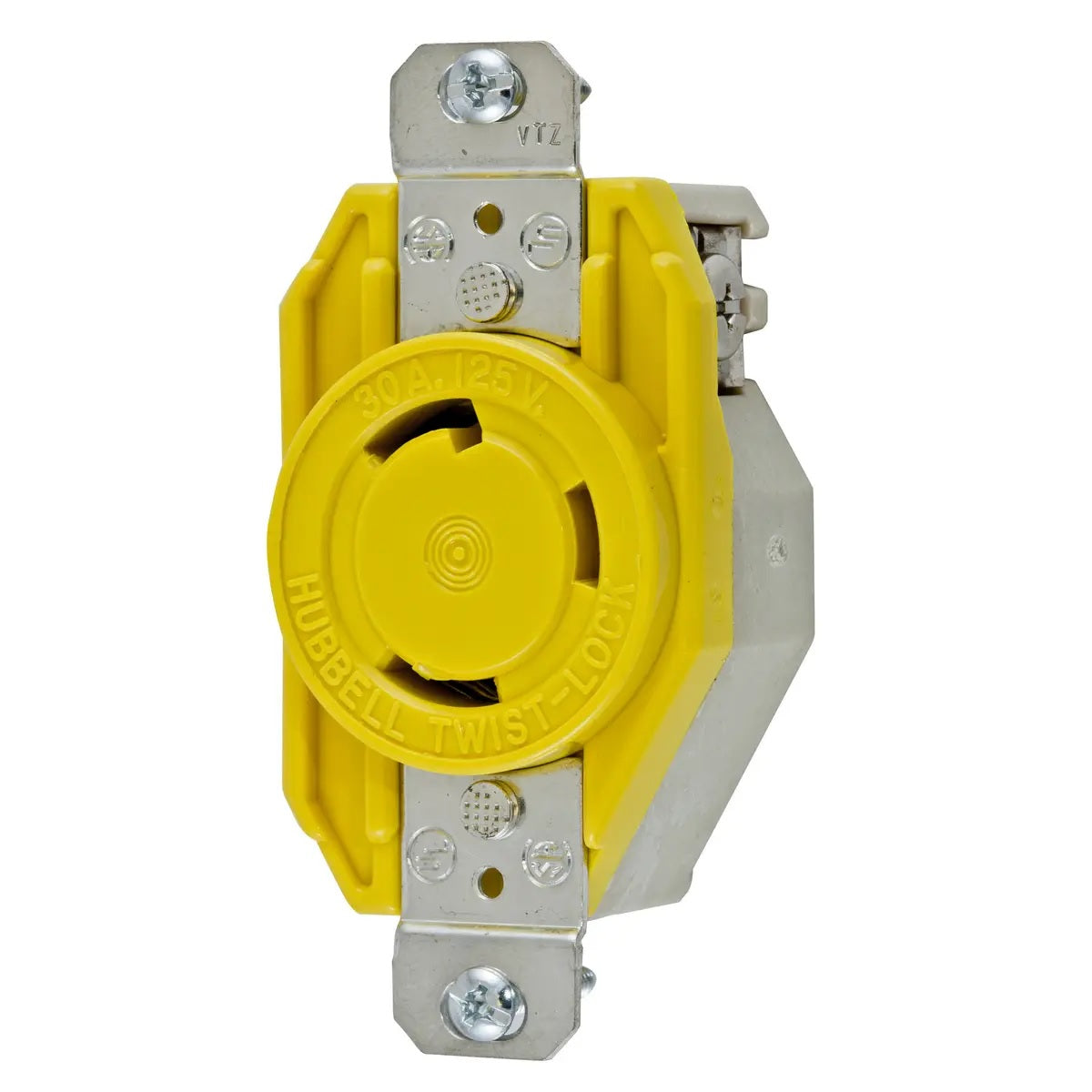

Hubbell HBL26CM10 Marine Grade 30A Shore Power Receptacle
The Hubbell HBL26CM10 is a professional-grade 30-ampere shore power receptacle engineered for marine dock installations and custom electrical boxes. Built with Rynite® thermoplastic body and abuse-resistant nylon face, this twist-lock receptacle delivers reliable performance in demanding marine environments while providing secure connections for boat shore power systems.
Key Marine Benefits
- Marine-Grade Construction: Rynite® body with abuse-resistant nylon face withstands impact and chemical exposure
- Corrosion Resistance: Nickel-plated brass mounting provides superior ground path and corrosion resistance
- Secure Connection: Twist-lock design ensures positive contact and prevents accidental disconnection
- Versatile Installation: Flush mounting design ideal for custom dock boxes and marina installations
- Professional Terminations: Wire restraint recess prevents terminal loosening and ensures reliable connections
Technical Specifications
| Current Rating: | 30 Amperes |
| Voltage Rating: | 125V AC |
| Configuration: | 2-Pole, 3-Wire Grounding |
| NEMA Type: | L5-30R |
| Body Material: | Rynite® Thermoplastic |
| Face Material: | Abuse-Resistant Nylon |
| Color: | High-Visibility Yellow |
| Protection Rating: | IP20 Water Resistance |
| Terminal Type: | Screw Terminal |
| Operating Temperature: | -40°C to +75°C |
| Mounting Style: | Flush Receptacle |
Marine Applications
- Marina dock electrical systems and pedestals
- Custom shore power outlet boxes
- Yacht club and harbor electrical installations
- Marine maintenance facility power distribution
- Boatyard temporary power connections
Superior Design Features
Rynite® Body Construction: The Rynite® thermoplastic body provides exceptional dimensional stability and chemical resistance. This advanced material maintains its properties across extreme temperature ranges, making it ideal for outdoor marine applications where traditional materials might degrade.
Wire Restraint System: The integrated wire restraint recess accommodates both back and side wiring configurations, significantly reducing the possibility of terminal connections loosening due to vibration or thermal cycling common in marine environments.
Corrosion-Resistant Hardware: The nickel-plated brass mounting and grounding system provides a lower resistance ground path compared to steel systems, while offering superior corrosion resistance in saltwater environments.
Installation Considerations
Electrical Requirements: This receptacle requires appropriate 30-amp circuit protection and must be installed according to ABYC E-11 standards for shore power systems. Ensure proper grounding connections for safety and code compliance.
Environmental Protection: While rated IP20, this receptacle should be installed in weatherproof enclosures when used in exposed locations. The design is optimized for use in custom electrical boxes with appropriate covers and sealing.
Wire Compatibility: Accommodates standard marine-grade wire sizes typically used in 30-amp shore power installations. Use marine-grade wire with appropriate insulation ratings for the application.
Why Choose Hubbell Marine Components
Hubbell has been the marine industry standard for electrical components for decades, trusted by marina operators, boat builders, and marine electricians worldwide. The HBL26CM10 represents the culmination of engineering expertise focused on marine environmental challenges.
This receptacle is designed to withstand the unique stresses of marine environments, including salt spray, temperature extremes, UV exposure, and constant vibration. The twist-lock design provides positive retention that prevents dangerous disconnections during adverse weather conditions.
Frequently Asked Questions
Q: What's the advantage of Rynite® construction over standard plastics?
A: Rynite® is a high-performance thermoplastic that offers superior chemical resistance, dimensional stability, and temperature performance compared to standard plastics, making it ideal for harsh marine environments.
Q: Can this receptacle be used in exposed outdoor installations?
A: While the receptacle has IP20 protection, it should be installed in a weatherproof enclosure when used outdoors. It's designed for flush mounting in custom electrical boxes with appropriate covers.
Q: What type of plug connects to this receptacle?
A: This L5-30R receptacle accepts L5-30P twist-lock plugs, which are standard for 30-amp shore power connections. The twist-lock design ensures secure connection and prevents accidental disconnection.
Q: Is this receptacle suitable for both back and side wiring?
A: Yes, the wire restraint recess design accommodates both back and side wiring configurations, providing flexibility for different installation requirements while maintaining secure terminal connections.
Q: How does the corrosion resistance compare to other marine receptacles?
A: The nickel-plated brass mounting system provides superior corrosion resistance compared to steel-based systems, while the Rynite® body resists chemical attack from marine environments.
Q: What wire sizes can be terminated in this receptacle?
A: The receptacle accommodates standard wire sizes typically used in 30-amp marine applications. Consult the installation instructions for specific wire gauge requirements and termination procedures.
Q: Does this meet marine electrical standards?
A: Yes, when properly installed, this receptacle helps meet ABYC E-11 requirements for shore power systems. Professional installation by qualified marine electricians is recommended.
Q: What's the expected service life in marine environments?
A: With proper installation and maintenance, the HBL26CM10 can provide decades of reliable service. The advanced materials are specifically chosen for long-term durability in marine conditions.
