Glomex 10" Omnidirectional TV Antenna w/A/B Switch
Glomex 10" Omnidirectional TV Antenna w/A/B Switch — Product description

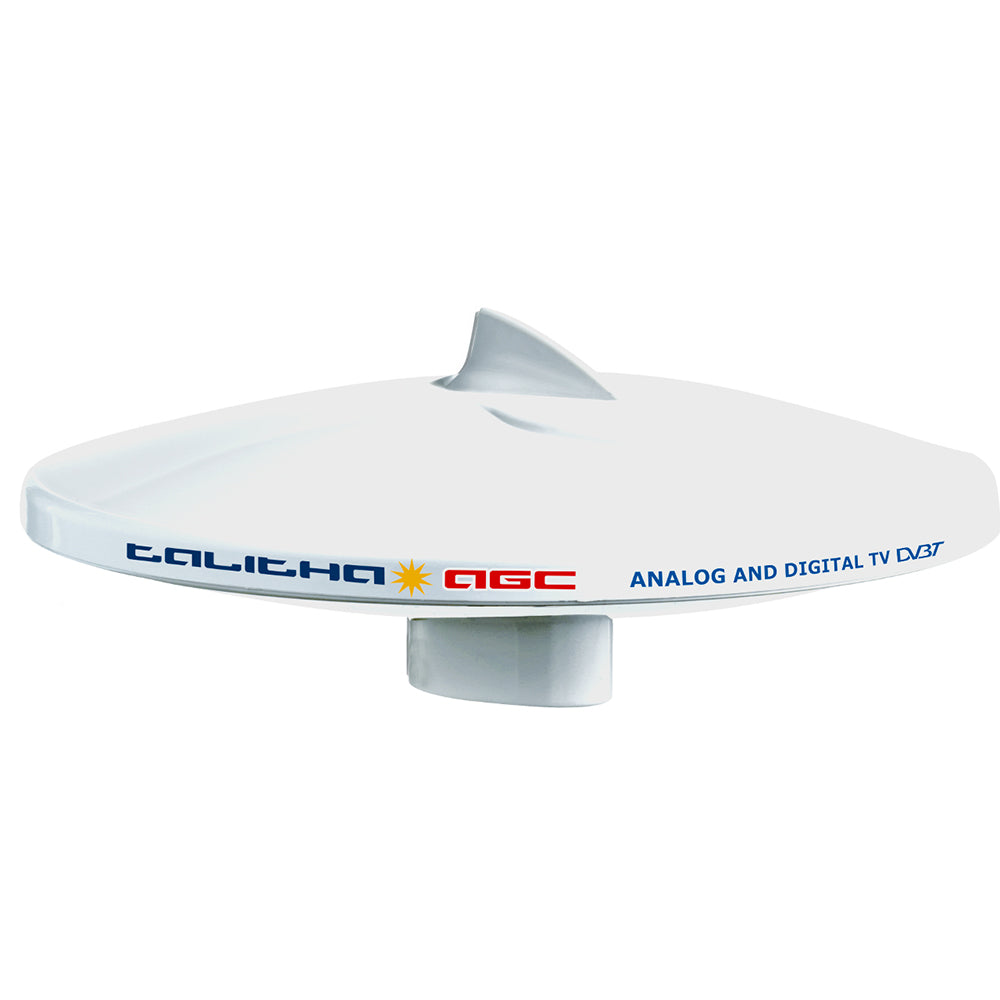

10" Omnidirectional TV Antenna with A/B Switch
The Talitha has evolved into the Talitha AGC to make life easier with the innovative automatic gain control amplifier. Thanks to this amplifier, you only have to turn on the TV and the antenna AGC will adjust by itself the gain of the TV signal to ensure the best possible reception of television broadcasts.
With conventional amplifiers, you have to manually adjust the TV signal gain by lowering or increasing the gain based on the signal strength. With the Talitha AGC, everything will happen automatically and the innovative amplifier can be placed in a hidden location inside the boat.
Specifications:
- ANTENNA DIAMETER: 10''
- ANTENNA HEIGHT: 5.9"
- BASE DIAMETER: 16''
- ANTENNA WEIGHT: 14.29 oz
- RADOME MATERIAL: U.V. resistant ASA
- ANGLE OF RECEPTION: 360°
- POLARIZATION: Horizontal/Vertical
- IMPEDANCE: 75 ohms
- FREQUENCY RANGE: 40/890 MHz
- GAIN AVERAGE: 26 dB
- NOISE FACTOR: 2.2 dB
- POWER CONSUMPTION: 20 mA
- POWER SUPPLY: 12/24 Vdc
- AUTOMATIC GAIN: Yes
- TV SET MAX: 2
- TERMINATION: F female
- CONNECTOR SUPPLIED: F male gold plated connector (V9144)
Supplied Accessories:
- 50023/14 AUTOMATIC GAIN CONTROL AMPLIFIER
- 66′ COAXIAL CABLE to connect the antenna to the amplifier
- 5′ SET CORD to connect the amplifier to the TV
- V9144 F-MALE GOLD PLATED CONNECTORS (2 PCS)
SKU: NVN-89889
MPN: V9125AGC/AB
UPC: 8051566306503
Technical specifications
| Brand | Glomex Marine Antennas |
| Model | Glomex 10" Omnidirectional TV Antenna w/A/B Switch |
| SKU / MFR# | 89889 |
