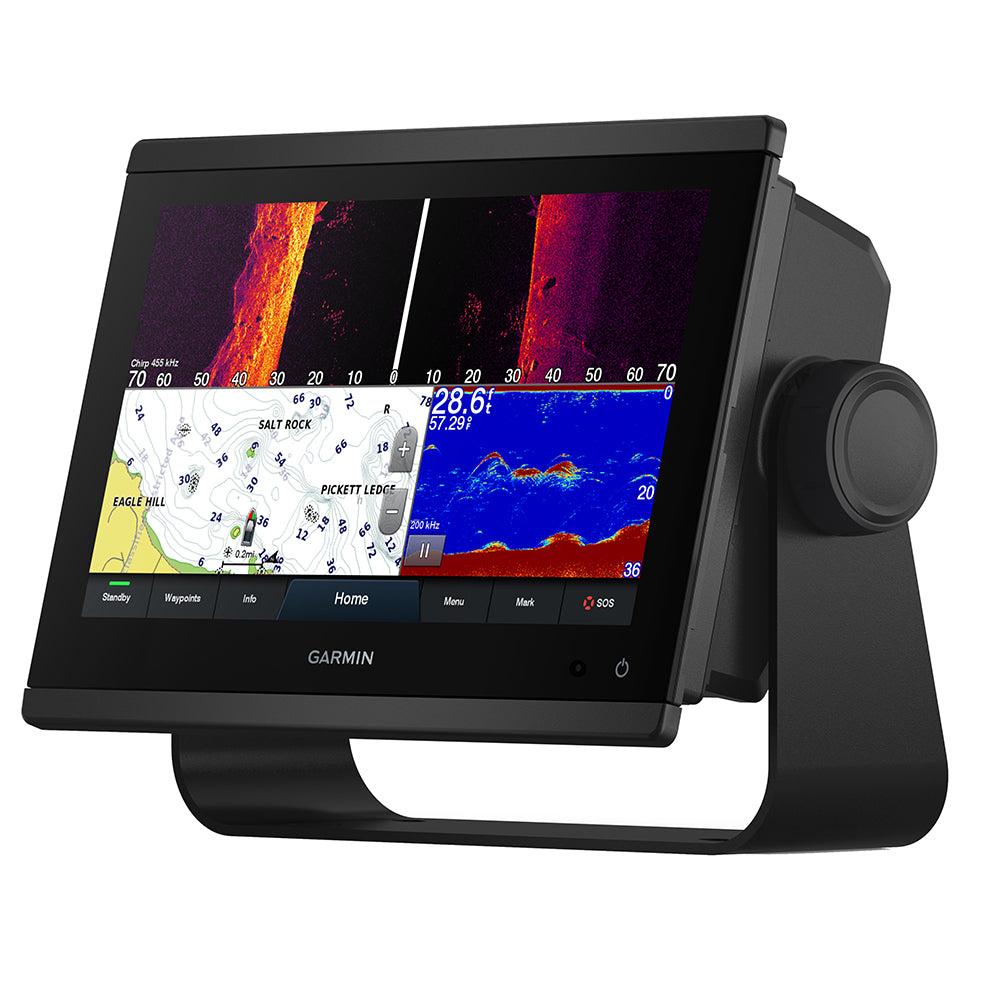

Garmin GPSMAP 943xsv Combo GPS/Fishfinder - Preloaded US+Canada+Bahamas BlueChart g3 - LakeVu g3
Garmin GPSMAP 943xsv Combo GPS/Fishfinder - Preloaded US+Canada+Bahamas BlueChart g3 - LakeVu g3 — Product description
Discover the ultimate upgrade for your boat's helm with the Garmin GPSMAP 943xsv, a versatile chartplotter and fishfinder that delivers crystal-clear navigation and fish-targeting precision. Anglers and recreational boaters alike rave about its ability to transform time on the water into effortless adventures, thanks to its preloaded coastal and inland charts covering the US, Canada, and Bahamas. Whether you're chasing trophy bass in hidden lakes or navigating coastal waters, this device combines advanced sonar imaging with intuitive touchscreen controls for unmatched situational awareness.
Superior Display and Performance for Demanding Conditions
The 9-inch in-plane switching touchscreen boasts a WXGA resolution of 1280 x 720 pixels, providing sharper details and better visibility even under direct sunlight or from off-angles. With nearly double the processing power of earlier models, it handles complex data smoothly—think rapid chart redraws, precise 10 Hz GPS tracking across GPS, GLONASS, and Galileo satellites, and fluid on-screen animations. Its slim design with edge-to-edge glass fits seamlessly into tight dash spaces, making retrofits straightforward without major modifications.
Advanced Built-in Sonar: See More Fish, More Clearly
Experience underwater clarity like never before with integrated Ultra High-Definition SideVü and ClearVü scanning sonars. These CHIRP-enabled technologies paint vivid, high-contrast images that make it easy to differentiate fish targets from bottom structure, weeds, or debris. Supporting frequencies from 50/77/83/200 kHz traditional to advanced CHIRP ranges, plus up to 5,000 ft depth capability at 1 kW power, it excels in diverse water conditions. Pair it with optional Panoptix LiveScope for real-time, 360-degree views around your vessel—perfect for trolling or docking maneuvers. Features like sonar history rewind and recording let you revisit hot spots without missing a beat.
Comprehensive Mapping for Coastal and Inland Waters
Preloaded with BlueChart g3 coastal charts and LakeVü g3 inland maps, this unit merges Garmin's reliable data with Navionics' detailed bathymetry, satellite imagery, and points of interest. Auto Guidance technology plots efficient routes around obstacles, saving you time on trip planning. Customize your view with relief shading for terrain awareness, and expand coverage via dual microSD slots. Tide tables, waypoints (up to 5,000), 100 routes, and 50,000-point track logs ensure you're always prepared for the next outing.
Seamless System Integration and Smart Connectivity
Build a fully connected marine ecosystem effortlessly. NMEA 2000 and 0183 compatibility links to radars, autopilots, engines (including J1939 for Yamaha and others), AIS, VHF, cameras, and Fusion audio. The Garmin Marine Network shares user data, maps, and video across multiple units. OneHelm consolidates third-party devices like EmpirBus digital switching onto a single interface. Built-in Wi-Fi pairs with the ActiveCaptain app for wireless updates, smart notifications, community Quickdraw data, and OneChart web app access. ANT+ support connects to quatix smartwatches, wireless wind sensors, and remotes for hands-free control from anywhere on board.
Rugged Build Meets Practical Power Needs
Rated IPX7 waterproof, this 3.6 lb unit withstands splashes and rough seas. Power draw stays efficient at 1.3A typical (12VDC), with max 22W usage—ideal for battery-conscious setups. Mounting options include bail, flush, or flat, complete with polarized lens support for glare reduction. An internal GNSS antenna ensures reliable positioning, with external over NMEA 2000 for flexibility.
Detailed Specifications
| Specification | Details |
|---|---|
| Physical Dimensions | 9.2" x 6.4" x 3" (23.3 x 16.2 x 7.6 cm) |
| Display Size | 7.8" x 4.4"; 9.0" diagonal (WXGA, 1280 x 720 pixels) |
| Weight | 3.6 lbs (1.6 kg) |
| Water Rating | IPX7 |
| Power Consumption (12 Vdc) | Typical: 1.3 A; Max: 1.8 A |
| Preloaded Maps | BlueChart g3 (coastal), LakeVü g3 (inland) |
| Sonar Capabilities | CHIRP Traditional (1 kW), SideVü/ClearVü UHD, Panoptix compatible |
| Connections | NMEA 2000/0183, J1939, Wi-Fi, ANT+, Garmin Marine Network |
| Memory | 5,000 waypoints, 100 routes, 50 tracks (50,000 pts) |
What's Included for Quick Setup
- GPSMAP 943xsv chartplotter unit
- Preinstalled microSD card with maps
- Power/data cable
- NMEA 2000 T-connector and drop cable
- Bail, flush, and flat mount kits
- Protective cover and trim pieces
- 8-pin to 12-pin transducer adapter
- Full documentation
Boaters often highlight how this fishfinder elevates their catch rates—SideVü reveals fish holding off structure you might otherwise miss, while ClearVü offers down-imaging detail for precise jigging. For navigation, the blend of charts and real-time sonar keeps you safe and efficient, from busy harbors to remote lakeshores.
Frequently Asked Questions
GPSMAP 943xsv Combo GPS/Fishfinder - Preloaded US+Canada+Bahamas BlueChart g3 - LakeV g3
Get a sharper view from your connected helm with the GPSMAP 943xsv chartplotter. Its higher-resolution 9 in-plane switching display has 50% more pixels than previous-generation touchscreens. And with its compact footprint, vivid sonar color palette and double the processing power of previous-generation GPSMAP devices, it seamlessly integrates into your Garmin marine system. GPSMAP 943xsv also features built-in Ultra High-Definition SideV and ClearV scanning sonars and supports 1 kW CHIRP traditional sonar as well as fully networkable radar and Panoptix LiveScope sonar devices. Preloaded BlueChart g3 coastal charts and LakeV g3 inland maps give you the best of Garmin and Navionics data plus Auto Guidance1 technology. Easily build your marine system from compatible sonar and autopilots to compatible radar, cameras and multimedia using HTML 5.0, NMEA 2000 and NMEA 0183 network connectivity, J1939 for engines and the Garmin Marine Network. Or pair your plotter with your other compatible Garmin devices, such as quatix marine smartwatches, wind transducers, wireless remote controls and more.
Features:
- Higher-resolution in-plane switching touchscreen displays offer improved sunlight readability and visibility from any angle, with 50% more pixels than previous-generation 9 units
- Fast and responsive, with nearly twice the processing power of previous-generation GPSMAP devices, this system references 10 Hz GNSS (GPS, GLONASS and Galileo) for accurate positioning and smooth speed as well as COG data
- Slimline display borders, edge-to-edge glass and reduced unit footprint make for easy retrofit in a wider range of dash configurations
- Preloaded mapping includes LakeV g3 and BlueChart g3 with the best of Garmin and Navionics data plus built-in Auto Guidance1 technology for confidence in helping you get where you need to go
- J1939 engine connectivity for easy integration with engines and our exclusive OneHelm feature for connecting to compatible third-party devices, such as EmpirBus digital switching
- Easily build your marine system from compatible sonar and autopilots to compatible radar, cameras and multimedia using NMEA 2000 and NMEA 0183 network connectivity and the Garmin Marine Network
- Use built-in Wi-Fi networking to pair with the free ActiveCaptain app2 for access to OneChart, smart notifications, software updates and more
- Integrated ANT technology support for use with your compatible quatix marine smartwatches, gWind Wireless 2 transducer, GNX Wind marine instrument and wireless remote controls
- Built-in Ultra High-Definition SideV and ClearV scanning sonars with high-contrast vivid color palettes to help distinguish fish from structure
- Supports Panoptix and Panoptix LiveScope sonar devices, 1 kW CHIRP traditional sonar and more
1 Auto Guidance is for planning purposes only and does not replace safe navigation operations
2 Requires app on your compatible smartphone; see Garmin.com/ble
Wi-Fi is a registered trademark of the Wi-Fi Alliance.
Garmin GPSMAP 943xsv SideVü, ClearVü and Traditional CHIRP Sonar with BlueChart® g3 coastal charts and LakeVü g3
Model: 010-02366-03- Easily integrate with more engines.
- Connect to compatible third-party devices with OneHelm™ digital switching.
- Easily build your marine system using the best of network connectivity.
- Navigate any waters with preloaded mapping and coastal charts.
- See below your boat with built-in sonar capabilities.
- Manage your marine experience from nearly anywhere1.
With 50% more display pixels and nearly double the processing power of previous-generation 9" GPSMAP devices, this crisp chartplotter/sonar combo with high-resolution IPS display integrates seamlessly into your Garmin marine system.
Get built-in Ultra High-Definition SideVü and ClearVü scanning sonars with vivid, high-contrast color palettes to help distinguish fish from structure. GPSMAP 943xsv also supports 1 kW CHIRP traditional sonar capabilities.
Pair with Panoptix or Panoptix LiveScope™ easy-to-interpret live sonar (transducer sold separately) to see all around your boat in real time.
With its added processing power and new slimline design featuring edge-to-edge glass and a smaller unit footprint, it’s easy to retrofit this 9" plotter in a wider range of dash configurations.
New higher-resolution 9" IPS displays offer improved sunlight readability and visibility from any angle, with 50% more pixels than previous-generation 9" GPSMAP devices.
Experience unparalleled coverage and detail with preloaded BlueChart® g3 coastal charts and LakeVü g3 inland maps featuring integrated Garmin and Navionics® content and Auto Guidance3 technology.
Upgrade to our reliable premium charts2, which add even more unparalleled features, such as high-resolution relief shading, to help you on each trip.
If you have multiple compatible Garmin devices on your boat, you can share information — such as maps, user data, radar and IP camera video — among them.
Connect to compatible autopilots, digital switching, weather, Fusion-Link™ audio system, media, VHF, AIS and more from one screen.
Built-in Wi-Fi® connectivity pairs with the free all-in-one mobile app for access to the OneChart™ feature, smart notifications, software updates, Garmin Helm™ digital switching, Garmin Quickdraw™ Community data and more.
Connect with some of your favorite devices, such as quatix® marine watches, gWind™ Wireless 2 transducers, GNX™ Wind marine instruments and wireless remote controls.
Now you can connect your chartplotter to different kinds of engines, including select Yamaha engines.
This exclusive feature brings together all the operations and capabilities of select third-party devices, such as EmpirBus™ digital switching, on one screen.
Specifications| General | |
| PHYSICAL DIMENSIONS | 9.2" x 6.4" x 3" (23.3 x 16.2 x 7.6 cm) |
| DISPLAY SIZE | 7.8" x 4.4"; 9.0" diagonal |
| DISPLAY RESOLUTION | 1280 x 720 pixels |
| DISPLAY TYPE | WXGA display |
| WEIGHT | 3.6 lbs (1.6 kg) |
| WATER RATING | IPX7 |
| POLARIZED SUPPORT | Yes |
| POWER CONSUMPTION | Max power usage at 10 Vdc: 22 W Typical current draw at 12 Vdc: 1.3 A Max current draw at 12 Vdc: 1.8 A |
| ANTENNA | Internal or external over NMEA 2000 |
| MOUNTING OPTIONS | Bail, flush or flat |
| RECEIVER | 10 Hz high-sensitivity |
| GARMIN MARINE NETWORK™ PORTS | 1 |
| Maps & Memory | |
| PRELOADED MAPS | BlueChart® g3 (coastal maps) and LakeVü g3 (inland maps) |
| ACCEPTS DATA CARDS | 2 microSD™ cards (back of unit) |
| WAYPOINTS | 5,000 |
| TRACK LOG | 50,000 points; 50 saved tracks |
| ROUTES | 100 |
| Outdoor Recreation | |
| TIDE TABLES | Yes |
| Chartplotter Features | |
| GARMIN RADAR COMPATIBLE | Yes |
| GARMIN SONAR COMPATIBLE | Yes (built-in) |
| GARMIN SMARTMODE COMPATIBLE (CUSTOMIZABLE MONITOR PRESETS) | Yes |
| SUPPORTS AIS (TRACKS TARGET SHIPS POSITION) | Yes |
| SUPPORTS DSC (DISPLAYS POSITION DATA FROM DSC-CAPABLE VHF RADIO) | Yes |
| SUPPORTS FUSION-LINK™ COMPATIBLE RADIOS | Yes |
| GSD™ BLACK BOX SONAR SUPPORT | Yes |
| GCV™ BLACK BOX SONAR SUPPORT | Yes |
| ACTIVECAPTAIN COMPATIBLE | Yes |
| GRID™ (GARMIN REMOTE INPUT DEVICE) COMPATIBLE | Yes |
| WIRELESS REMOTE COMPATIBLE | Yes |
| SAILING FEATURES | Yes |
| Sonar Features & Specifications | |
| DUAL-FREQUENCY (50/200 KHZ) SONAR CAPABLE | Yes |
| DUAL-BEAM (77/200 KHZ) SONAR CAPABLE | Yes |
| FREQUENCIES SUPPORTED | Traditional: 50/77/83/200 kHz CHIRP (low, medium, high) ClearVü (260/455/800 kHz) (dependent on transducer) |
| CHIRP SONAR TECHNOLOGY | Yes (Built-in) |
| CLEARVü | Yes with CHIRP (built-in) |
| SIDEVü | Yes with CHIRP (built-in) |
| MAXIMUM DEPTH | 5,000 ft at 1kW (depth capacity is dependent on water bottom type and other water conditions) |
| BOTTOM LOCK (SHOWS RETURN FROM THE BOTTOM UP) | Yes |
| WATER TEMPERATURE LOG AND GRAPH | Yes |
| SONAR RECORDING | Yes |
| SONAR HISTORY REWIND | Yes |
| Connections | |
| NMEA 2000® COMPATIBLE | Yes |
| TRANSDUCER PIN NUMBERS | 12-pin (orange) |
| NMEA 0183 INPUT PORTS | 1 (Differential) |
| NMEA 0183 OUTPUT PORTS | 1 (Differential) |
| VIDEO INPUT PORTS | 1 BNC |
| WIRELESS CONNECTIVITY | Yes |
| J1939 COMPATIBLE | Yes |
What's in the Box:
- GPSMAP 943xsv chartplotter
- microSD™ card preinstalled
- Power cable
- NMEA 2000® T-connector
- NMEA 2000 drop cable (2 meters)
- Bail mount kit with knobs
- Flush mount kit with gasket
- Protective cover
- Trim piece snap covers
- Documentation
- 8-pin transducer to 12-pin sounder adapter cable
SKU: NVN-86458
MPN: 010-02366-03
UPC: 753759250553
