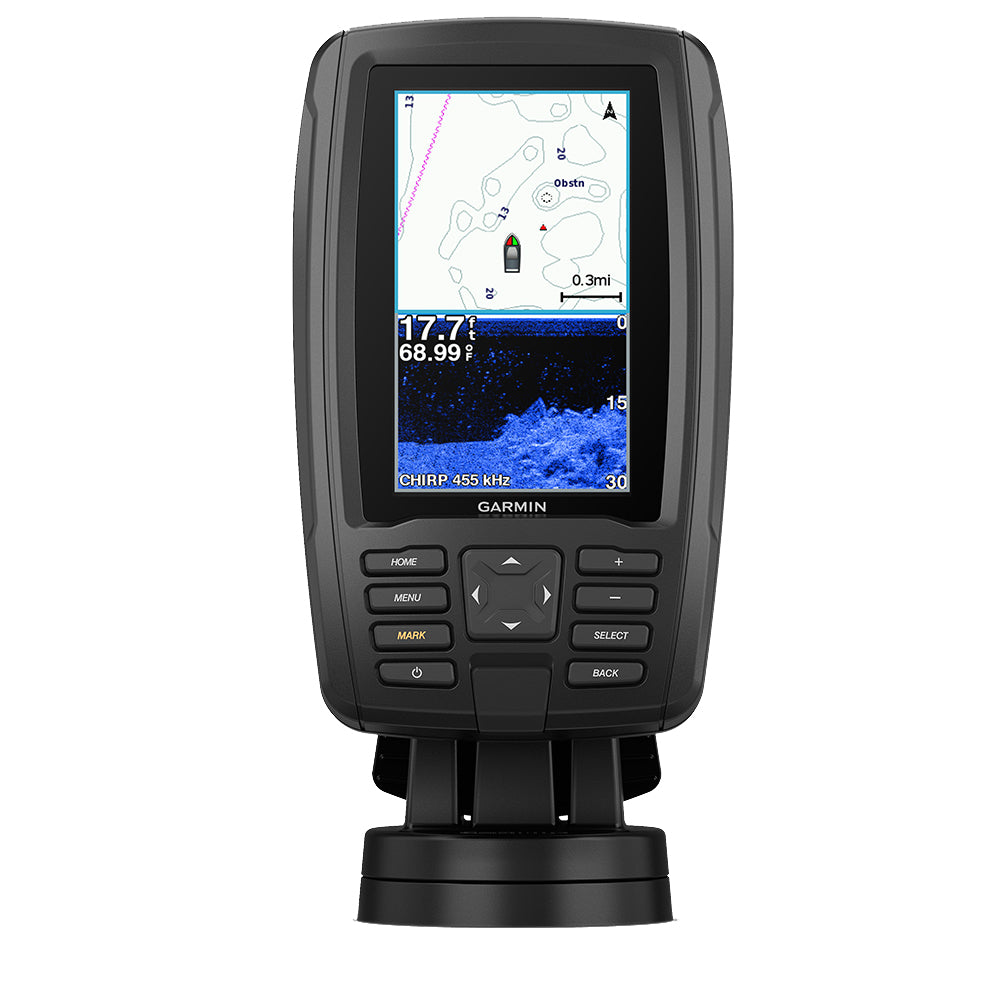

Garmin ECHOMAP Plus 44cv BlueChart G3 w/GT20-TM Transducer
Garmin ECHOMAP Plus 44cv BlueChart G3 w/GT20-TM Transducer — Product description
Discover Superior On-Water Performance with Advanced Sonar and Mapping
Imagine heading out for a day of fishing or cruising the coast, equipped with a compact device that delivers crystal-clear views beneath your boat and detailed charts at your fingertips. The Garmin ECHOMAP Plus 44cv with BlueChart g3 and GT20-TM transducer stands out as a reliable companion for serious anglers and boaters. Its blend of high-definition sonar imaging, customizable mapping, and intuitive controls makes every trip more productive and enjoyable.
What sets this unit apart is its ability to adapt to your needs on the water. Whether you're chasing striped bass along the Eastern Seaboard or navigating the tricky shallows of the Gulf, the preloaded coastal charts cover key areas from the East Coast to the West Coast, including the Gulf of Mexico and parts of the Great Lakes. Anglers love how it reveals fish-holding structures with unprecedented detail, helping you drop lines right where the action is.
Powerful CHIRP Sonar: See More Fish, Structures, and Bottom Details
At the heart of this combo is Garmin's renowned CHIRP traditional sonar paired with ClearVü scanning sonar, all in one GT20-TM transducer. Traditional CHIRP excels at separating targets—even closely packed schools—by transmitting a wide range of frequencies for sharper images than standard sonar. Meanwhile, ClearVü provides side-to-side scans that look almost like underwater photos, highlighting wrecks, drop-offs, and baitfish balls.
- Remarkable target separation for identifying individual fish
- Nearly photographic views of the bottom and structures
- Compatible with Minn Kota and MotorGuide trolling motors
- Depth capability up to 2,300 ft in freshwater at 77 kHz
For kayak anglers or small boat owners, the transom and trolling motor mounts make setup straightforward, ensuring you get consistent readings no matter your vessel.
Custom Mapping with Quickdraw Contours: Your Waters, Your Maps
Why settle for generic charts when you can build your own? Built-in Quickdraw Contours software generates 1-foot contour maps in real-time as you motor across your favorite spots. Spot a hot bite on a reef? Log it instantly and refine your personal library. Keep maps private or contribute to the Quickdraw Community on Garmin Connect to access crowd-sourced intel from fellow boaters.
Expand further with optional BlueChart g3 Vision or LakeVü maps via microSD, unlocking Auto Guidance for safer route planning and Depth Range Shading to visualize safe depths at a glance.
Effortless Installation and Portability
Designed for real-world use, the 4.3-inch sunlight-readable display shines even under harsh conditions, with a quick-release cradle that lets you detach the unit in seconds—no fumbling with cables. Power cords connect directly to the mount, keeping your console clean. Bail or flush mounting options fit kayaks, center consoles, or bass boats seamlessly.
Share waypoints and routes wirelessly with compatible ECHOMAP or STRIKER units, perfect for multi-boat outings or tournament teams.
Technical Specifications at a Glance
| Category | Specification |
|---|---|
| General | |
| Physical dimensions | 4.0" x 6.5" x 3.1" (10.2 x 16.5 x 7.9 cm) |
| Display size | 4.3" diagonal (2.1" x 3.7") |
| Display resolution | 480 x 272 pixels (WQVGA) |
| Weight | 1.6 lbs (0.7 kg) |
| Water rating | IPX7 |
| Sonar Features | |
| CHIRP sonar | Yes (built-in) |
| ClearVü | Yes with CHIRP |
| Transmit power | 500 W (RMS) / 4,000 W (peak-to-peak) |
| Maximum depth | 2,300 ft @ 77 kHz (freshwater) |
| Maps & Memory | |
| Preloaded maps | BlueChart g3 (U.S. coastal) |
| Waypoints | 5,000 |
| Routes | 100 |
| Connections | |
| Transducer pins | 4-pin |
| NMEA 0183 ports | 1 input / 1 output |
Everything You Need for a Seamless Setup
- ECHOMAP Plus 44cv with BlueChart g3 coastal charts
- GT20-TM transducer
- Power/data cable
- Tilt/swivel mount with quick-release cradle
- Flush mount kit
- Hardware and protective cover
- Documentation
Pro Tips for Maximizing Your ECHOMAP Plus 44cv
To get the most out of your unit, adjust sonar frequencies based on water conditions—lower for deeper scans, higher for shallow clarity. Regularly update software via Garmin Connect for the latest features. For coastal trips, layer Quickdraw maps over BlueChart g3 to mark productive wrecks or current rips. In tournaments, sharing routes with crew keeps everyone synced.
ECHOMAP Plus 44cv BlueChart G3 with GT20-TM Transducer
A Great Addition to Any Fishing or Boating Trip
- Bright, sunlight-readable 4.3 combo
- Includes GT20 transducer for Garmin CHIRP traditional sonar plus CHIRP ClearV scanning sonar with transom and trolling motor mounts
- Preloaded BlueChart g3 charts with integrated Navionics data for the coastal U.S.
- Built-in Garmin Quickdraw Contours mapping software instantly creates personalized fishing maps on-screen with 1' contours as you fish
- Share waypoints and routes with other ECHOMAP or STRIKER units
This compact combo has lots of built-in benefits. Easy-to-install and even easier to use, it has a bright screen 4.3 display that is easy to read on a sunny day on the water. It includes a GT20 transducer for traditional Garmin CHIRP sonar that delivers remarkable target separation and CHIRP ClearV scanning sonar for nearly photographic images of what's below the boat. ECHOMAP Plus 44cv comes preloaded with BlueChart g3 charts with integrated Navionics data, covering the coastal U.S. Plus, it has Quickdraw Contours mapping software to instantly create personalized fishing maps on-screen with 1' contours as you fish. You own these maps. They are yours to keep private or share with the Quickdraw Community on Garmin Connect. Plus, you can share waypoints and routes with other ECHOMAP or STRIKER units. It also features a quick-release mount allowing you to quickly install and remove your device from power and mount. Transom and trolling motor mounts included.
The Garmin CHIRP Difference
The built-in sonar capabilities of ECHOMAP Plus 44cv include our CHIRP traditional sonar, one of the most sophisticated sonar technologies available for the fishing and boating public. CHIRP traditional sonar provides amazingly clear target separation and definition, because it puts even more energy onto the target than traditional sonar. It also provides traditional sonar support for Minn Kota and MotorGuide trolling motors with integrated transducers.
Clear Scanning Sonar Images
Garmin CHIRP ClearV scanning sonar gives you a nearly photographic image of what's below your boat. You clearly see structure, submerged objects and fish. Garmin CHIRP traditional sonar and CHIRP ClearV scanning sonar are combined into 1 transducer.
Preloaded BlueChart g3 Charts
This ECHOMAP Plus combo features preloaded BlueChart g3 charts with integrated Navionics data, covering the coastal U.S. (east coast, west coast, Gulf of Mexico, U.S. and the Canadian side of the Great Lakes). Data is derived from official charts and private sources to provide navigational aids, spot soundings, depth contour, tides and currents and more.
Quickdraw Contours to Create Your Own Maps
Instantly create personalized fishing maps on-screen with 1' contours as you fish. Tailor them to fit your needs. These are your maps you own them. Keep the data to yourself, or share it with the Quickdraw Community on Garmin Connect..
Upgrade to Our Best Maps on the Water
Step up to our premier BlueChart g3 Vision coastal charts, LakeV g3 inland maps or LakeV g3 Ultra inland maps with Garmin Elite survey lakes all featuring integrated Navionics data, Auto Guidance1 technology, Depth Range Shading and other great features. A single microSD card slot provides expandable memory for accessory map purchases. Or purchase maps with OneChart through the ActiveCaptain app, and automatically sync with your compatible chartplotter, eliminating the need for an SD card.
Take Your ECHOMAP Plus with You
When you're off the water, it's easy to keep your ECHOMAP Plus combo safe and secure. You don't have to mess with plugging and unplugging wires from the unit because the cords plug directly into the mount. This allows you to quickly install and remove your ECHOMAP Plus from power and the mount.
Connections:
- Transducer pin numbers: 4
- NMEA 0183 input ports: 1
- NMEA 0183 output ports: 1
In the box:
- ECHOMAP Plus 44cv with BlueChart g3 for U.S.
- GT20-TM transducer
- Power/data cable
- Tilt/swivel mount with quick release cradle
- Flush mount
- Hardware
- Documentation
Auto Guidance is for planning purposes only and does not replace safe navigation operations.
Garmin ECHOMAP Plus 44CV
Model: 010-01886-05- Bright, sunlight-readable 4.3" combo
- Includes GT20 transducer for Garmin CHIRP traditional sonar plus CHIRP ClearVü scanning sonar with transom and trolling motor mounts
- Preloaded BlueChart® g3 charts with integrated Navionics® data for the coastal U.S.
- Built-in Garmin Quickdraw™ Contours mapping software instantly creates personalized fishing maps on-screen with 1’ contours as you fish
- Share waypoints and routes with other ECHOMAP™ or STRIKER™ units
This compact combo has lots of built-in benefits. Easy-to-install and even easier to use, it has a bright screen 4.3" display that is easy to read on a sunny day on the water. It includes a GT20 transducer for traditional Garmin CHIRP sonar that delivers remarkable target separation and CHIRP ClearVü scanning sonar for nearly photographic images of what’s below the boat. ECHOMAP Plus 44cv comes preloaded with BlueChart g3 charts with integrated Navionics data, covering the coastal U.S. Plus, it has Quickdraw Contours mapping software to instantly create personalized fishing maps on-screen with 1’ contours as you fish. You own these maps. They are yours to keep private or share with the Quickdraw Community on Garmin Connect™. Plus, you can share waypoints and routes with other ECHOMAP or STRIKER units. It also features a quick-release mount allowing you to quickly install and remove your device from power and mount. Transom and trolling motor mounts included.
The built-in sonar capabilities of ECHOMAP Plus 44cv include our CHIRP traditional sonar, one of the most sophisticated sonar technologies available for the fishing and boating public. CHIRP traditional sonar provides amazingly clear target separation and definition, because it puts even more energy onto the target than traditional sonar. It also provides traditional sonar support for Minn Kota® and MotorGuide® trolling motors with integrated transducers.
Garmin CHIRP ClearVü scanning sonar gives you a nearly photographic image of what’s below your boat. You clearly see structure, submerged objects and fish. Garmin CHIRP traditional sonar and CHIRP ClearVü scanning sonar are combined into 1 transducer.
This ECHOMAP Plus combo features preloaded BlueChart g3 charts with integrated Navionics data, covering the coastal U.S. (east coast, west coast, Gulf of Mexico, U.S. and the Canadian side of the Great Lakes). Data is derived from official charts and private sources to provide navigational aids, spot soundings, depth contour, tides and currents and more.
Instantly create personalized fishing maps on-screen with 1’ contours as you fish. Tailor them to fit your needs. These are your maps — you own them. Keep the data to yourself, or share it with the Quickdraw Community on Garmin Connect.™.
tep up to our premier BlueChart® g3 Vision coastal charts, LakeVü g3 inland maps or LakeVü g3 Ultra inland maps with Garmin Elite survey lakes — all featuring integrated Navionics data, Auto Guidance1 technology, Depth Range Shading and other great features. A single microSD™ card slot provides expandable memory for accessory map purchases. Or purchase maps with OneChart™ through the ActiveCaptain® app, and automatically sync with your compatible chartplotter, eliminating the need for an SD™ card.
When you’re off the water, it’s easy to keep your ECHOMAP Plus combo safe and secure. You don’t have to mess with plugging and unplugging wires from the unit because the cords plug directly into the mount. This allows you to quickly install and remove your ECHOMAP Plus from power and the mount.
Specifications| General | |
| Physical dimensions | 4.0" x 6.5" x 3.1" (10.2 x 16.5 x 0.4 cm) |
| Display size | 2.1" x 3.7"; 4.3" diagonal |
| Display resolution | 480 x 272 pixels |
| Display type | WQVGA display |
| Weight | 1.6 lbs (0.7 kg) |
| Water rating | IPX7 |
| Power consumption | 5W |
| Antenna | Internal or external over NMEA 0183 |
| Mounting options | Bail or flush |
| Receiver | 5 Hz |
| Garmin Marine Network™ ports | None |
| Maps & Memory | |
| Preloaded maps | BlueChart® g3 (coastal maps) |
| Accepts data cards | 1 microSD™ card; 32 GB maximum card size |
| Waypoints | 5,000 |
| Routes | 100 |
| Track log | 50,000 points; 50 saved tracks |
| Outdoor Recreation Features | |
| Tide tables | Yes |
| Chartplotter Features | |
| Garmin Sonar compatible | Yes |
| Supports AIS (tracks target ships position) | Yes |
| Supports DSC (displays position data from DSC-capable VHF radio) | Yes |
| Sonar Features & Specifications | |
| Dual-frequency (50/200 kHz) sonar capable | Yes |
| Dual-beam (77/200 kHz) sonar capable | Yes |
| Transmit power | 500 W (RMS) / 4,000 W (peak to peak) |
| CHIRP sonar technology | Yes (Built-in) |
| ClearVü | Yes with CHIRP (built-in) |
| SideVü | No |
| Maximum depth | 2,300 ft @ 77 kHz, freshwater |
| Bottom lock (shows return from the bottom up) | Yes |
| Water temperature log and graph | Yes |
| Sonar recording | Yes |
| Sonar history rewind | Yes |
| Connections | |
| Transducer pin numbers | 4 |
| NMEA 0183 input ports | 1 |
| NMEA 0183 output ports | 1 |
| Video input ports | None |
| Video output ports | None |
| Wireless connectivity | No |
What's in the Box:
- ECHOMAP Plus 44cv with BlueChart g3 for U.S.
- GT20-TM transducer
- Power/data cable
- Tilt/swivel mount with quick release cradle
- Flush mount
- Protective cover
- Hardware
- Documentation
SKU: NVN-75566
MPN: 010-01886-05
UPC: 753759213701
Technical specifications
| Brand | Garmin |
| Model | Garmin ECHOMAP Plus 44cv BlueChart G3 w/GT20-TM Transducer |
| SKU / MFR# | 75566 |
