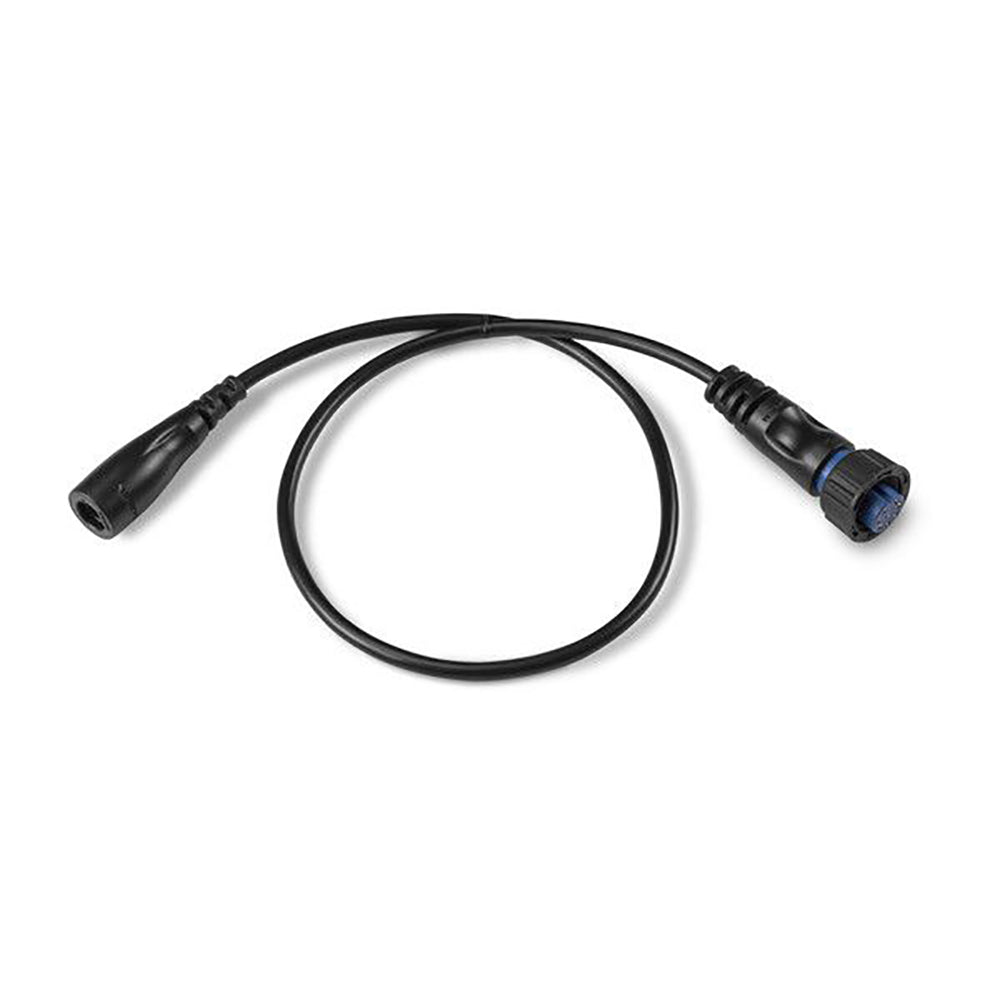

Garmin 4-Pin Transducer to 8-Pin Sonar Port
Garmin 4-Pin Transducer to 8-Pin Sonar Port — Product description
Unlock Seamless Sonar Upgrades with the Garmin 4-Pin to 8-Pin Adapter
Anglers and boaters know the frustration of mismatched gear—especially when a trusty 4-pin transducer won't play nice with your newer Garmin chartplotter's 8-pin sonar port. That's where this Garmin adapter cable shines. Designed for marine enthusiasts who demand precision on the water, it bridges the gap effortlessly, letting you keep your existing transducer humming while tapping into advanced sonar capabilities.
Crafted with Garmin's hallmark durability, this black adapter cable withstands harsh saltwater environments, vibrations from rough seas, and the daily grind of serious fishing trips. It's not just a connector; it's your ticket to clearer fish arches, sharper bottom contours, and reliable depth readings without shelling out for a full transducer replacement.
Key Features That Set It Apart
- Plug-and-Play Simplicity: Directly connects any standard 4-pin Garmin transducer to an 8-pin sonar input, no soldering or custom wiring needed.
- Rugged Build: Marine-grade materials resist corrosion, UV exposure, and temperature swings, ensuring years of reliable performance.
- Compact Design: Sleek and unobtrusive, it tucks away cleanly behind your display for a professional install.
- Backed by Expertise: Engineered by Garmin, leaders in GPS and sonar tech, for flawless integration with their ecosystem.
Perfect Compatibility for Your Garmin Setup
This adapter is tailored for popular Garmin series, making it a go-to for upgrading echoMAP and GPSMAP systems. It pairs seamlessly with models like echoMAP CHIRP 42cv, 43cv, and 44cv, as well as GPSMAP 742xs and 742xs Plus. Whether you're running an echoMAP UHD, ECHOMAP Plus, or full-featured GPSMAP chartplotter, it ensures your sonar data flows uninterrupted.
Pro Tip: Before installing, double-check your transducer's pin configuration—most Garmin plastic or dual-beam models from the last decade work perfectly, preserving your investment in high-CHIRP or ClearVü transducers.
Why Boaters Swear by This Adapter
Upgrading your fishfinder shouldn't mean starting from scratch. This cable lets you breathe new life into older transducers, delivering HD sonar imagery on modern displays. Imagine spotting structure and schools at greater depths with the clarity of CHIRP technology—all without downtime or extra costs.
Users rave about its reliability during long offshore runs or tournament days, where every signal counts. It minimizes signal loss, reduces noise interference, and maintains peak performance even in choppy conditions. Plus, with Garmin's one-year limited warranty, you've got peace of mind on the water.
Easy Installation Steps for Quick Setup
- Power down your Garmin unit and disconnect all cables.
- Plug the 4-pin end into your transducer securely.
- Connect the 8-pin end to your chartplotter's sonar port.
- Route the cable neatly using zip ties to avoid snags.
- Power up, run a self-test in the sonar menu, and calibrate as needed.
Typically takes under 10 minutes, even for DIYers. If you're mounting a new transducer, apply marine sealant to connections for extra waterproofing.
Frequently Asked Questions
Does this adapter work with all Garmin 4-pin transducers?
Yes, it's compatible with most standard Garmin 4-pin transducers, including those used for traditional sonar, CHIRP, and ClearVü scanning. Always verify your model's specs for best results.
Is this adapter waterproof?
Absolutely—it's built with marine-grade, sealed connectors that handle submersion and spray, ideal for transom or trolling motor mounts.
Can I use it to connect to non-Garmin chartplotters?
No, this is optimized for Garmin's proprietary 8-pin sonar ports. For other brands, check their specific adapters.
Will this affect sonar performance or range?
Not at all—it's a passive adapter that passes full signal integrity, maintaining your transducer's original depth and resolution capabilities.
What if my Garmin unit has multiple sonar ports?
Plug it into any compatible 8-pin port; most units auto-detect and configure sonar sources via the menu.
How long is the adapter cable?
It's a compact extension, typically around 1-2 feet, perfect for clean routing without excess slack.
Does it support dual-frequency transducers?
Yes, it handles dual-beam and broadband setups, ensuring both frequencies transmit properly to your display.
Maximize Your Marine Electronics Investment
Don't let outdated connectors hold back your adventures. This Garmin adapter empowers you to mix and match gear confidently, future-proofing your setup for the latest software updates and features. Whether chasing trophy bass or navigating coastal waters, it's the reliable link that keeps you connected to what's below.
Garmin make products that are engineered on the inside for life on the outside. We bring GPS navigation and wearable technology to the automotive, aviation, marine, outdoor and fitness markets. We believe every day is an opportunity to innovate and a chance to beat yesterday. We offer products with essential utility, leading-edge technologies, compelling features, and exceptional ease-of-use to create clear differentiators our customers appreciate and desire.
Garmin 101272100 Attributes
- Compatibility: Garmin echoMAP ™, ECHOMAP ™ Plus, ECHOMAP ™ UHD, GPSMAP (R) Chart Plotters
- Used To: Connect 4-Pin Transducer To 8-Pin Sounder
- Color: Black
Garmin 101272100 Features & Benefits
- Connect A 4-Pin Transducer To An 8-Pin Sonar Port On Your Compatible Marine Device With This Adapter Cable
- Compatible With ECHOMAP ™ CHIRP 42cv, 43cv, 44cv, GPSMAP (R) 742xs, 742xs Plus
- Garmin Offer Products With Essential Utility
- Awe-Inspiring Designs, Impeccable Quality, And Superior Reliability
- Limited 1 Year Warranty
Garmin 101272100 Warranties
4-Pin Transducer to 8-Pin Sonar Port
Connect a 4-pin transducer to an 8-pin sonar port on your compatible marine device with this adapter cable.
Electronic sensor Garmin adapter sensor 4 pin to 8 pin one size. Use this adapter to connect the 4-pin sensor to the 8-pin sonar port on compatible marine equipment...
SKU: NVN-70806
MPN: 010-12721-00
UPC: 753759197810
Technical specifications
| Brand | Garmin |
| Model | Garmin 4-Pin Transducer to 8-Pin Sonar Port |
| SKU / MFR# | 70806 |
