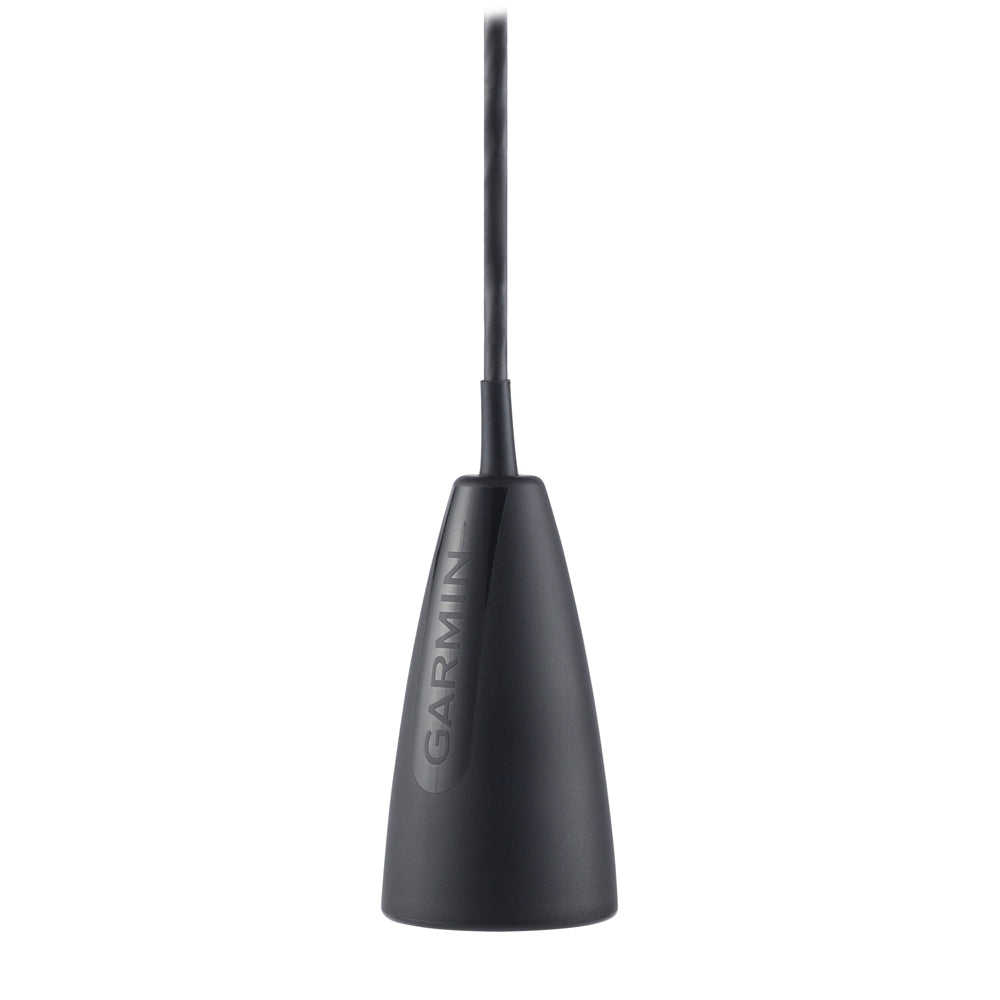

Garmin GT8HW-IF Ice Fishing, Plastic, High Wide CHIRP Transducer - 150-240kHz, 250W, 4-Pin
Garmin GT8HW-IF Ice Fishing, Plastic, High Wide CHIRP Transducer - 150-240kHz, 250W, 4-Pin — Product description
Imagine drilling a hole through thick ice, dropping your line, and instantly seeing a crystal-clear view of the bottom contour, fish hovering nearby, and structure that could hold your next big catch. That's the edge the Garmin GT8HW-IF delivers to serious ice anglers. Designed exclusively for the unique challenges of frozen waters, this high wide CHIRP transducer cuts through murky underwater conditions with precision, helping you locate walleye, perch, crappie, or pike faster than ever.
Why This Transducer Excels in Ice Fishing Conditions
Ice fishing demands gear that performs when temperatures plummet and visibility is zero. The GT8HW-IF stands out with its optimized shape for flush mounting in ice holes, ensuring minimal interference and maximum signal return. The silicon-coated cable stays pliable even in sub-zero temps, preventing cracks or stiffening that plague lesser models. Anglers report spotting fish arches with incredible separation—meaning you can tell a trophy from a dink at a glance—while the wide beam sweeps a broad area under the ice shelf.
Unlike standard transducers that struggle with ice attenuation, the high wide CHIRP technology (spanning 150-240 kHz) sends out sweeping frequencies for sharper images and less noise. This results in defined bottom hardness readings, vital for picking the right depth in varying lake bottoms, from soft mud to hard gravel.
Standout Features for Real-World Ice Angling
- Expansive Coverage: Up to 24-degree beam angle on the low frequency side captures a wider swath, perfect for scouting holes without constant repositioning.
- Target Discrimination: Crisp fish ID with excellent separation lets you focus on quality bites, ignoring baitfish schools.
- Winter-Tough Build: Plastic housing and flexible cable handle extreme cold, with a float included for summer versatility on open water.
- Integrated Temperature Sensing: Tracks water temp changes to predict fish movement patterns during the hardwater season.
- Proven Power: 250W output punches through ice and thermoclines for reliable readings up to 800 feet in freshwater.
Detailed Technical Specifications
| Specification | Details |
|---|---|
| Frequency Range | High Wide CHIRP 150-240 kHz |
| Power Output | 250 Watts |
| Maximum Depth | 800 feet (freshwater) |
| Beam Width (-3dB) | 24° / 16° (LF/HF) |
| Connection Type | 4-pin |
| Cable Length | 8 feet |
| Water Temperature Sensor | Yes |
Simple Setup and Usage Tips for Ice Success
Mounting is straightforward: Position the transducer flat in your ice hole auger, securing it with the included hardware if needed. Connect the 4-pin plug to your compatible Garmin display, and you're scanning. For best results, keep the unit level and avoid air bubbles by wetting the face before submersion. In multi-hole setups, the wide beam shines for side-scanning without moving gear.
Pro tip: Pair it with sensitivity tweaks for ice—dial back gain slightly to reduce clutter from suspended crystals, then zoom in on the bottom 10-20 feet where most species stage. Track temp inversions to find suspended fish post-front.
Enhance Your Ice Fishing Arsenal
Whether you're a weekend warrior on a local lake or chasing trophies on big water, this transducer transforms guesswork into strategy. Its blend of wide coverage, CHIRP clarity, and cold-weather durability makes it a staple for portable sonar shelters, flip-over huts, and permanent setups. Elevate your hardwater game and spend less time searching, more time fighting fish.
Frequently Asked Questions
What makes the Garmin GT8HW-IF ideal for ice fishing?
Its optimized shape for ice holes, wide beam for broad coverage under ice, and flexible silicon cable ensure reliable performance in freezing conditions with clear bottom and fish detection.
How deep can the GT8HW-IF transducer scan?
It reaches up to 800 feet in freshwater, sufficient for most ice fishing depths while maintaining sharp images.
Does this transducer read water temperature?
Yes, it includes a built-in temperature sensor to monitor changes and help predict fish behavior.
What is the beam angle of the GT8HW-IF?
It offers a wide beam width of up to 24 degrees on the low frequency, providing larger coverage for efficient scouting.
Is the cable on this transducer cold-resistant?
Absolutely, the silicon-coated cable remains flexible in harsh winter conditions, preventing brittleness.
Can I use the GT8HW-IF in open water too?
Yes, the included float allows easy trolling or stationary use during warmer months.
What type of sonar does it use?
High wide band CHIRP traditional sonar (150-240 kHz) for superior target separation and bottom detail.
Garmin make products that are engineered on the inside for life on the outside. We bring GPS navigation and wearable technology to the automotive, aviation, marine, outdoor and fitness markets. We believe every day is an opportunity to innovate and a chance to beat yesterday. We offer products with essential utility, leading-edge technologies, compelling features, and exceptional ease-of-use to create clear differentiators our customers appreciate and desire.
Garmin 101240120 Attributes
- Number Of Pins: 4 Pin
- Depth: 800 Feet For Freshwater
- Power Rating: 250 Watt
- Frequency Range: 150-240 kHz High Wide CHIRP Operating Frequency
- Cable Length: 8 Feet
Garmin 101240120 Features & Benefits
- GT8HW-IF Transducer Is Perfect For Ice Fishermen Who Want Clear Bottom Definition Under The Ice As Well As Crisp, Clear And Wide Fish Arches With Excellent Target Separation
- Wider Beam Width Up To 24 Degree Beam Angle Provides A Larger Coverage Area In The Water
- 250 Watt 4-Pin Transducer Features High Wide Band Chirp Traditional Sonar
- Shape And Beam Widths Have Been Optimized For Ice Fishing
- Feature A Silicon-Coated Cable That Remains Flexible In Harsh Winter Conditions
- Limited 2 Year Warranty
Garmin 101240120 Installation Instructions
Garmin 101240120 Warranties
GT8HW-IF Ice Fishing, Plastic, High Wide CHIRP Transducer - 150-240kHz, 250W, 4-Pin
GT8HW-IF transducer is perfect for ice fishermen who want clear bottom definition under the ice as well as crisp, clear and wide fish arches with excellent target separation. The wider beam width - up to 24 degree beam angle - provides a larger coverage area in the water.
The 4-pin transducer features high wide band CHIRP traditional sonar (150-240 kHz) and has a power rating of 250 W. Its shape and beam widths have been optimized for ice fishing and feature a silicon-coated cable that remains flexible in harsh winter conditions.
"The Garmin GT8HW-IF transducer is perfect for ice fishermen who want clear bottom definition under the ice as well as crisp, clear, and wide fish arches with excellent target separation. The wider beam width - up to 24\u00b0 beam angle - provides a larger coverage area in the water. The 4-pin transducer features high wide band CHIRP traditional sonar (150-240 kHz) and has a power rating of 250W. The transducer's shape and beam widths have been optimized for ice fishing and feature a silicon-coated cable that remains flexible in harsh winter conditions. Maximum depth of 800'. Provides depth data only Durable, marine-grade construction | Garmin GT8HW-IF Plastic Transducer"
SKU: NVN-58959
MPN: 010-12401-20
UPC: 753759148560
Technical specifications
| Brand | Garmin |
| Model | Garmin GT8HW-IF Ice Fishing, Plastic, High Wide CHIRP Transducer - 150-240kHz, 250W, 4-Pin |
| SKU / MFR# | 58959 |
