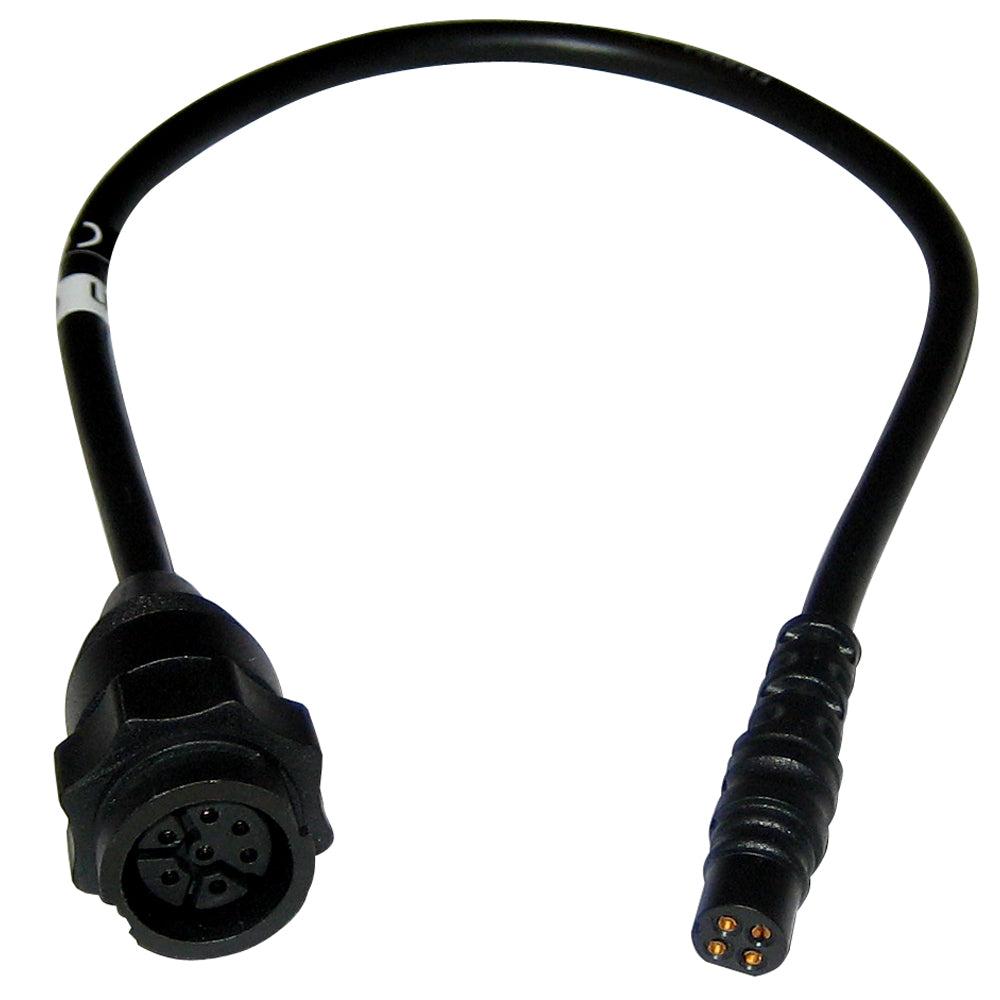

Garmin MotorGuide Adapter Cable f/4-Pin Units

Seamless Integration for Superior Fishing Performance

Imagine casting your line with crystal-clear sonar readings straight from your trolling motor, without the clutter of extra transducers or messy wiring. The Garmin MotorGuide Adapter Cable for 4-pin units bridges that gap effortlessly, connecting your compatible Garmin fishfinder or GPS combo directly to a MotorGuide trolling motor transducer. This setup delivers real-time underwater insights, helping you spot fish, structure, and depth changes with pinpoint accuracy—right where the action happens.

Anglers who upgrade to this adapter often report fewer cable runs across the deck, reducing snag risks and simplifying maintenance. It's a game-changer for tournament pros and weekend warriors alike, ensuring your electronics work in harmony for those trophy catches.

Key Benefits That Elevate Your Boating Experience

• Cleaner Deck Setup: Eliminate the need for a separate transducer mount, freeing up hull space and minimizing drag.
• Enhanced Sonar Quality: Tap into the trolling motor's built-in transducer for reliable, high-definition imaging without signal loss.
• Plug-and-Play Simplicity: No soldering or custom mods required—just connect and fish.
• Rugged Durability: Built to Garmin's marine-grade standards, it withstands saltwater splashes, vibrations, and harsh conditions.
• Future-Proof Compatibility: Works seamlessly with popular echo and STRIKER series, keeping your setup current.

Comprehensive Compatibility Guide

Before heading out, confirm your gear matches up. This adapter shines with 4-pin Garmin fishfinders and GPS combos paired to select MotorGuide trolling motors equipped with sonar transducers.

Supported Garmin Units

• echo™ 101
• echo™ 151
• STRIKER™ 4cv
• STRIKER™ 4dv
• STRIKER™ 5cv
• STRIKER™ 5dv
• Other echo dv series models with 4-pin connectors

Compatible MotorGuide Trolling Motors

Focus on Tour Sonar, Wireless Sonar, and Xi5 series models featuring forward-facing sonar options. These include various shaft lengths (45", 48", 50", 54", 60") and voltage setups (12V, 24V, 36V) with foot pedal controls and GPS variants where applicable. Always verify your motor's transducer port matches the 4-pin requirement for optimal performance.

Step-by-Step Installation Tips

Setting up takes minutes and requires no special tools. Here's how to get it right the first time:

1. Power down your boat's electronics and trolling motor.
2. Locate the 4-pin transducer port on your Garmin unit and the corresponding output on the MotorGuide motor head.
3. Plug one end of the adapter into the Garmin fishfinder's 4-pin connector.
4. Secure the other end firmly into the MotorGuide transducer port.
5. Route the cable neatly along the motor shaft, using zip ties to avoid prop interference.
6. Power up, run a self-test on your Garmin display, and calibrate sonar settings for your water conditions.

Pro Tip: Test in shallow water first to ensure clear readings. Adjust gain and sensitivity for your local lake or river bottom composition.

Real-World Advantages and Maintenance Advice

Fishermen love how this adapter cuts through interference common in busy waterways, providing stable CHIRP sonar even at trolling speeds. It supports essential features like fish symbols, depth alarms, and structure overlays, making it ideal for ice fishing transitions or open-water pursuits.

For longevity, rinse with freshwater after saltwater use, inspect connections seasonally, and store dry during off-seasons. Paired with Garmin's reliable engineering, it holds up against UV exposure and flexing from motor deployment.

Common Troubleshooting

• No Sonar Signal? Check connections and restart units.
• Weak Readings? Verify transducer is submerged and free of debris.
• Intermittent Display? Secure cable routing away from power lines.
