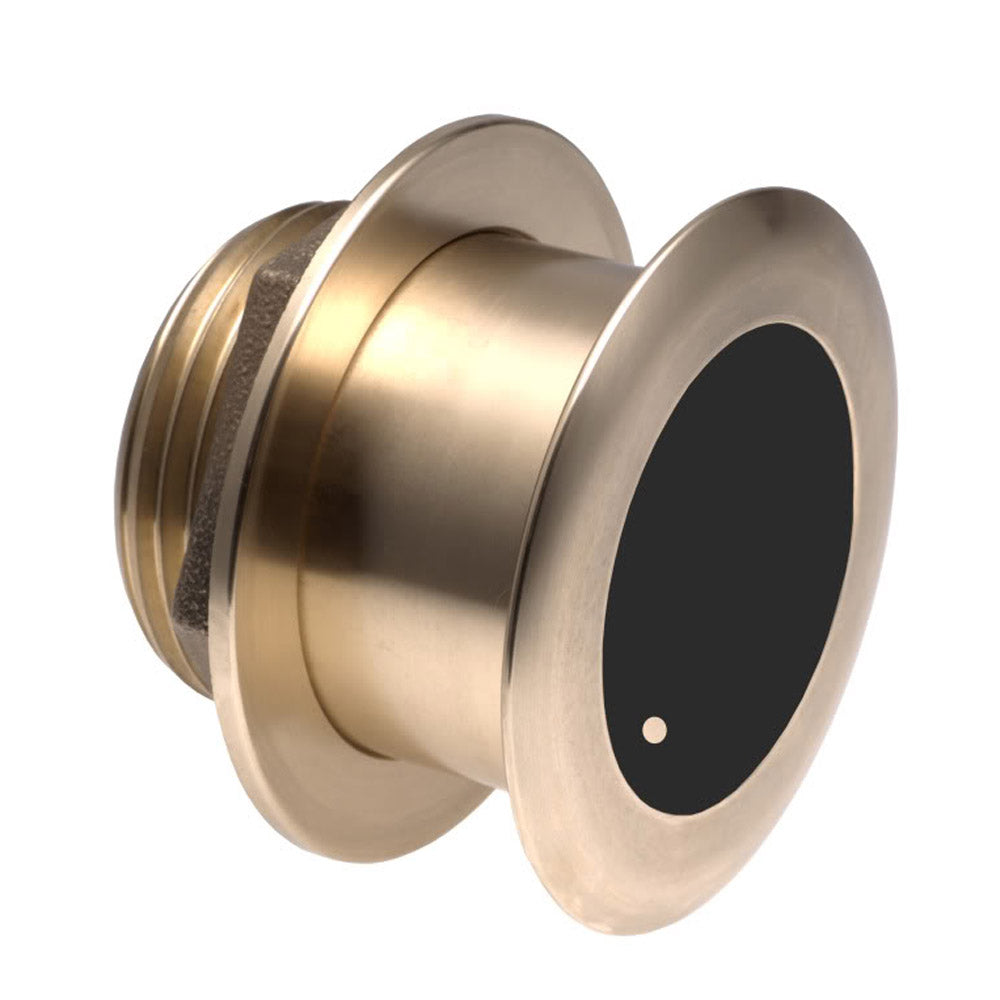

Garmin B175M Bronze 0° Thru-Hull Transducer - 1kW, 8-Pin
Garmin B175M Bronze 0° Thru-Hull Transducer - 1kW, 8-Pin — Product description
Upgrade your boat's sonar capabilities with a transducer designed for serious anglers and offshore explorers who demand crystal-clear underwater images at impressive depths. This thru-hull model stands out for its rugged bronze construction, ultra-low profile that hugs the hull without snagging on trailer bunks, and powerful performance tailored to medium-frequency scanning. Whether you're chasing wrecks in deeper waters or mapping structure for trophy fish, it delivers reliable depth readings and temperature data to keep you ahead of the game.
Crafted for boats with gentle deadrise angles, this unit eliminates the hassle of fairing blocks thanks to its innovative tilted element design. It's a go-to choice for fiberglass and wooden hulls, blending seamlessly into your vessel while punching through saltwater with ease. Experience sharper fish arches, detailed bottom contours, and enhanced target separation that turns good trips into legendary ones.
Standout Features for Real-World Boating
- Flush-Mount Bronze Housing: Protrudes less than 1/4 inch beyond the hull, making it trailering-friendly and resistant to damage from rollers or bunks.
- Tilted Element Technology: Built-in 0-degree tilt perfectly matches hulls from 0 to 7 degrees deadrise—no extra fairing needed for optimal beam projection straight down.
- Medium CHIRP Versatility: Scans across 85-135 kHz, balancing wide coverage for searching with focused resolution for pinpointing targets.
- Deep-Water Prowess: Rated for maximum depths up to 3,000 feet, ideal for bluewater adventures where shallow-water units fall short.
- Integrated Sensors: Combines precise depth and water temperature readings in one robust package.
- Extended Reach: 39-foot cable gives you flexibility during installation without signal boosters.
Technical Specifications at a Glance
| Frequency (kHz) | Power | Beam Width (° LF/HF -3dB) | Max Depth (ft) | Sensors | Pins | Deadrise Angles |
|---|---|---|---|---|---|---|
| 85-135 | 1 kW | 11-16 | 3,000 | Depth, Temp | 8 | 0-7° |
These specs make it a powerhouse for mid-to-deep water applications, with a 2-inch shaft and straightforward thru-hull setup.
Effortless Installation and Long-Term Reliability
Setting up this transducer is straightforward for DIY boaters or pros alike. Drill a clean hole matching the 2-inch shaft, bed it in with marine sealant, and secure the locking collar—detailed instructions included ensure a watertight seal every time. The bronze material thrives in saltwater, resisting corrosion better than plastic alternatives, while the low-profile design keeps drag minimal for better fuel efficiency.
Pro tip: Position it forward of the prop and away from strakes for the cleanest sonar returns. Regular hull cleaning around the face prevents marine growth from muddying your reads, extending its lifespan on the water.
Performance That Elevates Your Fishing Game
In practical use, the medium CHIRP range shines by revealing subtle ledges, bait balls, and bottom hardness variations that help you dial in lure presentation. Anglers report superior separation in 500-1,500 foot zones, where game fish like tuna or snapper school. Pair it with modern chartplotters for SideVü or ClearVü compatibility, and you'll uncover fish-holding spots others miss.
Bronze construction adds durability for rough seas, and the temp sensor tracks thermoclines for strategic trolling patterns. It's not just gear—it's the edge that fills livewells faster.
Frequently Asked Questions
What types of hulls is this transducer best suited for?
It's optimized for fiberglass and wood hulls with 0 to 7-degree deadrise angles. The tilted element ensures proper beam alignment without additional fairings.
Does this model include a temperature sensor?
Yes, it provides both depth and water temperature data, helping you monitor conditions for better fishing decisions.
What is the maximum depth capability?
Rated up to 3,000 feet, making it excellent for offshore and deep-water applications where clarity matters.
How low-profile is the external housing?
It protrudes less than 1/4 inch outside the hull, safe for trailering over rollers or bunks without risk of damage.
What frequency range does it cover?
85-135 kHz CHIRP, offering a balance of coverage width and target resolution for medium-depth scanning.
Is a fairing block required for installation?
No, the internal tilted element accommodates hull deadrise, simplifying setup on compatible boats.
What cable length is provided?
39 feet, providing ample length for routing to your display unit without extensions.
Garmin make products that are engineered on the inside for life on the outside. We bring GPS navigation and wearable technology to the automotive, aviation, marine, outdoor and fitness markets. We believe every day is an opportunity to innovate and a chance to beat yesterday. We offer products with essential utility, leading-edge technologies, compelling features, and exceptional ease-of-use to create clear differentiators our customers appreciate and desire.
Garmin 101193920 Attributes
- Mounting Location: Thru-Hull Mount
- Number Of Pins: 8 Pin
- Depth: 1500 Feet
- Power Rating: 1000 Watt
- Frequency Range: 85-135 kHz
- Supported Angle: 0 To 7 Degree Deadrise
- Cable Length: 39 Feet
Garmin 101193920 Features & Benefits
- Step Up To 1 Kilo Watt Without A Fairing With This Flush-Mounted Bronze Housing That Protrudes Less Than 1/4 Inch Outside The Hull And Can Sit On The Trailer Rollers/Bunks Without Damage
- Tilted Element Inside The Transducer Accommodates All Hull Deadrises And Eliminates The Need For A Fairing Block
- Excellent Choice For Fiberglass And Wood Hulls
- 8-Pin Transducer Has A Depth Of 1,700 Feet
- Transducer Kit Comes With Installation Instructions
- Transducer Supports A 0 To 7 Degree Deadrise
- Limited 1 Year Warranty
Garmin 101193920 Warranties
Airmar B175M
w/0° Tilt
1kW
Flush-mounted bronze housing protrudes less than 1/4" outside hull and can sit on trailer rollers/bunks without damage. Tilted element inside the transducer accommodates all hull deadrises and eliminates the need for a fairing block. Low, medium, and high frequency versions provide maximum flexibility for the choice of frequencies. Excellent for fiberglass and wood hulls.
Max Depth - 3,000'
Suppoarted Deadrise/Transom Angles - 0-7° Deadrise
"The B175M bronze transducer has a maximum depth of 3, 000 ft. Flush-mounted bronze housing protrudes less than 1\/4\" outside hull and can sit on trailer rollers\/bunks without damage. Tilted element inside the transducer accommodates all hull deadrises and eliminates the need for a fairing block. Low, medium, and high frequency versions provide maximum flexibility for the choice of frequencies. Excellent for fiberglass and wood hulls."
SKU: NVN-47864
MPN: 010-11939-20
UPC: 753759995744
