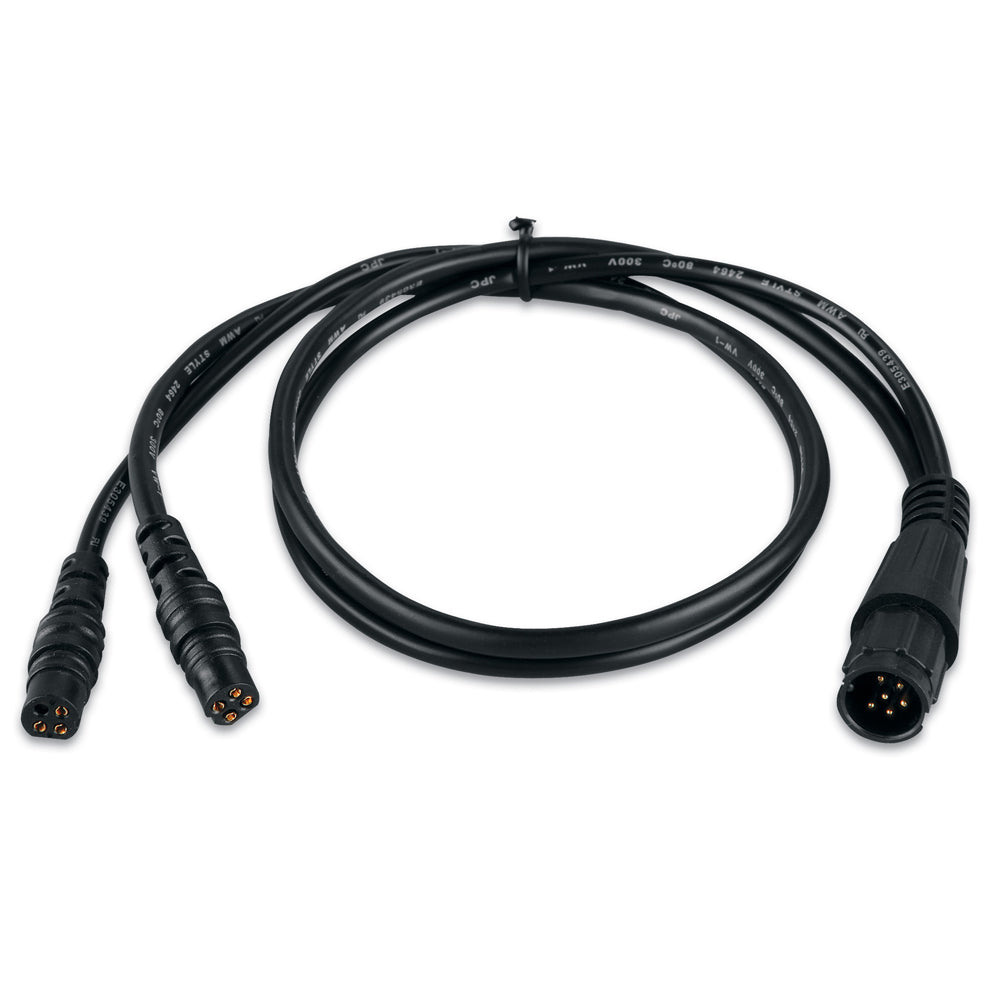

Garmin Transducer Adapter f/echo™ Female 4-Pin to Male 6-Pin
Garmin Transducer Adapter f/echo™ Female 4-Pin to Male 6-Pin — Product description
Unlock Seamless Sonar Upgrades with the Garmin Echo Series Adapter
Upgrading your fishing setup shouldn't mean replacing every piece of gear. This clever adapter bridges the gap between your trusty 6-pin transducer and the modern 4-pin input on Garmin's echo series fishfinders. It's a game-changer for anglers who want to keep their high-performance sonar hardware while stepping up to clearer, more reliable displays.
Whether you're chasing bass in shallow lakes or scanning deep offshore waters, this adapter ensures your existing transducer delivers crisp CHIRP signals without compatibility headaches. Save time, reduce clutter on your boat, and get back to focusing on the fish.
Why Anglers Trust This Adapter for Reliable Performance
- Plug-and-Play Simplicity: No soldering or custom wiring—just connect the female 4-pin end to your echo fishfinder and the male 6-pin to your transducer.
- Maintains Signal Integrity: Preserves the full range of frequencies from your legacy transducer, supporting everything from high-definition imaging to traditional 2D sonar.
- Compact and Durable: Built to withstand harsh marine environments, with corrosion-resistant materials that hold up against saltwater splashes and constant vibration.
- Cost-Effective Solution: Extend the life of your investments instead of buying new transducers, keeping your budget focused on bigger catches.
Perfect Compatibility for Your Echo Setup
This adapter shines with Garmin's echo lineup, including popular models like the echo 100, 200, 300, 500, and 700 series. It's designed specifically for fishfinders with the 4-pin sonar connector, letting you pair it with classic 6-pin Garmin transducers such as the GT8HW, GT30, or even older single/dual beam units.
Double-check your fishfinder's port: if it's a female 4-pin, you're good to go. Pro tip: Pair it with echoMAP or STRIKER units that share the echo sonar tech for even broader versatility on your vessel.
Step-by-Step Installation for Quick Setup
- Power down your fishfinder and disconnect all cables to avoid any electrical mishaps.
- Locate the sonar port on your echo series unit—it's the compact 4-pin female connector.
- Plug the female 4-pin side of the adapter firmly into the fishfinder port.
- Connect the male 6-pin end to your transducer cable, ensuring a snug fit.
- Secure any excess cable with zip ties to prevent snags, then power up and run a sonar test to verify clear readings.
Installation takes under 5 minutes, even for beginners. If you notice signal dropouts, inspect connections for moisture or debris—common culprits in wet conditions.
Maximize Your Fishing Edge with Smart Tips
Beyond basic connection, position your transducer at the ideal hull location for minimal air bubbles and distortion. Use this adapter to experiment with transducer swaps during different seasons—switch to a wider beam for murky waters or a narrower one for precision in clear depths.
Regular maintenance keeps it performing: Rinse with fresh water after saltwater use, and store in a dry spot. Over time, this setup can reveal fish-holding structures you might have missed before, turning casual outings into trophy hunts.
Frequently Asked Questions
What does this Garmin adapter connect?
It connects a male 6-pin transducer to the female 4-pin sonar port on Garmin echo series fishfinders, allowing legacy transducers to work seamlessly.
Which echo series models is it compatible with?
It's fully compatible with echo 100, 200, 300, 500, 700 series and similar models featuring the 4-pin connector.
Does it affect sonar performance or CHIRP capabilities?
No, it maintains full signal integrity, supporting CHIRP, ClearVü, and SideVü where your transducer allows.
Is installation waterproof and permanent?
The connections are weatherproof for marine use, but it's not permanent—easy to disconnect for storage or swaps.
Can I use it with non-Garmin transducers?
It's optimized for Garmin 6-pin transducers. Third-party units may work if they match the 6-pin spec, but test for best results.
What if I experience weak signals after connecting?
Check for loose connections, clean pins, or transducer damage. Ensure your fishfinder settings match the transducer type.
Is this adapter suitable for kayak or small boat fishing?
Absolutely—its compact size makes it ideal for space-limited setups like kayaks, jon boats, or inflatables.
This transducer adapter allows you to use your existing 6-pin transducer with your echo™ series fishfinder.
Garmin is suitable for the 4-pin to 6-pin male conversion plug of the echo series. High-quality and high-performance products and accessories provided by the global GPS leader.
SKU: NVN-40572
MPN: 010-11615-00
UPC: 753759974602
Technical specifications
| Brand | Garmin |
| Model | Garmin Transducer Adapter f/echo™ Female 4-Pin to Male 6-Pin |
| SKU / MFR# | 40572 |
