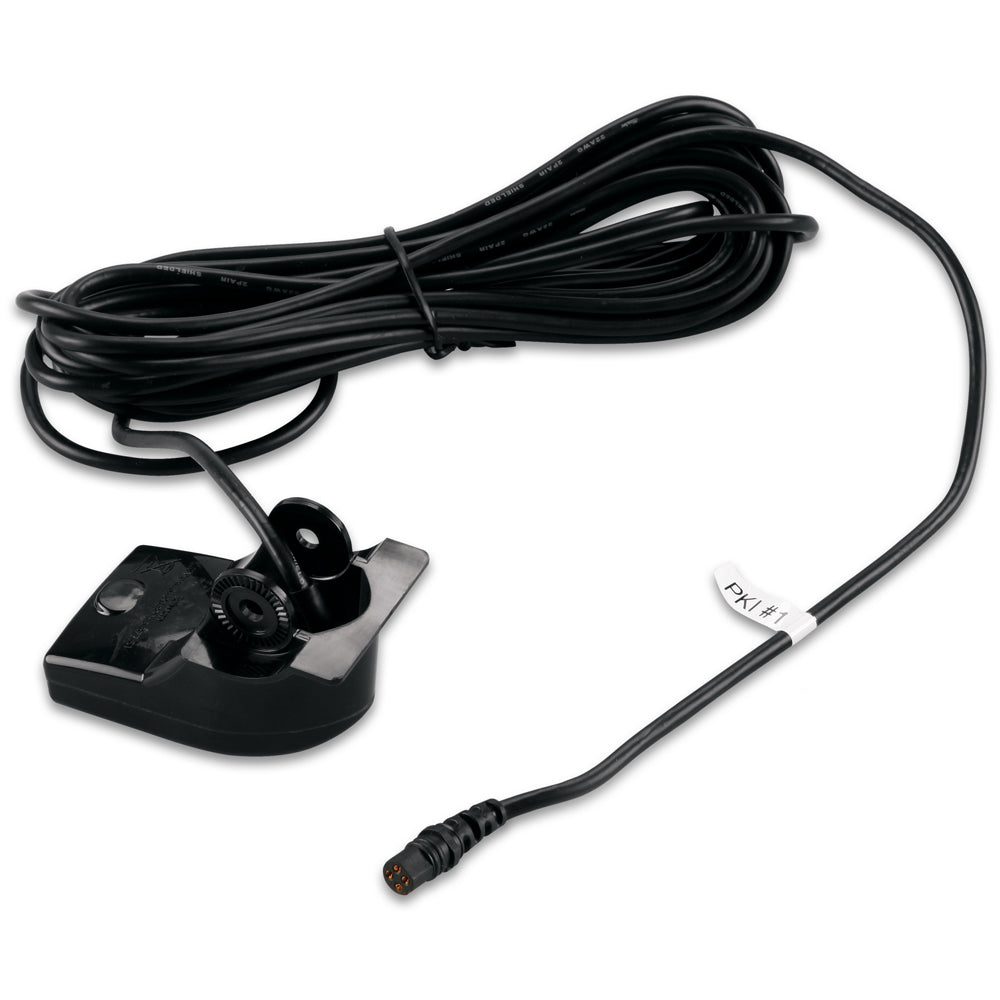

Garmin Transom Trolling Transducer f/echo™ Series Fishfinders - 4 Pin

Upgrade Your Fishing Setup with the Garmin Transom Trolling Transducer

Whether you're switching between kayaks, bass boats, or jon boats, having a reliable spare transducer keeps your Garmin echo series fishfinder ready for action without hassle. This 4-pin dual-beam model mounts seamlessly on transoms angled from 0 to 70 degrees or attaches to trolling motors, delivering clear underwater views right where you need them. Engineered for freshwater anglers, it pushes performance with a 500-watt power rating and impressive depth capabilities up to 1900 feet, helping you spot structure, baitfish, and trophy catches even in deep lakes or reservoirs.

What sets this apart is its versatility—pair it with your echo or STRIKER series unit for quick boat swaps. The 30-foot cable gives you flexibility during installs, and the included hardware ensures a secure fit that withstands waves, wakes, and rough trails to the launch ramp.

Precision Dual-Beam Technology for Smarter Fishing

Operating at 77/200 kHz, this transducer offers two beam options to match your conditions. The wider 77 kHz beam (45-degree width) scans broad areas for locating schools or drop-offs during searches. Switch to the narrower 200 kHz beam (15-degree width) for pinpoint detail on individual fish and bottom composition when you're locked on a hotspot. Both beams handle temperature sensing too, so you can track thermoclines where fish hang out on hot days.

Real-world anglers rave about how this setup reveals suspended crappie in 50 feet of water or bass hugging timber in 10. It's not just about seeing more—it's about interpreting the returns to make better decisions, like when to downsize bait or move to the next point.

Effortless Installation on Transom or Trolling Motor

Setting it up is straightforward for DIYers. Start by selecting a flat spot on the transom, 1/3 from the centerline toward the starboard side for best performance behind the prop. Drill pilot holes, secure the bracket with stainless hardware, then slide the transducer into place and adjust the running angle—aim for the bottom leading edge parallel to the waterline at speed.

• Clean the hull thoroughly before mounting to avoid air pockets.
• Use marine sealant on screw holes for a watertight seal.
• Route the cable away from electrical noise sources like the engine harness.
• Test at idle and planing speeds to fine-tune the angle for a solid bottom lock.

For trolling motor use, clamp it to the lower shaft just above the prop, ensuring it stays submerged. Most installs take under an hour, getting you back on the water fast.

Built to Last Through Seasons of Hard Fishing

Garmin's marine-grade construction shrugs off UV exposure, freshwater corrosion, and impacts from docks or debris. The rugged housing and secure 4-pin connector maintain reliable sonar signals trip after trip. Pair it with routine checks—like inspecting the face for nicks or algae buildup—and it'll serve as your go-to spare for years.

Pro tip: In murky water, rely on the wide beam for coverage; in clear conditions, the narrow beam excels at separating fish from weeds. This adaptability boosts your catch rates without constant gear swaps.
