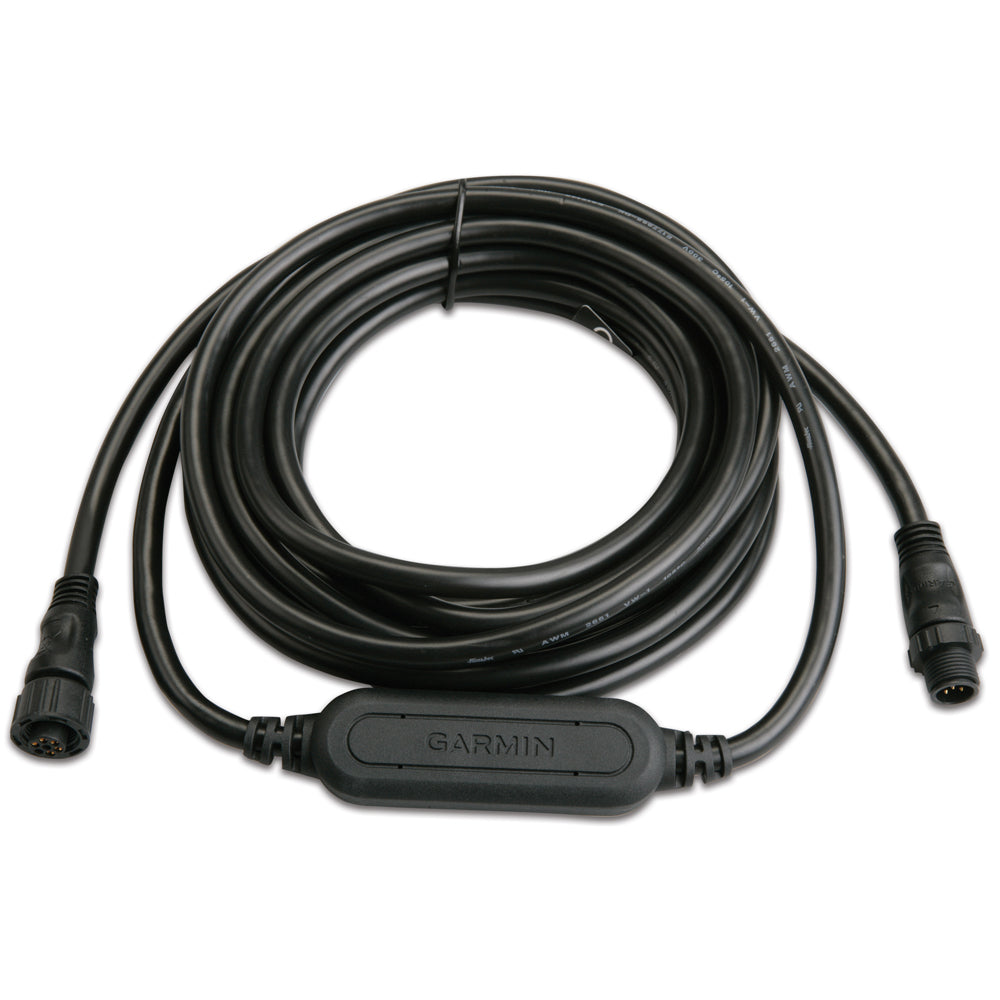

Garmin GST 10 Water Speed Temp NMEA 2000 Analog Adapter
Garmin GST 10 Water Speed Temp NMEA 2000 Analog Adapter — Product description
Upgrade your boat's aging analog gauges without a full overhaul. The Garmin GST 10 steps in as a smart bridge, transforming traditional water speed and temperature sensor signals into crisp NMEA 2000 digital data. Imagine viewing precise boat speed through choppy waves or monitoring water temps for optimal engine performance—all streamed seamlessly to your Garmin chartplotter or instrument display. Boaters love how this compact adapter breathes new life into legacy setups, saving time and hassle on the water.
How the Garmin GST 10 Simplifies Your Marine Network Upgrade
Traditional analog sensors have served faithfully for years, but integrating them into modern NMEA 2000 networks often means costly replacements. Enter the GST 10: it plugs directly into your existing paddlewheel speed and temperature sensors, converting their outputs into reliable digital signals at a smooth 5 Hz update rate. This means no more guesswork—your Garmin displays like the GMI 20 or GPSMAP series pull in accurate readings for better navigation decisions, whether you're trolling for fish or pushing through rough seas.
Real-world perks shine during long outings. Picture calibrating your speed log once and forgetting it, with data flowing network-wide to multiple screens. It's a game-changer for weekend warriors and serious anglers alike, keeping your helm clutter-free and info-rich.
Standout Features That Deliver On-Water Reliability
- Analog-to-Digital Magic: Captures signals from standard water speed and temp sensors, outputting NMEA 2000 data ready for your Garmin ecosystem.
- Plug-and-Play Simplicity: Minimal wiring needed; the 16-foot cable reaches most helm locations effortlessly.
- Rugged Marine Build: Withstands 5°F to 158°F extremes, powered by 9-16V DC—perfect for harsh saltwater environments.
- Compact Footprint: Measures just 3-3/32" long, 31/32" wide, and 43/64" high, tucking neatly behind panels.
- Network Broadcasting: Shares speed and temp across compatible devices for unified boat monitoring.
Compatibility That Fits Your Setup
Designed for Garmin loyalists, the GST 10 plays nice with ECHOMAP UHD and Ultra series, GMI 20 instruments, and GPSMAP multifunction displays. It integrates into any NMEA 2000 backbone, letting you layer water data alongside GPS, sonar, and engine info. Check your sensor's output—most legacy paddlewheels pair perfectly, unlocking digital potential without swaps.
Effortless Installation for DIY Boaters
Getting the GST 10 online takes under an hour. Start by powering down your boat's systems. Connect the adapter's leads to your speed sensor (typically red to positive, black to ground, white/green for speed signal) and temp probe (yellow for signal). Drop the NMEA 2000 drop cable into your network backbone, add T-connectors if needed, and secure with zip ties. Power up, then use your Garmin display's setup menu to calibrate speed over a known distance and verify temp against a thermometer. Pro tip: Test in calm water first to dial in offset for hull speed inaccuracies. No special tools required beyond basic crimpers.
Technical Specs at a Glance
| Specification | Details |
|---|---|
| Power Input | 9 to 16 VDC |
| Dimensions (L x W x H) | 3-3/32" x 31/32" x 43/64" |
| Cable Length | 16 feet |
| Operating Temp Range | 5°F to 158°F |
| Color | Black |
Tips for Long-Term Performance and Troubleshooting
Keep your GST 10 humming by rinsing connections after saltwater exposure and inspecting cables for chafe. Common hiccups? Erratic speed often traces to fouled paddlewheels—clean with a soft brush. Temp drifts? Verify probe immersion depth. For network issues, ensure proper termination resistors on your NMEA 2000 bus. This adapter's one-year coverage adds peace of mind, but proactive care extends its life seasons beyond.
Frequently Asked Questions
What sensors work with the Garmin GST 10?
It connects to most standard analog paddlewheel water speed sensors and resistance-based temperature probes, converting their signals for NMEA 2000 use.
Do I need to replace my old sensors to use this adapter?
No, that's the beauty—keep your existing analog sensors and upgrade to digital displays affordably.
How do I calibrate speed and temperature after installation?
Use your Garmin display's configuration menu: run a known GPS distance for speed offset, and cross-check temp with a reference thermometer.
Is the GST 10 waterproof for mounting near the transducer?
It's built for marine environments with a wide temp range, but mount it in a dry helm area away from constant spray for best longevity.
Can it share data with non-Garmin NMEA 2000 devices?
Yes, as standard NMEA 2000, it broadcasts to any compliant device on the network, like Lowrance or Simrad.
What's the update rate for speed and temp data?
It outputs at 5 Hz, providing smooth, responsive readings ideal for real-time boating.
Does it draw much power from my boat's battery?
Minimal draw on 9-16V systems—won't strain your house battery during extended trips.
Ready to modernize your marine electronics? The Garmin GST 10 delivers the reliable data upgrade every captain craves, blending old-school reliability with cutting-edge networking.
The NMEA 2000 analog adapters from Garmin are easy to add to any existing marine network. Once installed, the data from the adapters can be viewed via the GMI™ 20 Marine Instrument Display and other compatible Garmin devices. This easy-to-use set-up will help you bring your older dashboard into the digital age.
Garmin 101132800 Attributes
- Compatibility: ECHOMAP™ UHD, ECHOMAP™ Ultra, GMI™ 20, GPSMAP(R)
- Power Input: 9 To 16 Volt
- Dimensions: 3-3/32 Inch Length X 31/32 Inch Width X 43/64 Inch Height
- Cable Length: 16 Feet
- Temperature Range: 5 Degree To 158 Degree Fahrenheit
- Color: Black
Garmin 101132800 Features & Benefits
- With The GST 10 Water Speed And Temperature Analog Adapter Aboard Your Vessel, You Can Give New Life To Your Old Gauges By Making The Transition From Analog To Digital
- Simple-To-Install Adapter Takes The Data Generated By Traditional Analog Gauges And Converts The Data Into A NMEA 2000® (5 Hurts) Signal
- With The Garmin GST 10 Adapter, You Can Convert Analog Information Provided Via The Compatible Water-Speed Sensor, Water-Temperature Sensor
- Allows You To Observe Water-Speed And Water-Temperature Information On Compatible Garmin Display Devices Connected To Your NMEA 2000 Network
- Limited 1 Year Warranty
Garmin 101132800 Installation Instructions
Garmin 101132800 Warranties
The new NMEA 2000 analog adapters are the perfect accessories to bring any helm into the digital age. Simple to install and easy to set up, the NMEA 2000 adapters take signals generated by traditional analog gauges and sensors and convert that data into NMEA 2000 format. The data can then be broadcast over NMEA 2000 protocol to the Garmin GMI 10 multifunction instrument display. The combination of these adapters with a Garmin GMI 10 will transform even the most out-of-date dashboard into a glass, digital helm.
With the help of the GST 10 water speed and temperature analog adapter on board, you can give new life to the old water meter by transitioning from analog to digital. This ...
SKU: NVN-37779
MPN: 010-11328-00
UPC: 753759098506
Technical specifications
| Brand | Garmin |
| Model | Garmin GST 10 Water Speed Temp NMEA 2000 Analog Adapter |
| SKU / MFR# | 37779 |
