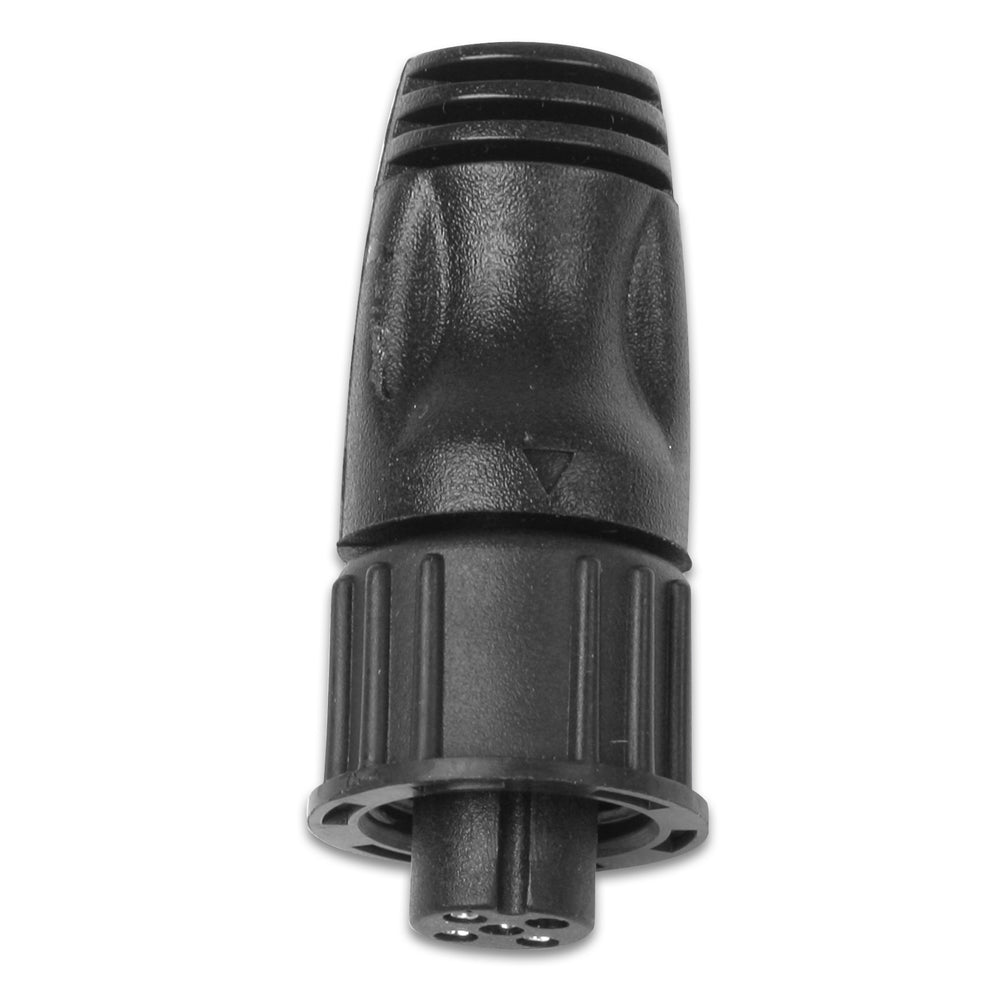

Garmin NMEA 2000 Terminator, Female
Garmin NMEA 2000 Terminator, Female — Product description
Ensuring your marine electronics network runs smoothly starts with the basics—like proper termination. This female NMEA 2000 terminator steps in as a reliable endpoint for your backbone cable, preventing signal reflections that can disrupt data flow across chartplotters, sensors, and multifunction displays. Built tough for harsh saltwater environments, it snaps into place with a standard light cable connector, delivering the resistance needed for stable communication in busy boating scenarios.
Whether you're rigging a new setup on your center console or troubleshooting an existing network during a weekend cruise, this black female terminator keeps things clean and professional. It's a small component with a big impact, helping avid anglers, sailors, and commercial operators maintain crystal-clear GPS, sonar, and engine data without dropouts or errors.
Why Proper NMEA 2000 Termination Keeps Your Boat Network Bulletproof
NMEA 2000 networks thrive on a backbone-drop topology, where every branch and device connects reliably. Without terminators at both ends of the backbone, electrical signals bounce back like echoes in a canyon, causing intermittent faults, slow response times, or total blackouts. This female version caps off one end securely, matching the male counterpart for a complete setup.
- Signal Integrity: Provides the exact 120-ohm resistance to absorb signals, ensuring low-noise operation even with multiple high-power devices like radar domes or digital switching.
- Weatherproof Design: Sealed against moisture, UV rays, and corrosion—essential for deck-mounted installations exposed to spray and sun.
- Easy Backbone Extension: Fits seamlessly into Garmin's ecosystem, supporting longer runs up to the protocol's limits without power insertion complications.
Boat owners often overlook termination until the first glitch hits mid-fishing trip. Proactive installs mean fewer headaches and more time on the water.
Step-by-Step Installation for Flawless NMEA 2000 Integration
Setting this up takes minutes and basic tools—no soldering required. Here's how to integrate it into your marine setup:
- Plan your backbone: Measure from the central T-connector to the farthest drop, ensuring total length stays under guidelines.
- Identify ends: Place this female terminator at the open female end of your backbone cable.
- Twist and lock: Align the pins, push firmly until it clicks, then secure any strain relief.
- Test the network: Power up and scan for active terminators using compatible Garmin software—look for green status lights.
- Label for future: Use cable ties or tags to note "Terminator - Female End" for easy maintenance.
Pro Tip: Always verify your network with two terminators (one male, one female). Stub drops shorter than 2 meters don't need extras, but backbone ends do.
Real-World Boat Applications and Troubleshooting Wins
From coastal cruisers to offshore tournaments, this terminator shines in diverse setups:
- Fishing Rigs: Pairs with transducers and fishfinders for uninterrupted sonar pings and waypoints.
- Sailboat Suites: Supports wind sensors, autopilots, and VHF integration without latency.
- Retrofits: Revives older NMEA 0183-to-2000 gateways by stabilizing the bus.
Encountering "No Network" errors? Double-check terminator seating—loose connections mimic open ends. In multi-vendor networks, it bridges Garmin gear with Lowrance or Simrad seamlessly, as long as everyone follows NMEA standards.
"Swapped out a faulty terminator mid-trip—network came alive instantly. Game-changer for reliability." —Seasoned charter captain
Long-Term Care for Peak Network Performance
To maximize lifespan in salty conditions:
- Inspect annually: Look for cracks or corrosion; rinse with fresh water after exposure.
- Avoid overtightening: Hand-tight plus a quarter turn prevents damage.
- Spare onboard: Carry extras for quick field swaps during long passages.
- Upgrade path: Ready for future expansions like adding AIS or engine monitoring.
Frequently Asked Questions
Garmin make products that are engineered on the inside for life on the outside. We bring GPS navigation and wearable technology to the automotive, aviation, marine, outdoor and fitness markets. We believe every day is an opportunity to innovate and a chance to beat yesterday. We offer products with essential utility, leading-edge technologies, compelling features, and exceptional ease-of-use to create clear differentiators our customers appreciate and desire.
Garmin 101108100 Attributes
- Used To: Properly Terminate An NMEA 2000 Network
- Type: Female Terminator
- Color: Black
- Quantity: Single
Garmin 101108100 Features & Benefits
- Standard Female NMEA 2000 Light Cable Connector Provides Termination Resistance For One End Of The Backbone Of The Network
- Compatible With EchoMAP ™ CHIRP 52cv, 52dv, 53cv, 53dv
- Garmin Offer Products With Essential Utility
- Awe-Inspiring Designs, Impeccable Quality, And Superior Reliability
- Limited 1 Year Warranty
Garmin 101108100 Warranties
NMEA 2000 terminator - female
This is the NMEA 2000 network cable connector you are looking for. This standard NMEA 2000 female cable connector can provide termination resistance for one end of the cable.
SKU: NVN-31896
MPN: 010-11081-00
UPC: 753759078171
Technical specifications
| Brand | Garmin |
| Model | Garmin NMEA 2000 Terminator, Female |
| SKU / MFR# | 31896 |
