Garmin B60-20 20° Tilted Element Transducer w/6-Pin
Garmin B60-20 20° Tilted Element Transducer w/6-Pin — Product description
Why Choose the Garmin B60-20 Tilted Element Transducer?
Boat owners seeking reliable depth and temperature readings without compromising on hull performance turn to the Garmin B60-20 for its innovative design. This bronze thru-hull transducer features a 20° tilted ceramic element, eliminating the need for a bulky fairing block. By compensating for your vessel's deadrise angle right inside the housing, it delivers a perfectly vertical beam for sharper echoes and precise depth tracking—even in choppy waters or at higher speeds.
With minimal protrusion—just 5 mm beyond the hull surface—it reduces drag significantly, helping maintain fuel efficiency and smooth handling. Whether you're navigating shallow bays, pursuing game fish, or cruising long distances, this mid-performance unit shines by providing consistent data to your Garmin chartplotter or sounder.
Performance Specifications That Deliver Results
- Dual-Frequency Operation: Switch seamlessly between 50 kHz for wide-area coverage in deep water and 200 kHz for detailed bottom structure in shallower zones.
- Power Handling: 600W RMS power ensures strong signal penetration and clear returns, ideal for mid-sized boats up to 40 feet.
- Beam Coverage: Expect broad 40° coverage at 50 kHz for offshore scans and focused 24°/12° conical beams at 200 kHz for pinpoint targeting.
- Material Durability: Bronze construction resists corrosion in saltwater environments, promising years of rugged service.
- Sensor Suite: Integrated temperature probe for monitoring water conditions, enhancing your fishing or navigation strategies.
These specs translate to real-world advantages: fewer false readings on rocky bottoms, better fish arch separation, and reliable performance from trolling speeds to planing.
Streamlined Installation for DIY Enthusiasts
Installing the B60-20 simplifies upgrades on boats with a 20° deadrise hull. Drill a clean 50 mm hole, bed the unit with marine sealant, and secure with the included nut—no fairing required. The 6-pin connector plugs directly into compatible Garmin units, getting you back on the water fast. Pro tip: Align the arrow on the housing with your boat's keel line for optimal beam orientation. Common pitfalls to avoid include over-tightening, which can crack the ceramic, or ignoring anti-fouling paint on the face for long-term clarity.
Real-World Applications and User Benefits
For offshore anglers, the wide 50 kHz beam excels at spotting wrecks and bait schools from afar. Inland boaters appreciate the high-frequency detail for contour mapping and weedline detection. Sailors value the low-drag profile during heeled passages, while powerboaters enjoy undistorted readings at displacement or semi-planing speeds.
Bronze beats plastic in harsh marine settings, and the tilted design outperforms standard transducers on V-hulls by keeping the beam perpendicular to the seabed—reducing distortion and improving target separation. Pair it with Garmin's ClearVü or SideVü for a complete sonar suite, but it stands strong solo too.
Frequently Asked Questions
What makes the tilted element in the B60-20 different from standard transducers?
The 20° tilt inside the housing automatically corrects for hull deadrise, creating a vertical beam angle. This improves bottom tracking and reduces distortion compared to flat-faced models that require fairings.
Is the Garmin B60-20 suitable for saltwater use?
Yes, its bronze housing offers excellent corrosion resistance, making it ideal for saltwater environments. Apply anti-fouling paint to the transducer face to prevent marine growth.
What Garmin displays work with this 6-pin transducer?
It connects directly to most Garmin chartplotters and fishfinders with a 6-pin sonar port, like GPSMAP, ECHO MAP, and older GSD black box systems. Check your model's sonar compatibility for best results.
How much drag does the B60-20 add to my hull?
Minimal—only 5 mm protrudes outside the hull, far less than traditional setups with fairings. This design preserves speed and efficiency across hull types.
Can I use the B60-20 on boats with different deadrise angles?
It's optimized for 16-20° deadrise hulls. For other angles, Garmin offers variations like 8° or 12° tilted models to match your boat precisely.
Does it provide fishfinding capabilities?
Absolutely. The dual 50/200 kHz frequencies deliver clear fish arches and bottom detail, with 600W power for reliable target ID in various depths.
How do I maintain the transducer for peak performance?
Wipe the face clean after use, inspect the cable for wear annually, and reapply marine sealant if hauled out. Avoid high-pressure washes directly on the ceramic.

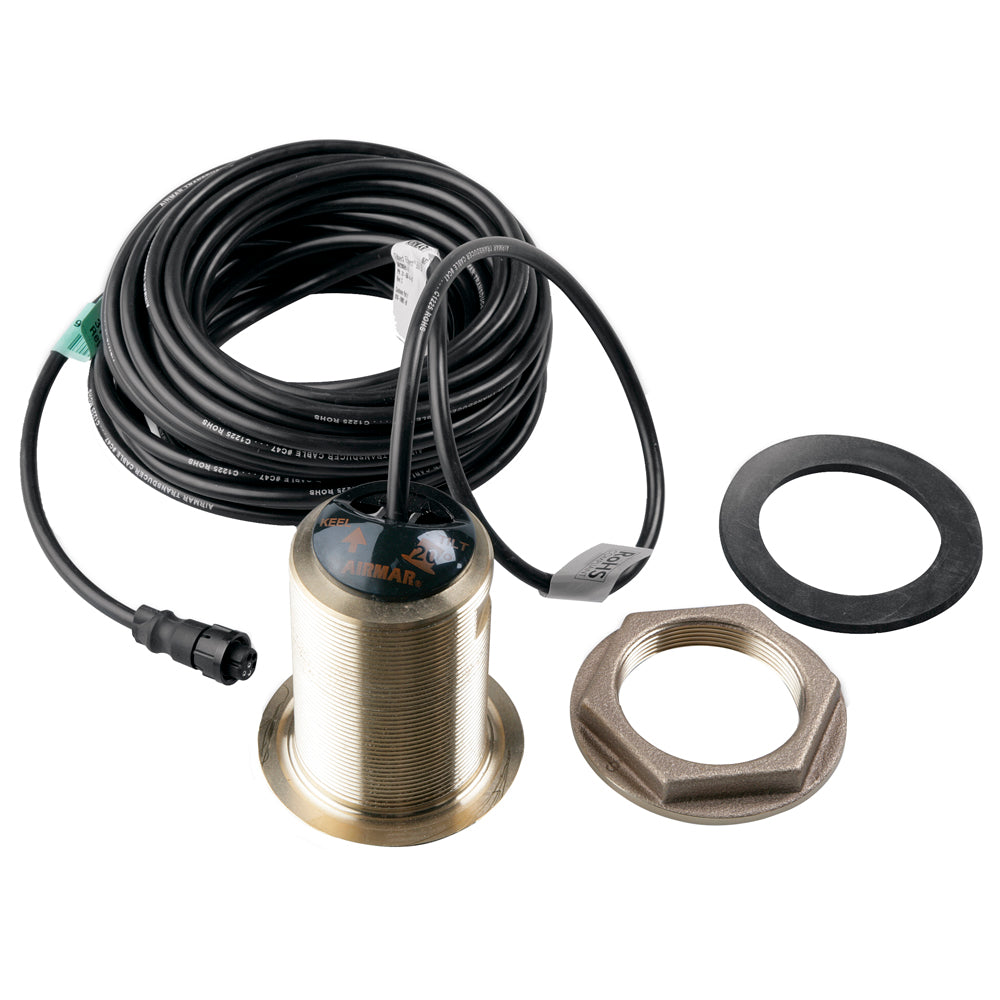

The bronze B60-20° provide a vertical beam without a fairing. Inside the housing, the ceramic element is tilted to provide built-in deadrise compensation. The resulting vertical beam provides excellent echo returns for more accurate depth readings. The nearly flush housing minimizes drag with only 5 mm (3/16") extending outside of the hull.
Features:
- Depth/Temp
- 50/200 kHz
- 600w RMS
- Mid-performance
- Bronze
This entry-level tilt bronze sensor can accommodate blind spots from 16 to 24 degrees without the need for a fairing. 600 W 6 -...a great choice for fiberglass and wood hulls.
SKU: NVN-26256
MPN: 010-10982-00
UPC: 753759073244
