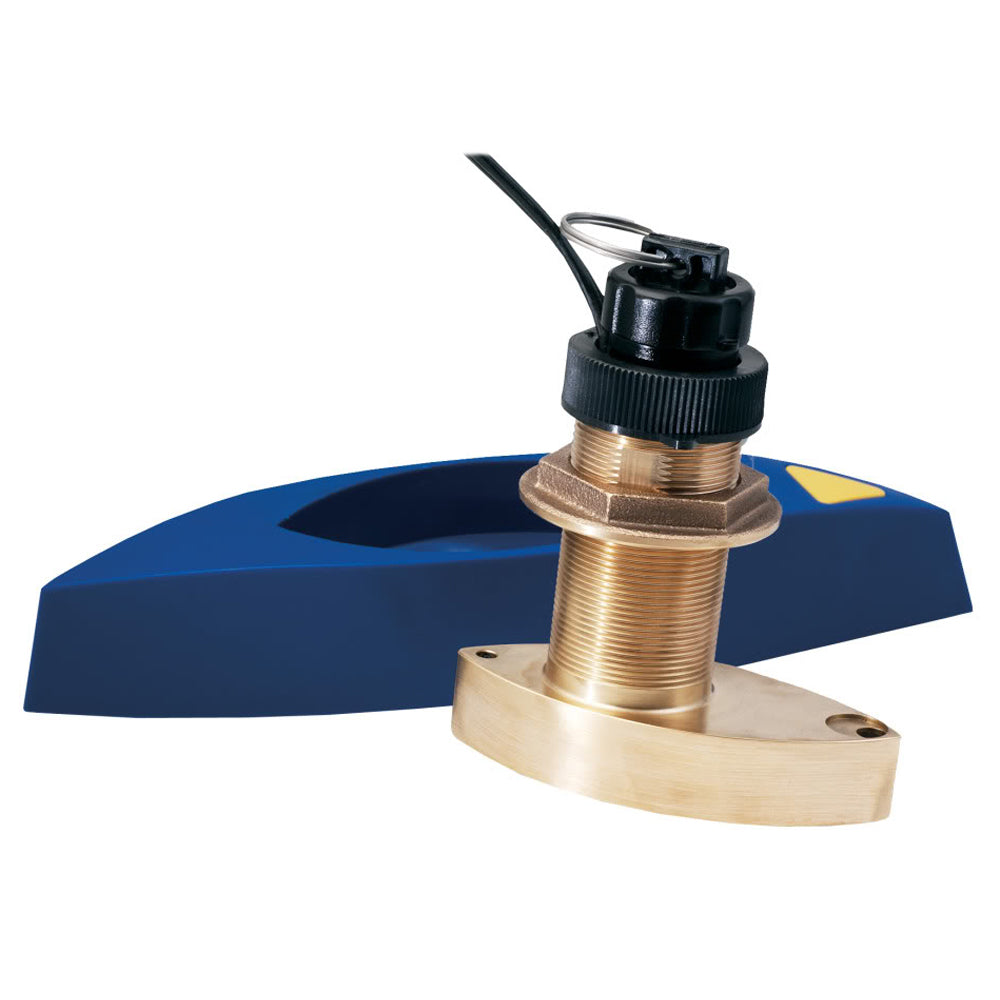

Garmin B744V Thru Hull Triducer 50/200kHz High Speed FairingBlock w/6-Pin

Discover Superior Marine Navigation with Advanced Thru-Hull Technology

Boat owners who demand precision in challenging waters turn to robust thru-hull transducers for reliable depth readings, speed logs, and water temperature data. This model stands out with its dual-frequency design, optimized for both shallow coastal cruising and deep offshore passages. Crafted from durable bronze, it withstands harsh marine environments while delivering clear sonar returns that enhance your chartplotter's performance.

Unlike basic sensors, this triducer integrates three essential functions into one streamlined package, reducing clutter on your vessel and simplifying wiring. Anglers, sailors, and powerboaters alike appreciate its ability to maintain accurate data even as hull speeds climb, thanks to the included high-speed fairing block that minimizes drag and turbulence.

Key Features That Set It Apart

• Dual-Frequency Operation: Switches seamlessly between 50 kHz for wide-area coverage in deep water and 200 kHz for detailed bottom structure in shallower zones.
• Expansive Beam Widths: 45 degrees at 50 kHz for broad sweeps, narrowing to 12 degrees at 200 kHz for pinpoint target separation.
• High-Speed Fairing Block: Streamlined housing ensures stable performance up to planing speeds, preventing signal loss from cavitation.
• Bronze Construction: Corrosion-resistant material ideal for saltwater exposure, with a proven track record in professional fleets.
• Integrated Sensors: Combines depth sounder, speed-through-water paddlewheel, and temperature probe for comprehensive hull data.
• 6-Pin Connector: Plug-and-play compatibility with popular marine electronics, supporting easy upgrades or expansions.

Why It Excels in Real-World Boating Scenarios

Picture navigating a foggy inlet at dawn: the wide 50 kHz beam scans ahead for hidden shallows, while the precise 200 kHz mode reveals fish-holding wrecks below. Powerboaters benefit from the fairing block's hydrodynamic shape, which keeps speed logs accurate during high-velocity runs without the erratic readings common in standard thru-hulls.

For sailboats, the low-profile installation hugs the hull line, preserving interior space and aesthetics. Its sensitivity to water flow makes it a favorite for performance-oriented vessels, where even minor speed inaccuracies can affect race strategies or fuel efficiency calculations. Regular users report fewer false bottom echoes compared to plastic alternatives, thanks to the bronze element's acoustic properties.

Installation Insights for Optimal Results

Mounting a thru-hull transducer requires attention to hull deadrise and water flow lines. Position it forward of props and rudders to avoid disturbed water, ensuring the fairing block aligns dead flat against the hull for maximum efficiency. Use marine sealant sparingly around the thru-hull fitting to prevent leaks, and route cables away from high-voltage sources to minimize interference.

Pro tip: Test paddlewheel calibration in known currents post-install to fine-tune speed data. This setup not only boosts sonar clarity but also integrates smoothly with multifunction displays for overlaid charts, AIS, and radar.

Compatibility and Versatility Across Vessel Types

Designed for displacement hulls up to 50 feet, it pairs effortlessly with chartplotters and fishfinders from leading brands. The 6-pin interface supports NMEA 0183 data output, feeding speed and temp info to autopilots, instruments, and even engine monitoring systems. Whether retrofitting an older cruiser or outfitting a new center console, its adaptable design minimizes downtime.
