Garmin Panoptix LiveScope System w/Thru-Hull Mount Transducer
Garmin Panoptix LiveScope System w/Thru-Hull Mount Transducer — Product description
Unlock Real-Time Fishing Insights with Forward-Facing Sonar
Imagine casting your line with confidence, knowing exactly where fish are lurking ahead of your boat—without needing to troll or drift. The Garmin Panoptix LiveScope system with thru-hull mount transducer transforms traditional sonar into a live video-like feed, revealing fish movements, bait schools, and underwater structures in stunning clarity. This isn't just about spotting targets; it's about revolutionizing how you approach every outing on the water, whether you're targeting trophy bass in shallow coves or walleye in deeper contours.
Designed for serious anglers who demand precision, this setup uses advanced scanning technology to paint a 360-degree picture up to 200 feet around your vessel. Stationary or underway, the images remain sharp and intuitive, helping you make split-second decisions that turn good days into epic ones.
Key Advantages of the Thru-Hull Design
Unlike transom-mounted options that can swing wildly in choppy water or pick up turbulence from props, the thru-hull LVS32 transducer mounts permanently below the waterline for rock-solid stability. Paired with the GLS 10 sonar black box, it delivers forward-facing views ideal for scouting drop-offs, weed edges, and schools before you even wet a line.
- Live Action Everywhere: Watch fish react to your lure in real time, distinguishing subtle tail kicks or schooling behaviors that static sonar misses.
- Stabilized Views: Built-in Attitude Heading Reference System (AHRS) compensates for boat roll, pitch, and yaw, keeping your display steady even in 2-3 foot waves.
- Effortless Integration: Plug-and-play via Garmin Marine Network—connect to your existing chartplotter and start scanning without complex wiring hassles.
- Versatile Sonar Modes: Switch between live forward, perspective, or traditional CHIRP/ClearVü for a complete underwater narrative.
For offshore or inshore pros, this thru-hull configuration minimizes drag and interference, providing cleaner data at higher speeds compared to portable setups.
Real-World Applications for Every Angler
Bass fishermen love using LiveScope to hover over key structures like points or humps, dialing in precise presentations as fish suspend or cruise by. Walleye hunters scout forward during low-light periods, spotting cruisers before they spook. Even saltwater enthusiasts track bait balls and predators around reefs with unprecedented detail.
Pro tip: Adjust the gain and color palettes on your Garmin display to cut through murky water—high-contrast settings shine in stained lakes, while natural palettes excel in clear conditions. Practice reading the feed during calm sessions to ID species by shape and behavior: crappie school tightly, while pike streak aggressively.
Technical Performance That Delivers
Operating across 530-1,100 kHz frequencies with 500W transmit power, this system punches through to 200 feet forward while maintaining a wide 20° x 135° beamwidth. IPX7 water resistance ensures durability against splashes and submersion, and the 20-foot transducer cable offers flexible routing.
| Specification | Details |
|---|---|
| GLS 10 Black Box Dimensions | 9.6" x 5.9" x 2.6" |
| LVS32-TH Transducer (no fairing) | 9.6" x 1.8" x 5.4" |
| LVS32-TH with Fairing Block | 9.6" x 3.4" x 8.1" |
| Power Consumption | 21W typical, 58W max (10-32V input) |
| Cable Length | 20 ft. transducer cable |
| Operating Temperature | -15°C to 70°C |
Everything arrives ready to install: GLS 10 unit, LVS32 transducer, thru-hull hardware, power and network cables, plus adapters and documentation for a smooth setup.
Installation Insights from Seasoned Users
Mount the thru-hull about 1/3 back from the bow at the keel line for optimal forward coverage—avoid strakes or steps that disrupt flow. Fairing blocks streamline the setup for speeds over 20 knots. Route cables through existing conduits to keep your deck clean, and always bed the transducer with marine sealant for a watertight seal.
Maintenance is straightforward: Wipe the face annually, check connections for corrosion in saltwater, and update firmware via your Garmin plotter for peak performance enhancements.
Frequently Asked Questions
How does LiveScope differ from traditional sonar?
Traditional sonar shows historical arches, but LiveScope delivers real-time video-like scans of fish swimming, reacting, and structure in motion—perfect for active presentations.
Is the thru-hull mount suitable for all boat types?
Yes, it's ideal for fiberglass and aluminum hulls over 16 feet; best for boats with deadrise under 20 degrees. Skip it for canoes or kayaks—opt for portable instead.
Can I use this with older Garmin chartplotters?
It pairs seamlessly with GPSMAP 8400/8600, 7400/7600 series, ECHOMAP Plus 70/90sv, and more via Marine Network—check your model's compatibility for best results.
What's the effective range in shallow water?
Up to 200 feet forward, but in shallows under 10 feet, focus on 50-100 feet for the sharpest detail and minimal clutter from bottom bounce.
Does it work while the boat is moving fast?
Optimal at trolling speeds under 10 mph; higher speeds work with fairing, but stabilization shines most when idling or slow-drifting.
How do I interpret the live sonar images?
Fish appear as bright, moving blobs with tails; structure shows as textured returns. Use white/black mode for max contrast, and zoom/pan for details—practice builds intuition fast.
Panoptix LiveScope System with Thru-Hull Mount Transducer
Took Scanning Sonar & Made It Panoptix
- See highly detailed, easy-to-interpret live scanning sonar images of structure, bait and fish swimming below and around your boat in real time, even when your boat is stationary
- See incredibly sharp real-time scanning sonar images up to 200' around your boat
- Attitude Heading Reference System stabilizes sonar view on chartplotter screen, even in rough conditions
- Simple plug-and-play Garmin Marine Network connector makes it easy to install and seamlessly integrate with your compatible Garmin chartplotter1
Clearly, this is the most amazing sonar technology ever. You have never fished like this before. Panoptix LiveScope is live, real-time scanning sonar. You can actually see easy-to-interpret live scanning sonar images of fish swimming near clearly defined structure. You can even see your lure as you retrieve it. And your boat doesn't need to be moving. These images are so clear and precise that with a little practice, you might be able to distinguish between species of fish!
Panoptix LiveScope Forward Sonar
LiveScope Forward is an excellent tool for scouting and fishing out ahead of your cast. You're looking at live, highly detailed and easy-to-interpret scanning sonar images of structure and fish swimming all around your boat up to 200' even while your boat is stationary.

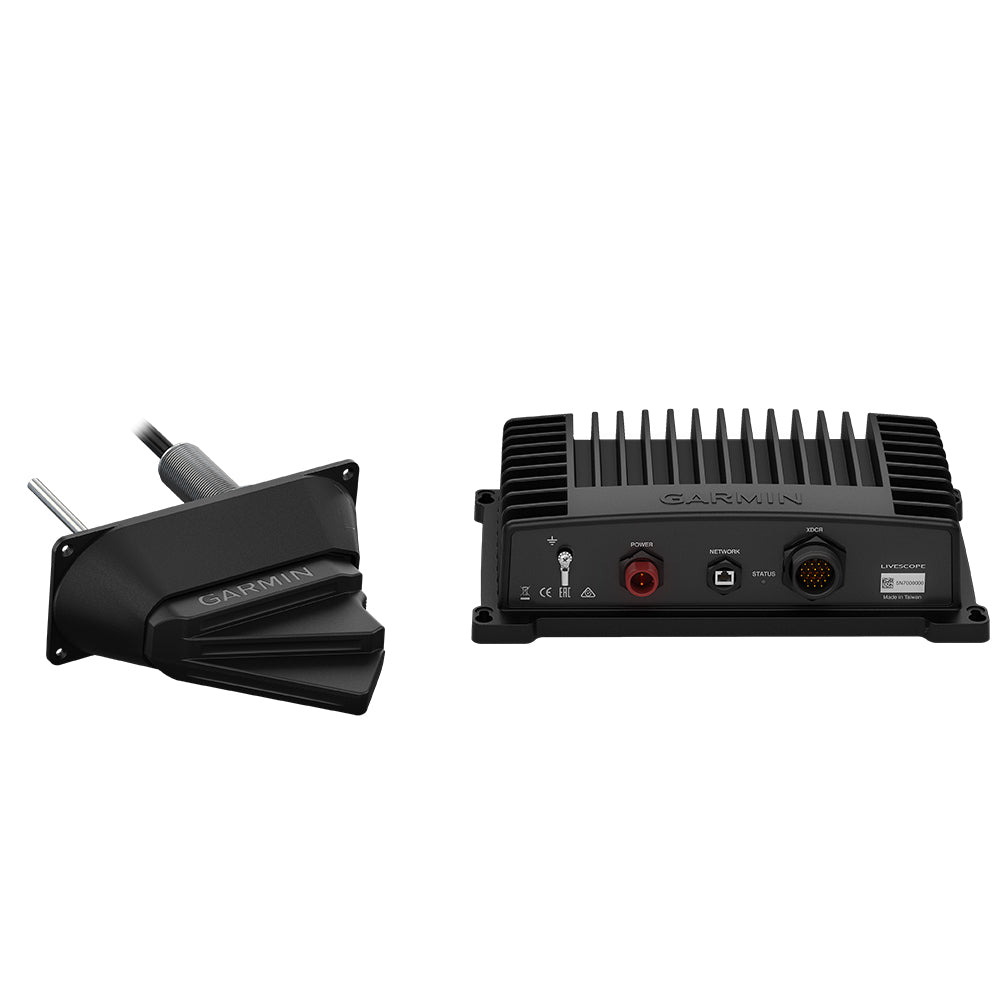

The Panoptix LiveScope scanning sonar system includes a compact GLS 10 sonar black box with LVS32 thru-hull transducer and simple plug-and-play Garmin Marine Network connector, making it easy to install and seamlessly integrate with your compatible Garmin chartplotter. Use the transducer as a supplemental traditional and ClearV sonar source to see a historical representation of structure and fish below your boat.
Compatible with GPSMAP 8400/8600 series MFDs, GPSMAP 7400/7600, 1002/1202, GPSMAP 1202/1202xsv Touch and 702/902 series chartplotters and ECHOMAP Plus 70cv/70sv and 90sv chartplotter/sonar combo series.
Garmin Panoptix LiveScope™ System With Thru-hull Mount
Model: 010-02233-00- See highly detailed, easy-to-interpret live scanning sonar images of structure, bait and fish swimming below and around your boat in real time, even when your boat is stationary
- See incredibly sharp real-time scanning sonar images up to 200’ around your boat
- Attitude Heading Reference System stabilizes sonar view on chartplotter screen, even in rough conditions
- Simple plug-and-play Garmin Marine Network connector makes it easy to install and seamlessly integrate with your compatible Garmin chartplotter1
Clearly, this is the most amazing sonar technology ever. You have never fished like this before. Panoptix LiveScope is live, real-time scanning sonar. You can actually see easy-to-interpret live scanning sonar images of fish swimming near clearly defined structure. You can even see your lure as you retrieve it. And your boat doesn’t need to be moving. These images are so clear and precise that with a little practice, you might be able to distinguish between species of fish!
LiveScope Forward is an excellent tool for scouting and fishing out ahead of your cast. You’re looking at live, highly detailed and easy-to-interpret scanning sonar images of structure and fish swimming all around your boat — up to 200’ — even while your boat is stationary.
The Panoptix LiveScope scanning sonar system includes a compact GLS 10 sonar black box with LVS32 thru-hull transducer and simple plug-and-play Garmin Marine Network connector, making it easy to install and seamlessly integrate with your compatible Garmin chartplotter . Use the transducer as a supplemental traditional and ClearVü sonar source to see a historical representation of structure and fish below your boat.
Compatible with GPSMAP® 8400/8600 series MFDs, GPSMAP 7400/7600, 1002/1202, GPSMAP 1202/1202xsv Touch and 702/902 series chartplotters and ECHOMAP™ Plus 70cv/70sv and 90sv chartplotter/sonar combo series
Specifications| Physical dimensions | |
| GLS 10 sonar black box | 9.6" x 5.9" x 2.6" (24.5 x 14.9 x 6.5 cm) |
| LVS32-TH transducer without fairing block | 9.6" x 1.8" x 5.4" (24.4 x 4.6 x 13.7 cm) |
| LVS32-TH transducer with fairing block | 9.6" x 3.4" x 8.1" (24.4 x 8.6 x 20.6 cm)LVS32-TH transducer with fairing block: 9.6" x 3.4" x 8.1" (24.4 x 8.6 x 20.6 cm) |
| General | |
| Water rating | IPX7 |
| Garmin Marine Network™ ports | 1 (small connector) |
| Temperature range | -15 C to 70 C |
| Sonar Features & Specifications | |
| Frequencies supported | 530 - 1,100 kHz |
| Transmit power | 500 W |
| Maximum depth | Forward: 200’ (61.0 m) |
| Electrical | |
| Power input | 10-32 V |
| Power usage | 21 W typical, 58 W max |
| Fuse | 7.5 A |
| Other | |
| Beamwidth | 20° x 135° |
| Transducer cable length | 20 ft. |
| Transducer number of pins | 21 |
What's in the Box:
- LiveScope GLS 10 sonar black box
- Panoptix LVS32 transducer
- Thru-hull mount hardware
- Power cable
- 2 meter Garmin marine network cable, small connector
- Network adapter cable
- Mounting hardware
- Documentation
Garmin obviously, this is the most amazing sonar technology ever. You have never fished like this before. In fact, you can see clear and easy-to-understand real-time scanning sonar images of fish swimming near well-defined structures.
SKU: NVN-76866
MPN: 010-02233-00
UPC: 753759225384
Technical specifications
| Brand | Garmin |
| Model | Garmin Panoptix LiveScope System w/Thru-Hull Mount Transducer |
| SKU / MFR# | 76866 |
