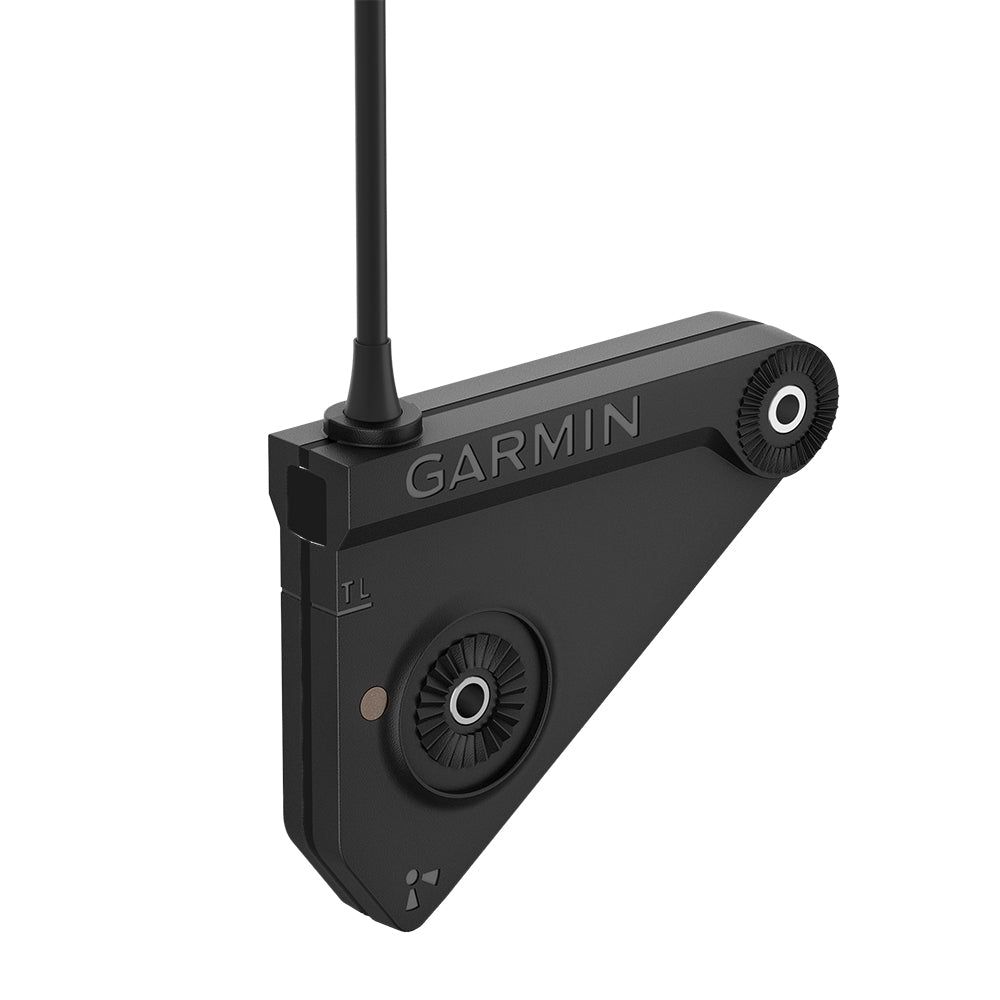

Garmin Panoptix™ LiveScope™ LVS12 Transducer
Garmin Panoptix™ LiveScope™ LVS12 Transducer — Product description
Imagine spotting fish darting toward your lure in real time, right from your boat's helm. The Garmin Panoptix LiveScope LVS12 transducer turns that vision into reality, delivering crystal-clear, live-action sonar without the complexity of extra hardware. Perfect for anglers chasing bass, walleye, or crappie, this compact unit packs powerful scanning capabilities into a straightforward design tailored for serious fishing sessions.
Real-Time Views That Change the Game
Capture every movement with dual scanning modes: a wide-angle forward scan that peers up to 200 feet ahead, revealing submerged structures, bait schools, and predators on the prowl. Switch effortlessly to downward scanning for precision jigging, watching fish react instantly below your hull at depths reaching 200 feet. No fiddling with adjustments—just select your view via the intuitive menu and go. Split-screen both perspectives to maintain full situational awareness while trolling or casting.
Plug-and-Play Simplicity for Quick Setup
Forget bulky black boxes; the LVS12 connects directly to your compatible Garmin display using a simple 12-pin cable. Mounting is a breeze with included brackets for trolling motors or transom setups, getting you on the water faster. It even doubles as a boost for conventional sonar, overlaying live data to sharpen your traditional readings and uncover hidden details.
Rock-Solid Performance in Rough Waters
Choppy conditions? No problem. The integrated Attitude Heading Reference System (AHRS) gyroscope stabilizes your sonar image, compensating for boat roll, pitch, and yaw. This means steady, reliable views whether you're battling waves on a big lake or navigating windy bays, keeping your focus on the fish instead of fighting the elements.
Tailored for Everyday Angling Success
Versatile enough for open-water pursuits or ice fishing adaptations, the LVS12 excels where timing matters. Spot staging fish near drop-offs, time your casts to intercept cruising schools, or hover over structure for vertical presentations. Anglers report transforming "slow days" into limits by reacting to live fish behavior—seeing strikes before they happen and adjusting tactics on the fly.
Tips to Elevate Your Fishing Edge
- Optimize Gain Settings: Start mid-range and tweak based on water clarity for the sharpest fish arches without clutter.
- Pair with Chartplotter Waypoints: Mark hot spots from live scans to revisit proven producers.
- Clean Regularly: Rinse after saltwater use and inspect cable connections to ensure peak performance season after season.
- Experiment with Boat Speed: Slower passes enhance forward detail; stationary holds maximize downward clarity.
Frequently Asked Questions
What kind of scanning views does the LVS12 provide?
It offers both 30-degree forward scanning up to 200 feet ahead for spotting fish and structure in real time, and 30-degree downward scanning up to 200 feet deep for precise jigging and vertical fishing.
Do I need extra equipment to use the LVS12?
No black box required—it plugs straight into compatible Garmin chartplotters with a 12-pin connection, simplifying your setup.
How does the AHRS feature help during fishing?
The built-in AHRS stabilizes sonar images against boat motion, providing clear, steady views even in rough water or when drifting.
Can I use the LVS12 for different fishing styles?
Absolutely—ideal for casting to forward-seen fish, jigging downward, trolling, or supplementing traditional sonar for all-around versatility.
What mounting options come with the transducer?
Includes brackets for easy trolling motor or transom mounting, allowing flexible installation on most boats.
Does it work well as a secondary sonar source?
Yes, it enhances ClearVü and 2D sonar by adding live scanning layers, helping you interpret echoes with real-time context.
How easy is switching between forward and down views?
Menu-driven selection makes it instant—no manual adjustments needed, and you can run both views side-by-side.
Panoptix™ LiveScope™ LVS12 Transducer
*Only Compatible with GPSMAP® 8400/8600xsv Series and ECHOMAP Ultra*
The Economical Option for Easy-to-interpret Live Scanning Sonar
- Provides 30-degree forward and 30-degree down real-time scanning sonar views
- Forward view shows structure and fish swimming in real time up to 200’ away from your boat; down view shows structure and fish swimming in real time up to 200’ deep below your boat
- Both forward and down views included in 1 transducer, with no manual transducer adjustment needed
- Does not require a black box, making installation easy
- Includes Attitude Heading Reference System (AHRS) for a stable view in rough conditions
The 12-pin Panoptix LiveScope LVS12 transducer provides an economical option for adding real-time scanning sonar to your GPSMAP® 8400/8600xsv series chartplotter/sonar combo without needing a black box system. The transducer includes trolling motor and transom mounting brackets.
Easily Switch Between Views
An easy menu-driven view change allows you to switch from 1 view to the other, with no manual transducer adjustment needed. You can also have both views on your display, side by side. Forward view shows a 30-degree Panoptix LiveScope view of structure and fish swimming in real time up to 200’ away from your boat. Use it to cast right at fish you see on screen. Down view shows a 30-degree Panoptix LiveScope view of structure and fish swimming in real time up to 200’ deep below your boat. Use it for vertical fishing and jigging. You can also use the LVS12 transducer as a supplemental source for traditional and ClearVü sonar.
Built-in AHRS
If it gets a little rough out on the water, the built-in AHRS will keep your on-screen sonar views stable.
SKU: NVN-76215
MPN: 010-02143-00
UPC: 753759218317
Technical specifications
| Brand | Garmin |
| Model | Garmin Panoptix™ LiveScope™ LVS12 Transducer |
| SKU / MFR# | 76215 |
