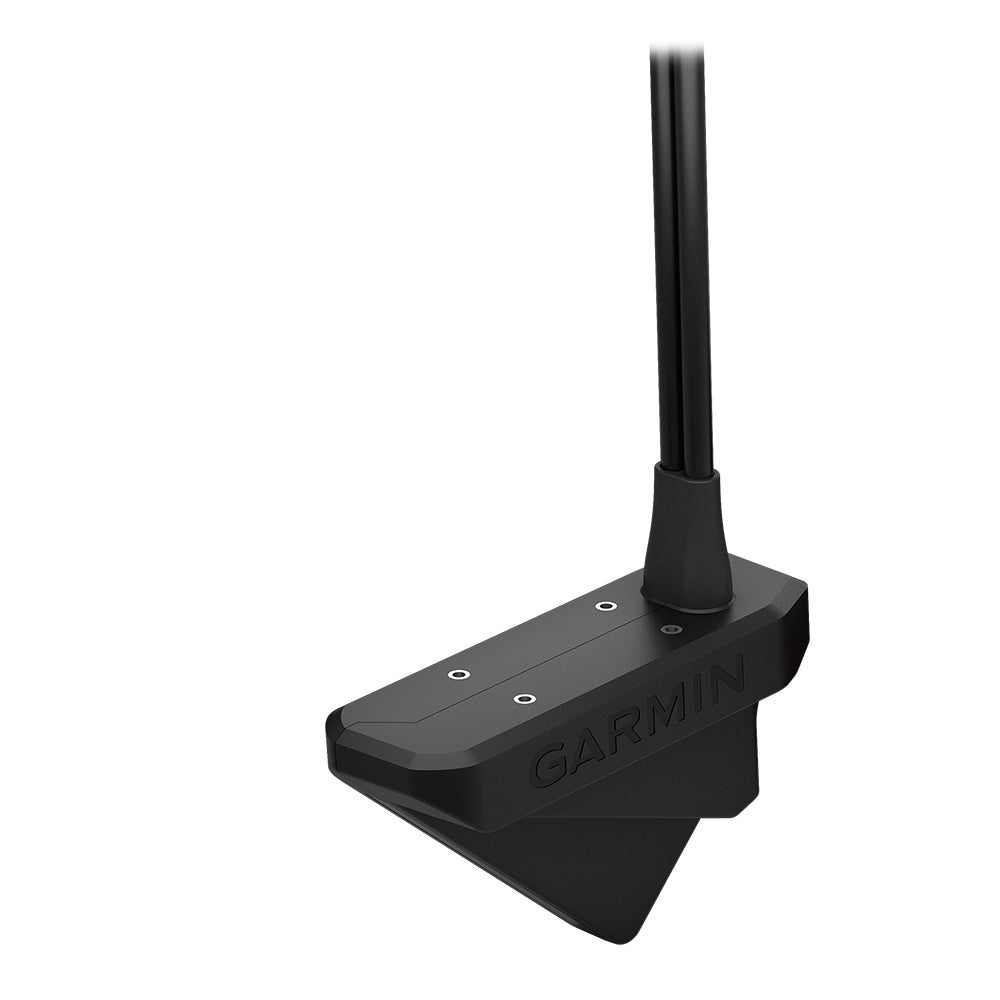

Garmin Panoptix LVS32 Transducer
Garmin Panoptix LVS32 Transducer — Product description
Unlock Crystal-Clear Views Beneath and Ahead with the Garmin Panoptix LVS32
Imagine spotting fish swimming toward your lure in real time, watching them react, strike, or turn away—all without guesswork. The Garmin Panoptix LVS32 transducer brings this forward-facing sonar magic to your boat, combining LiveScope Forward and LiveScope Down modes into one versatile unit. Paired with the required GLS 10 sonar black box and your compatible Garmin chartplotter, it delivers live video-like images that update continuously as you move.
What sets the LVS32 apart is its Attitude Heading Reference System (AHRS) stabilization. Rough water? Choppy seas? No problem. The image stays rock-steady on your screen, giving you confidence to make precise casts even when conditions get tough. Anglers rave about how it transforms bass fishing, walleye hunting, or any structure-oriented pursuit into a high-definition hunt.
Versatile Modes for Every Fishing Scenario
- LiveScope Forward: Scan up to 200 feet ahead of your boat. Reveal hidden structures, bait schools, and game fish cruising in your path. Perfect for trolling, casting to points, or navigating weed edges.
- LiveScope Down: Get a straight-down view directly beneath your vessel. Track fish holding tight to the bottom or suspended in the water column. Ideal for vertical jigging or anchoring over hotspots.
Switch modes effortlessly to match your technique, and let the automatic updates keep your display current. No more static snapshots—this is live action, fish by fish.
Flexible Mounting Options for Any Boat Setup
The LVS32 shines with its ready-to-install hardware for multiple configurations:
- Transom mount for outboard or sterndrive boats—quick setup for everyday use.
- Trolling motor barrel mount—seamless integration with popular electric motors like Minn Kota or MotorGuide.
- Trolling motor shaft mount—for cleaner profiles and stealthy approaches.
Installation is straightforward for DIYers, but pro tips include routing the cable away from interference sources and testing AHRS calibration on the water for optimal performance.
Technical Specifications at a Glance
| Specification | Details |
|---|---|
| Frequency | 530 - 1,100 kHz |
| Power | 500 W |
| Beamwidth | 20° x 135° |
| Maximum Depth | Down and Forward: 200' (61 m) |
| Depth/Speed/Temperature | Depth Only |
| Cable Length | 20 ft |
| Number of Pins | 21 |
These specs ensure reliable performance in freshwater and saltwater environments, with the wide beamwidth capturing expansive coverage without sacrificing detail.
What's Included for Hassle-Free Setup
- Panoptix LVS32 transducer
- Transom mount hardware
- Trolling motor barrel mount hardware
- Trolling motor shaft mount hardware
- Additional mounting hardware
- Documentation
Everything you need to get scanning right away—note that the GLS 10 black box and chartplotter are sold separately.
Why Serious Anglers Choose the LVS32
Beyond the specs, the real value lies in the edge it gives you. Picture this: You're on a pressured lake where fish are spooky. The forward view lets you idle quietly, pinpointing aggressive feeders before they spook. Or drop a jig straight down, watching the subtle tail flicks that signal a hookup. Tournament pros and weekend warriors alike credit LiveScope tech for doubling their catch rates. It's not just sonar; it's your underwater eyes, stabilized and ready for action.
Pair it with Garmin's ecosystem for overlays like Navionics charts or engine data, creating a full fishing command center.
Frequently Asked Questions
What is the Garmin Panoptix LVS32 transducer used for?
The LVS32 is a versatile LiveScope transducer providing real-time forward and downward sonar views for fish and structure detection. It requires a GLS 10 black box and compatible Garmin chartplotter.
Does the LVS32 work in both forward and down modes?
Yes, it supports both LiveScope Forward (scanning ahead) and LiveScope Down (straight below) modes, switchable to suit your fishing style.
What mounting options come with the LVS32?
It includes hardware for transom mounting, trolling motor barrel mounting, and shaft mounting, offering flexibility for various boat setups.
How does AHRS stabilization benefit me?
AHRS keeps the sonar image steady on your screen despite boat roll, pitch, or yaw, ensuring clear views in choppy water.
What is the maximum depth for the LVS32?
It reaches up to 200 feet in both forward and down modes, suitable for most inland and coastal fishing depths.
Is the LVS32 suitable for saltwater use?
Yes, its rugged design handles freshwater and saltwater environments effectively.
What cable length does it have?
The transducer features a 20-foot cable for flexible routing to your black box.
Panoptix LVS32 Transducer
This transducer is part of the Panoptix LiveScope System and requires the GLS 10 sonar black box to function. You get both LiveScope Down and LiveScope Forward modes in one transducer. It's easy to adjust the transducer mode to fit your fishing techniques; use LiveScope Forward to see remarkably clear images of structure and swimming fish around your boat, and use LiveScope Down to see directly below your boat. The view automatically updates on your compatible Garmin chartplotter. Attitude Heading Reference System (AHRS) stabilization keeps your sonar view steady, even in rough conditions.
Specifications:
- Frequency: 530 - 1,100 kHz
- Power: 500W
- Beamwidth: 20° x 135°
- Maximum depth: Down and Forward: 200' (61.0M)
- Depth/Speed/Temperature: Depth
- Number of pins: Ethernet
- Cable length: 12'
Garmin LVS32 Replacementransom/Trolling Motor Mount Transducer for LiveScope
Model: 010-12784-03This transducer is part of the Panoptix LiveScope System and requires the GLS 10 sonar black box to function. You get both LiveScope™ Down and LiveScope™ Forward modes in one transducer. It’s easy to adjust the transducer mode to fit your fishing techniques; use LiveScope Forward to see remarkably clear images of structure and swimming fish around your boat, and use LiveScope Down to see directly below your boat. The view automatically updates on your compatible Garmin chartplotter. Attitude Heading Reference System (AHRS) stabilization keeps your sonar view steady, even in rough conditions.
Specifications| Cable length | 20ft |
| Depth/Speed/Temperature | Depth Only |
| Power | 500 W |
| Frequency | 530 - 1,100 kHz |
| Maximum depth | Down and Forward: 200’ (61.0 m) |
| Number of pins | 21 |
| Beamwidth | 20° x 135° |
What's in the Box:
- Panoptix LVS32
- Transom mount hardware
- Trolling motor barrell mount hardware
- Trolling motor shaft mount hardware
- Mounting hardware
- Documentation
SKU: NVN-72584
MPN: 010-12784-03
UPC: 753759208806
Technical specifications
| Brand | Garmin |
| Model | Garmin Panoptix LVS32 Transducer |
| SKU / MFR# | 72584 |
