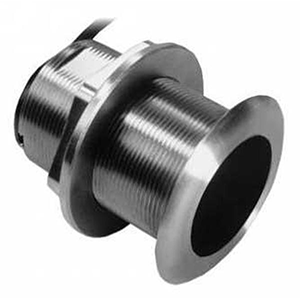

Garmin SS60 20° Tilt Thru-Hull 600W, 50/200kHz Transducer - 8-Pin
Garmin SS60 20° Tilt Thru-Hull 600W, 50/200kHz Transducer - 8-Pin — Product description
Discover Superior Underwater Visibility with the Garmin SS60 20° Tilt Thru-Hull Transducer
Imagine gliding through open waters with crystal-clear sonar images revealing fish, structure, and contours far below the surface. The Garmin SS60 20° tilt thru-hull transducer delivers exactly that, blending rugged stainless steel construction with precise dual-frequency sonar for boaters who demand reliability in fiberglass or wood hulls. Its tilted element design ensures a vertical beam without needing a bulky fairing, making it a smart pick for vessels with 16-24° deadrise angles.
Crafted for real-world marine adventures, this 600W powerhouse operates at 50/200 kHz, offering versatile coverage: wide beams for scanning vast areas in deeper waters and narrower, detailed views for shallow precision. Whether you're chasing trophy fish offshore or navigating inland waterways, it consistently outperforms in challenging conditions, providing depths from 800 to 1,200 feet.
Technical Specs That Matter on the Water
| Specification | Details |
|---|---|
| Mount Type | Thru-Hull with 20° Tilt |
| Power Output | 600 Watts |
| Frequencies | 50/200 kHz (45°/12° beamwidth) |
| Connector | 8-Pin |
| Cable Length | 33 Feet |
| Deadrise Compatibility | 16-24° |
| Hull Materials | Fiberglass, Wood |
| Additional Sensor | Water Temperature |
These specs translate to sharper separations between targets, reduced clutter from thermoclines, and reliable performance even at higher boat speeds.
Real-World Performance: From Shallow Bays to Deep Drops
In low-frequency 50 kHz mode, the wide 45° beam sweeps expansive bottom coverage, ideal for locating wrecks or schools in 500+ feet of water. Switch to 200 kHz for 12° precision, and you'll pinpoint baitfish amid bait balls or subtle ledges in under 100 feet. Anglers report cleaner arches on game fish, thanks to the high-power output punching through murky or turbulent water.
- Offshore Edge: Strong signal return holds up in saltwater at trolling speeds.
- Inshore Accuracy: Excellent bottom hardness discrimination for flats fishing.
- Temp Tracking: Built-in sensor helps monitor water columns for species migration patterns.
Stainless steel housing resists corrosion, ensuring years of service in harsh marine environments without the flex or failure seen in lesser plastics.
Streamlined Installation for DIY Boaters
Setting up the SS60 is straightforward for those familiar with hull penetrations. The 2-inch shaft slides cleanly through most transoms, and the 20° tilt aligns the beam perpendicular to the waterline on sloped hulls. Always core-drill carefully, seal with marine-grade compounds, and route the 33-foot cable away from interference sources like engines or bilge pumps.
Pro tip: Pair it with Garmin's ecosystem for seamless integration—think vivid CHIRP-like detail when connected to compatible multifunction displays. If adapting to older 6-pin units, grab the right extension for plug-and-play simplicity.
"Clean install, immediate upgrade in sonar clarity—worth every minute of hull work." —Seasoned charter captain
Keep It Performing Like New: Maintenance Essentials
Regular care extends life: Wipe the face after saltwater use, inspect the cable for chafe, and check O-rings seasonally. Avoid antifouling paints on the active element to preserve sensitivity. In winter storage, dry thoroughly to prevent biofouling buildup.
For troubleshooting, common fixes include verifying hull alignment (beam should show flat bottom) or cleaning connectors for intermittent depth loss.
Frequently Asked Questions
What hull types work best with the Garmin SS60 20° tilt transducer?
It's optimized for fiberglass and wood hulls with 16-24° deadrise angles. The 20° tilt ensures a vertical sonar beam without additional fairings.
How deep can the Garmin SS60 transducer detect targets?
It reliably scans from 800 to 1,200 feet, depending on water conditions, bottom type, and connected Garmin display settings.
What are the benefits of 50/200 kHz dual-frequency operation?
50 kHz provides wide-area coverage for deep water (45° beam), while 200 kHz offers high-resolution details for shallower zones (12° beam), letting you switch based on fishing depth.
Does this transducer include a temperature sensor?
Yes, it features an integrated water temperature sensor, displaying real-time data on compatible Garmin units for better fishing strategy.
Is an adapter needed for all Garmin sounders?
The 8-pin connector fits most modern Garmin chartplotters. For 6-pin older models, a simple adapter cable bridges the gap.
How long is the cable, and can it be extended?
It comes with a 33-foot cable, ample for most boats. Extensions are available if routing demands more length, but minimize connections to avoid signal loss.
What's the power rating, and why does it matter?
Rated at 600 watts, this provides strong signal penetration and clarity, outperforming lower-wattage options in noisy or deep-water scenarios.
Can I install this transducer myself?
Yes, with basic tools and hull knowledge. Follow included instructions precisely for a watertight seal and optimal beam alignment.
Garmin make products that are engineered on the inside for life on the outside. We bring GPS navigation and wearable technology to the automotive, aviation, marine, outdoor and fitness markets. We believe every day is an opportunity to innovate and a chance to beat yesterday. We offer products with essential utility, leading-edge technologies, compelling features, and exceptional ease-of-use to create clear differentiators our customers appreciate and desire.
Garmin 101186822 Attributes
- Mounting Location: Thru-Hull Mount
- Number Of Pins: 8 Pin
- Depth: 800 To 1200 Feet
- Power Rating: 600 Watt
- Frequency Range: 50/200 kHz
- Supported Angle: 16 To 24 Degree Deadrise
- Cable Length: 33 Feet
Garmin 101186822 Features & Benefits
- Stainless Steel 600 Watt 8-Pin Transducer Provides A Vertical Beam Without A Fairing
- Excellent Choice For Fiberglass And Wood Hulls
- Transducer Has A Depth Of 800 To 1,200 Feet
- Transducer Kit Comes With Installation Instructions
- Transducer Supports A 16 To 24 Degree Deadrise
- Limited 1 Year Warranty
Garmin 101186822 Warranties
SS60 20° Tilt Thru-Hull 600W, 50/200kHz Transducer - 8-Pin
This stainless steel 600 W 8-pin transducer provides a vertical beam without a fairing and is excellent for fiberglass and wood hulls. It has a depth of 800 to 1,200 ft; an operating frequency of 50 to 200 kHz; a beamwidth of 45/12 degrees; and a 16 to 24 degree deadrise.
Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.
When using with a 6-pin Garmin sounder, a transducer adapter cable is required.
Garmin Xdcr 50 / 200KHz / T SS LP 20 tilt 8-pin 010-11868-22. These are designed by Garmin's skilled product professionals and can work effectively for a long time.
SKU: NVN-65536
MPN: 010-11868-22
UPC: 753759990756
Technical specifications
| Brand | Garmin |
| Model | Garmin SS60 20° Tilt Thru-Hull 600W, 50/200kHz Transducer - 8-Pin |
| SKU / MFR# | 65536 |
