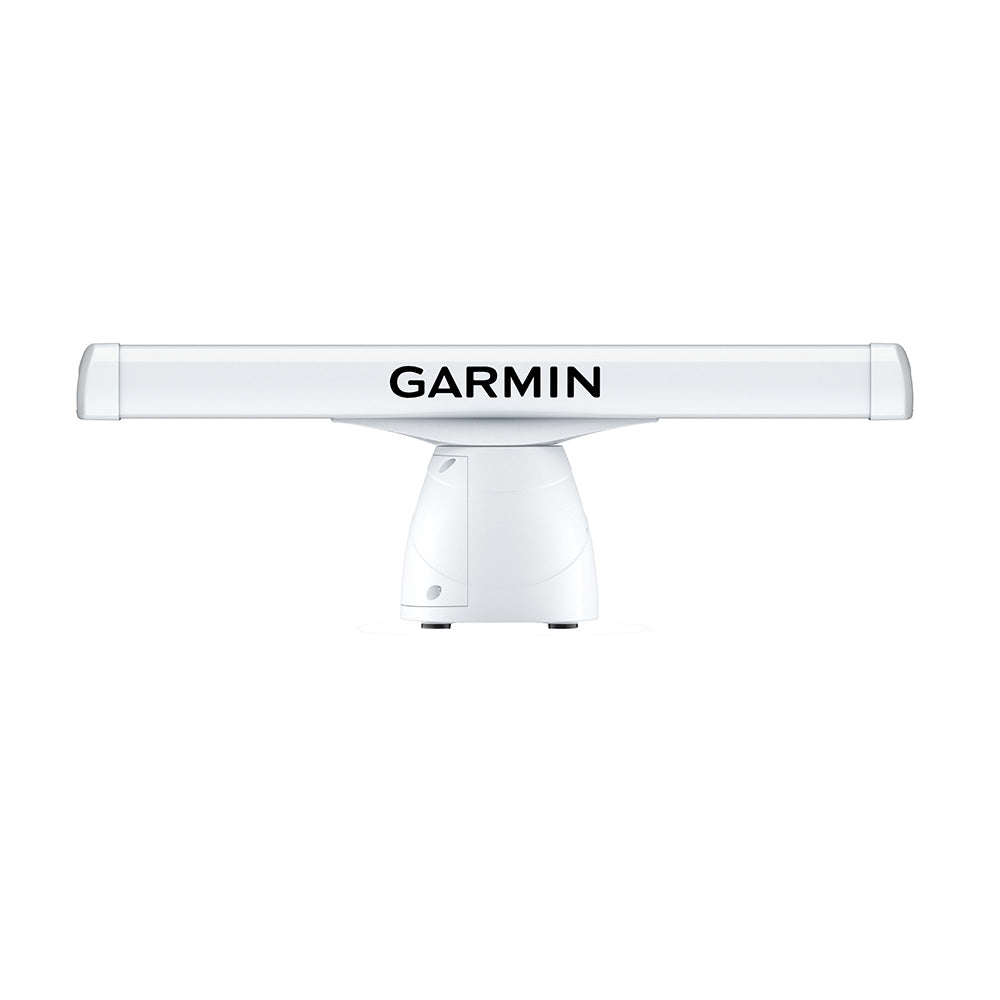

Garmin GMR™ 2534 xHD3 4' Open Array Radar & Pedestal - 25kW
Garmin GMR™ 2534 xHD3 4' Open Array Radar & Pedestal - 25kW — Product description
Unlock Superior Visibility on the Water with Advanced Radar Technology
Imagine navigating through dense fog, spotting distant vessels before they become threats, or tracking bird flocks to prime fishing grounds—all while handling brutal offshore winds. This powerhouse 4-foot open-array radar system delivers that edge, blending proven magnetron power with cutting-edge signal processing. Mariners who push limits offshore swear by its clarity in spotting obstacles, weather cells, and traffic, turning uncertain seas into manageable waters.
Key Innovations That Set It Apart
Scan Averaging for Crystal-Clear Target Detection
Sea clutter and random noise often plague traditional radars, but this model's scan averaging smooths out those distractions across multiple sweeps. The result? Consistent targets pop vividly on your display, making it easier to differentiate a drifting buoy from choppy waves or a fast-approaching boat from spray. It's like having a seasoned spotter filtering the chaos in real-time.
True Echo Trails to Gauge Real Motion
Forget misleading relative motion displays. True echo trails lay out a boat's actual path history, stripping away your vessel's movement influence. Spot potential collisions early—see if that contact is closing in head-on or sliding harmlessly by. This feature shines during busy night passages or in crowded anchorages.
Dual-Range Flexibility Without Compromise
Why choose between short-range harbor scanning and long-range horizon watch? Split your screen side-by-side, each with independent controls, and overlay both on charts. Monitor a nearby dock while eyeing 50 miles out—all from one antenna. It's a multitasker's dream for transitional cruising.
Adaptive Gain and Filters for Every Condition
Dynamic auto gain tweaks sensitivity on the fly for calm inlets or raging swells. Pair it with dynamic sea filters that auto-adjust for sea state, and auto bird gain that highlights surface-feeding flocks—prime indicators of bait balls below. These smarts reduce manual fiddling, letting you focus on the helm.
Built Tough for Offshore Demands
Engineered with a commercial-grade 100-knot wind rating (with optional upgrade), quiet drive motor, and IPX6 waterproofing, this radar laughs off harsh marine environments. High-resolution imaging via a narrow 1.8-degree horizontal beamwidth pulls in fine details at extreme ranges, up to 96 nautical miles. Dual-radar support adds redundancy, ensuring no single point of failure on big boats.
Anglers love MARPA tracking for up to 30 targets, guard zones that ping alarms on intruders, and range/bearing markers for precise measurements. Overlay radar on charts for intuitive situational awareness, blending echoes with your plotted course.
Real-World Applications for Boaters and Fishermen
- Offshore Fishing: Pinpoint bird activity and structure from afar, then zoom in for precise lure placement.
- Night or Fog Navigation: Detect unlit vessels and hazards beyond visual range, boosting safety.
- Storm Avoidance: Pierce rain and spot squall lines early, rerouting with confidence.
- High-Traffic Areas: Track multiple contacts simultaneously, reducing stress in shipping lanes.
Effortless Setup and Seamless Integration
Arrival includes the full 4-foot array, pedestal, extended power and network cables, mounting kit, and clear instructions. Bolt it to your arch or pole, network it into your system, and you're scanning in hours. Its 24/48 RPM rotation keeps sweeps brisk without sacrificing resolution.
Technical Specifications at a Glance
| Specification | Details |
|---|---|
| Antenna Size | 4 ft (1325 x 122 x 170 mm / 52.2" x 4.8" x 6.7") |
| Pedestal Dimensions | 520 x 328 x 314 mm / 20.5" x 12.9" x 12.4" |
| Weight | 28.4 kg (array and pedestal) |
| Beam Width | 1.8° horizontal, 23° vertical |
| Max Range | 96 nautical miles |
| Min Range | 20 meters |
| Transmit Power | 25 kW |
| Power Consumption (Transmit) | 70 W typical |
| Max Wind Load | 100 knots (with upgrade) |
| Rotation Speed | 24/48 RPM |
Frequently Asked Questions
GMR™ 2534 xHD3 4' Open Array Radar & Pedestal - 25kW
SCAN WITH THE MAGNETRON POWER OF GARMIN OPEN-ARRAY RADAR
Combining high-definition imaging with the latest Garmin platform technology, this robust 4’ open-array radar offer superior weather, obstacle and traffic detection for mariners cruising or fishing offshore.
- Up to 96-nautical mile range
- Scan Averaging Technology
- Improved Target-Size Processing
- Split-Screen Dual-Range Display
- 100-Knot Commercial Grade Wind Rating1
- Quiet Open-Array Drive Motor
New Scan Averaging Technology
A first for Garmin magnetron radar, scan averaging helps filter out sea clutter and interference to enhance the detection and display of consistent targets.
Angular Target-Size Adjustment
Pulse expansion and angular target-size processing techniques optimize on-screen object shapes for better interpretation at all range scales.
True Echo Trails
A historical “trail” of boats on the water is displayed on the screen, removing relative motion influence to help you quickly identify moving targets and potential collision threats.
Dual Range with Overlay
A single radar antenna is capable of providing split-screen, side-by-side images on your compatible chartplotter, with independent range setting and controls for both close and long range. Overlay either or both ranges on a chart.
Dynamic Auto Gain
Gain automatically adjusts levels to optimum settings for harbors, near shore and offshore in open waters.
Radar Overlay
See overlaid images on your chartplotter’s map screen (with appropriate sensors, sold separately).
High-Resolution Radar
Pick out targets at a distance, thanks to narrow horizontal beamwidth and high antenna gain.
Dual-Radar Support
This provides redundancy and allows each display unit to pull data from different sources.
Dynamic Sea Filter
Radar gain automatically adjusts sea clutter for calm, medium and rough sea conditions.
Auto Bird Gain
Locate flocks of birds at the water’s surface where baitfish are also likely to be found.
MARPA Target Tracking
Track up to 30 targets to help avoid collisions (with appropriate sensors, sold separately).
Guard Zone
Set the safety zone, and receive an alarm when an object enters the zone.
Range and Bearing Cues
Variable range markers and electronic bearing lines allow rapid measurements of distance and bearing to vessels and land.
Includes:
- GMR xHD3 25 kW open array radar with 4’ antenna
- Power cable (15 m/49.21 ft)
- Network cable (15 m/49.21 ft)
- Mounting hardware kit and template
- Installation instructions
Dimensions:
- 4' array - 1325 x 122 x 170 mm / 52.2" x 4.8" x 6.7"
- Pedestal: 520 x 328 x 314 mm / 20.5" x 12.9" x 12.4"
Weight:
- 4' array and pedestal - 28.4 kg
Specifications:
- Waterproof: IPX6
- Max Wind Load: 80KT (100KT with optional voltage converter upgrade)
- Antenna length: 48 in. (122 CM)
- Rotation Speed (RPM): 24 and 48 RPM
- Beam Width: 1.8° horizontal, 23° vertical
- Maximum Range: 96 nautical miles
- Minimum Range: 20 meters
- Radar Type: Open-array
Electrical Features:
- Power Input: 10-32 V DC
- Power Consumption (Standby): 18 W
- Typical Power Consumption, Transmitting (Normal mode): 70 W
- Transmit Power: 25 kW
14-kW versions require optional equipment (sold separately) for 100-knot wind rating
WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.
SKU: NVN-99845
MPN: K10-00012-28
UPC: 753759309985
