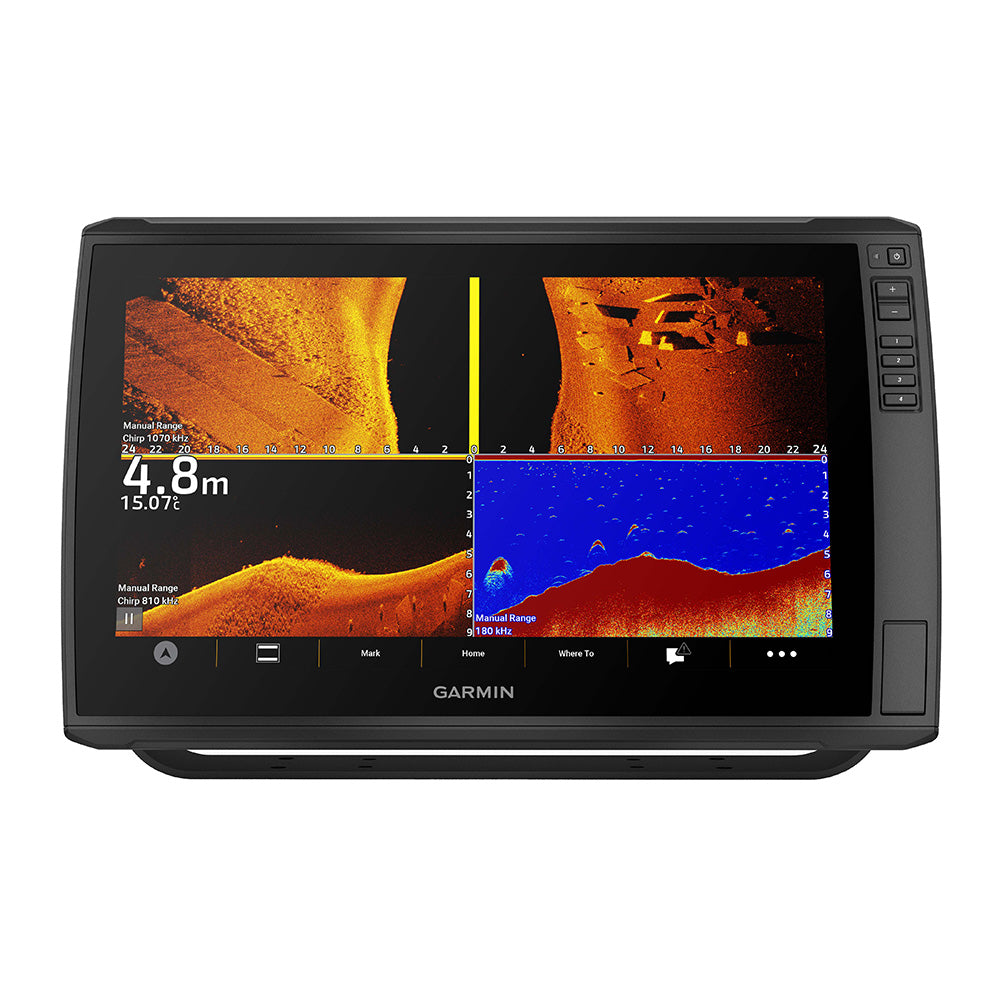

Garmin ECHOMAP™ Ultra 2 16" Chartplotter 162sv w/Worldwide Basemap & GT56UHD-TM Transducer

Experience Unmatched Clarity on the Water with Advanced Sonar and Mapping

Imagine scanning vast underwater landscapes with crystal-clear detail right from your helm. This powerhouse chartplotter delivers a massive 16-inch full HD display that's engineered for the demands of tournament anglers and offshore adventurers. The vibrant IPS panel ensures sharp visibility even under direct sunlight, turning murky depths into a vivid map of fish-holding structures, bait schools, and drop-offs. Whether you're chasing trophy bass in shallow bays or pursuing pelagics in deep blue water, the enhanced resolution reveals nuances that smaller screens simply can't match.

Superior Sonar Imaging That Reveals Hidden Secrets

At the heart of this system lies cutting-edge Ultra High-Definition scanning sonar paired with the included GT56UHD-TM transducer. ClearVü and SideVü technologies paint photo-like images of the bottom, distinguishing between rocks, weeds, and suspended gamefish with precision down to 260/455/800/1000/1200 kHz frequencies. Complement this with CHIRP traditional sonar across low, medium, and high ranges (70/83/200 kHz), and you'll track fish movement with exceptional target separation.

For live-action views, seamless integration with LiveScope systems (transducers sold separately) lets you watch fish react in real-time. High-contrast color palettes cut through clutter, making it easier to spot subtle differences in structure and thermoclines during critical moments.

Preloaded Charts and Smart Navigation Tools

Hit the water ready to go with worldwide basemaps and select models featuring Garmin Navionics+ for depth shading, daily updates via subscription, and intuitive route planning. Store up to 5,000 waypoints, 50 routes, and 50,000 track points to revisit proven hotspots. Multi-band GPS delivers pinpoint accuracy, even in challenging coastal or inland environments.

Voice-activated controls via built-in Bluetooth keep your hands on the wheel—adjust trolling motor settings or toggle sonar views with simple commands. Pair with a Force trolling motor for automated waypoint navigation and route following, streamlining your pursuit of the next big catch.

Seamless Connectivity for a Connected Boat

Stay linked with wireless networking to share sonar data, waypoints, and routes between compatible units on board. NMEA 2000 compatibility opens doors to heading sensors, autopilots, and audio systems for a fully integrated setup. Mirror your screen to a larger TV via HDMI for crew briefings, or use the ActiveCaptain app to capture screen recordings, access Quickdraw Community data, and handle updates from your phone.

Rugged Build and Flexible Mounting

Built to withstand the elements with an IPX7 water rating, this unit shrugs off splashes and spray. The bail mount with adjustable knobs allows quick tilt adjustments for optimal viewing angles, while flush mounting offers a sleek console integration. At 16.9 x 10.5 x 3.14 inches and 9.5 lbs, it's a commanding presence without overwhelming your space.

Key Technical Specs at a Glance

• Display: 15.6" diagonal FHD IPS (1920 x 1080), touchscreen with keyed assist
• Sonar: Built-in single-channel CHIRP traditional + UHD ClearVü/SideVü
• Power: 9-18 Vdc input, max 48W usage
• Storage: Dual microSD card slots
• Mounting: Bail or flush options included

What's Included for Quick Setup

• ECHOMAP Ultra 2 162sv chartplotter with worldwide basemap
• GT56UHD-TM transducer
• Power cable and hardware kit
• Bail mount with knobs and protective sun cover
• Trim caps and full documentation

Pro Tips for Maximizing Your Chartplotter's Potential

To get the most from your setup, calibrate your transducer for your hull type during calm conditions— this sharpens UHD scans dramatically. Leverage wireless sharing during team tournaments to keep everyone on the same structure. Experiment with color palettes for varying water clarity; cooler tones excel in stained water for better target pop. Regularly sync with ActiveCaptain to tap into community-contributed contours, expanding your edge on unfamiliar waters.

Frequently Asked Questions

What kind of sonar does the ECHOMAP Ultra 2 16-inch chartplotter support?

It features built-in CHIRP traditional sonar (70/83/200 kHz) and Ultra High-Definition ClearVü and SideVü scanning sonar across multiple frequencies including 260/455/800/1000/1200 kHz. It also supports the full LiveScope lineup with separate transducers.

Is the display sunlight readable?

Yes, the 16-inch full HD IPS touchscreen offers exceptional brightness and clarity, with anti-glare properties ideal for bright on-water conditions.

Can I share data between multiple chartplotters?

Wireless networking allows sharing of sonar views, waypoints, and routes between compatible ECHOMAP Ultra 2 units on the same vessel.

What mapping options are available?

Worldwide basemaps come preloaded, with select models including Garmin Navionics+ for enhanced features like depth shading and updates. Vision+ premium charts are compatible.

How do I control the chartplotter hands-free?

Built-in Bluetooth enables voice commands for functions like sonar adjustments, trolling motor control, and accessing favorites.

What is the waterproof rating and power requirements?

IPX7 rated for submersion resistance. It operates on 9-18 Vdc, drawing up to 6.6A at 12 Vdc.

Does it work with NMEA 2000 networks?

Yes, fully compatible for connecting autopilots, sensors, and audio systems.

ECHOMAP™ Ultra 2 16" Chartplotter 162sv with Worldwide Basemap & GT56UHD-TM Transducer

SEE BIGGER CATCHES ON A BIGGER SCREEN

Designed with the serious angler in mind, this 16-inch chartplotter with a full HD resolution display brings the ultimate in big-picture clarity, brightness, and readability to your navigation mapping and sonar returns. Select models come preloaded with Garmin Navionics+™ mapping. Plus, there’s support for the full line of LiveScope™ sonars1 as well as Ultra High-Definition scanning sonars and CHIRP traditional sonar.

LIVESCOPE SONAR SUPPORT

The ECHOMAP Ultra 2 chartplotter series supports the full lineup of LiveScope live-scanning sonar products (transducers sold separately).

BUILT-IN UHD SONAR

Select models are bundled with a GT56 transducer that provides Garmin CHIRP traditional sonar and Ultra High-Definition ClearVü™ and SideVü™ scanning sonars for photo-like images of what’s beneath the surface.

PRELOADED CHARTS

Select units come with built-in Garmin Navionics+ mapping, which includes a 1-year subscription for daily updates, depth range shading, and more. For added features, Garmin Navionics Vision+™ premium mapping is optionally available (sold separately).

HDMI OUTPUT

Use the chartplotter’s HDMI output connector to share your sonar screen with a TV or other external display.

VOICE CONTROL FEATURES

Built-in BLUETOOTH technology enables you to give voice commands to your chartplotter for hands-free control of such features as Force® trolling motor modes, favorite keys, and sonar inputs.

VIVID COLOR PALETTES

High-contrast, vivid scanning sonar color palettes make it easier than ever to distinguish targets and structure.

WIRELESS NETWORKING

Share sonar3, waypoints, and routes with another ECHOMAP Ultra 2 or UHD2 plotter on board.

MULTI-BAND GPS

Get improved position accuracy with multi-band GPS

NMEA 2000® NETWORK COMPATIBILITY

Connect to heading sensors, autopilots, Fusion-Link™ audio systems, and more.

ACTIVECAPTAIN® APP

Pair with the free smart-device app for software updates, screen recording, Garmin Quickdraw™ Community data, and more4.

FORCE TROLLING MOTOR

Wirelessly connect to your Force trolling motor to navigate to waypoints, draw and follow routes, and more.

SCREEN RECORDING

Use the recording feature through the ActiveCaptain app on your smartphone to share images from your chartplotter.

BAIL MOUNT WITH KNOBS

Surface mount your compatible ECHOMAP Ultra 2 chartplotter by using our bail mount with knobs; the mount tilts for optimum viewing.

Specifications:

• Dimensions: 16.9" x 10.5" x 3.14" (43.0 x 26.6 x 8.0 cm)
• Weight: 9.5 lbs (4.31 kg)
• Water rating: IPX7
• Touchscreen: Yes
• Display Type: FHD, IPS
• Display Size: 13.6" x 7.7"; 15.6" diagonal (34.5 x 19.5 cm; 39.7 cm diagonal)
• Display resolution: 1920 x 1080 pixels
• Mounting Options: Bail or flush
• Input: Touchscreen with Keyed Assist
• Accepts Data Cards: 2 microSD™ cards
• Waypoints: 5000
• Track points: 50,000
• Tracks: 50 saved tracks
• Navigation Routes: 100
• Power Input: 9 to 18 Vdc
• Typical current draw at 12 Vdc: 3.9 A
• Maximum current draw at 12 Vdc: 6.6 A
• Maximum power usage at 10 Vdc: 48 W
• Traditional sonar (dual frequency/beam): built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP)
• ClearVü: Built-in 260/455/800/1000/1200 kHz
• SideVü: Built-in 260/455/800/1000/1200 kHz

What's In The Box?

• ECHOMAP Ultra 162sv or 166sv (depending on the version selected) with optional Garmin Navionics+
• GT56UHD-TM transducer
• Power cable
• Bail mount with knobs
• Protective sun cover
• Trim caps
• Hardware
• Documentation
