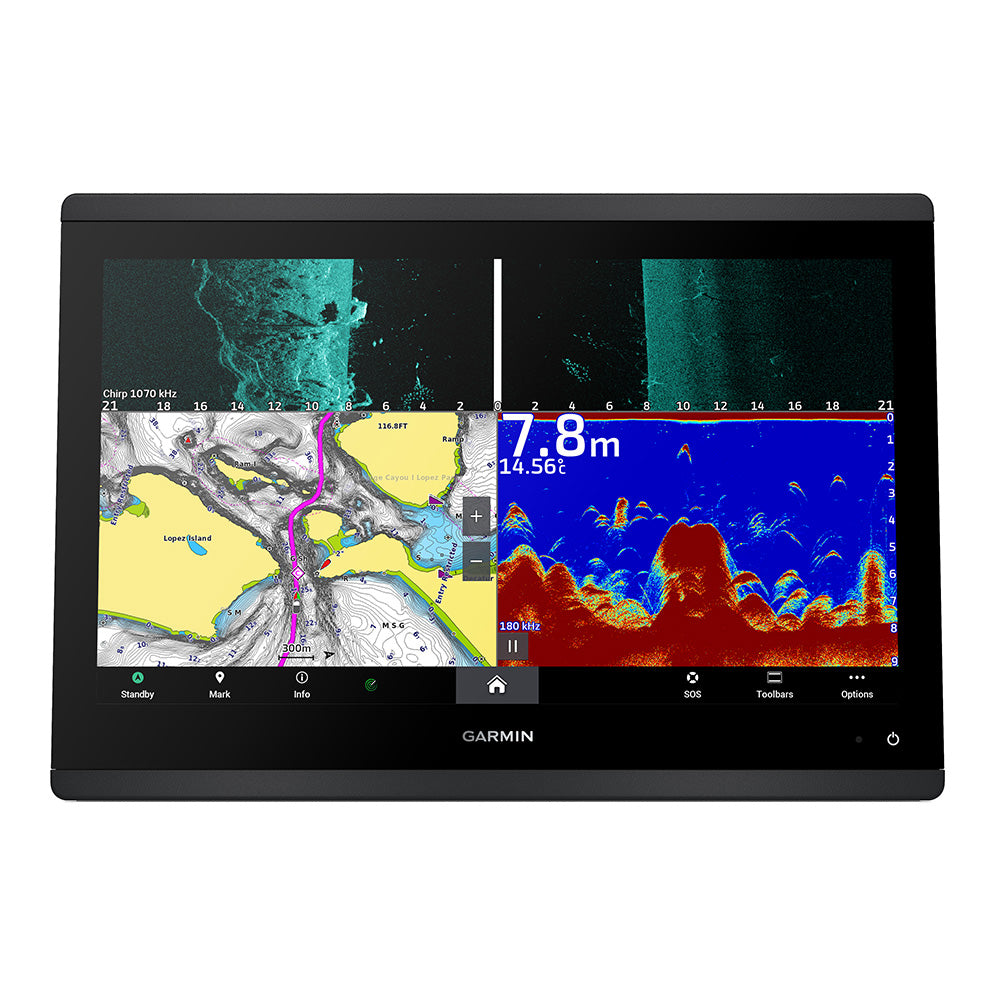

Garmin GPSMAP® 1623xsv Combo GPS/Fishfinder

Transform Your Boating Experience with Advanced Chartplotting and Sonar

Picture this: you're out on the water, scanning for the perfect fishing spot or navigating tricky coastal waters. The Garmin GPSMAP 1623xsv steps in as your command center, blending razor-sharp GPS charting with powerful fishfinding tools. Its 16-inch IPS display delivers crystal-clear visuals even under the harshest sunlight, while built-in sonar keeps you locked on targets below. Boat owners rave about how this unit simplifies helm setups, turning complex systems into intuitive controls.

Ultra High-Definition Sonar: See More, Catch More

Dive deeper into the water column with Ultra High-Definition SideVü and ClearVü scanning sonars. These aren't your basic echoes—these paint vivid, high-contrast images that separate fish from weeds, rocks, and drop-offs effortlessly. Pair it with 1 kW CHIRP traditional sonar for broad coverage on big-water hunts. Anglers often highlight how this clarity turns frustrating blank screens into productive outings, especially in murky bays or deep offshore runs.

For live action, connect compatible Panoptix or LiveScope transducers (sold separately) and watch baitfish school around structure in real-time. It's like having eyes underwater, giving you the edge to drop lines precisely where it counts.

Sleek Design Meets Serious Power

Slender profile with edge-to-edge glass fits seamlessly into tight dashboards or expansive consoles. The upgraded processor handles multiple data streams without lag, whether you're overlaying radar, engine data, or IP cameras. Visibility shines from any angle thanks to the IPS panel—say goodbye to squinting side-by-side with crewmates.

Seamless System Building and Integrations

Building a full marine network? This chartplotter plays nice with NMEA 2000 and 0183 setups, linking autopilots, VHF radios, AIS, and Fusion audio. Engine data from various brands, including Yamaha, flows right to your screen for at-a-glance monitoring.

Take trolling to pro levels with Force trolling motor support—steer, adjust speed, and anchor from one display. Power-Pole shallow water anchors add smart features like auto-deployment and drag alerts, while CHARGE integration optimizes battery life across banks. Digital switching via OneHelm consolidates third-party controls, reducing clutter and boosting efficiency.

Sailors' Secret Weapons

Not just for powerboaters—Garmin SailAssist brings laylines, wind roses, polar tables, and tide sliders to optimize every tack. Check true wind angles, set and drift, and race-start guidance to trim sails perfectly. It's the data-driven edge competitive sailors need without overwhelming the casual cruiser.

Stay Connected, Stay Informed

Wi-Fi hooks into the ActiveCaptain app for crowd-sourced Quickdraw maps, software updates, and smart notifications on your phone. Bluetooth and ANT+ pair with watches, wireless wind sensors, and remotes. Send inReach satellite messages directly from the screen for offshore peace of mind. Optional Navionics Vision+ charts layer satellite imagery and bathymetric shading for unmatched navigation detail.

Ready for Real-World Use

Compact at 15.1 x 10.3 x 3 inches and 9.7 lbs, it mounts flush or surface with included hardware. Connections galore: dual Garmin Marine Network ports, transducer input, HDMI out, J1939 for heavy-duty engines, and more. Everything arrives prepped with a microSD card, power cable, and NMEA drop cables.

Frequently Asked Questions

What sonar options does the Garmin GPSMAP 1623xsv support?

It features built-in Ultra High-Definition SideVü and ClearVü scanning sonars, plus 1 kW CHIRP traditional sonar. Add LiveScope or Panoptix for real-time views with a compatible transducer.

Can I connect multiple engines to this chartplotter?

Yes, it integrates with various engines via NMEA 2000, J1939, and select Yamaha models, displaying key data like RPM, fuel, and trim on one screen.

How does it work with trolling motors and anchors?

Compatible with Force trolling motors for full control and Power-Pole anchors for auto-deploy, jog, and drag detection features, streamlining fishing setups.

Is the display visible in direct sunlight?

The high-resolution IPS display excels in sunlight readability and offers wide-angle viewing, perfect for bright open-water conditions.

What apps and networks does it support?

Wi-Fi connects to ActiveCaptain for maps and updates. It shares data via Garmin Marine Network, NMEA 2000/0183, Bluetooth, and ANT+ for a fully linked helm.

Does it have sailing-specific features?

Absolutely—SailAssist includes laylines, polar tables, wind data, and race guidance to enhance performance on the water.

What comes included in the package?

The unit, preloaded microSD card, power cable, NMEA 2000 connectors, flush mount kit, and trim covers for easy setup.

California Proposition 65 Warning: This product can expose you to chemicals including NICKEL (METALLIC), known to the State of California to cause cancer. For more details, visit P65Warnings.ca.gov.

GPSMAP® 1623xsv Chartplotter

GET A SHARPER VIEW FROM A CONNECTED HELM

With its sleek design, powerful processing, and upgraded IPS display, this advanced 16” chartplotter integrates seamlessly into a Garmin marine system.

• Easily integrate with more engines.
• Connect to compatible third-party devices with digital switching and OneHelm™ integrations.
• Easily build a marine system by using our advanced network connectivity.
• See below the boat with built-in sonar capabilities
• Manage the marine experience from nearly anywhere¹.

Ultra High-Definition Scanning Sonar

Get built-in Ultra High-Definition SideVü and ClearVü™ scanning sonars with vivid, high-contrast color palettes to help distinguish fish from structure. GPSMAP® X3 series also supports 1 kW CHIRP traditional sonar capabilities.

Live Sonar Support

Pair with Panoptix™ or LiveScope™ easy-to-interpret live sonar (transducer required, sold separately) to see all around the boat in real-time.

Faster, Sharper, Smarter

With its added processing power and slimline design featuring edge-to-edge glass, it’s easy to fit this plotter in a wider range of dash configurations.

Bright and Clear Optics

High-resolution IPS display chartplotter offers improved sunlight readability and visibility from any angle.

Optional Charts and Maps

Bring a fresh new look and feel to the chartplotter with an optional upgrade to a Garmin Navionics Vision+™ premium chart subscription, featuring downloadable high-resolution relief shading, satellite imagery, sonar imagery, and more.

Power-Pole® Shallow Water Anchor

By networking select Garmin chartplotters with a Force® trolling motor and a compatible Power-Pole shallow water anchoring system, users can access advanced boat control features3 from the plotter, including smart anchor auto-deployment, smart anchor jog, auto stow, anchor drag detection, and end-of-route anchoring. Spend more time fishing and less time positioning.

Trolling Motor Integration

Get support and integration for a Force trolling motor (sold separately) to gain complete control while fishing.

Charge Integration From Power-Pole

CHARGE Marine Power Manager from Power-Pole integrates with compatible Garmin chartplotters to help keep battery power going longer and stronger on the water. Users can charge batteries on the run, monitor power use, select where power is allocated, control emergency starts, and even transfer power between battery banks — all from the chartplotter display.

Garmin Sailassist™ Sailing Features

View laylines, race start line guidance, enhanced wind rose, heading and course-over-ground lines, true wind data fields and tide/current/time slider, wind angle, set and drift, wind speed, and more.

Sailing Polars

Use the polar table to see key data, including how fast users should go at a certain wind angle and speed — so users know whether the sail trim needs to be adjusted.

Garmin Marine Network

If users have multiple compatible Garmin devices on the boat, users can share information — such as maps, user data, radar, and IP camera video — among them.

NMEA 2000® and NMEA 0183 Networks

Connect to compatible autopilots, digital switching, weather, the Fusion audio system, media, VHF, AIS, and more from one screen.

Activecaptian® APP

Built-in Wi-Fi® connectivity pairs with the free all-in-one mobile app for access to the OneChart™ feature, smart notifications, software updates, Helm app, Garmin Quickdraw™ Community data, and more1.

Integrated ANT® Technology

Connect with some of the favorite devices, such as quatix® marine watches, gWind™ Wireless 2 transducers, GNX™ Wind marine instruments, and wireless remote controls.

Engine Connectivity

Users can connect a chartplotter to different engines, including select Yamaha® engines.

OneHelm Feature

This feature brings together all the operations and capabilities of select third-party devices, such as EmpirBus™ digital switching, on one screen.

Send InReach® Device Messages

Pair an inReach satellite communicator4 to the chartplotter, and type custom messages by using the MFD’s on-screen keyboard. Access the contact list, or enter an email, inReach address, or phone number. Users can also group messages by conversation for a texting-like experience.

In the Box:

• Chartplotter
• microSD™ preinstalled
• Power cable
• NMEA 2000® T-connector
• NMEA 2000 drop cable
• Flush mount kit with gasket protective cover
• Trim piece snap covers

Connections

• NMEA 2000® Ports: 1
• NMEA 0183 Input Ports: 1
• NMEA 1083 Input (TX) Ports: 1
• Video Input Ports: 1 (BNC composite)
• Video Output Ports: 1 HDMI
• J1939 Ports: 1
• Garmin Marine Network Ports: 2
• 12-Pin Transducer Port: 1
• USB Ports: 1
• Bluetooth® Pairing
• ANT+ (Connectivity)
• Garmin Wi-Fi Network (Local Connection)

Specifications:

• Unit Dimensions: 15.1" x 10.3" x 3" (38.4 cm x 26.2 cm x 7.6 cm)
• Unit Weight: 9.7 lbs (4.4 kg)

¹Requires ActiveCaptain app on your compatible smartphone paired to your chartplotter

²Auto Guidance+ is for planning purposes only and does not replace safe navigation operations

³Integration of these features requires the purchase of a C-Monster® GATEWAY through Power-Pole

⁴Active satellite subscription required. Some jurisdictions regulate or prohibit the use of satellite communication devices. It is the responsibility of the user to know and follow all applicable laws in the jurisdictions where the device is intended to be used.

Wi-Fi is a registered trademark of the Wi-Fi Alliance.

Engineering enhancements are ongoing and may not be reflected in the pictures, videos, and specifications.

WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

SKU: NVN-102734
MPN: 10
UPC: 753759335069
