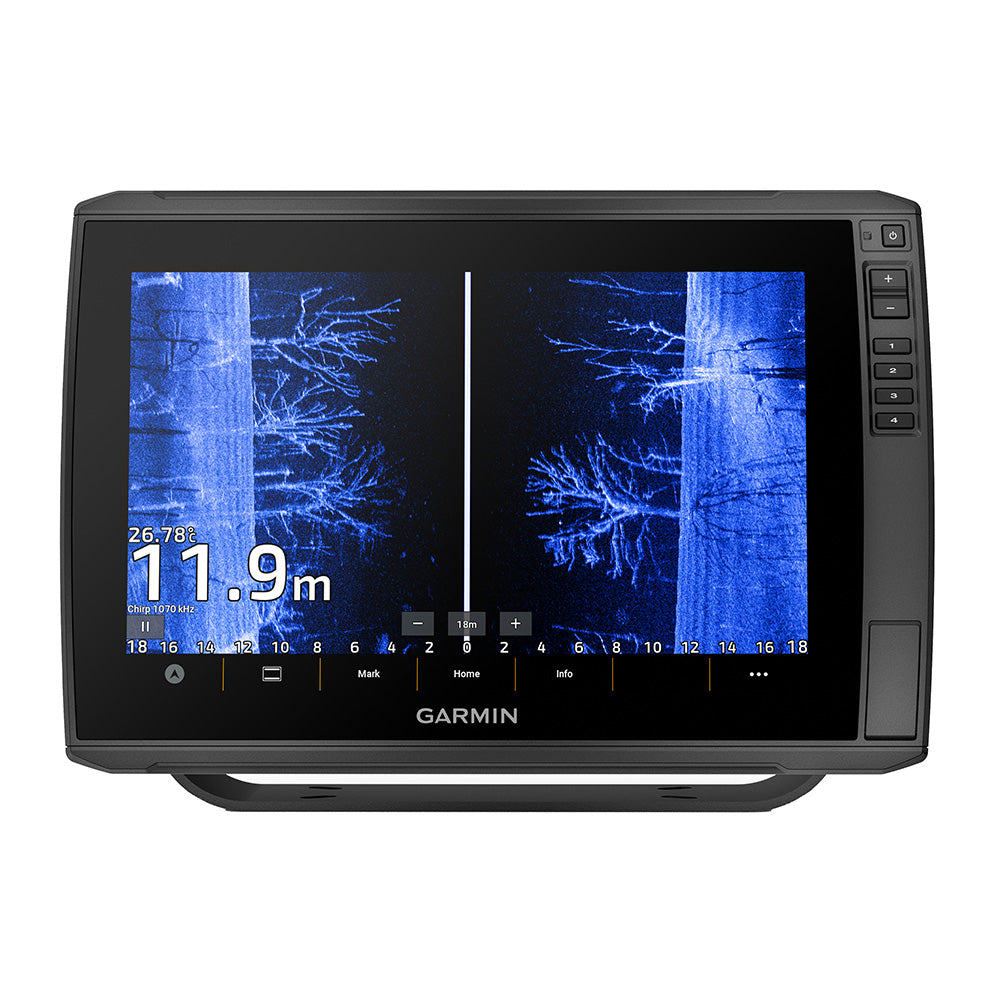

Garmin ECHOMAP™ Ultra 2 122sv w/o Transducer
Garmin ECHOMAP™ Ultra 2 122sv w/o Transducer — Product description
Imagine launching your boat into the early morning mist, knowing your chartplotter will cut through glare and reveal hidden structures below with stunning clarity. The Garmin ECHOMAP Ultra 2 122sv delivers that edge for serious anglers chasing trophy fish in freshwater lakes or coastal waters. Its massive 12-inch touchscreen isn't just big—it's engineered for real-world marine conditions, blending intuitive controls with powerhouse performance to transform how you locate and land fish.
Crystal-Clear Display for All-Day Fishing
The WXGA IPS panel spans 12.1 inches diagonally, packing 1280 x 800 resolution into a sunlight-readable powerhouse. Whether you're battling midday sun or scanning in low light, keyed assist ensures reliable operation even with wet hands or gloves. Anglers rave about how this setup reduces eye strain during long sessions, letting you focus on the hunt rather than squinting at fuzzy screens.
Advanced Sonar That Paints the Picture
Built-in UHD scanning sonar at frequencies like 260/455/800/1000/1200 kHz creates photo-like images of fish, bait schools, and bottom contours. Pair it with optional LiveScope for real-time forward, downward, or perspective views that show fish reacting to your lure. Vivid color palettes separate targets from clutter effortlessly—think high-contrast blues and greens that pop against murky bottoms. Traditional CHIRP sonar covers low, medium, and high ranges, ensuring no depth goes unexplored.
Superior Mapping and Navigation Tools
Start with the worldwide basemap and Garmin Navionics+ for inland and coastal details, including Auto Guidance+ that suggests safe paths around hazards. Upgrade to premium options like Navionics Vision+ for satellite overlays and high-res relief shading, or use Quickdraw Contours to map your own hotspots on the fly. Multi-band GPS, GLONASS, Galileo, and BeiDou lock in positions with pinpoint accuracy, even in challenging environments like canyons or heavy canopy.
Seamless Connectivity for the Modern Boat
Wireless networking lets you share sonar data, waypoints, and routes across multiple units—perfect for tournament teams or family outings. NMEA 2000 compatibility integrates with autopilots, heading sensors, and audio systems. Hook into the ActiveCaptain app for community-shared contours, software tweaks, and screen captures to relive those epic hooksets. ANT+ and Garmin Marine Network ports expand your setup, while Wi-Fi keeps things local and responsive.
Quick Mount and Rugged Build
IPX7 waterproofing shrugs off rain and splashes, and the quick-disconnect bail mount makes it easy to stow ashore. Flush mounting options blend seamlessly into dashboards. At 5.5 lbs, it's sturdy without being cumbersome, powered efficiently from 9-18 VDC sources.
Pro Tips for Maximizing Your ECHOMAP Ultra 2
- Customize Sonar Views: Experiment with split-screen layouts to monitor LiveScope alongside SideVü for comprehensive coverage.
- Build Your Hotspot Library: Record tracks and Quickdraw data during prime bites to revisit productive areas season after season.
- Network for Tournaments: Sync with a buddy's unit to crowdsource fish locations without shouting across the deck.
- App Integration: Use ActiveCaptain to crowdsource maps from thousands of users, uncovering secrets others miss.
- Maintenance Hack: Rinse with fresh water after saltwater trips and store the sun cover to keep the screen pristine.
Key Specifications at a Glance
| Category | Details |
|---|---|
| Display | 12.1" diagonal, 1280x800 WXGA IPS touchscreen |
| Dimensions | 13.4" x 9.0" x 3.9" |
| Weight | 5.5 lbs |
| GPS | Multi-band, 10 Hz receiver (GPS, GLONASS, Galileo, BeiDou) |
| Sonar Power | 600W (CHIRP traditional + UHD scanning) |
| Connections | 2x Garmin Marine Network, 1x NMEA 2000, 12-pin sonar, Wi-Fi, ANT+ |
| Memory | 5,000 waypoints, 50,000 track points, 100 routes |
Frequently Asked Questions
Does the ECHOMAP Ultra 2 122sv come with a transducer?
No, this model ships without a transducer, giving you flexibility to choose the perfect one for your boat and fishing style, such as GT56 for UHD scanning or LiveScope units.
Can I network multiple ECHOMAP Ultra 2 units together?
Yes, wireless networking allows sharing of sonar views, waypoints, routes, and user data between compatible ECHOMAP Ultra 2 or UHD2 chartplotters on the same vessel.
What mapping options are compatible with this chartplotter?
It includes a worldwide basemap with Navionics+ and supports premium upgrades like Navionics Vision+, BlueChart g3, LakeVü g3, and custom Quickdraw Contours via microSD cards.
Is the touchscreen usable with gloves or wet hands?
Absolutely— the touchscreen with keyed assist handles wet, gloved, or rugged conditions, making it reliable for on-water use in any weather.
How does multi-band GPS improve my fishing?
Multi-band GPS with GLONASS, Galileo, and BeiDou provides superior accuracy and faster fixes, essential for precise waypoint navigation and returning to exact fishing spots.
What sonar frequencies does it support?
Built-in support for CHIRP traditional (70/83/200 kHz) and UHD ClearVü/SideVü scanning (260/455/800/1000/1200 kHz), plus compatibility with Panoptix and LiveScope.
Can I connect it to a trolling motor?
Yes, it wirelessly pairs with Force trolling motors for waypoint navigation, route following, and integrated control right from the chartplotter.
WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.
ECHOMAP™ Ultra 2 122sv without Transducer
With big, crisp, sunlight-readable touchscreen displays, these versatile chartplotters put a world of fish-finding capability at the angler's fingertips.
Features:
- ECHOMAP™ Ultra 2 122sv with Worldwide Basemap
- 12” touchscreen
- Supports livescope™ sonar, and more
- Wirelessly network; share sonar, waypoints, and routes.
- Capture screen recordings to share fish catches
- Multi-band GPS for improved position accuracy
Livescope™ Sonar Support
The ECHOMAP Ultra 2 series supports the full lineup of LiveScope live-scanning sonar products (transducers sold separately).
Built-in UHD Sonar
Select models are bundled with a GT56 transducer, which provides Garmin CHIRP traditional sonar and Ultra High-Definition ClearVü™ and SideVü™ scanning sonars for photo-like images of what’s beneath the surface.
Vivid Color Palettes
High-contrast, vivid scanning sonar color palettes make it easier than ever to distinguish targets and structures.
Premium Map Upgrades
Bring a fresh new look and feel to the chartplotter with optional Garmin Navionics Vision+™ premium mapping (sold separately), featuring high-resolution relief shading, satellite imagery, and more.
Wireless Networking
If users have another compatible ECHOMAP Ultra 2 or ECHOMAP UHD2 chartplotter on the boat, users can wirelessly share information — such as sonar, waypoints, and routes — with them.
Stay Connected
Multi-Band GPS
Get improved position accuracy with multi-band GPS
NMEA 2000® Network Compatibility
Connect to heading sensors, autopilots, Fusion-Link™ audio systems, and more.
ActiveCaptain® App
Pair with the free smart-device app for software updates, screen recording, Garmin Quickdraw™ Community data, and more.
Force® Trolling Motor
Wirelessly connect to a Force trolling motor to navigate to waypoints, draw and follow routes, and more.
Take It With You
The quick-disconnect bail mount lets users quickly install and remove the unit.
In the Box:
- ECHOMAP Ultra 122sv
- Power/data cable
- Bail mount with quick-release cradle
- Protective sun cover
- 8-pin transducer to 12-pin sounder adapter cable
- Hardware
- Documentation
- Specifications
General:
- Dimension: 13.4" x 9.0" x 3.9" (34.1 x 22.9 x 9.8 cm
- Weight: 5.5 lbs (2.5 kg)
- Waterproof: IPX7
- Touchscreen: Yes
- Display Type: WXGA, IPS
- Display Size: 10.3" x 6.4"; 12.1" diagonal (26.1 x 16.3 cm; 30.7 cm diagonal)
- Display Resolution: 1280 x 800 pixels
- Mounting Options: Bail or flush
- Input: Touchscreen with Keyed Assist
Maps & Memory:
- Accepts Data Cards: 2 microSD cards
- Waypoints: 5000
- Track Points: 50,000
- Tracks: 50 saved tracks
- Navigation Routes: 100
Sensors:
- GPS: Yes
- GLONASS: Yes
- Galileo: Yes
- BeiDou: Yes
- Has Built-In Receiver: Yes
- Receiver: 10 Hz
- NMEA 2000 Compatible: Yes
- NMEA 0183 Compatible: Yes
- Supports WAAS: Yes
- Supports Multi-Band, Multi-Constellation GPS: Yes
Built-In Maps:
- Built-In Auto Guidance+: Yes
- Garmin Navionics+ Inland & Coastal: Yes (see Additional)
- Tide Tables: Yes (see Additional)
Optional Map Support:
- BlueChart g3: Yes
- BlueChart g3 Vision: Yes
- LakeVü g3: Yes
- LakeVü g3 Ultra: Yes
- Garmin Navionics+™: Yes
- Garmin Navionics+ Vision+™: Yes
- TOPO 100k: Yes
- Standard Mapping: Yes
- Garmin Quickdraw Contours: Yes
Chartplotter Features:
- AIS: Yes
- DSC: Yes
- Supports Fusion-Link™ Compatible Radios: Yes
- ActiveCaptain® Compatible: Yes
- Sailing Features: Yes
Electrical Features:
- Power Input: 9 to 18 VDC
- Typical Current Draw at 12 VDC: 2.5 A
- Maximum Current Draw at 12 VDC: 5.0 A
- Maximum Power Usage at 10 VDC: 36 W
Sonar Features:
- Displays Sonar: Yes
- Power Output: 600 W
- Traditional Sonar (Dual Frequency/Beam): Built-in (Single Channel Chirp, 70/83/200 Khz, L, M, H Chirp)
- ClearVü: Built-in 260/455/800/1000/1200 kHz
- SideVü: Built-in 260/455/800/1000/1200 kHz
- Panoptix™ Sonar: Yes
- Livescope: Yes
Connections:
- NMEA 2000® Ports: 1
- Garmin Marine Network Ports: 2 (Large Connector)
- 12-Pin Transducer Ports: 12-Pin Scanning Sonar
- ANT+ (Connectivity): Yes
- Garmin Wi-Fi Network (Local Connection): Yes
WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.
SKU: NVN-101730
MPN: 10
UPC: 753759325534
