Garmin ECHOMAP Ultra 2 126sv LIVESCOPE Plus Bundle with GT56UHD-TM Transducer
Garmin ECHOMAP Ultra 2 126sv LIVESCOPE Plus Bundle with GT56UHD-TM Transducer — Product description
Transform Your Fishing Adventures with Advanced Sonar and Charting
Imagine gliding across a serene lake at dawn, pinpointing schools of bass lurking near submerged structure without guesswork. The Garmin ECHOMAP Ultra 2 126sv with LiveScope Plus bundle turns this vision into reality, blending crystal-clear live sonar views with intuitive charting on a massive 12-inch sunlight-readable touchscreen. Anglers from casual weekend warriors to tournament pros rave about its ability to reveal fish behavior in real-time, making every cast count.
This powerhouse setup pairs the versatile chartplotter with the GT56UHD-TM transducer, delivering ultra-high-definition scanning sonar alongside traditional CHIRP frequencies. Whether you're trolling deep water or scanning shallows, it uncovers details that traditional setups miss, like individual fish tails twitching or baitfish fleeing predators.
Superior Display and User Interface for On-Water Clarity
At the heart is a 12.1-inch diagonal WXGA IPS display boasting 1280 x 800 resolution, engineered for vivid colors and sharp contrasts even under harsh sunlight. The touchscreen with keyed assist ensures glove-friendly operation during choppy conditions, while high-contrast color palettes make sonar returns pop—separating fish from weeds has never been easier.
- Bail or flush mounting options adapt to any console setup.
- IPX7 waterproof rating shrugs off splashes and rain.
- Compact dimensions (13.4" x 9.0" x 3.9") and 5.5 lbs weight keep it manageable.
Unmatched Sonar Capabilities: See Fish Like Never Before
The GT56UHD-TM transducer unlocks a suite of sonar technologies. Dive into ClearVü and SideVü scanning at multiple frequencies (260/455/800/1000/1200 kHz) for down-and-side imaging that maps bottom contours and structure with photographic precision. Traditional CHIRP sonar (70/83/200 kHz, L/M/H) handles everything from shallow bays to offshore depths, powered by 600 watts RMS.
Full LiveScope compatibility shines here—pair it with compatible transducers (sold separately) for forward, perspective, or downward live views, watching fish react live. Capture screenshots or recordings to relive epic moments and share with your crew via wireless networking.
Wireless Sharing: One Boat, Total Connectivity
Link up to two compatible ECHOMAP Ultra 2 or UHD2 units wirelessly to share sonar data, waypoints, and routes instantly—no cables needed. Multi-band GPS (including GLONASS, Galileo, BeiDou at 10 Hz) delivers pinpoint accuracy, enhanced by WAAS support for navigating tight spots confidently.
Pro-Level Mapping and Navigation Tools
Preloaded with Garmin Navionics+ U.S. Inland & Coastal charts, it features Auto Guidance+ for safe, optimized routes avoiding shallow hazards. Tide tables, high-res relief shading, and satellite imagery (via optional upgrades) paint a complete picture of your waters.
Store up to 5,000 waypoints, 50,000 track points across 50 tracks, and 100 routes. Garmin Quickdraw Contours lets you create personalized HD maps on the fly, while dual microSD slots expand storage for BlueChart, LakeVü, or topo options.
Seamless Integration and Power Efficiency
NMEA 2000 and 0183 compatibility networks with engines, autopilots, and sensors. ANT+ and Garmin Wi-Fi open doors to fitness data and app-based updates via your smartphone. Draws just 2.5A typical at 12VDC, maximizing battery life on long outings (9-18 VDC input).
Real-World Angler Tips
- Maximize LiveScope: Adjust gain and range for water clarity—lower in murky conditions to cut noise.
- Custom Palettes: Experiment with vivid scanning colors during golden hour for standout targets.
- Quickdraw Magic: Log contours while drifting to build secret spots over multiple trips.
- Mount Smart: Flush mount for sleek helm aesthetics; bail for easy removal at the dock.
Everything You Need for Instant Setup

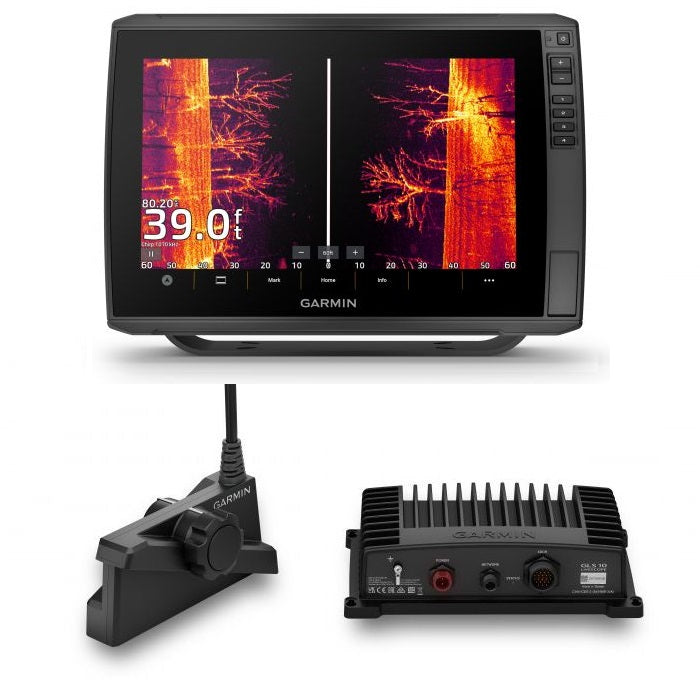

This bundle arrives ready to fish: the ECHOMAP Ultra 126sv chartplotter with preloaded maps, GT56UHD-TM transducer, power/data cable, bail mount with quick-release cradle, protective sun cover, hardware, documentation, and LiveScope Plus components. Plug in, power up, and start hunting.
Garmin ECHOMAP™ Ultra 2 126sv 12"" Chartplotter LIVESCOPE Plus with GT56UHD-TM Transducer; Includes Garmin Navionics+™ U.S. Inland & Coastal Mapping
Model: 010-02882-01\LIVESCOPE Plus- SUPPORTS LIVESCOPE™ SONAR1 AND MORE
- WIRELESSLY NETWORK; SHARE SONAR, WAYPOINTS AND ROUTES2
- CAPTURE SCREEN RECORDINGS TO SHARE FISH CATCHES
- MULTI-BAND GPS FOR IMPROVED POSITION ACCURACY
With big, crisp, sunlight-readable touchscreen displays, these versatile chartplotters put a world of fishfinding capability at your fingertips. They’re available with built-in Garmin Navionics+™ mapping, and the transducer bundle adds Ultra High-Definition scanning sonars as well as CHIRP traditional sonar.
The ECHOMAP Ultra 2 series supports the full lineup of LiveScope live-scanning sonar products (transducers sold separately).
High-contrast vivid scanning sonar color palettes make it easier than ever to distinguish targets and structure.
Bring a fresh new look and feel to your chartplotter with optional Garmin Navionics Vision+™ premium mapping (sold separately), featuring high-resolution relief shading, satellite imagery and more.
If you have another compatible ECHOMAP Ultra 2 or ECHOMAP UHD2 chartplotter on your boat, you can wirelessly share information — such as sonar3, waypoints and routes — with them.
1LiveScope™ System sonar transducer sold separately 2Via one-to-one unit wireless connection only 3LiveScope sonar cannot be shared wirelessly between two ECHOMAP Ultra 2 or ECHOMAP UHD2 chartplotters 4Requires the ActiveCaptain app on your compatible smartphone paired to your ECHOMAP Ultra 2 series chartplotter
Specifications| General | |
| DIMENSION | 13.4"" x 9.0"" x 3.9"" (34.1 x 22.9 x 9.8 cm) |
| WEIGHT | 5.5 lbs (2.5 kg) |
| WATERPROOF | IPX7 |
| TOUCHSCREEN | Yes |
| DISPLAY TYPE | WXGA, IPS |
| DISPLAY SIZE | 10.3"" x 6.4""; 12.1"" diagonal (26.1 x 16.3 cm; 30.7 cm diagonal) |
| DISPLAY RESOLUTION | 1280 x 800 pixels |
| MOUNTING OPTIONS | Bail or flush |
| INPUT | Touchscreen with Keyed Assist |
| Maps & Memory | |
| ACCEPTS DATA CARDS | 2 microSD cards |
| WAYPOINTS | 5000 |
| TRACK POINTS | 50,000 |
| TRACKS | 50 saved tracks |
| NAVIGATION ROUTES | 100 |
| Sensors | |
| GPS | Yes |
| GLONASS | Yes |
| GALILEO | Yes |
| BEIDOU | Yes |
| HAS BUILT-IN RECEIVER | Yes |
| RECEIVER | 10 Hz |
| NMEA 2000 COMPATIBLE | Yes |
| NMEA 0183 COMPATIBLE | Yes |
| SUPPORTS WAAS | Yes |
| SUPPORTS MULTI-BAND, MULTI-CONSTELLATION GPS | Yes |
| Built-in Maps | |
| BUILT-IN AUTO GUIDANCE+ | Yes |
| GARMIN NAVIONICS+ INLAND & COASTAL | Includes Garmin Navionics+™ U.S. Inland & Coastal Mapping |
| TIDE TABLES | Yes |
| Optional Map Support | |
| BLUECHART G3 | Yes |
| BLUECHART G3 VISION | Yes |
| LAKEVü G3 | Yes |
| LAKEVü G3 ULTRA | Yes |
| GARMIN NAVIONICS+™ | Yes |
| GARMIN NAVIONICS VISION+™ | Yes |
| TOPO 100K | Yes |
| STANDARD MAPPING | Yes |
| GARMIN QUICKDRAW CONTOURS | Yes |
| Electrical Features | |
| POWER INPUT | 9 to 18 Vdc |
| TYPICAL CURRENT DRAW AT 12 VDC | 2.5 A |
| MAXIMUM CURRENT DRAW AT 12 VDC | 5.0 A |
| MAXIMUM POWER USAGE AT 10 VDC | 36 W |
| Connections | |
| NMEA 2000® PORTS | 1 |
| GARMIN MARINE NETWORK PORTS | 2 (large connector) |
| 12-PIN TRANSDUCER PORTS | 12-pin scanning sonar |
| ANT+ (CONNECTIVITY) | Yes |
| GARMIN WI-FI NETWORK (LOCAL CONNECTION) | Yes |
| Sonar Features | |
| DISPLAYS SONAR | Yes |
| POWER OUTPUT | 600 watt |
| TRADITIONAL SONAR (DUAL FREQUENCY/BEAM) | built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP) |
| CLEARVü | built-in 260/455/800/1000/1200 kHz |
| SIDEVü | built-in 260/455/800/1000/1200 kHz |
| PANOPTIX™ SONAR | Yes |
| LIVESCOPE | Yes |
What's in the Box:
- ECHOMAP Ultra 126sv includes Includes Garmin Navionics+™ U.S. Inland & Coastal Mapping
- Power/data cable
- Bail mount with quick release cradle
- Protective sun cover
- GT56UHD-TM transducer
- Hardware
- Documentation
- LIVESCOPE Plus
SKU: NVN-1003717
MPN: 010-02882-01LSP
UPC:
