Garmin ECHOMAP UHD 72sv Reman WorldWide Basemap with GT56 Transducer
Garmin ECHOMAP UHD 72sv Reman WorldWide Basemap with GT56 Transducer — Product description
Imagine gliding across open waters, pinpointing fish and underwater structures with crystal-clear precision from your 7-inch touchscreen command center. The ECHOMAP UHD 72sv paired with the GT56 transducer transforms your boating adventures into a tech-driven triumph, blending Ultra High-Definition sonar imaging with intuitive worldwide basemaps. Whether you're chasing trophy bass in shallow coves or navigating coastal routes, this setup delivers the sharp details and reliable performance serious anglers demand.
Crafted for real-world reliability, it stands up to splashes, sunlight glare, and rough seas while keeping your focus on the water—not fiddling with settings. Unlock deeper insights into what's below the surface, share data across your boat's network, and even steer your trolling motor right from the screen.
Unrivaled Underwater Visibility
Dive into superior sonar with the included GT56UHD-TM transducer, offering CHIRP traditional sonar alongside ClearVü and SideVü scanning at multiple frequencies (260/455/800/1000/1200 kHz). Expect 20% greater SideVü range compared to standard models, revealing fish-holding structures and bait schools far beyond your hull.
- High-contrast color palettes: Separate fish from weeds and rocks effortlessly, even in murky waters.
- Panoptix and LiveScope ready: Add live-action views around your boat (transducers sold separately) for the ultimate hunt.
- 500W power output: Crisp returns from deep water, ideal for offshore trolling or inland lakes.
Anglers report spotting individual fish tails in UHD detail, turning average days into limits—perfect for tournament pros or weekend warriors.
Smart Boat Integration at Your Fingertips
Stay connected without clutter: Built-in Wi-Fi pairs with the Garmin app for software updates, smart alerts, and OneChart access. NMEA 2000/0183 compatibility links to engines (like Mercury or Yamaha), autopilots, AIS, VHF, and Fusion audio—monitor RPMs, fuel, trim, and more on one screen.
- Trolling motor control: Command Force or other compatible motors to waypoints or follow paths effortlessly.
- ActiveCaptain ready: Crowdsource routes and tips from fellow boaters.
- Wireless remote support: Adjust from anywhere on deck.
Simplify multi-device setups; one hub handles it all, freeing you to fish harder.
Rugged Design for Everyday Boating
IPX7 waterproofing shrugs off submersion, while the 9.8" x 5.5" x 2" frame weighs just 1.7 lbs for easy install. Quick-release bail or flush mounts adapt to any console, with a protective cover for storage.
| Category | Details |
|---|---|
| Display | 7" diagonal WVGA (800x480), touchscreen with keys |
| Memory | 1x microSD (32GB max), 50 tracks |
| Ports | NMEA 2000, NMEA 0183, 12-pin transducer, Panoptix |
| Sonar | CHIRP traditional, UHD ClearVü/SideVü |
Complete Kit for Quick Setup
- ECHOMAP UHD 72sv unit with worldwide basemap
- GT56UHD-TM transducer
- Power/data cable
- Tilt/swivel quick-release mount
- Flush mount kit
- Protective cover
- Mounting hardware
- Documentation
Everything you need to mount, wire, and fish—minimal downtime, maximum action.
Pro Tips for Peak Performance
- Position the GT56 transducer parallel to the hull bottom at the transom for optimal SideVü range.
- Calibrate Quickdraw in familiar waters first to build accurate personal maps.
- Use high-contrast palettes in shallow, vegetated areas to cut through clutter.
- Network with a heading sensor for drift-free waypoint navigation.
Frequently Asked Questions
What sonar frequencies does the GT56 transducer support?
It supports CHIRP traditional sonar plus Ultra High-Definition ClearVü and SideVü at 260/455/800/1000/1200 kHz for versatile depth and range coverage.
Can this chartplotter network with other Garmin devices?
Yes, 7-inch and 9-inch models share sonar, user data, and charts across compatible ECHOMAP UHD or Ultra units.
Is the display suitable for bright sunlight?
Absolutely, the sunlight-readable WVGA touchscreen maintains clarity even in direct sun with high-contrast sonar palettes.
Does it support custom map creation?
Yes, Quickdraw Contours lets you generate 1-foot contour maps on the water, shareable via the Garmin app community.
What engine data can it display?
Compatible with select Mercury and Yamaha engines for RPMs, fuel flow, temperature, trim, and more via NMEA connections.
Is it compatible with LiveScope?
Yes, it supports Panoptix LiveScope scanning sonar systems for real-time views around your boat.
What's the waterproof rating?
IPX7 rated, surviving accidental immersion up to 1 meter for 30 minutes.
Garmin ECHOMAP™ UHD 72sv with GT56UHD-TM Transducer
Model: 010-N2518-01- See below and around your boat in incredible detail with optional transducer
- Navigate any waters with preloaded BlueChart® g3 coastal charts
- Share data with other devices on your network (7" and 9" models only)
- Manage your marine experience from nearly anywhere
- Control the most powerful trolling motor available
- Create your own maps on the fly and tailor them to fit your needs

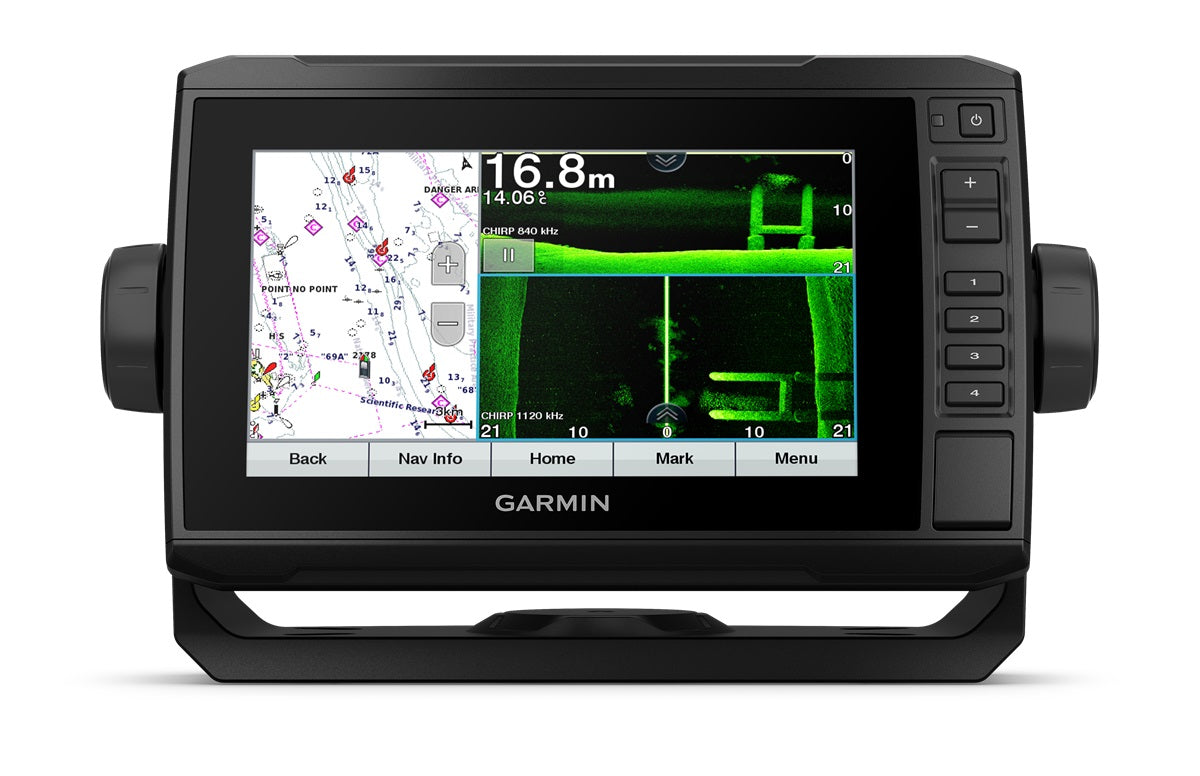

The sunlight-readable 7" touchscreen chartplotter features a quick-release bail mount, and the transducer bundle adds Ultra High-Definition scanning sonar and CHIRP traditional sonar.
This chartplotter supports a variety of Garmin transducers (sold separately), including the Panoptix LiveScope™ scanning sonar system, which lets you see all around your boat in real time.
High-contrast vivid scanning sonar color palettes make it easier than ever to distinguish targets and structure.
Select the transducer bundle to add a GT56 transducer for Garmin CHIRP traditional sonar and Ultra High-Definition ClearVü and SideVü scanning sonars. With three scanning sonar frequencies and 20% greater range for our UHD SideVü sonar, you’ll get top performance at all depths.
Experience unparalleled coverage and detail with support for optional BlueChart® g3 Vision coastal charts featuring integrated Garmin and Navionics® content.
Create personalized fishing maps on-screen with 1’ contours. Keep the data to yourself, or share it with the Quickdraw Community on the Garmin Connect™ app3.
If you have multiple compatible ECHOMAP UHD or ECHOMAP Ultra devices on your boat, the 7" and 9" models can share information — such as sonar, user data and charts — with them.
Connect to your compatible autopilots, digital switching, weather, Fusion-Link™ audio system, media, VHF, AIS, engine data, heading sensors — such as the SteadyCast™ sensor — and more from one screen.
Built-in Wi-Fi® connectivity pairs with the free all-in-one mobile app for access to the OneChart™ feature, smart notifications, software updates, Garmin Quickdraw™ Community data and more1.
Take control of the most powerful and efficient trolling motor available2, route it to waypoints, follow tracks and more from the screen of your chartplotter.
Connect this chartplotter to different kinds of engines — including select Mercury and Yamaha® models — to see RPMs, fuel flow, temperature, trim and other important information at a glance. You may need additional hardware, so be sure to check with your engine manufacturer.
Specifications| General | |
| Physical dimensions | 9.8"" x 5.5"" x 2.0"" (25 x 13.9 x 5.1 cm) |
| WEIGHT | 1.7lbs |
| WATERPROOF | IPX7 |
| TOUCHSCREEN | Yes |
| DISPLAY TYPE | WVGA, NP |
| DISPLAY SIZE | 6.1"" x 3.4""; 7.0"" diagonal (15.5 x 8.6 cm; 17.8 cm diagonal) |
| DISPLAY RESOLUTION | 800 x 480 pixels |
| MOUNTING OPTIONS | MOUNTING OPTIONS |
| INPUT | Touchscreen with Keyed Assist |
| Maps & Memory | |
| ACCEPTS DATA CARDS | 1 microSD card; 32 GB maximum size |
| WAYPOINTS | 5000 |
| TRACK POINTS | 50,000 |
| TRACKS | 50 saved tracks |
| NAVIGATION ROUTES | 100 |
| Sensors | |
| GPS | Yes |
| HAS BUILT-IN RECEIVER | Yes |
| RECEIVER | 5 Hz |
| NMEA 2000 COMPATIBLE | Yes |
| NMEA 0183 COMPATIBLE | Yes |
| SUPPORTS WAAS | Yes |
| Built-in Maps | |
| TIDE TABLES | Yes |
| Optional Map Support | |
| BLUECHART G3 | Yes |
| BLUECHART G3 VISION | Yes |
| LAKEVü G3 | Yes |
| LAKEVü G3 ULTRA | Yes |
| GARMIN NAVIONICS+™ | Yes |
| GARMIN NAVIONICS VISION+™ | Yes |
| TOPO 100K | Yes |
| STANDARD MAPPING | Yes |
| GARMIN QUICKDRAW CONTOURS | Yes |
| Chartplotter Features | |
| AIS | Yes |
| DSC | Yes |
| SUPPORTS FUSION-LINK™ COMPATIBLE RADIOS | Yes |
| ACTIVECAPTAIN® COMPATIBLE | Yes |
| WIRELESS REMOTE COMPATIBLE | Yes |
| SAILING FEATURES | Yes |
| Sonar Features | |
| TRADITIONAL SONAR (DUAL FREQUENCY/BEAM) | built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP) |
| POWER OUTPUT | 500 W |
| CLEARVü | built-in 260/455/800/1000/1200 kHz |
| SIDEVü | built-in 260/455/800/1000/1200 kHz |
| PANOPTIX™ SONAR | Yes |
| LIVESCOPE | Yes |
| Connections | |
| NMEA 2000® PORTS | 1 |
| CONNECTIONS NMEA0183 INPUT PORTS | 1 |
| NMEA 0183 INPUT (TX) PORTS | 1 |
| GARMIN MARINE NETWORK PORTS | 1 Panoptix™ port |
| 12-PIN TRANSDUCER PORTS | 1 |
What's in the Box:
- ECHOMAP UHD 72sv with worldwide basemap
- GT56UHD-TM transducer
- Power/data cable
- Tilt/swivel mount with quick release cradle
- Flush mount
- Protective cover
- Hardware
- Documentation
SKU: NVN-1003613
MPN: 010-N2518-01
