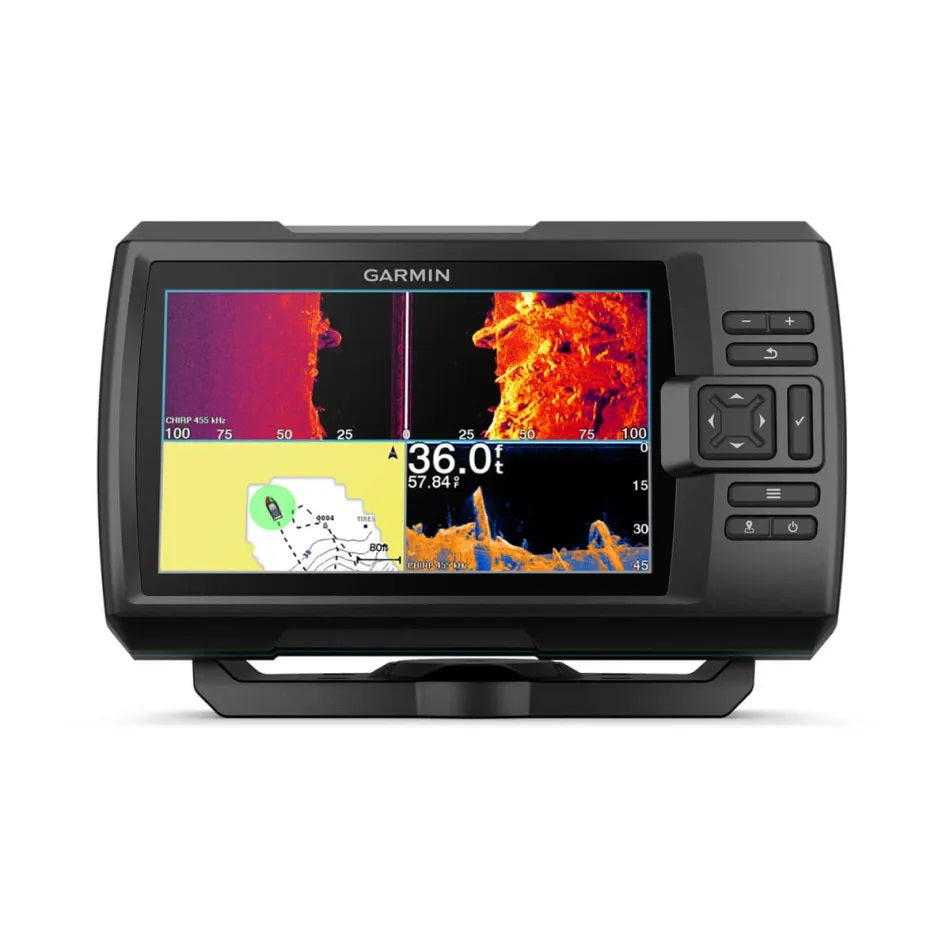

Garmin Striker Vivid 7sv Reman Fishfinder GPS Track Plotter With GT52 NOT A CHART PLOTTER
Garmin Striker Vivid 7sv Reman Fishfinder GPS Track Plotter With GT52 NOT A CHART PLOTTER — Product description
Discover Vivid Clarity on the Water
Imagine pinpointing fish and underwater structures with colors that pop like never before. The Garmin STRIKER Vivid 7sv delivers seven striking color palettes, each tuned to highlight fish returns and bottom details in ways that match your fishing approach—whether you're chasing bass in shallow lakes or scanning deep reservoirs for walleye. This isn't just a screen upgrade; it's a game-changer for spotting schools amid clutter, thanks to the included GT52 transducer that sweeps the water with precision.
Anglers swear by its ability to reveal hidden spots others miss. Pair that with high-sensitivity GPS, and you're marking waypoints for those "honey holes" effortlessly, returning trip after trip without guesswork.
Master the Depths with Advanced Sonar Tech
At the heart of this fishfinder lies versatile sonar coverage. The GT52 transducer unlocks CHIRP traditional sonar for wide-area sweeps, plus ClearVü for straight-down imaging that shows baitfish hovering over structure like a photo, and SideVü for scanning up to 300 feet side-to-side. Frequencies span 50/77/200 kHz traditional, mid/high CHIRP bands, and 260/455/800 kHz for scanning—perfect for adapting to murky rivers or crystal-clear bays.
- AutoGain Technology: Cuts noise, amplifies targets automatically—no more tweaking settings mid-bite.
- Fish Symbols & A-Scope: Icons flag potential fish while real-time beams show exact passes through the cone.
- Depth Shading & Bottom Lock: Visualize depth gradients and isolate bottom signals for cleaner reads.
In real-world use, this setup excels during structure fishing. Drop a jig near a downed tree visualized in vivid detail, and watch hookups increase as you interpret wrecks or drop-offs down to 1-foot contours across vast areas.
Stay Connected Beyond the Boat
Wi-Fi links to the ActiveCaptain app for seamless waypoint sharing, smart alerts, and community Quickdraw maps. Two 4-pin transducer ports allow expansions, while IPX7 waterproofing and tilt/swivel mount handle rough days. Powered by 12-20 Vdc, it draws minimally at 0.67A typical.
Detailed Specifications at a Glance
| Category | Details |
|---|---|
| Dimensions | 9.3" x 5.5" x 2.3" (23.5 x 14.0 x 5.8 cm) |
| Display | 7" diag WVGA (800 x 480), 3.4" x 6.1" viewable |
| Weight | 1.7 lbs (770 g) |
| Waterproof Rating | IPX7 |
| Transmit Power | 500 W (RMS) |
| Sonar Frequencies | Traditional: 50/77/200 kHz; CHIRP mid/high; ClearVü/SideVü: 260/455/800 kHz |
| Memory | 5,000 waypoints; 50,000 track points; Quickdraw support |
Everything You Need to Get Started
- STRIKER Vivid 7sv fishfinder (remanufactured)
- GT52HW-TM transducer
- Power/data cable
- 12-pin to dual 4-pin adapter cable
- Tilt/swivel mount with hardware
- Documentation and Garmin bumper sticker
This remanufactured unit undergoes rigorous testing to meet original standards, offering reliable performance at a value that keeps more tackle in your box.
Frequently Asked Questions
Garmin STRIKER™ Vivid 7sv with GT52 Transducer - Remanufactured
Model: 010-N2553-01- The sonar color you pick says a lot about your fishing style. Good thing there are 7 new vivid options.
- What a view. Use the included transducer to get CHIRP traditional, ClearVü and SideVü sonars.
- Never lose a hot spot again. Use waypoint marking to find your way back.
- What’s under the water’s surface looks pretty good as 1" contours, just saying.
- Wi-Fi® connection1 on land opens up a world of possibilities on the water.
Choose from 7 new vivid color options to see fish and structure in maximum contrast and clarity on your 7" fishfinder.
Use the included GT52 transducer to get Garmin CHIRP traditional sonar plus CHIRP ClearVü and CHIRP SideVü scanning sonars.
To catch more fish, you need to know where the fish are biting. Use waypoint marking for hot spots so you can easily find your way back.
Plan and create routes and view your boat’s speed on your fishfinder using high-sensitivity GPS.
Nobody knows the waters you fish better than you. With the STRIKER Vivid 7sv fishfinder, you can store up to 2 million acres of maps with 1’ contours.
Connect to the ActiveCaptain® app1 to transfer waypoints, receive smart notifications (including software update notifications) and access the Garmin Quickdraw™ Community.
Specifications| General | |
| DIMENSION | 9.3" x 5.5" x 2.3" (23.5 x 14.0 x 5.8 cm) |
| INPUT | Keyed |
| DISPLAY SIZE | 3.4"" x 6.1"" (8.6 x 15.4 cm); 7.0"" diag (17.8 cm) |
| DISPLAY RESOLUTION | 800 x 480 pixels |
| DISPLAY TYPE | WVGA color |
| WEIGHT | 1.7 lbs (770 g) |
| WATERPROOF | IPX7 |
| MOUNTING OPTIONS | flush, tilt/swivel |
| Maps & Memory | |
| WAYPOINTS/FAVORITES/LOCATIONS | 5000 |
| TRACK POINTS | 50,000 |
| TRACKS | 50 |
| NAVIGATION ROUTES | 100 |
| Sensors | |
| HAS BUILT-IN RECEIVER | yes |
| RECEIVER | Traditional: 50/77/200 kHz CHIRP (mid and high) ClearVü and SideVü 260/455/800 kHz |
| GPS | Yes |
| SUPPORTS WAAS | Yes |
| Optional Map Support | |
| GARMIN QUICKDRAW CONTOURS | Yes |
| Sonar Features & Specifications | |
| DISPLAYS SONAR | Yes |
| TRADITIONAL SONAR (DUAL FREQUENCY/BEAM) | Built-in |
| CLEARVü | Yes |
| SIDEVü | Yes |
| FREQUENCY | Traditional: 50/77/200 kHz CHIRP (mid and high) ClearVü and SideVü 260/455/800 kHz |
| BOTTOM LOCK (SHOWS RETURN FROM THE BOTTOM UP) | Yes |
| WATER TEMPERATURE LOG | Yes |
| Connections | |
| 4-PIN TRANSDUCER PORTS | 2 |
| GARMIN WI-FI NETWORK (LOCAL CONNECTION) | Yes |
| Electrical Features | |
| POWER INPUT | 12 to 20 Vdc |
| TYPICAL CURRENT DRAW | 0.67 A |
| MAX CURRENT DRAW | 1.5 A |
| POWER CONSUMPTION | 8.0 |
| TRANSMIT POWER | 500 W (RMS) |
| Fishfinder Features | |
| SPLIT-SCREEN ZOOM | Yes |
| FISH SYMBOL ID (HELPS IDENTIFY FISH TARGETS) | Yes |
| AUTOGAIN TECHNOLOGY (MINIMIZES CLUTTER; MAXIMIZES TARGETS) | Yes |
| ADJUSTABLE DEPTH LINE (MEASURES DEPTH OF UNDERWATER OBJECTS) | Yes |
| A-SCOPE (REAL TIME DISPLAY OF FISH PASSING THROUGH TRANSDUCER BEAM) | Yes |
| WATER TEMPERATURE SENSOR INCLUDED | Yes |
| DEPTH RANGE SHADING | Yes |
What's in the Box:
- STRIKER Vivid 7sv fishfinder -Remanufactured
- GT52HW-TM transducer
- Power/data cable
- 12-pin to dual 4-pin transducer adapter cable
- Tilt/swivel mount
- Hardware
- Garmin bumper sticker
- Documentation
SKU: NVN-1003480
MPN: 010-N2553-01
UPC: 753759303624
