Garmin GPSMAP942xs Plus 9 Combo with BlueChart US g3 and Lakevu HD
Garmin GPSMAP942xs Plus 9 Combo with BlueChart US g3 and Lakevu HD — Product description
Imagine gliding across open waters or casting lines into a quiet lake, with crystal-clear navigation at your fingertips—no guesswork, just precision. The Garmin GPSMAP 942xs Plus transforms your boating adventures by blending a vibrant 9-inch touchscreen with powerhouse mapping and sonar tools tailored for serious mariners. Whether you're plotting coastal routes or hunting fish in shallow bays, this chartplotter delivers intuitive control that feels like an extension of your boat.
Superior Mapping for Every Waterway
Dive into detailed preloaded BlueChart g3 coastal charts and LakeVü g3 inland maps, packed with Garmin Navionics data for unmatched coverage. Auto Guidance technology plots the safest paths around obstacles, factoring in your vessel's draft and beam for stress-free navigation. Upgrade paths unlock high-res relief shading, revealing underwater contours that help you spot prime fishing spots or avoid hazards. Mariners rave about how these maps turn unfamiliar waters into familiar territory, saving hours of pre-trip planning.
- Integrated Garmin and Navionics content for coast-to-lake versatility
- Shaded relief and satellite imagery for vivid underwater views
- Quickdraw Contours to create personalized HD maps on the fly
Reveal What's Beneath with Advanced Sonar
Built-in 1 kW CHIRP traditional sonar excels at separating targets in crowded waters, while ClearVü scanning sonar peers down to 1,000 feet at 260 kHz for jaw-dropping detail. Pair it with optional Panoptix LiveScope for real-time, 360-degree views around your boat—watch baitfish schools scatter as your lure drops. In murky lakes or busy harbors, this combo uncovers structure and game fish that traditional sonar misses, giving anglers a decisive edge.
Build a Seamless Marine Network
Expand beyond standalone use: share maps, radar overlays, user data, and IP camera feeds across multiple Garmin units via the Marine Network. Connect to autopilots for hands-free steering, FUSION-Link audio for onboard tunes, VHF/AIS for safety, and even Yamaha engines for engine data at a glance. The ONEHELM feature consolidates third-party controls—like digital switching—into one intuitive dashboard, simplifying operations during high-stakes moments.
Wi-Fi pairs effortlessly with the Garmin app for smart notifications, community-shared Quickdraw data, and over-the-air updates. Link up with quatix watches or wireless remotes to manage everything from the helm or deck.
Real-World Tips for Peak Performance
Mounting is straightforward with bail or flush options, and the IPX7 water rating shrugs off spray and splashes. For optimal sonar, position transducers away from hull turbulence—experiment with angles for the cleanest returns. Leverage SmartMode presets to customize screens for fishing, cruising, or sailing, switching views with a tap. Boaters often share how sharing radar data network-wide prevented close calls in fog, turning potential mishaps into smooth sails.
"The network sharing alone justified the upgrade—now my whole crew stays informed without crowding the helm."
—Seasoned offshore captain
Technical Highlights at a Glance
| Category | Key Specs |
|---|---|
| Display | 9" WSVGA (1024x600), sunlight-readable touchscreen |
| Sonar | 1 kW CHIRP, ClearVü, up to 5,000 ft depth |
| Connectivity | NMEA 2000, Wi-Fi, Marine Network, J1939 engines |
| Memory | 5,000 waypoints, 50,000 track points, dual microSD slots |
| Dimensions | 10.1" x 6.4" x 2.1", 2.6 lbs |
Frequently Asked Questions
What types of charts are preloaded on the Garmin GPSMAP 942xs Plus?
It comes preloaded with BlueChart g3 coastal charts and LakeVü g3 inland maps, featuring integrated Garmin Navionics data, Auto Guidance, and high-resolution relief shading for comprehensive coverage.
Does this chartplotter support live sonar like Panoptix?
Yes, it pairs seamlessly with Panoptix and LiveScope transducers (sold separately) for real-time, forward-facing, and 360-degree sonar views.
Can I network multiple Garmin devices together?
Absolutely—share maps, radar, user data, and IP cameras across compatible Garmin units via the built-in Marine Network port.
What engine brands does it integrate with?
It supports integration with various engines, including Yamaha via J1939, plus autopilots, digital switching, and more through NMEA 2000.
Is the display usable in direct sunlight?
Yes, the 9-inch WSVGA touchscreen is sunlight-readable and supports polarized sunglasses for clear visibility in bright conditions.
How do I access software updates and community data?
Built-in Wi-Fi connects to the Garmin mobile app for OneChart access, Quickdraw Community data, smart notifications, and easy updates.
What's the maximum sonar depth capability?
Up to 5,000 feet with 1 kW traditional sonar, though actual performance varies by water conditions and transducer.
Garmin GPSMAP942xs Plus 9" Combo with BlueChart US g3 and Lakevu HD
Model: 010-02321-03- Easily integrate with more engines
- Connect to your favorite third-party devices
- Easily build your marine system using the best of network connectivity
- Navigate any waters with preloaded mapping and coastal charts
- See below your boat with built-in sonar capabilities (transducers sold separately)
- Manage your marine experience from nearly anywhere

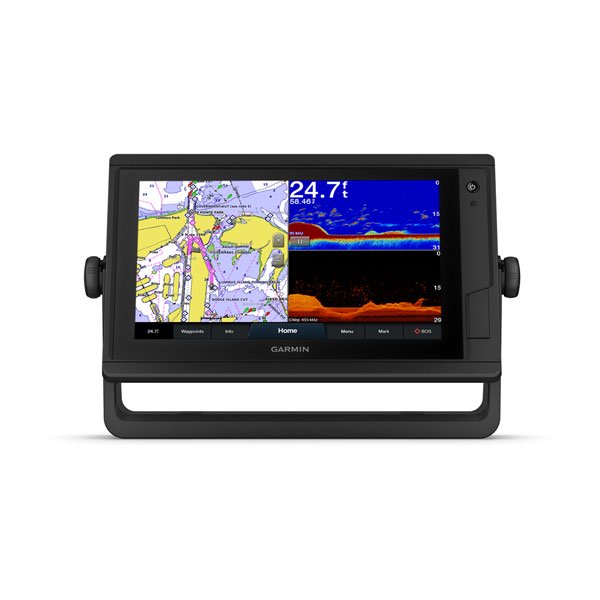

The bright, sunlight-readable 9" intuitive touchscreen chartplotter with enhanced map drawing is easy to use in any environment and seamlessly integrates into your Garmin marine system.
Get built-in support for 1 kW CHIRP traditional sonar for superior target separation and ClearVü scanning sonar to see up to 1,000’ below your boat at 260 kHz (transducer sold separately).
Pair with Panoptix or Panoptix LiveScope™ easy-to-interpret live sonar (transducer sold separately) to see all around your boat in real time.
Experience unparalleled coverage and detail with preloaded BlueChart® g3 coastal charts and LakeVü g3 inland maps featuring integrated Garmin and Navionics® content and Auto Guidance1 technology.
Upgrade to our reliable premium charts, which add even more industry leading features, such as high-resolution relief shading, to help you on each trip.
If you have multiple Garmin devices on your boat, you can share information — such as maps, user data, radar and IP cameras — among them.
Connect to autopilots, digital switching, weather, FUSION-Link™ audio system, media, VHF, AIS and more from one screen.
Built-in Wi-Fi® connectivity pairs with the free all-in-one mobile app for access to the OneChart™ feature, smart notifications2, software updates, Garmin Helm, Garmin Quickdraw™ Community data and more.
Connect with some of your favorite devices, such as quatix® marine watches, gWind™ Wireless 2 transducers, GNX™ Wind marine instruments and wireless remote controls.
Now you can connect your chartplotter to different kinds of engines, including Yamaha engines.
ONEHELM™ FEATURE - This exclusive feature brings together all the operations and capabilities of third-party devices, such as EmpirBus™ digital switching, on one screen.
Specifications| General | |
| Physical dimensions | 10.1" x 6.4" x 2.1" (25.6 x 16.2 x 5.2 cm) |
| Display size | 7.7" x 4.5"; 9.0" diagonal |
| Display resolution | 1024 x 600 pixels |
| Display type | WSVGA display |
| Weight | 2.6 lbs (1.2 kg) |
| Water Rating | IPX7 |
| Polarized Support | Yes |
| J1939 Compatible | Yes |
| Power consumption | Max power usage at 10 Vdc: 27 W |
| Antenna | Internal or external over NMEA 2000 |
| Mounting options | Bail or flush |
| Receiver | 10 Hz high-sensitivity |
| Garmin Marine Network™ ports | 1 |
| Maps & Memory | |
| Preloaded maps | BlueChart® g3 (coastal maps) and LakeVü g3 (inland maps) |
| Accepts data cards | 2 microSD™ cards; 32 GB max |
| Waypoints | 5,000 |
| Routes | 100 |
| Track log | 50,000 points; 50 saved tracks |
| Outdoor Recreation Features | |
| Tide tables | Yes |
| Chartplotter Features | |
| Garmin Radar compatible | Yes |
| Garmin Sonar compatible | Yes (built-in) |
| Garmin SmartMode compatible (customizable monitor presets) | Yes |
| Supports AIS (tracks target ships position) | Yes |
| Supports DSC (displays position data from DSC-capable VHF radio) | Yes |
| Supports FUSION-Link™ compatible radios | Yes |
| GSD™ Black Box sonar support | Yes |
| GCV™ Black Box sonar support | Yes |
| ActiveCaptain compatible | Yes |
| GRID™ (Garmin Remote Input Device) compatible | Yes |
| Wireless remote compatible | Yes |
| Sailing Features | Yes |
| Sonar Features & Specifications | |
| Dual-frequency (50/200 kHz) sonar capable | Yes |
| Dual-beam (77/200 kHz) sonar capable | Yes |
| Frequencies supported | Traditional: 50/77/83/200 kHz |
| Transmit power | 1 kW traditional; 1 kW single channel CHIRP |
| CHIRP sonar technology | Yes (Built-in) |
| ClearVü | Yes with CHIRP (built-in) |
| SideVü | Yes (with external black box, sold separately) |
| Maximum depth | 5,000 ft at 1kW (depth capacity is dependent on water bottom type and other water conditions) |
| Bottom lock (shows return from the bottom up) | Yes |
| Water temperature log and graph | Yes |
| Sonar recording | Yes |
| Sonar history rewind | Yes |
| Connections | |
| NMEA 2000® compatible | Yes |
| Transducer pin numbers | 8-pin (blue) |
| NMEA 0183 input ports | 1 (Differential) |
| NMEA 0183 output ports | 1 (Differential) |
| Video input ports | 1 BNC |
| Video output ports | None |
| Wireless connectivity | Yes |
What's in the Box:
- GPSMAP 942xs Plus chartplotter
- Power cable
- Bail mount with knobs
- Flush mount kit with gasket
- Protective cover
- Trim piece snap covers
- Documentation
Bright, sun-readable 9-inch intuitive touch screen chartplotter, with enhanced mapping capabilities, can be easily used in any environment, and can be seamlessly integrated into the Garmin marine system. This Garmin mapping system comes with pre-loaded BlueChart g3 Coastal and LakeVu g3 inland maps. You have multiple Garmin devices on board where you can share information such as maps, user data, radars and IP cameras.
The bright, direct sunlight 9-inch intuitive touch screen chartplotter has enhanced mapping capabilities, can be easily used in any environment, and can be seamlessly integrated into the Garmin navigation system. The Garmin mapping system comes with pre-installed BlueChart g3 Coastal and LakeVu g3 inland maps. There are multiple Garmin devices on the board where you can share information such as maps, user data, radars and IP cameras.
SKU: NVN-1001614
MPN: 010-02321-03
UPC: 753759240806
